Victron SmartSolar MPPT 150/45 Bluetooth Solar Controller 12-48v

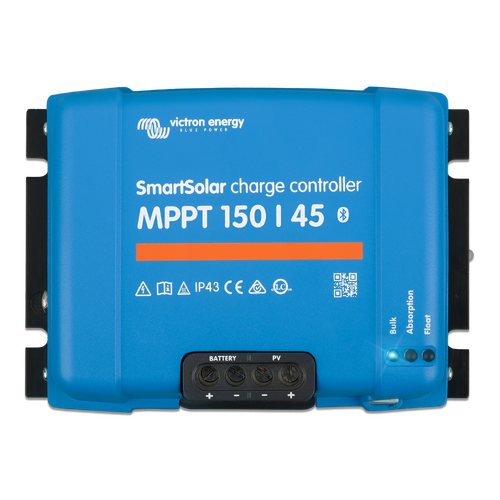

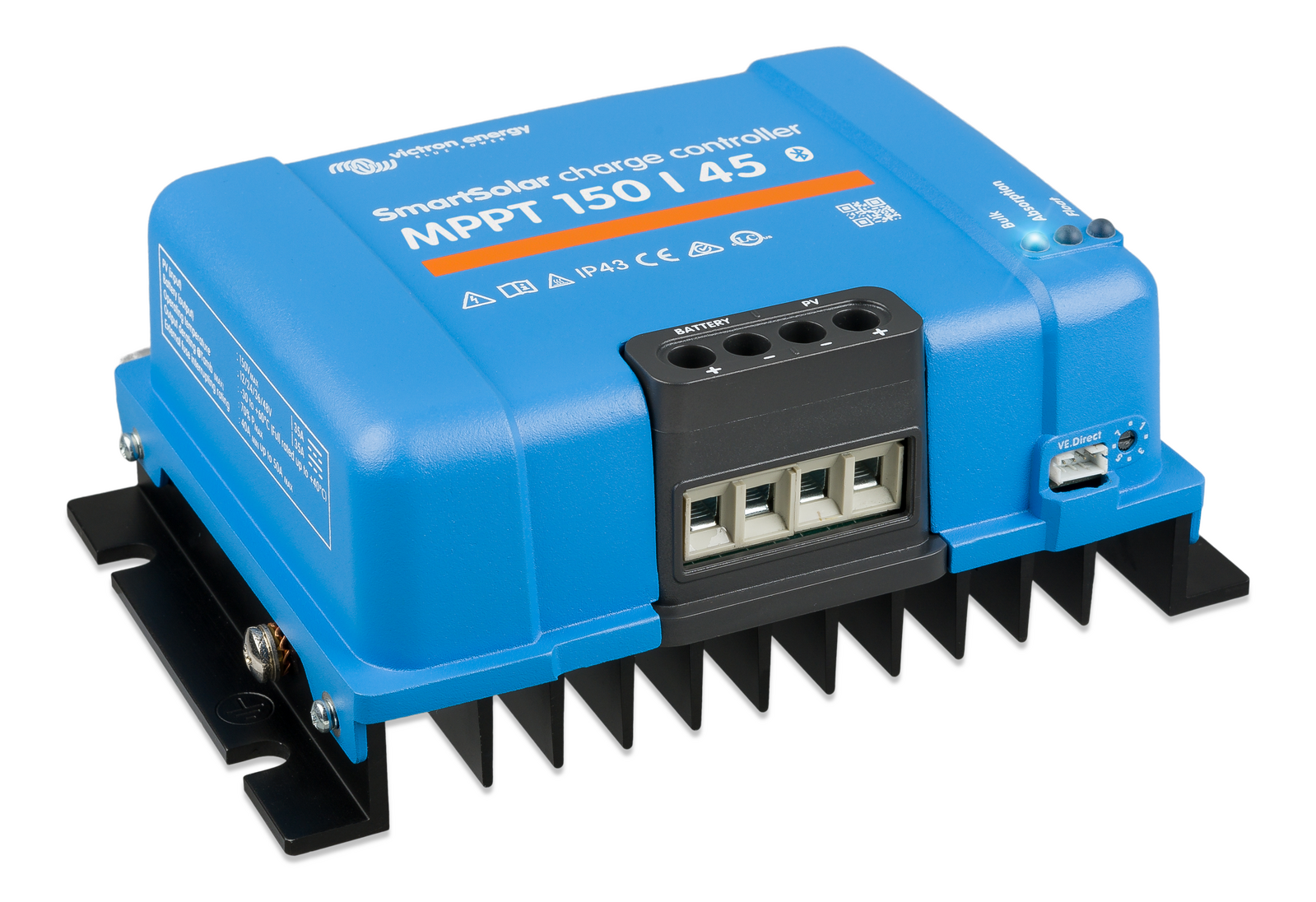

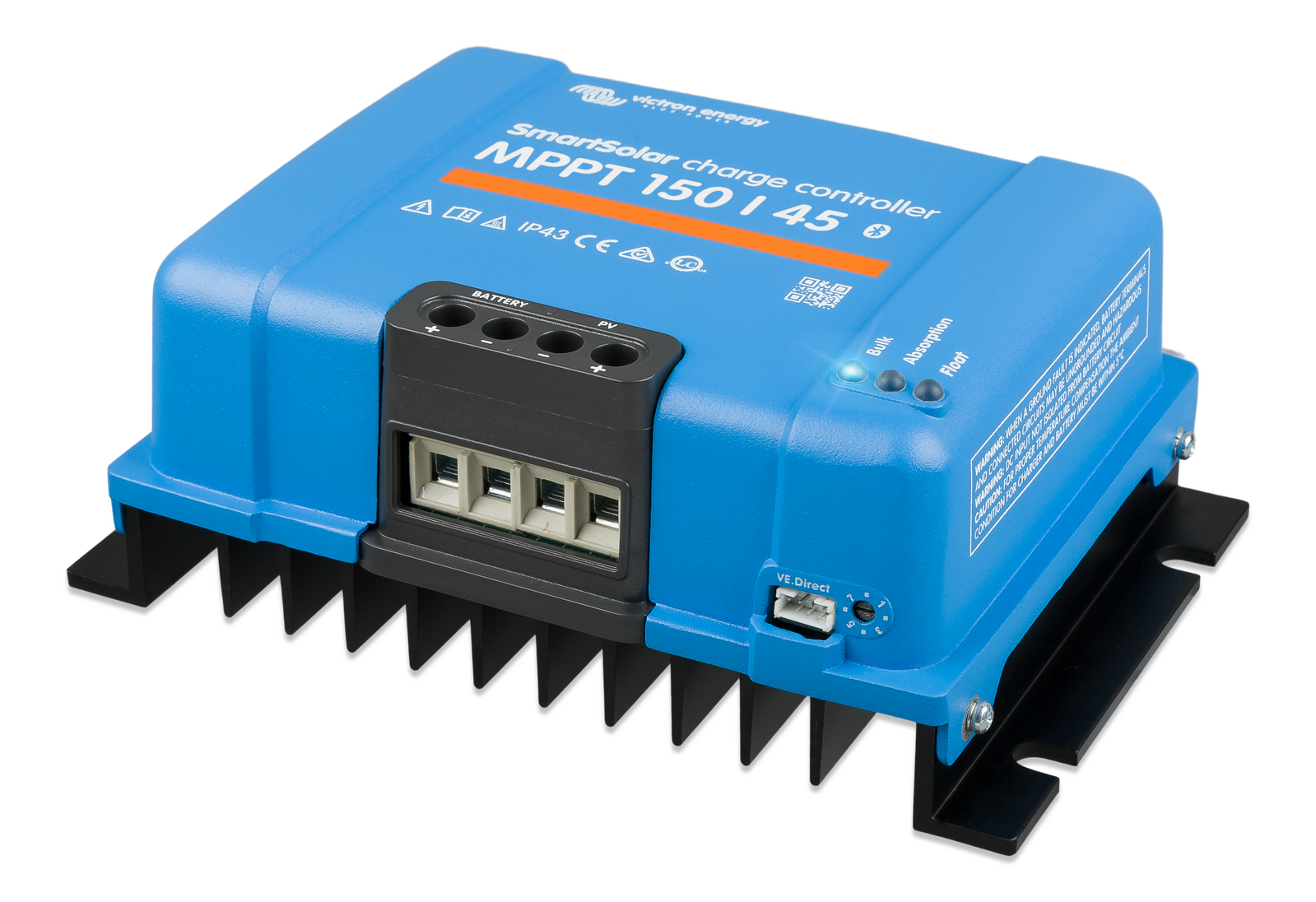

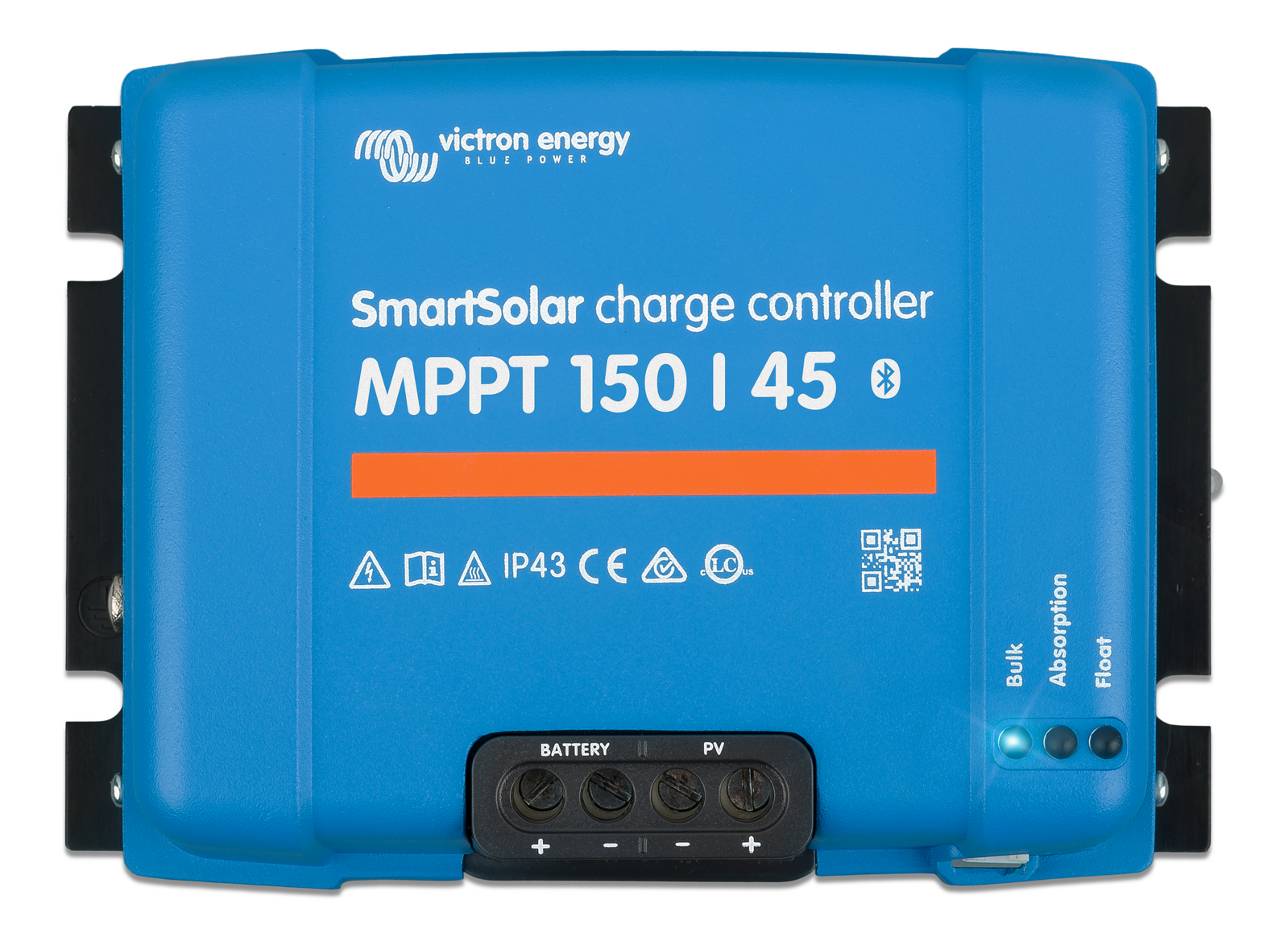

SmartSolar MPPT 150/45 Solar Controller
Victron SmartSolar 150V 45 Amp MPPT Solar Charge Controller with Bluetooth for 12-48v Systems - Lithium Compatible
Max. Solar Input 12v Battery: 650w
Max. Solar Input 24v Battery: 1300w
Max. Solar Input 36v Battery: 1950w
Max. Solar Input 48v Battery: 2600w
Max. Solar Currant: 45A
The Victron MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged
- Ultra-fast Maximum Power Point Tracking (MPPT) - Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
- Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
- Internal temperature sensor Compensates absorption and float charge voltage for temperature.
- Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
- Fully discharged battery recovery function Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.
- VE.Can: the multiple controller solution Up to 25 units can be synchronised with VE.Can

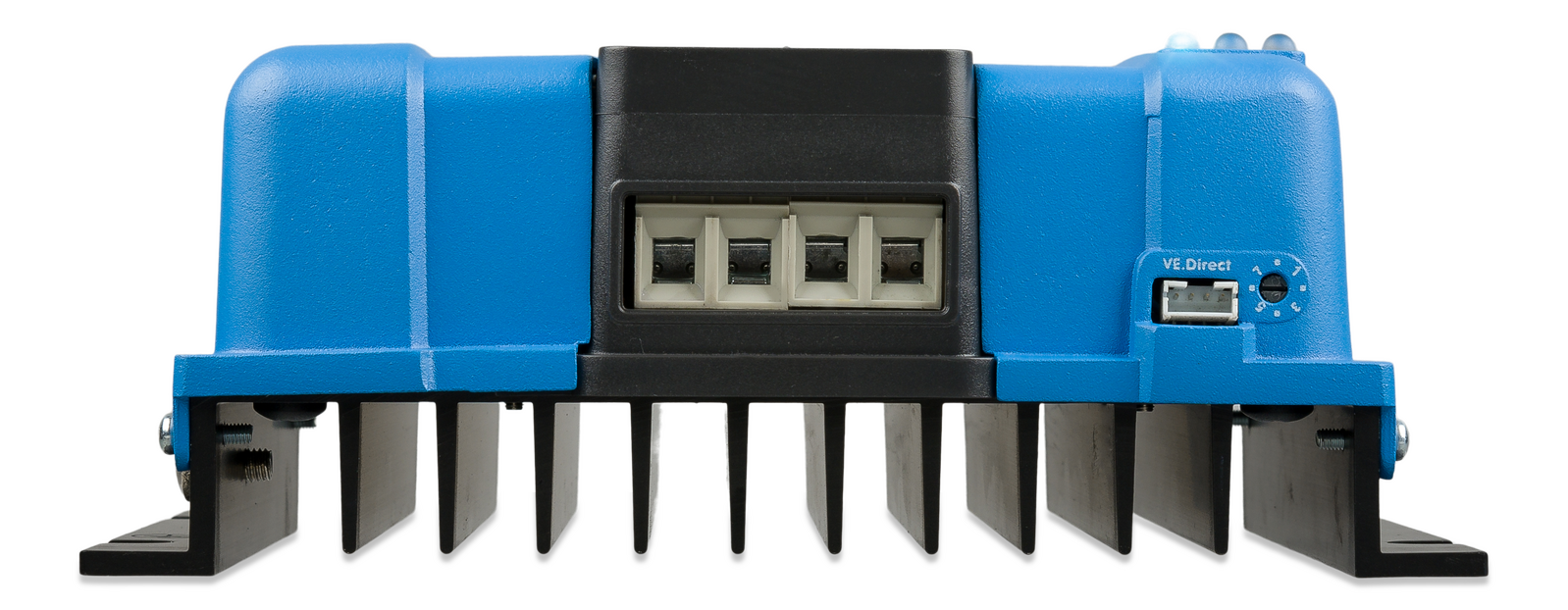

- VE.Direct or VE.Can For a wired data connection to a Color Control GX, other GX products, PC or other devices
- Remote on-off To connect for example to a VE.BUS BMS.
- Programmable relay Can be programmed to trip on an alarm, or other events.
- Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%.
- Flexible charge algorithm Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
- Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

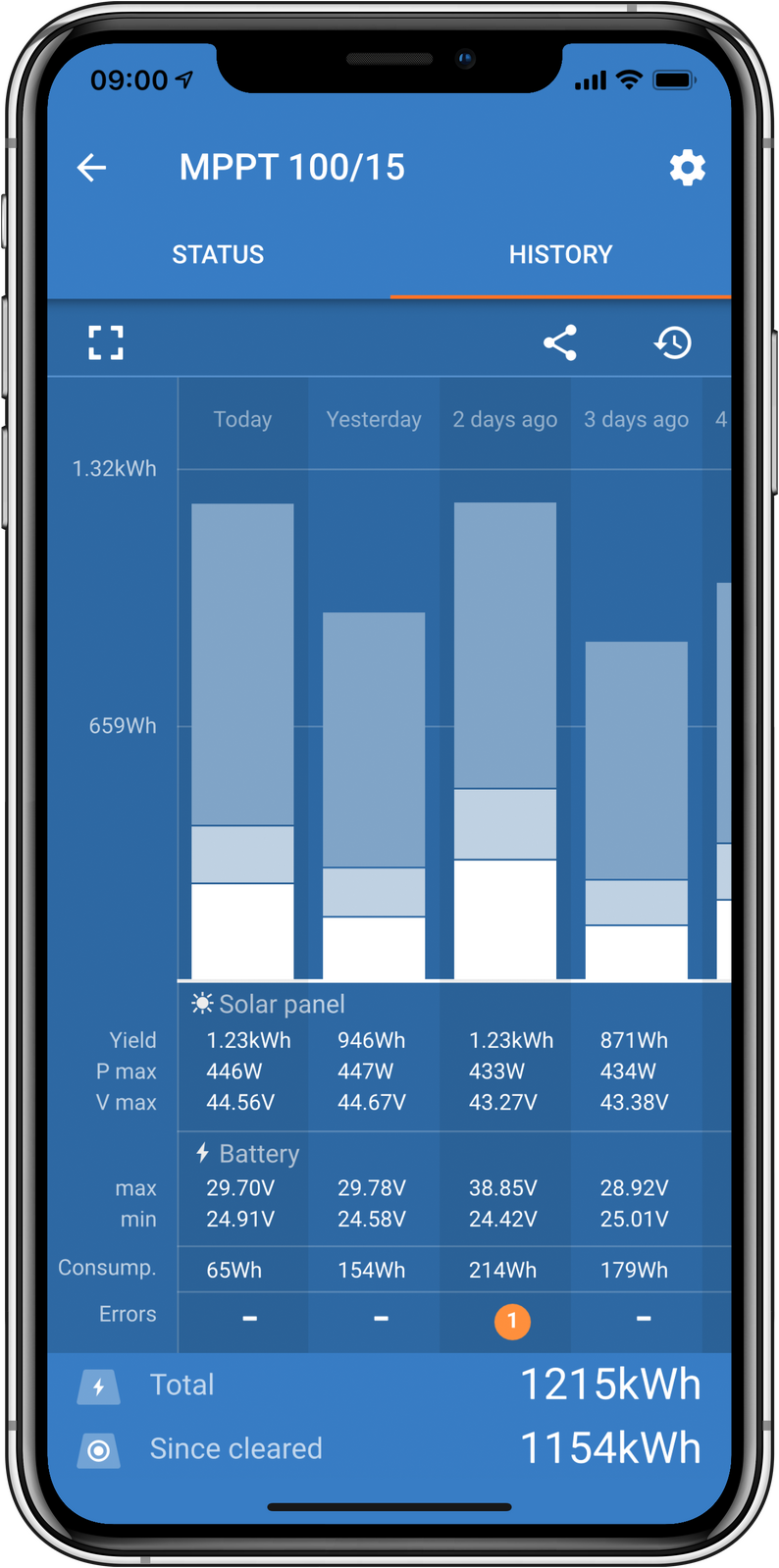

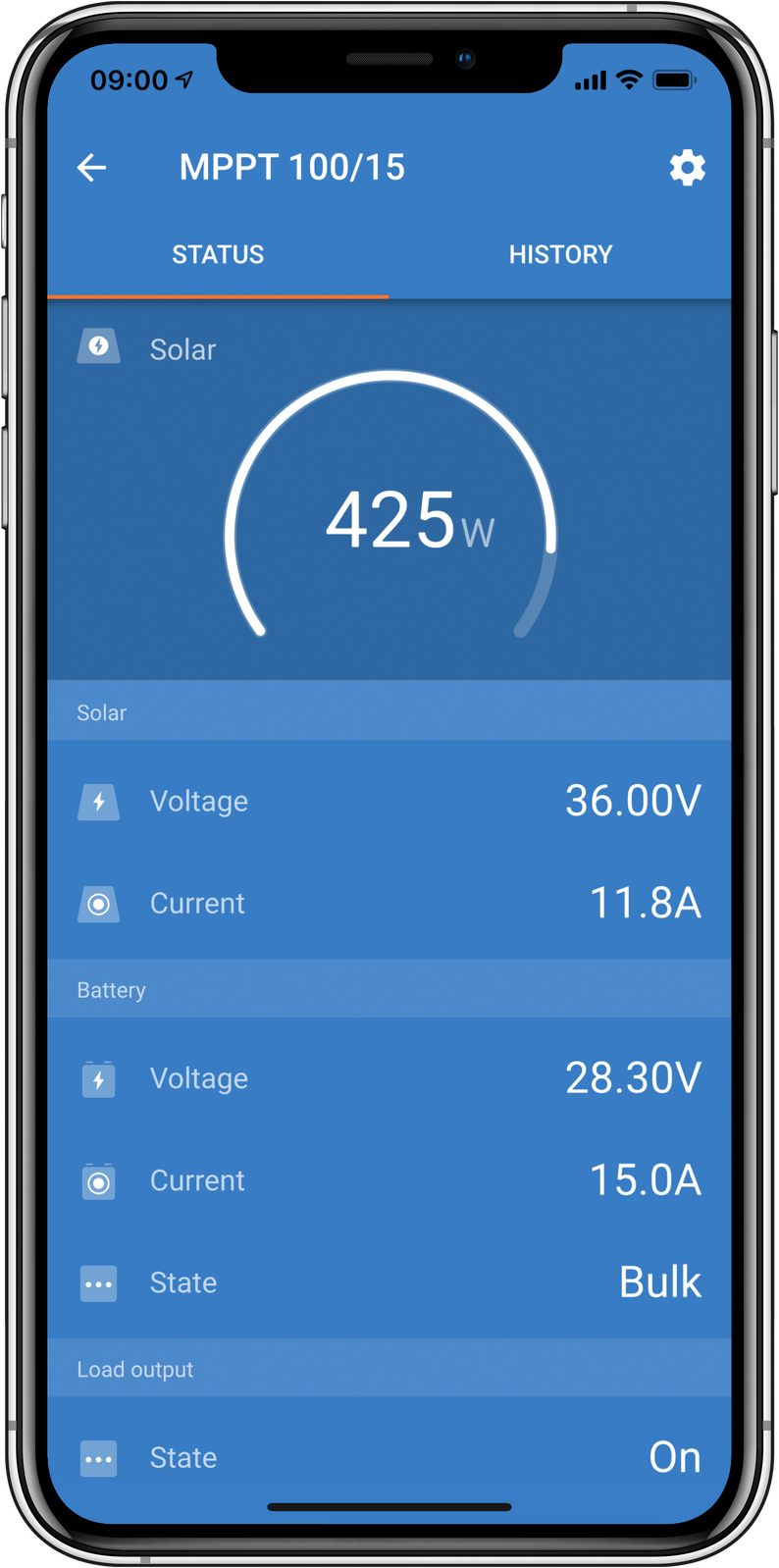

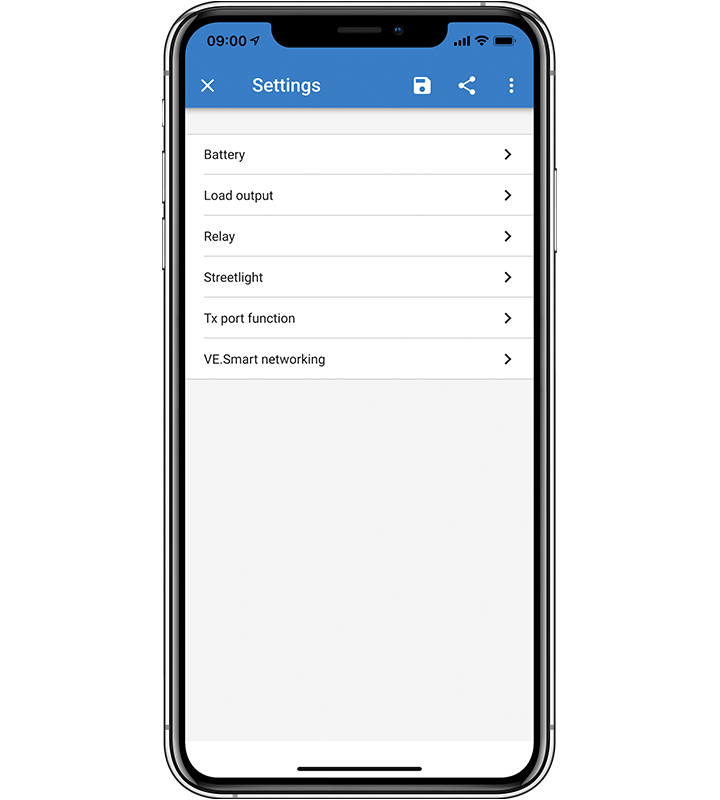

- Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
MODEL | MPPT 150/45 |
---|---|
Battery Voltage (Auto Select) | 12 / 24 / 48 V Auto Select (software tool needed to select 36 V |
Rated Charge Current | 45A |
Max. Solar Input 12v Battery | 650W |
Max. Solar Input 24v Battery | 1300W |
Max. Solar Input 36v Battery | 1950W |
Max. Solar Input 48v Battery | 2600W |
Max. PV Short Circuit Current | 50A |
Max. PV Open Circuit Voltage |
150v absolute maximum coldest conditions
145v start-up and operating maximum |
Automatic Load Disconnect | YES |
Peak Efficiency | 98% |
Self-Consumption | 12 V: 20 mA 24 V: 15 mA 48 V: 10 mA |
Charge voltage - Float | Default setting: 13.8v / 27.6v (adjustable: rotary switch, display, VE.Direct or Bluetooth) |
Charge Voltage - Absorption | Default setting: 14.4v / 28.8v (adjustable: rotary switch, VE.Direct or Bluetooth |
Charge Algorithm | Multi-Stage Adaptive |
Temperature Compensation | -16 mV / °C resp. -32 mV / °C |
Protection | PV Reverse Polarity, Output Short Circuit, Over Temperature |
Operating Temperature | -30°C to 60°C (Full Output rated up to 40°C) |
Humidity | 95% non-condensing |
Data communication port | VE.Direct (see the data communication white paper on the Victron website) |
Power Terminals | 35 mm² / AWG2 |
Protection Category | IP43 (Electronic Components), IP22 (Connection Area) |
Weight | 1.25KG |
Dimensions (H x W x D) | 130 x 86 x 70 mm |
SKU | 8719076053026 |
Barcode # | SCC115045212 |
Brand | Victron |
Shipping Weight | 5.6000kg |
Shipping Width | 0.350m |
Shipping Height | 0.170m |
Shipping Length | 0.300m |
Shipping Cubic | 0.017850000m3 |
