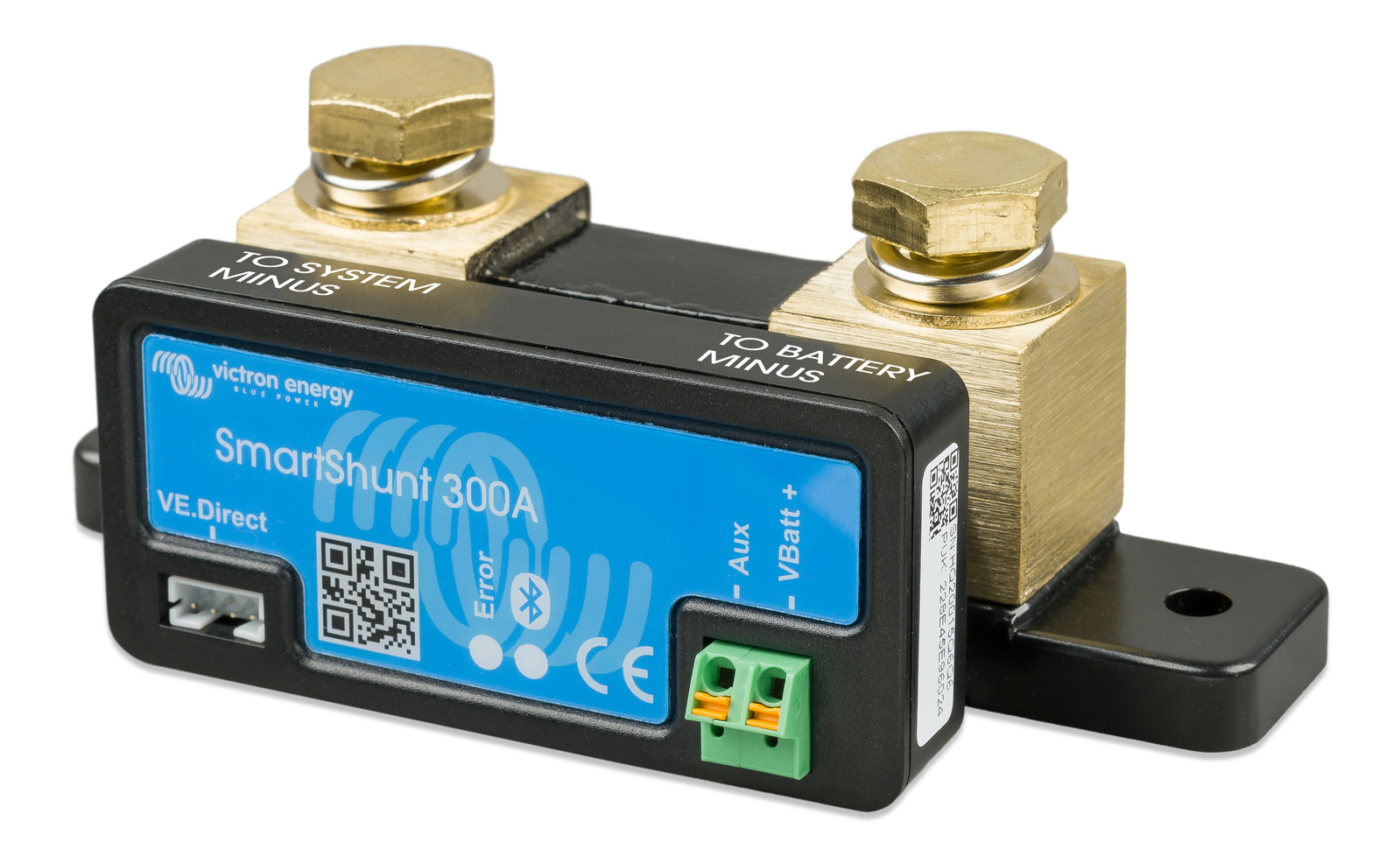

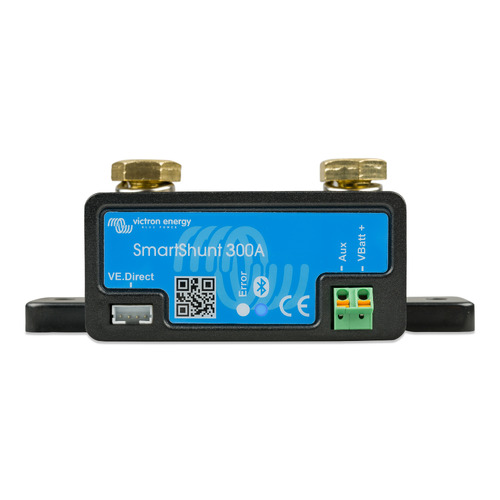

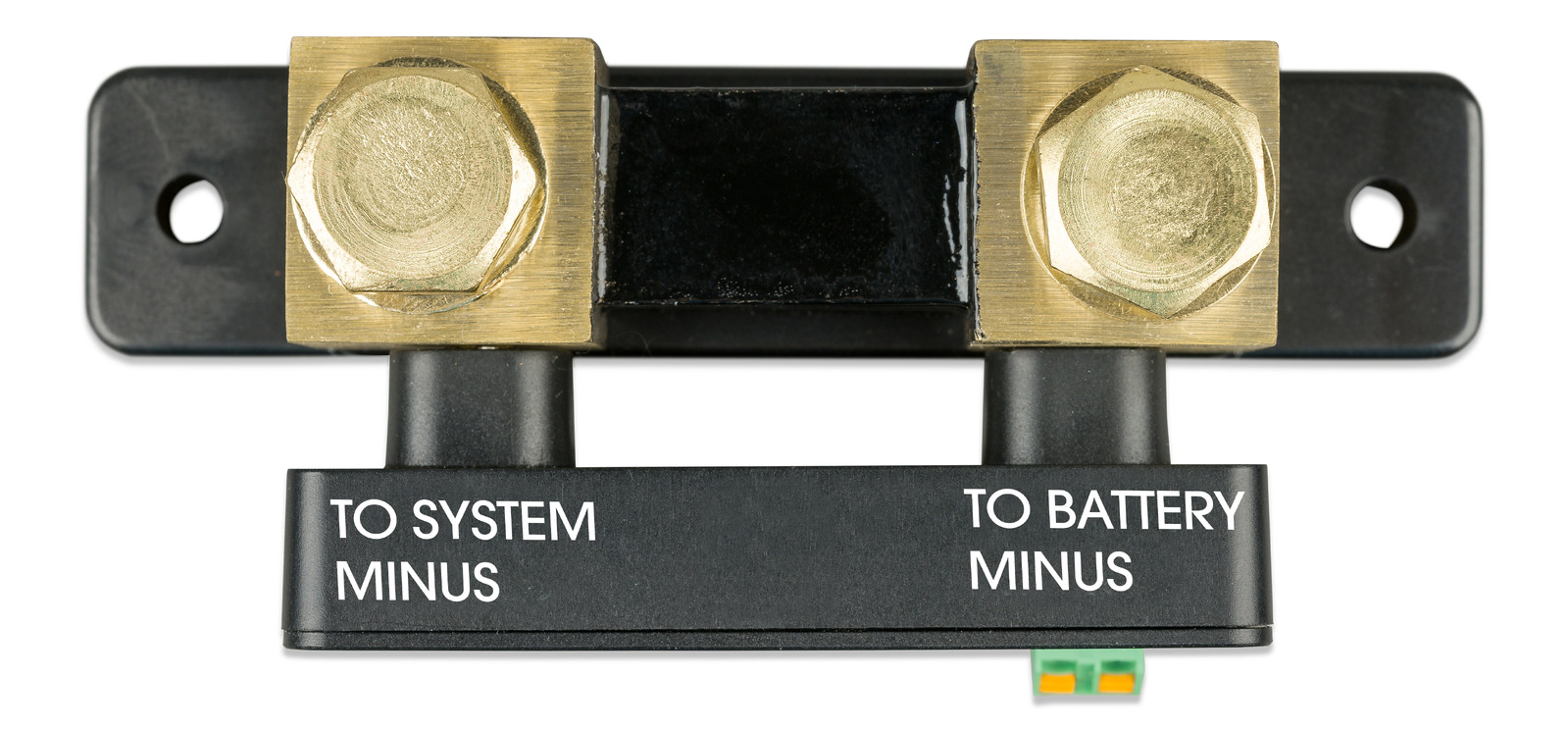

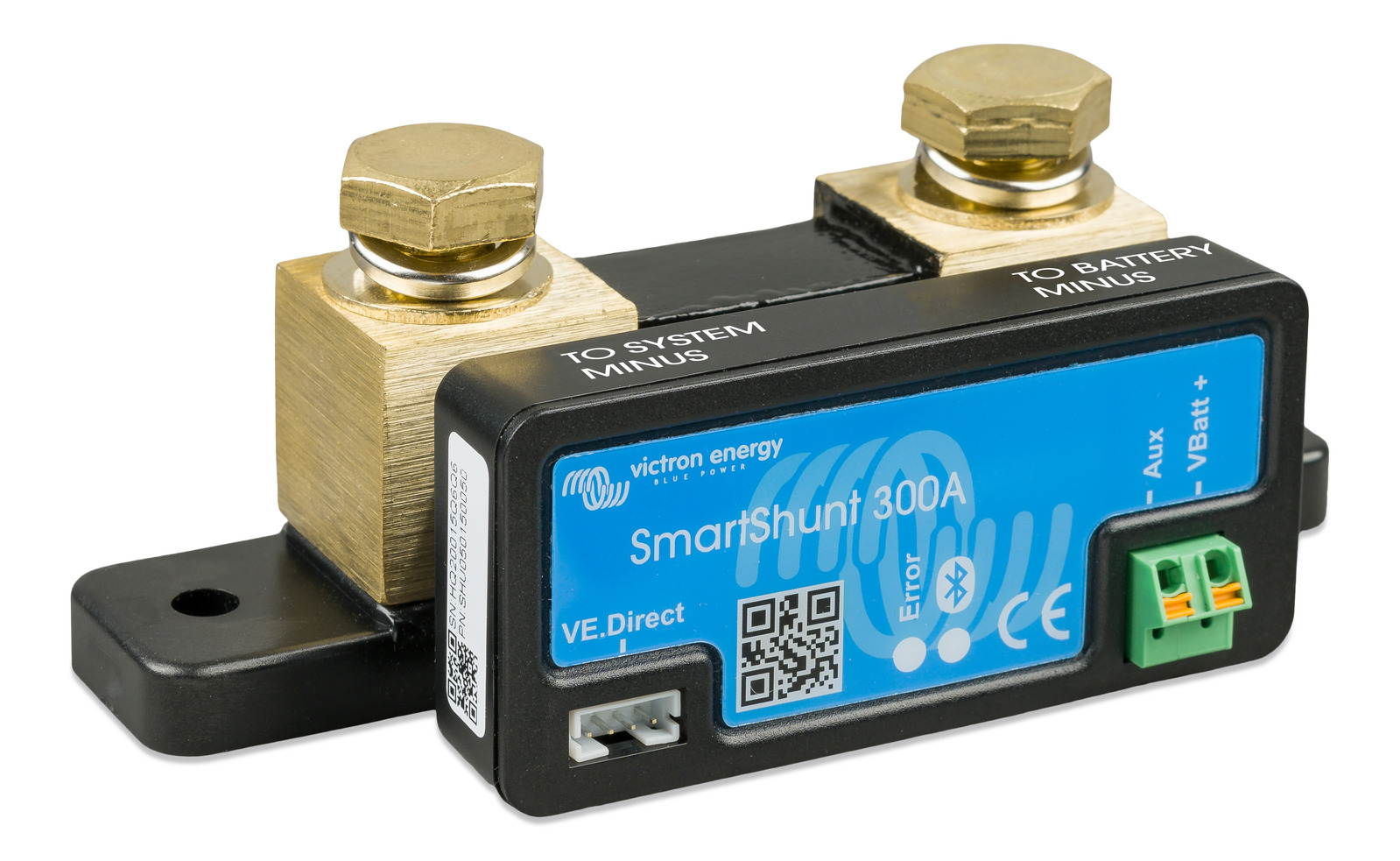

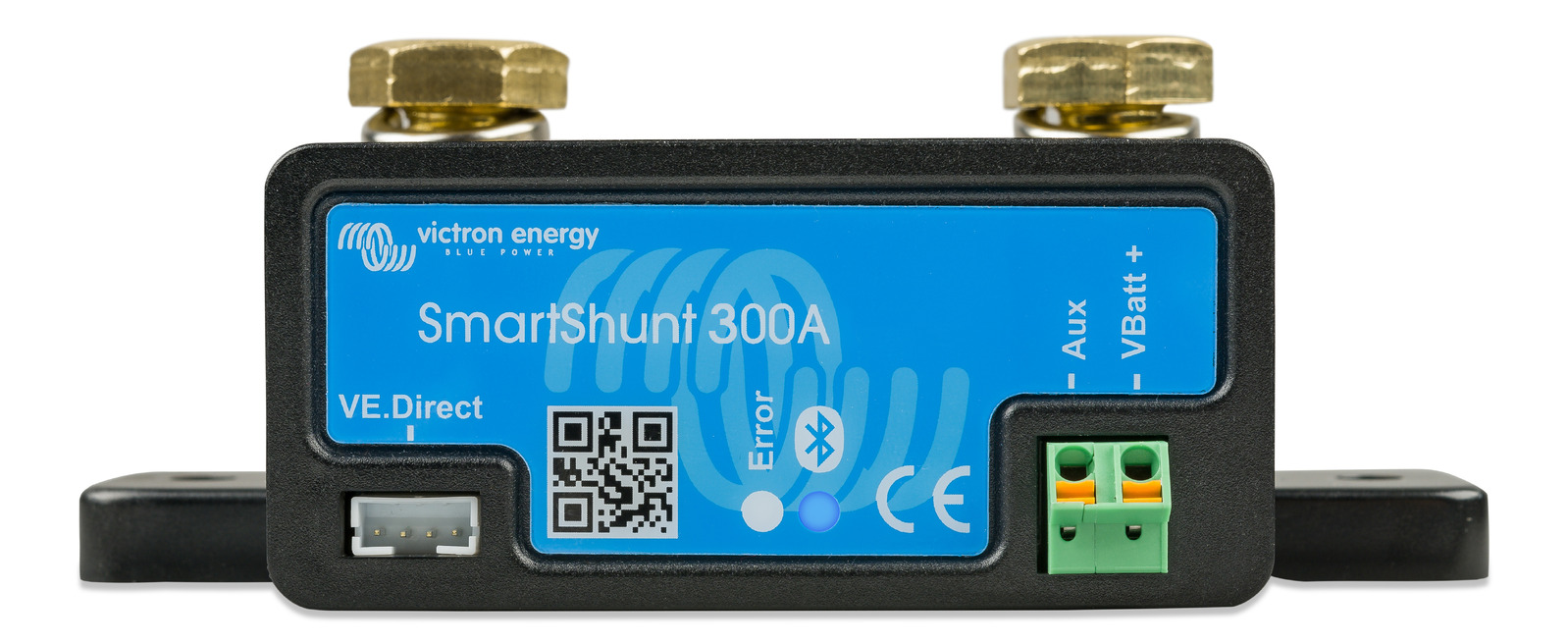

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Differences compared to BMV712 Battery Monitor

  • No programmable visual and audible alarm.
  • No programmable relay
Supply Voltage Range
6.5V ~ 70V DC
Current Draw
< 1mA
Input Voltage Range, Auxiliary Battery
6.5 ~ 95VDC
Battery Capacity (Ah) 1 ~ 9999Ah
Operating Temperature Range
-40°C to +50°C (-40°F to 120°F)
Measures Voltage of Second Battery, or Temperature, or Midpoint
Yes
Temperature Measurement Range
-20°C to +50°C
VE.Direct Communication Port
Yes
RESOLUTION & ACCURACY
Current
± 0.01A
Voltage
±0.01V
Amp hours
± 0.1Ah
State of Charge (0 - 100%)
± 0.1%
Time to Go
± 1 min
Temperature (0 - 50°C or 30 - 120°F) (if optional temperature Sensor connected)
± 1°C / °F
Accuracy of Current Measurement
± 0.4%
Accuracy of Voltage Measurement
± 0.3%
Protection Category
IP55 (not intended for outdoor use)
Cables (included)
Two cables with 1A fuse, for ‘+’ connectionand starter battery or midpoint connection



SKU 8719076065708
Barcode # SHU050130050
Brand Victron
Shipping Weight 0.3400kg
Shipping Width 0.105m
Shipping Height 0.055m
Shipping Length 0.165m
Shipping Cubic 0.000952875m3
