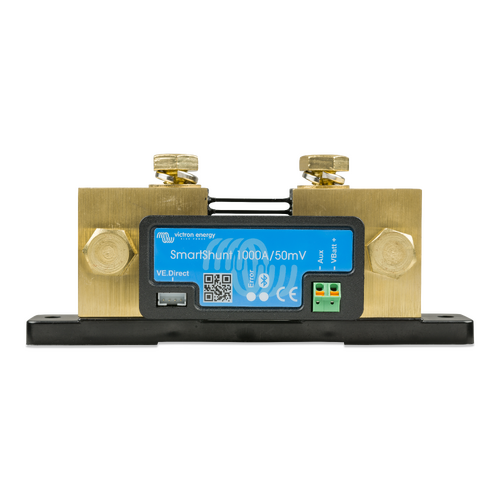

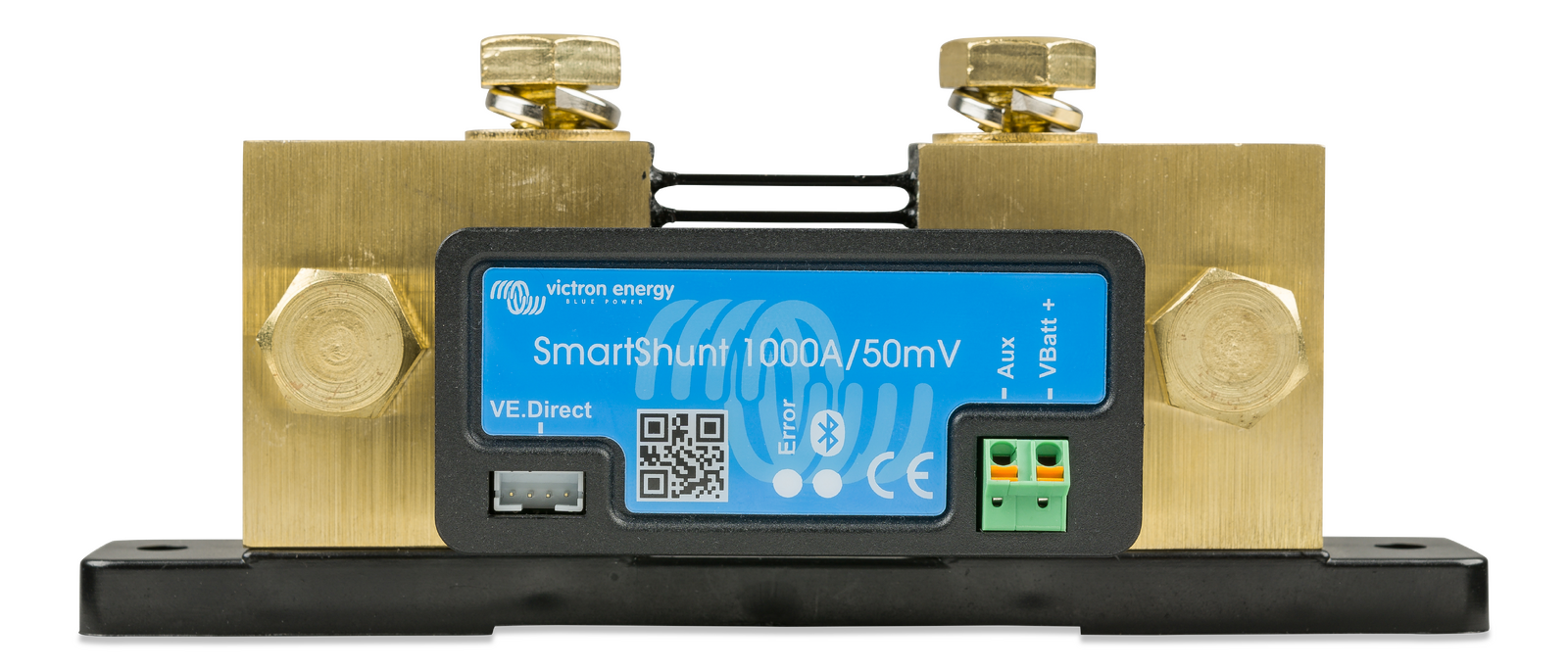

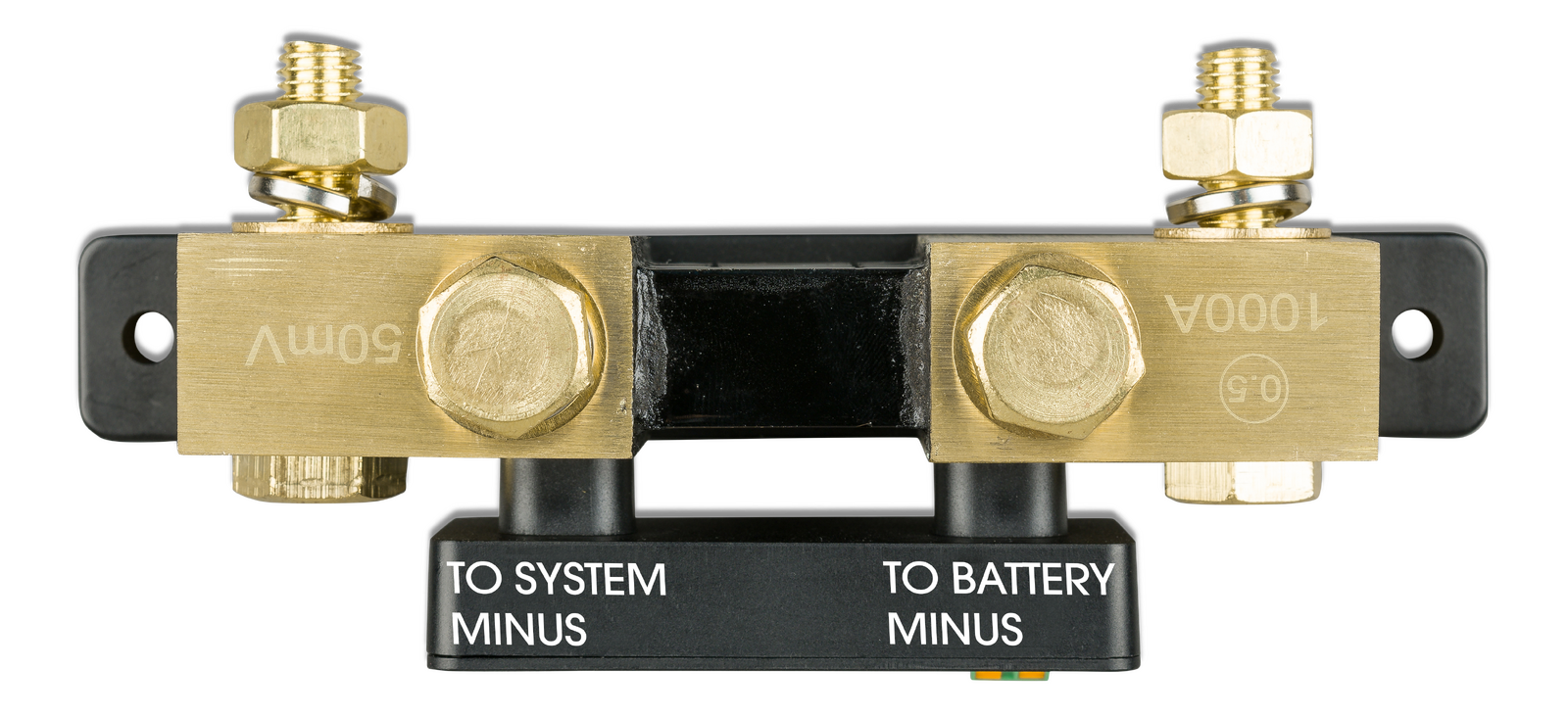

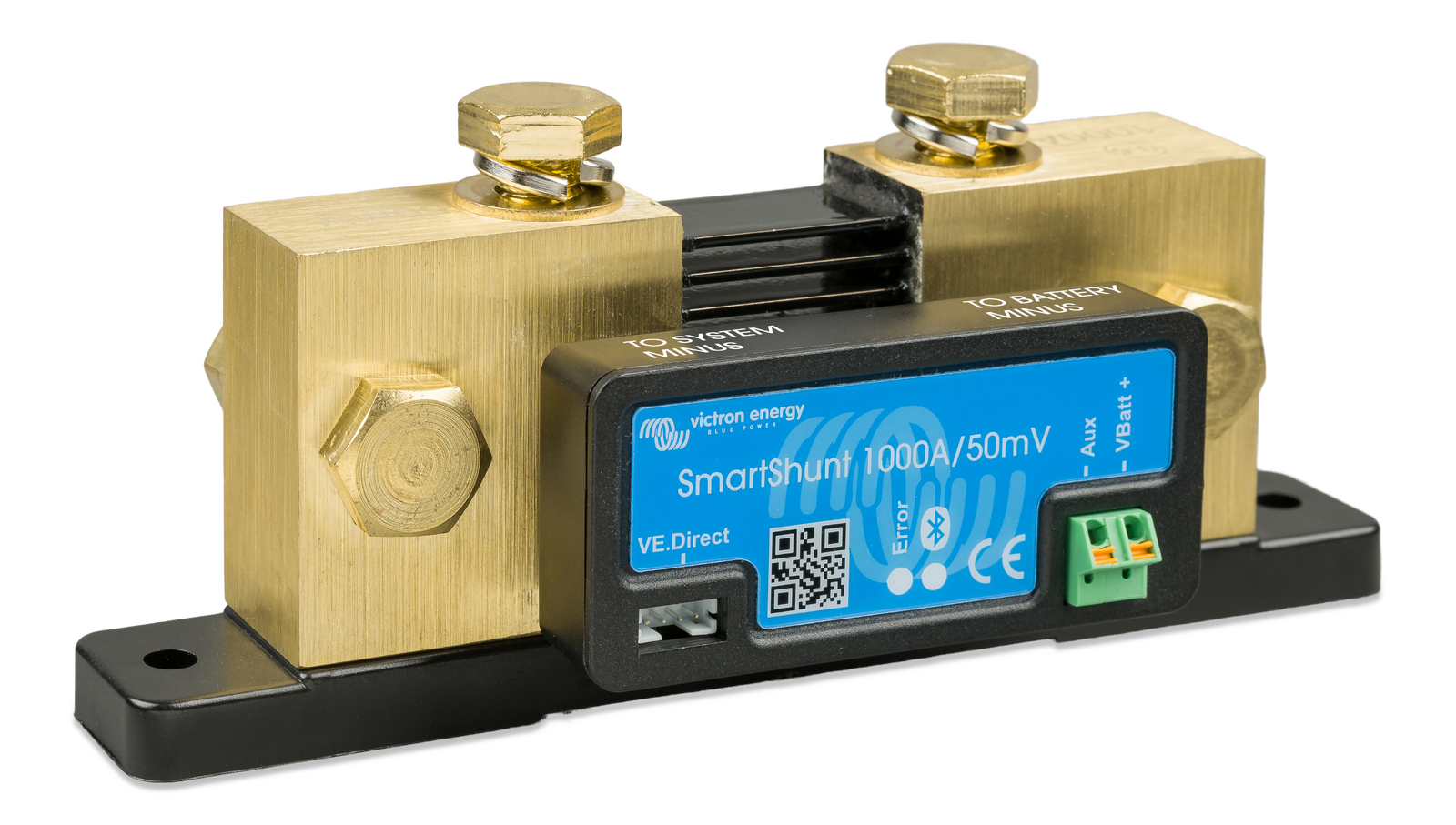

Victron SmartShunt 1000A/50mV Bluetooth Battery Monitor
Victron SmartShunt 1000A/50mV Bluetooth Battery Monitor
The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
Differences compared to BMV712 Battery Monitor
- No programmable visual and audible alarm.
- No programmable relay
|
Supply Voltage Range
|
6.5V ~ 70V DC
|
|---|---|
|
Current Draw
|
< 1mA
|
|
Input Voltage Range, Auxiliary Battery
|
6.5 ~ 95VDC |
| Battery Capacity (Ah) | 1 ~ 9999Ah |
|
Operating Temperature Range
|
-40°C to +50°C (-40°F to 120°F)
|
|
Measures Voltage of Second Battery, or Temperature, or Midpoint
|
Yes |
|
Temperature Measurement Range
|
-20°C to +50°C
|
|
VE.Direct Communication Port
|
Yes |
|
RESOLUTION & ACCURACY
|
|
| Current |
± 0.01A
|
| Voltage |
±0.01V
|
|
Amp hours
|
± 0.1Ah
|
|
State of Charge (0 - 100%)
|
± 0.1%
|
|
Time to Go
|
± 1 min
|
|
Temperature (0 - 50°C or 30 - 120°F) (if optional temperature Sensor connected)
|
± 1°C / °F
|
|
Accuracy of Current Measurement
|
± 0.4%
|
|
Accuracy of Voltage Measurement
|
± 0.3%
|
|
Protection Category
|
IP55 (not intended for outdoor use)
|
|
Cables (included)
|
Two cables with 1A fuse, for ‘+’ connectionand starter battery or midpoint connection
|
| SKU | 8719076044260 |
| Barcode # | SHU050210050 |
| Brand | Victron |
| Shipping Weight | 1.2400kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.080m |
| Shipping Length | 0.080m |
| Shipping Cubic | 0.001152000m3 |
