Victron Phoenix Inverter 48/500VA 230v V.E. Direct
Victron Phoenix Inverter 48/500VA 230v V.E. Direct
$265.15
Pre-order
⚠️Shipped from Vendor Warehouse - Stock availability will need to be confirmed with vendor
VE.Direct communication port: The VE.Direct port can be connected to:
- A computer (VE.Direct to USB interface cable needed)
- Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:
- Low battery voltage alarm trip and reset levels
- Low battery voltage cut-off and restart levels
- Dynamic cut-off: load dependent cut-off level
- Output voltage 210 - 245V
- Frequency 50 Hz or 60 Hz
- ECO mode on/off and ECO mode sense level
Features:
- Monitoring: In- and output voltage, % load and alarms
- Proven reliability: The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
- High start-up power: Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
- ECO mode: When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.

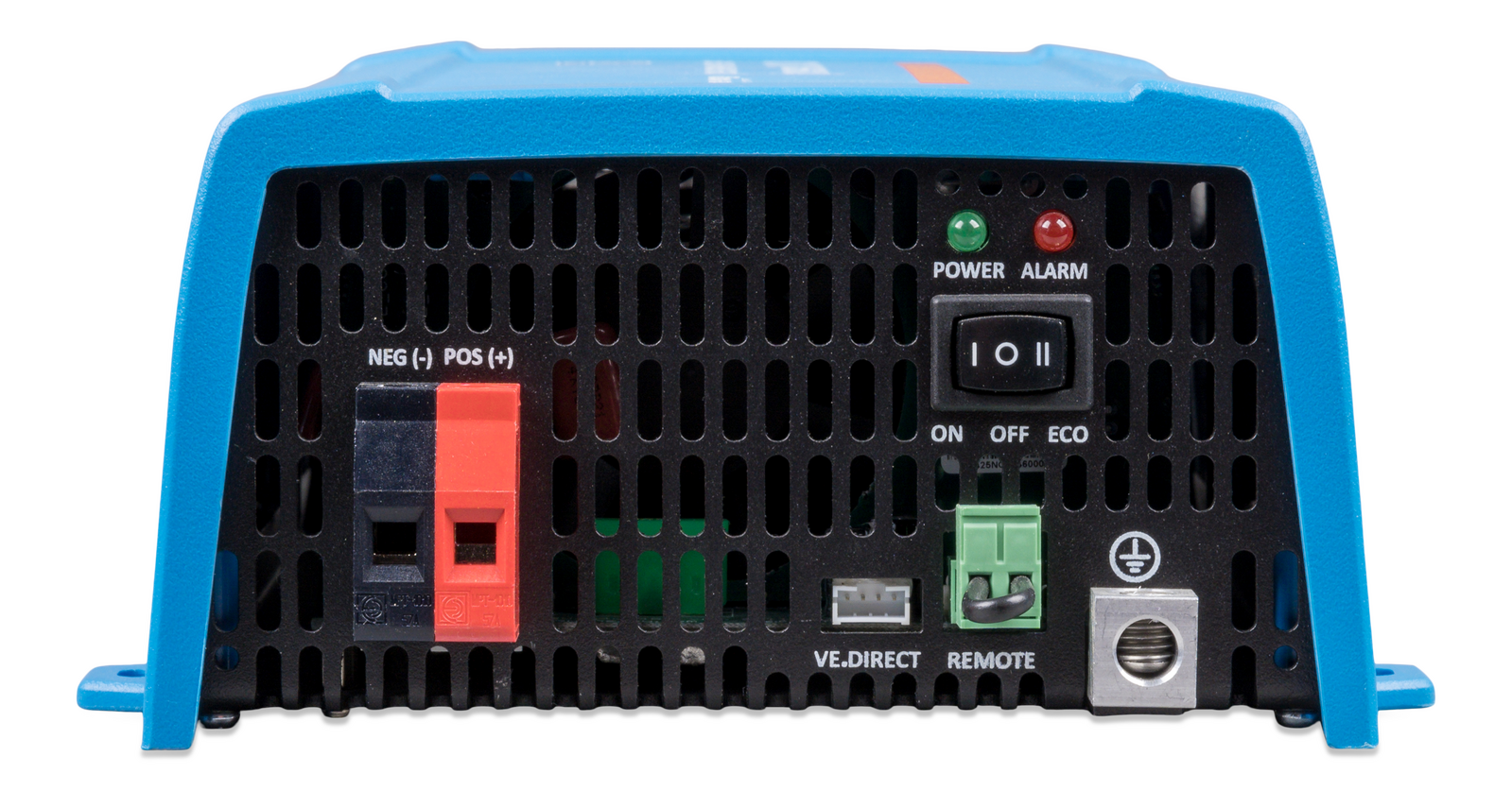

- Remote on/off: A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.
- LED diagnosis: Please see manual for a description.
- To transfer the load to another AC source: the automatic transfer switch: For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.
- DC connection with screw terminals: No special tools needed for installation.
| Model | 48/500VA |
|---|---|
| Parallel and 3-phase operation | No |
| Input voltage range | 36.8 - 62v |
| DC low shut down (adjustable) | 37.2v |
| Output | Output voltage: 230 VAC ±2% 50 Hz or 60 Hz ± 0.1% (1) |
| Cont. output power at 25ºC (1) | 500 VA |
| Cont. output power at 25ºC | 400 W |
| Peak power | 900 W |
| Dynamic (load dependent) DC low shutdown (fully configurable) | Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff |
| DC low restart and alarm (adjustable) | 43.6v |
| Battery charged detect (adjustable) | 56v |
| Max. efficiency 12/ 24 /48 V | 91% |
| Zero load power 12 / 24 / 48 V | 9.0 W |
| Zero load power in ECO mode | 3.0 W |
| Stop & start power ECO-mode | Adjustable |
| Protection (3) | A - F |
| VE.Direct communication port | For remote monitoring and system integration |
| Remote on-off | Yes |
| Temperature Range & Humidity | Operating temperature range: -40 to +65ºC (fan assisted cooling) Humidity (non-condensing): max 95% |
| Enclosure | Steel chassis and plastic cover (blue Ral 5012) Protection category: IP21 |
| Battery-connection | Screw terminals |
| 230 V AC-connection | 230V: Schuko (CEE 7/4), IEC-320 (male plug included) |
| Dimensions (H x W x D) | 275 x 172 x 86mm |
| Weight | 3.9kg |
- Non-linear load, crest factor 3:1
- Protection key:
- a) output short circuit
- b) overload
- c) battery voltage too high
- d) battery voltage too low
- e) temperature too high
- f) 230 V AC on inverter output
| SKU | 8719076056843 |
| Barcode # | PIN481501300 |
| Brand | Victron |
| Shipping Weight | 4.6000kg |
| Shipping Width | 0.360m |
| Shipping Height | 0.150m |
| Shipping Length | 0.260m |
| Shipping Cubic | 0.014040000m3 |
