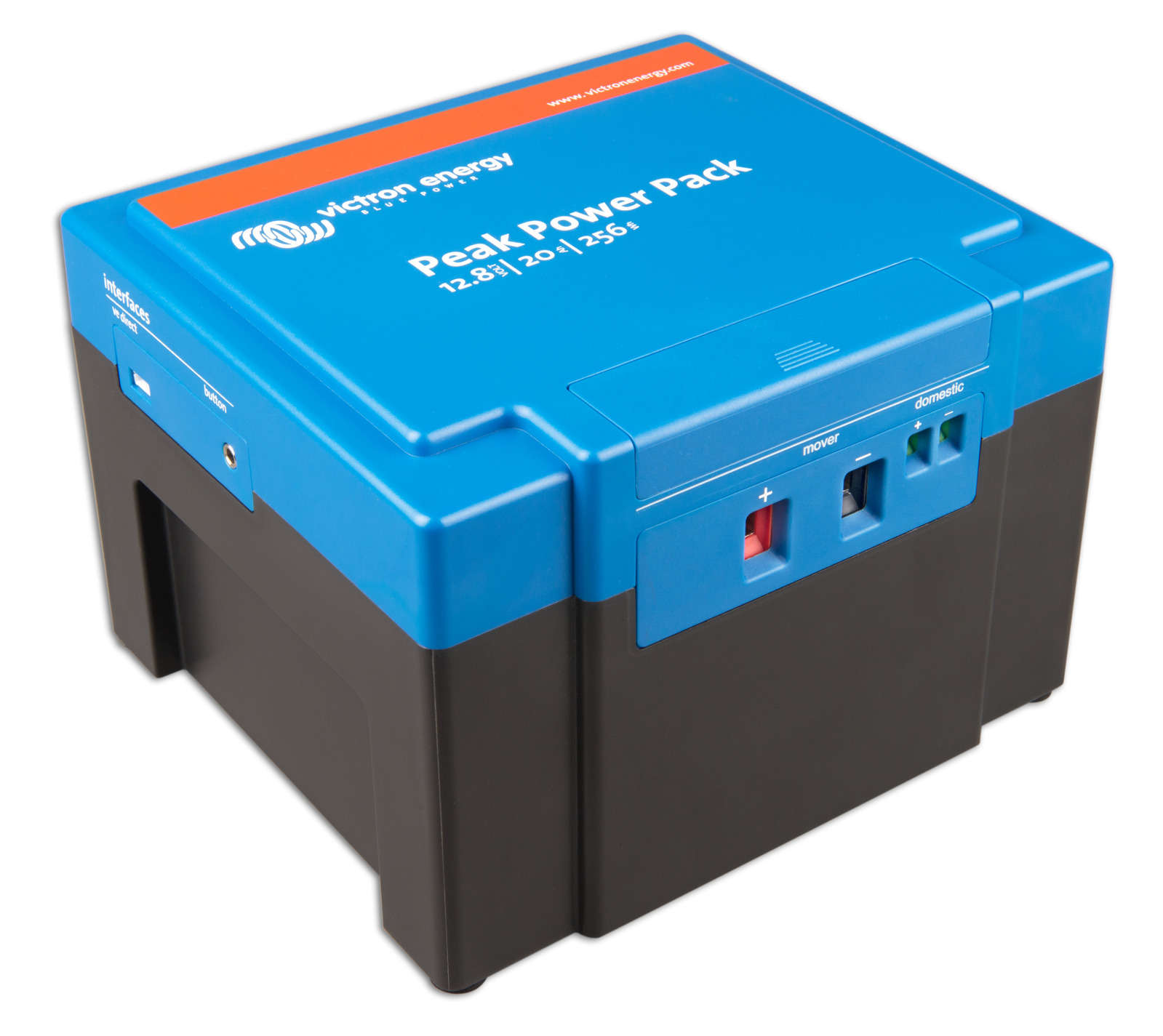

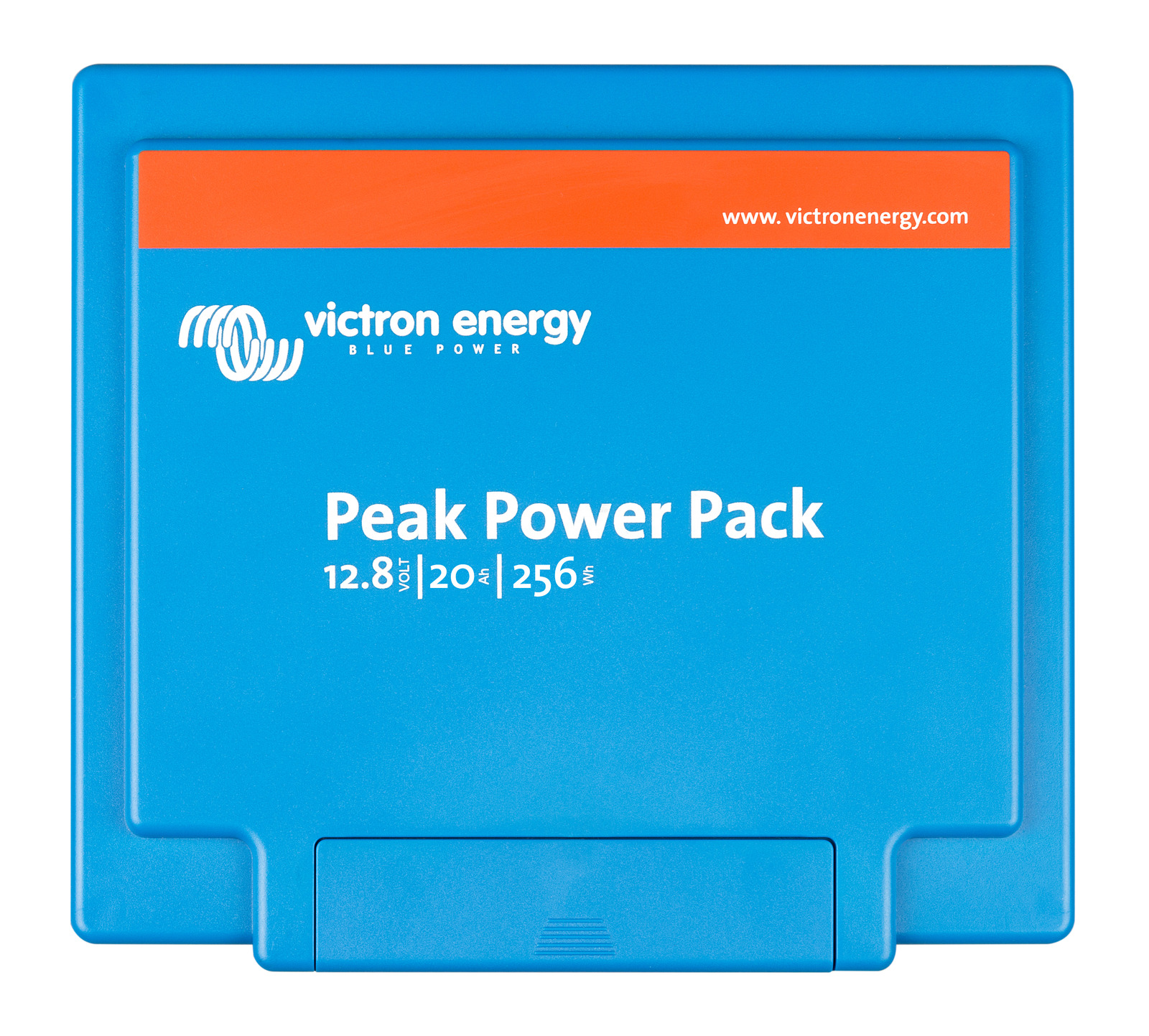

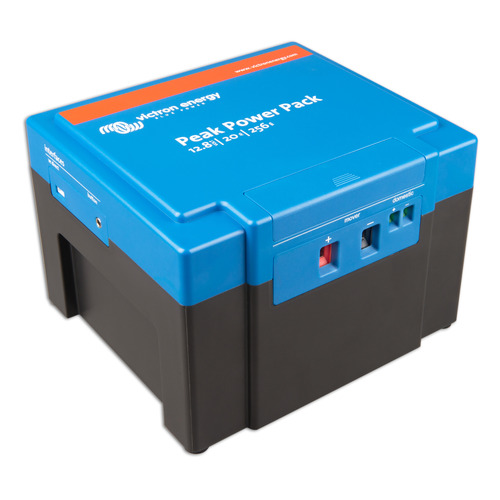

A lithium-ion battery pack with intrinsically safe LiFePO4 cells, a built-in charger, and suitable for high discharge currents.
Nominal voltage: 12.8 V
Battery capacity: 20 Ah to 40 Ah (not suitable for parallel or series connection)

The Peak Power Pack is a complete substitute for heavy lead acid batteries in applications where high currents occur for short time.

Being primarily meant for caravan movers, it is equipped with a built-in charger allowing charging from the vehicle electrical system whilst travelling with the caravan. This way the pack will be fully charged upon arrival to the camping site. If necessary, the charging is possible using the supplied adapter via a grid outlet. Charging from a solar panel is also possible.

Lightweight and easy to install

• Ideal for mobile applications.

Effective protection against improper use

• Ideal for solar power and other applications where excessive discharge might quickly cause damage to lead acid batteries.

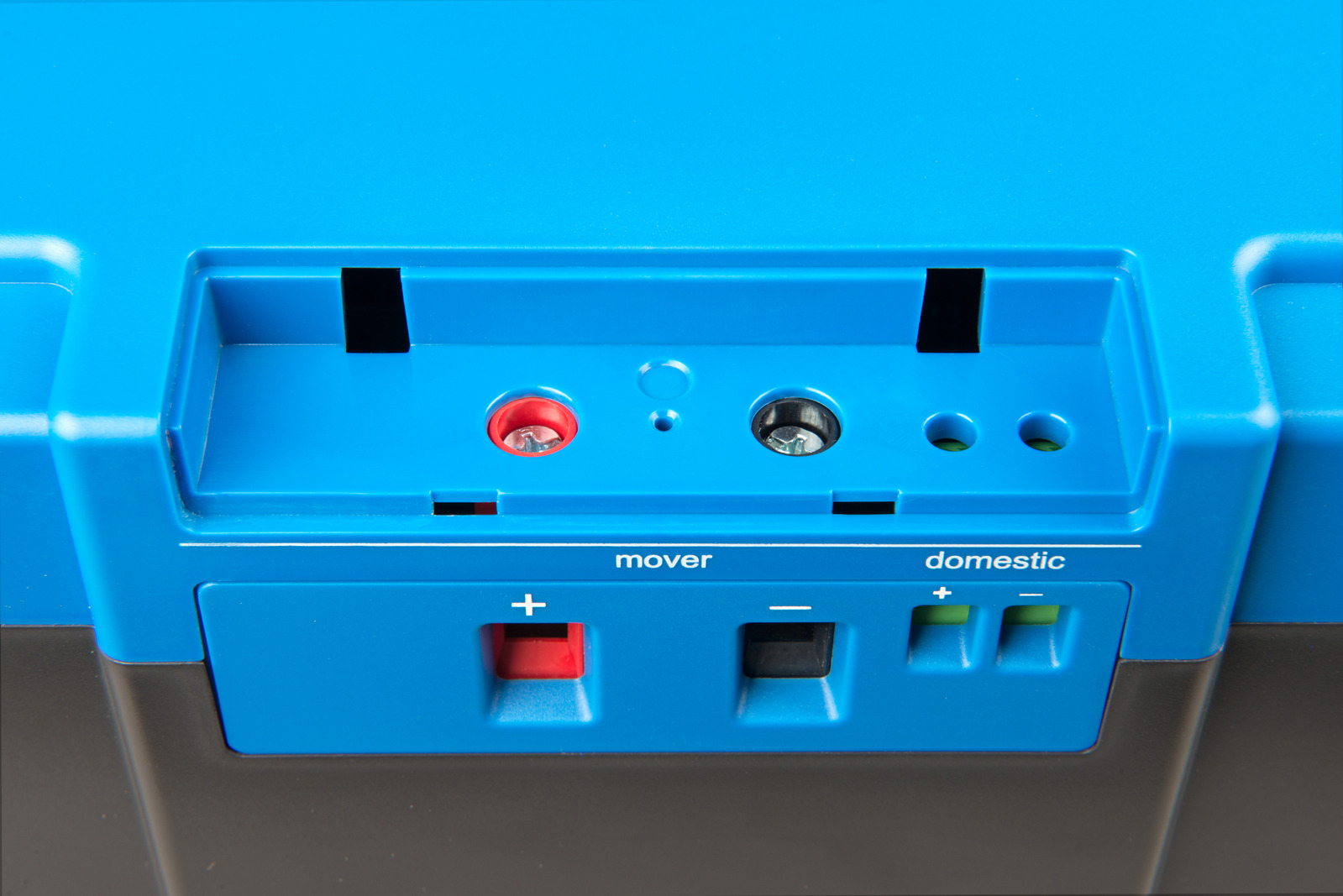

Output 1 “mover”: high-capacity output for caravan manoeuvring and other applications that are energy-
intensive

• Ideal for caravan manoeuvring (caravan movers).
• Short-circuit proof.
• Protected against excessive battery discharge.

Output 2 “domestic”: for low DC loads

• Intended for lighting, audio and video, pumps, fridges.
• Short-circuit proof.
• Protected against excessive battery discharge.

Input 1 “car/solar”: charging while driving or charging with a solar panel.

• Equipped with voltage and current control for safe charging of the lithium-ion battery. In fact, any source of electric power can be connected to this input (e.g. an alternator or a battery charger), as long as 11V < Vin < 25V. The current limit is automatically set to a safe value.

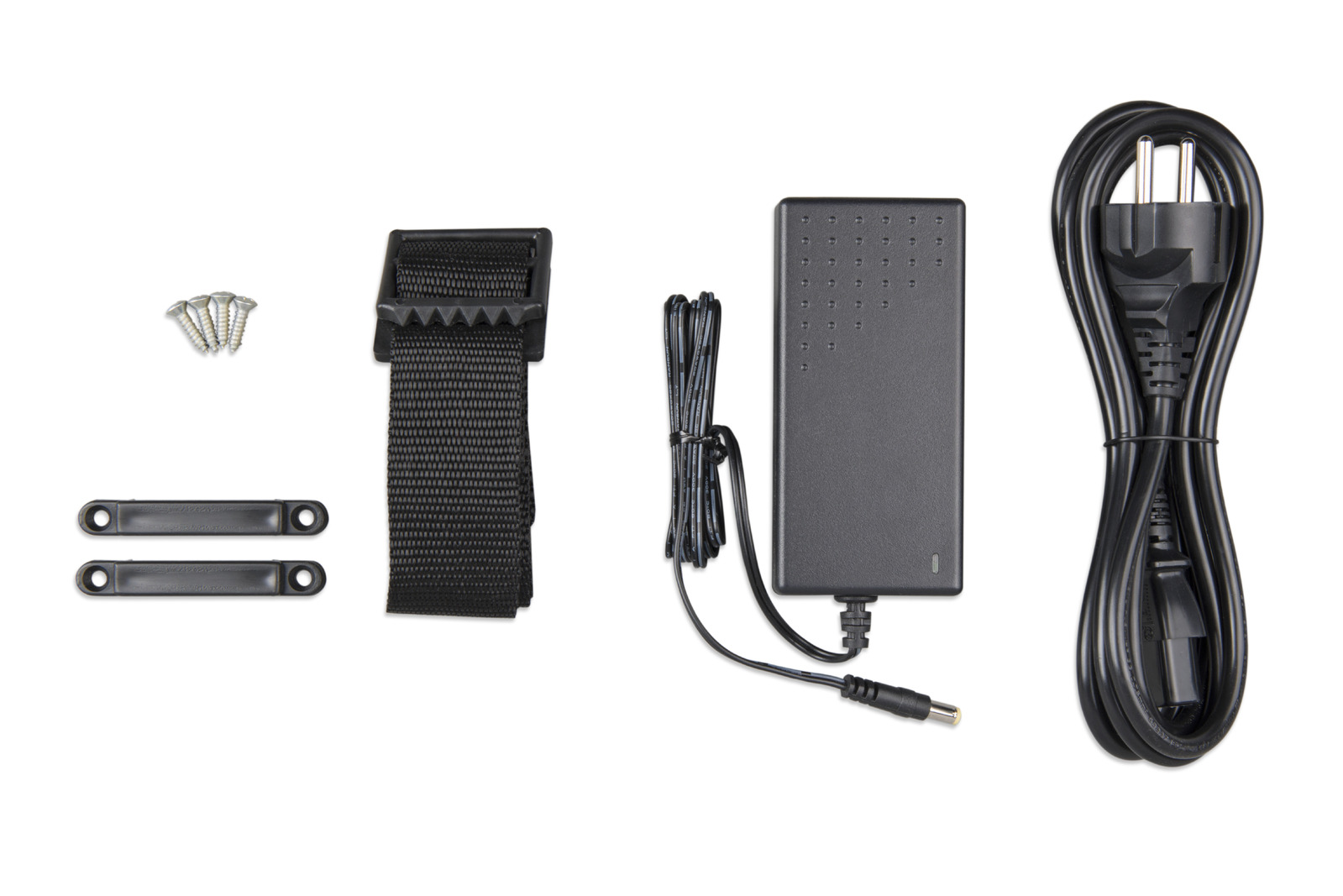

Input 2 “adapter”: the adapter supplied with the Peak Power Pack can be connected to this input

• Battery charging current: 3A, and suitable for 110/230 V power supply.
• Rapid charging is possible via output 1 (high capacity output and 30 Ah/40 Ah models only)
• A battery charger or inverter/charger can be connected to the high capacity output. The maximum charging current is 15 A and 20 A respectively and the recommended charging voltage is 14 V (maximum 14.2 V).

Storage mode

• Reduces power consumption to almost zero. Prevents damage due to excessive discharge of the battery during storage.

Remote control with status indicator

• Push button (supplied) with a dual-colour LED status indicator:

o Short push of the button: high capacity output activated for 30 minutes (mover applications), red LED.
o Hold down for 2 seconds: high capacity output always activated, slow flashing red LED.
o Hold down for 5 seconds: storage mode, blue LED flashes 10 times.
o Battery is charged via input 1: slow flashing blue LED.
o Battery fully charged: blue LED.
o Overload or overheating: flashing red LED.

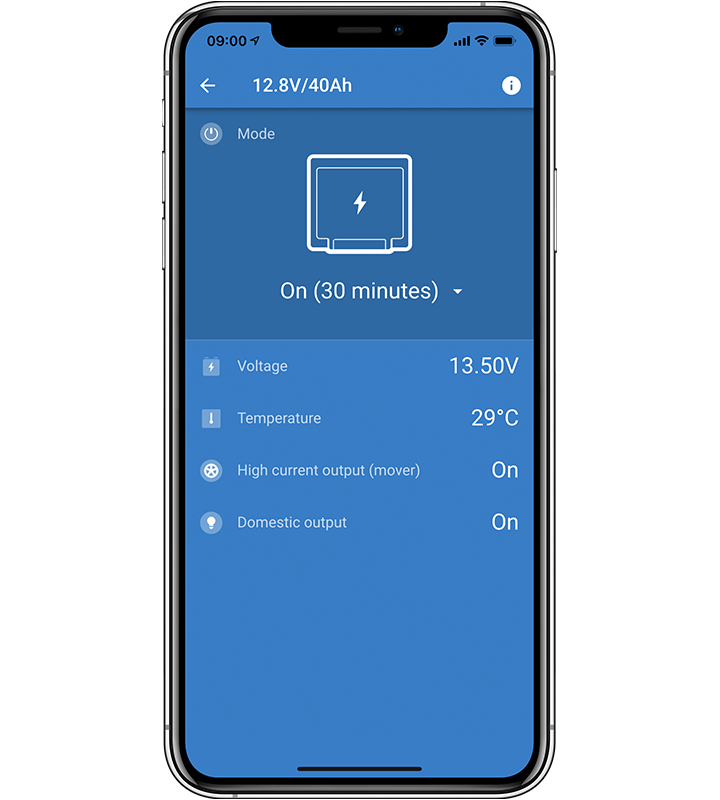

VE.Direct port: can be connected to a PC or smartphone ('VE.Direct to USB' or 'VE.Direct Bluetooth Smart dongle' required)

• Operation:

o Output 1: on / 30-minute timer / off
o Output 2: on/off
o Input 1: on/off
- Monitoring:
o Battery voltage
o Temperature and alarms
