Remote on/off terminal
The remote on/off terminal eliminates the need for a high current switch in the input wiring. The
remote on/off can be operated with a low power switch or by for example the engine run/stop switch
(see manual).

All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

High temperature protected
The output current will reduce at high ambient temperature.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

Input fuse (not replaceable)
On 12 V and 24 V input models only.

Adjustable output voltage
Not intended for battery charging.
Please consider using an Orion-Tr Smart for battery charging.

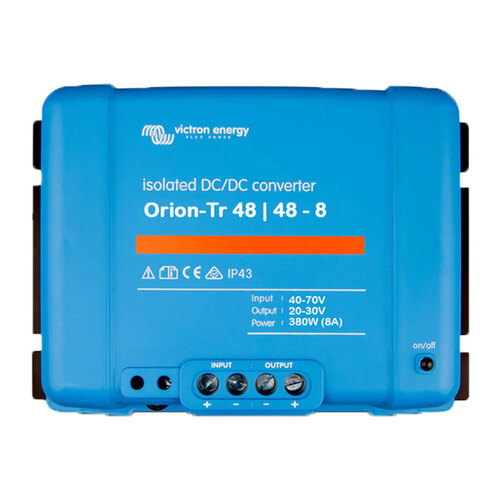

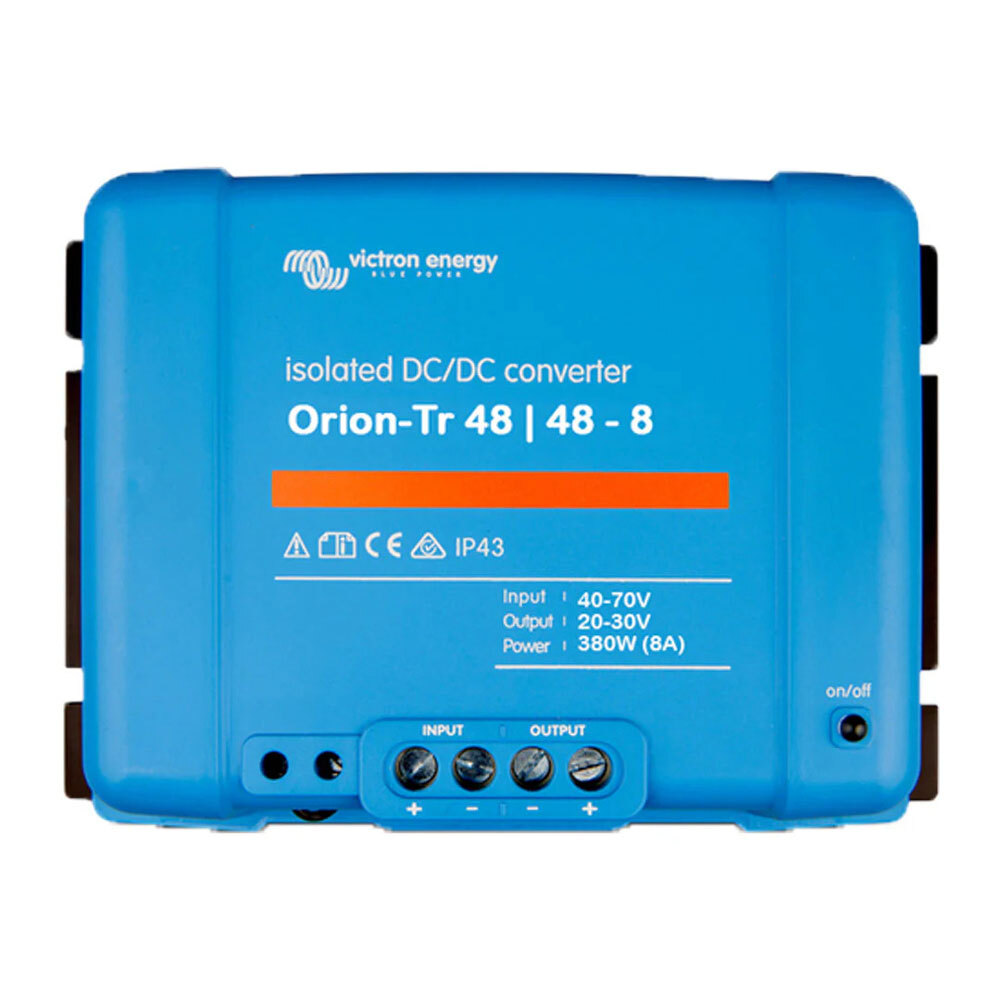

Model Orion-Tr 48/48-8 (380w)
Input voltage range (1) 40-70V
Under Voltage Shut Down 28V
Under Voltage Restart 30V
Nominal Output Voltage 48.2V
Output voltage adjust range 40-60V
Output voltage tolerance +/- 0.2 V
Output noise 2mV rms
Cont. output current at nominal output voltage and 25 °C 8A
Maximum output current (10 s) at nominal output voltage 15A
Short circuit output current 25A
Cont. output power at 25 °C 430W
Cont. output power at 40 °C 380W
Efficiency 89%
No load input current (2) < 80mA
Current consumption < 200uA when disabled via its remote port
Galvanic isolation 200V dc between input, output and case
Operating temperature range -20 to +55 °C (derate 3 % per °C above 40 °C)
Humidity Max. 95 % non-condensing
DC connection Screw terminals
Maximum cable cross-section 16 mm² (AWG10)
Weight kg 1.3 kg (1 lb)
Weight kg 12V input and/or 12V output models: 1.8kg
Other models: 1.6kg
Dimensions (HxWxD) 12V input and/or 12V output models: 130 x 186 x 80mm
Other models: 130 x 186 x 70mm



SKU 8719076038894
Barcode # ORI484841110
Brand Victron
Shipping Weight 1.9200kg
Shipping Width 0.080m
Shipping Height 0.130m
Shipping Length 0.205m
Shipping Cubic 0.002132000m3
