Remote on/off terminal
The remote on/off terminal eliminates the need for a high current switch in the input wiring. The
remote on/off can be operated with a low power switch or by for example the engine run/stop switch
(see manual).

All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

High temperature protected
The output current will reduce at high ambient temperature.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

Input fuse (not replaceable)
On 12 V and 24 V input models only.

Adjustable output voltage
Not intended for battery charging.
Please consider using an Orion-Tr Smart for battery charging.

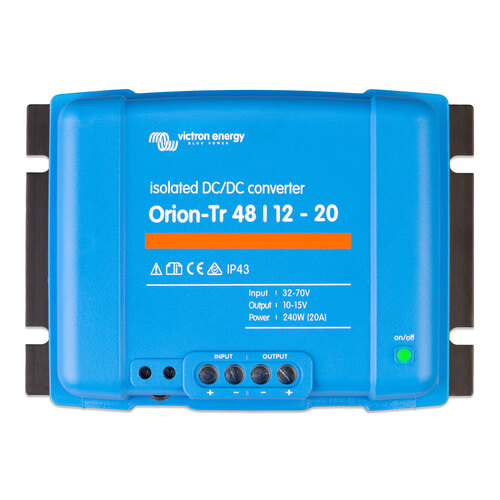

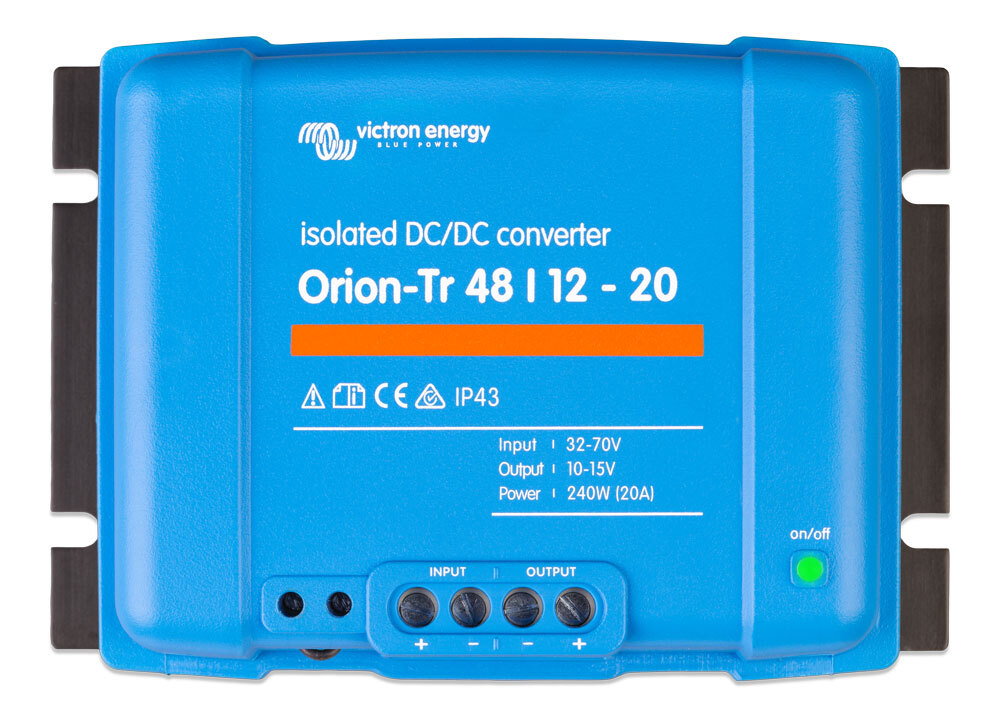

Model Orion-Tr 48/12-20 (240w)
Input voltage range (1) 32-70V
Under Voltage Shut Down 28V
Under Voltage Restart 30V
Nominal Output Voltage 12.2V
Output voltage adjust range 10-15V
Output voltage tolerance +/- 0.2 V
Output noise 2mV rms
Cont. output current at nominal output voltage and 25 °C 20A
Maximum output current (10 s) at nominal output voltage 25A
Short circuit output current 50A
Cont. output power at 25 °C 280W
Cont. output power at 40 °C 280W
Efficiency 87%
No load input current (2) < 120mA
Current consumption < 200uA when disabled via its remote port
Galvanic isolation 200V dc between input, output and case
Operating temperature range -20 to +55 °C (derate 3 % per °C above 40 °C)
Humidity Max. 95 % non-condensing
DC connection Screw terminals
Maximum cable cross-section 16 mm² (AWG10)
Weight kg 1.3 kg (1 lb)
Dimensions (HxWxD) 130 x 186 x 70 mm



SKU 8719076035282
Barcode # ORI481224110
Brand Victron
Shipping Weight 1.5000kg
Shipping Width 0.090m
Shipping Height 0.130m
Shipping Length 0.205m
Shipping Cubic 0.002398500m3
