High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

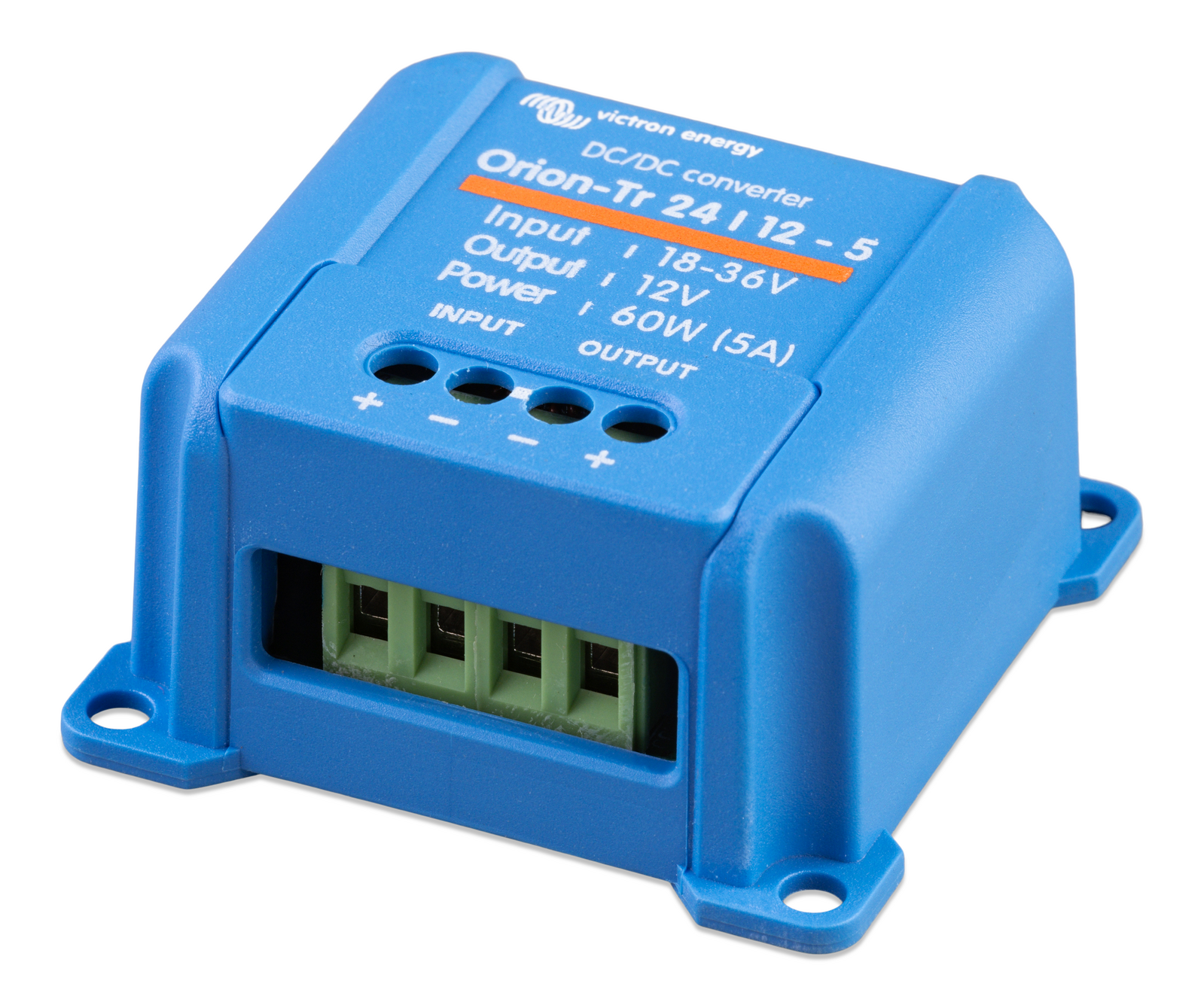

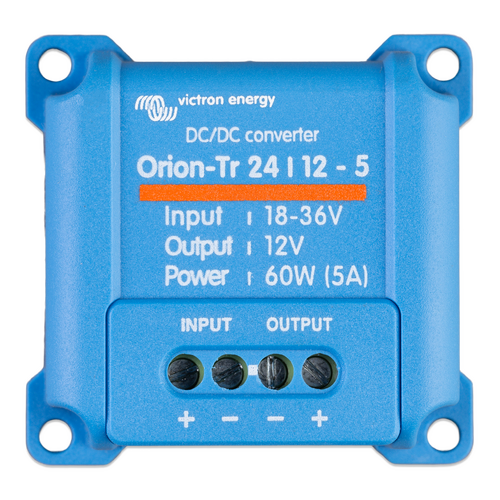

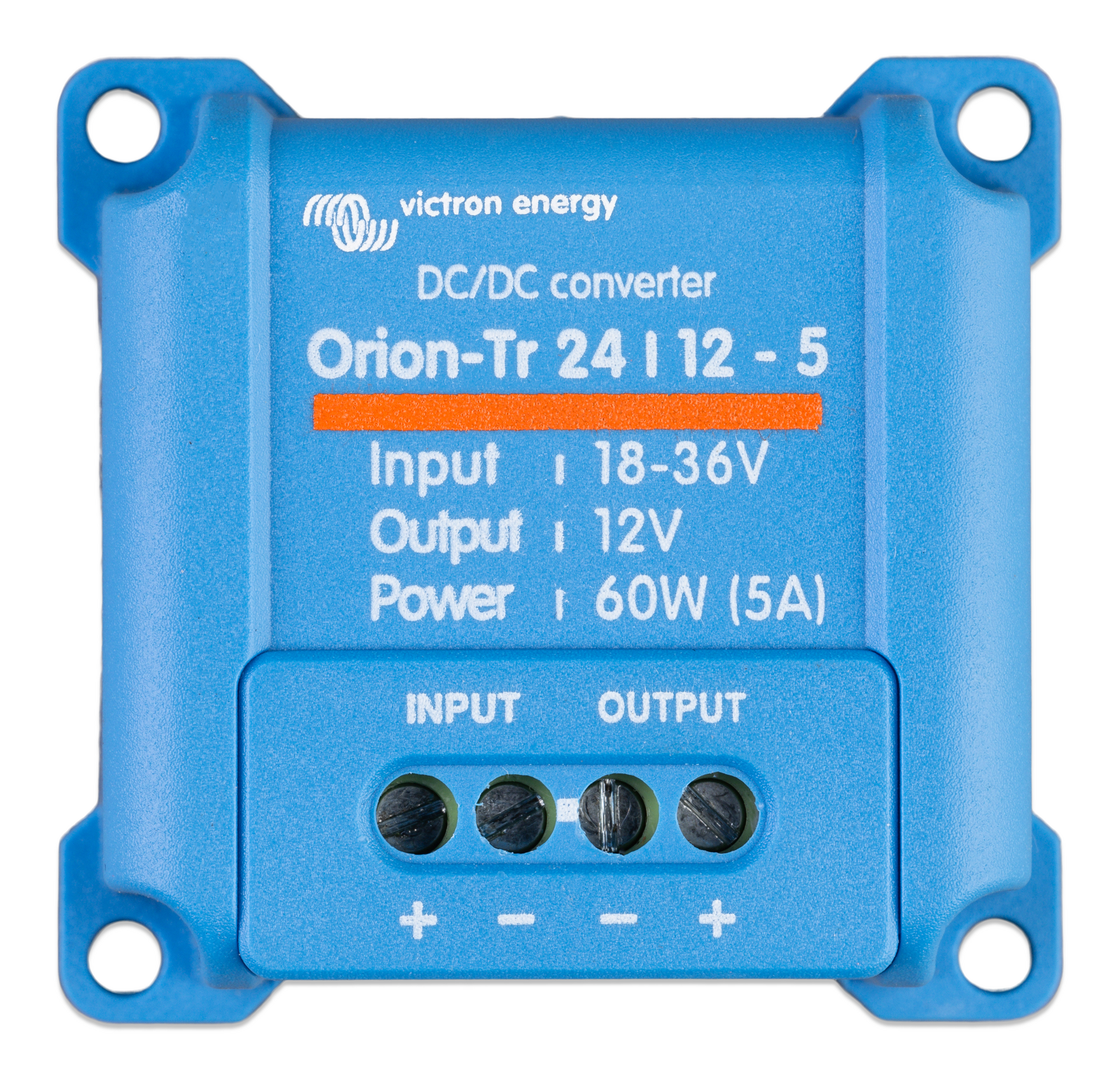

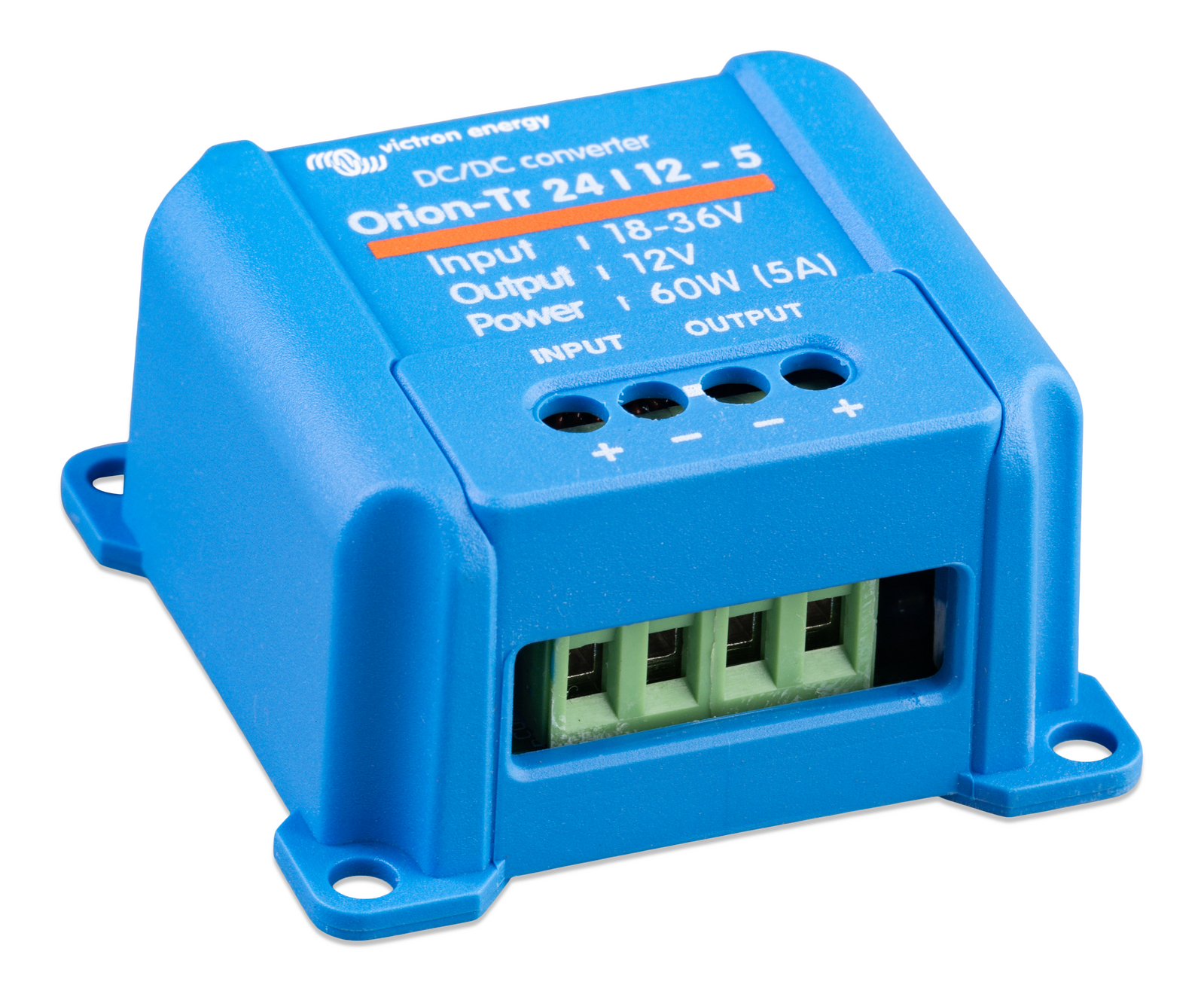

Model Orion-Tr 24/12-5
Input voltage range 18-35V
Output voltage 12.7V
Efficiency 95%
Continuous output current 5A
Max. Output current (10s) 7A
Galvanic isolation No
Off load current < 20mA
Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C
DC connection Screw terminals
Maximum cable cross-section 3.3 mm² (12AWG)
Weight kg 0.09kg
Dimensions mm (HxWxD) 53x51x27



SKU 8719076022855
Barcode # ORI241205200R
Brand Victron
Shipping Weight 0.1200kg
Shipping Width 0.140m
Shipping Height 0.030m
Shipping Length 0.100m
Shipping Cubic 0.000420000m3
