High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

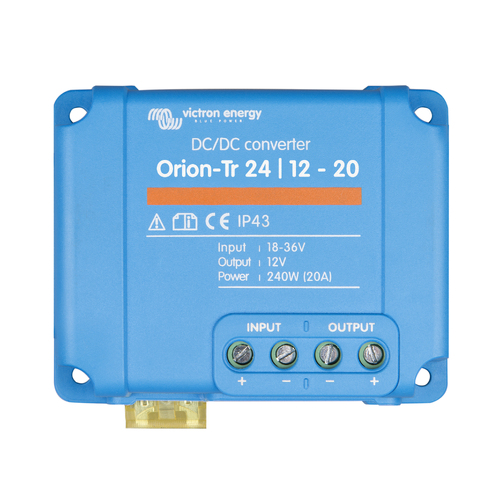

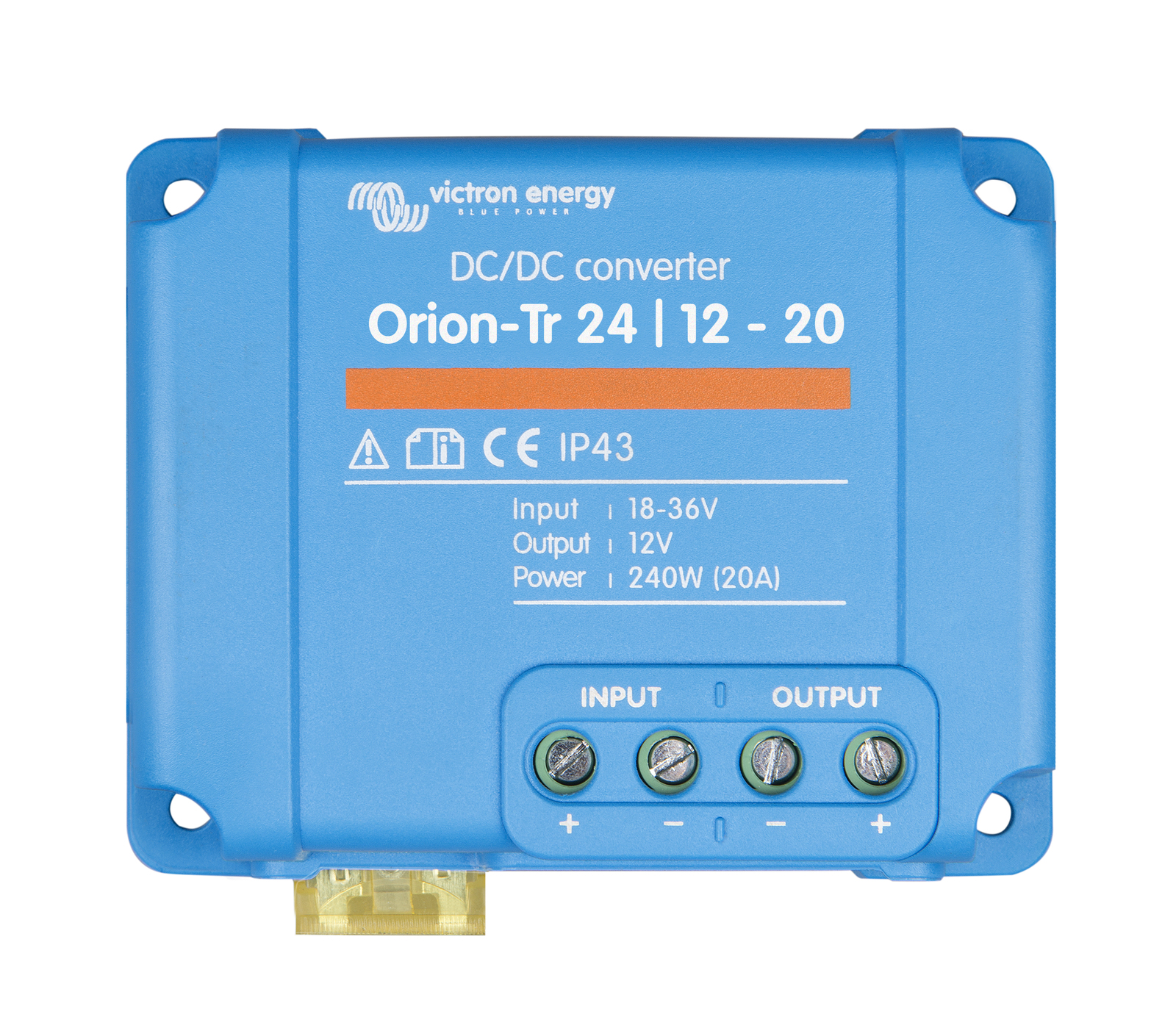

Model Orion-Tr 24/12-20
Input voltage range 18-35V
Output voltage 12.5V
Efficiency 97%
Continuous output current 20A
Max. Output current (10s) 25A
Galvanic isolation No
Off load current < 45mA
Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C
DC connection Screw terminals
Maximum cable cross-section 6 mm² (12AWG)
Weight kg 0.25kg
Dimensions mm (HxWxD) 73x94x45



SKU 8719076023005
Barcode # ORI241220200R
Brand Victron
Shipping Weight 0.3500kg
Shipping Width 0.220m
Shipping Height 0.050m
Shipping Length 0.170m
Shipping Cubic 0.001870000m3
