High efficiency
Using synchronous rectification, full load efficiency exceeds 95%.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

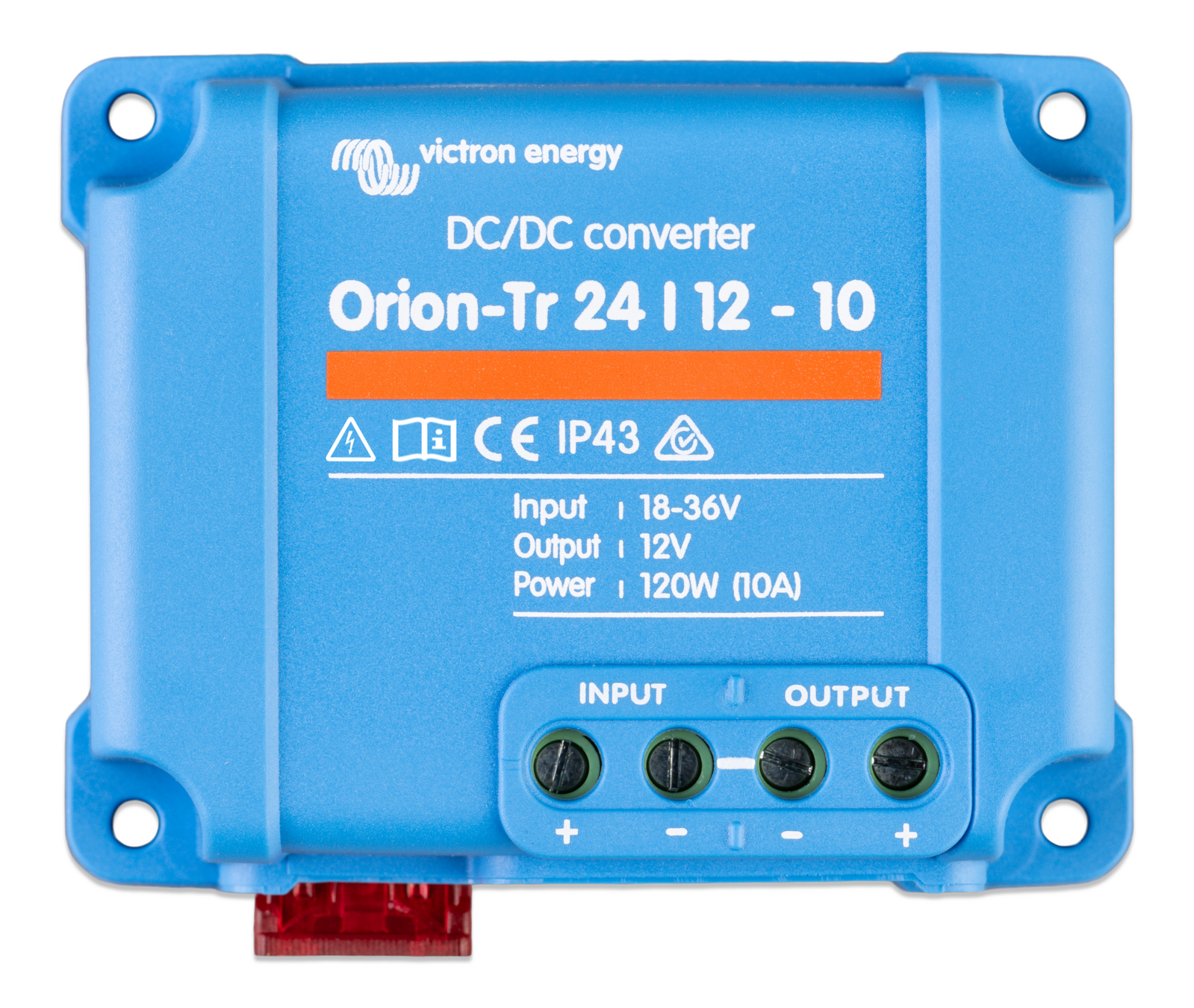

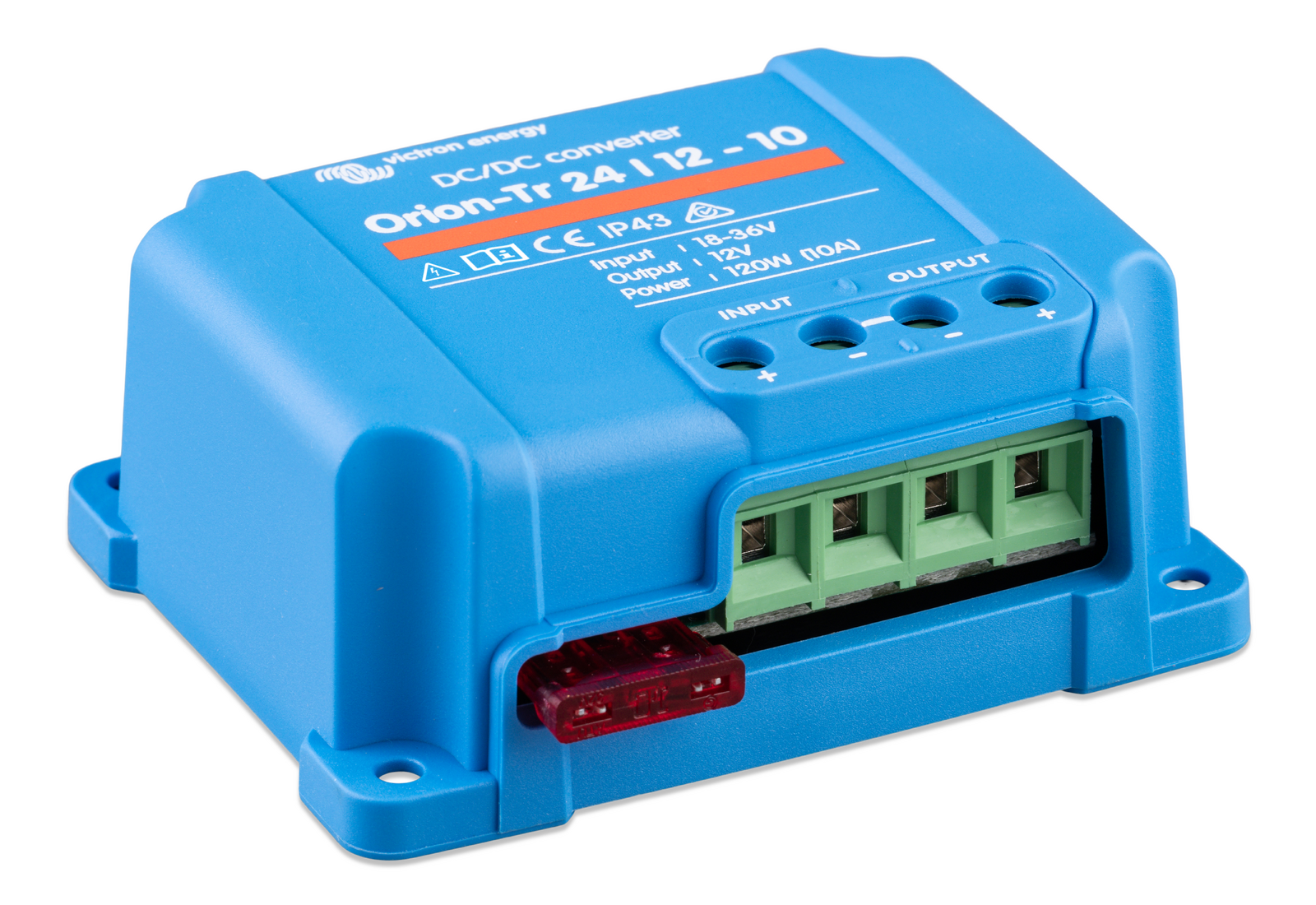

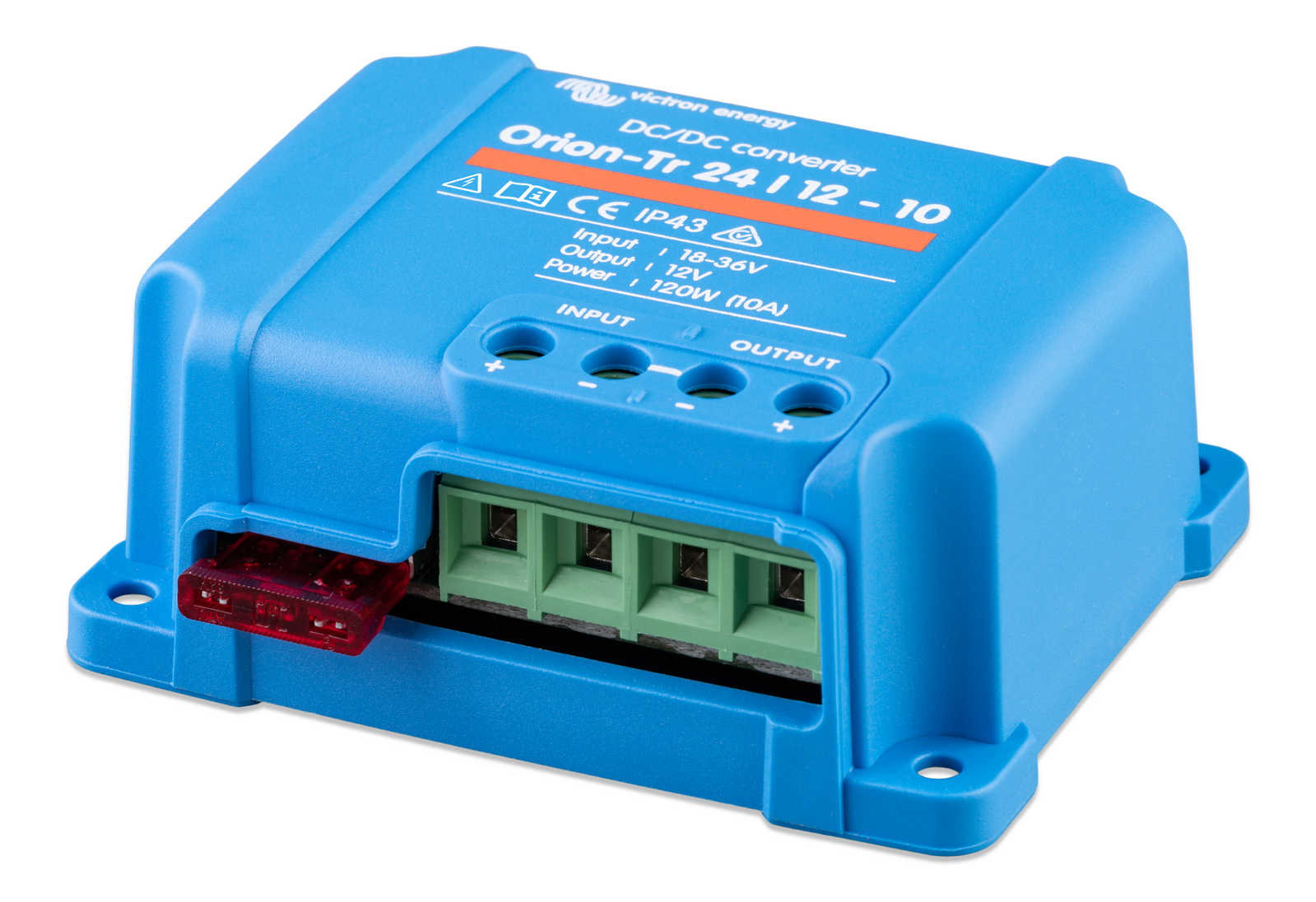

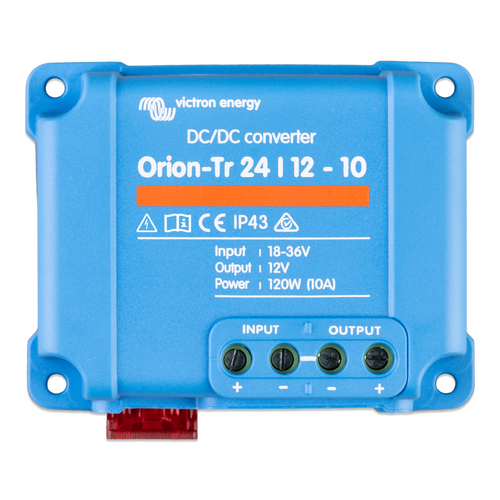

Model Orion-Tr 24/12-10
Input voltage range 18-35V
Output voltage 12.5V
Efficiency 97%
Continuous output current 10A
Max. Output current (10s) 12A
Galvanic isolation No
Off load current < 45mA
Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C
DC connection Screw terminals
Maximum cable cross-section 6 mm² (12AWG)
Weight kg 0.2kg
Dimensions mm (HxWxD) 73x94x37



SKU 8719076022893
Barcode # ORI241210200R
Brand Victron
Shipping Weight 0.2000kg
Shipping Width 0.170m
Shipping Height 0.040m
Shipping Length 0.130m
Shipping Cubic 0.000884000m3
