Remote on/off terminal
The remote on/off terminal eliminates the need for a high current switch in the input wiring. The
remote on/off can be operated with a low power switch or by for example the engine run/stop switch
(see manual).

All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

High temperature protected
The output current will reduce at high ambient temperature.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

Input fuse (not replaceable)
On 12 V and 24 V input models only.

Adjustable output voltage
Not intended for battery charging.
Please consider using an Orion-Tr Smart for battery charging.

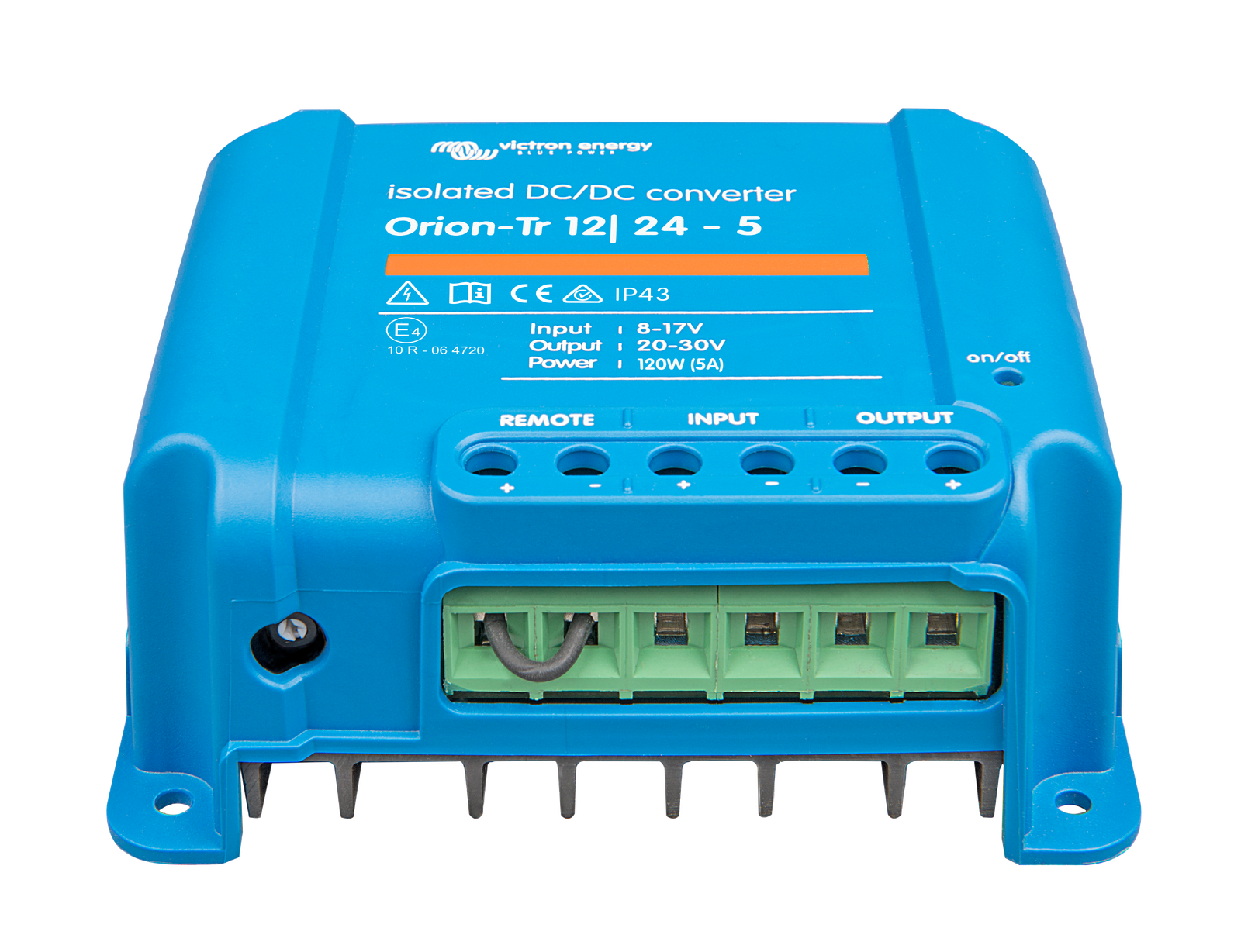

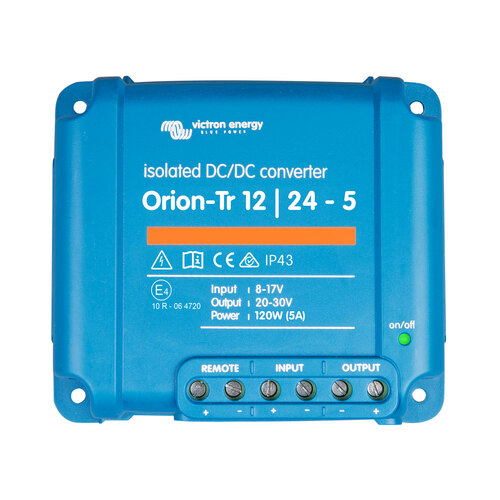

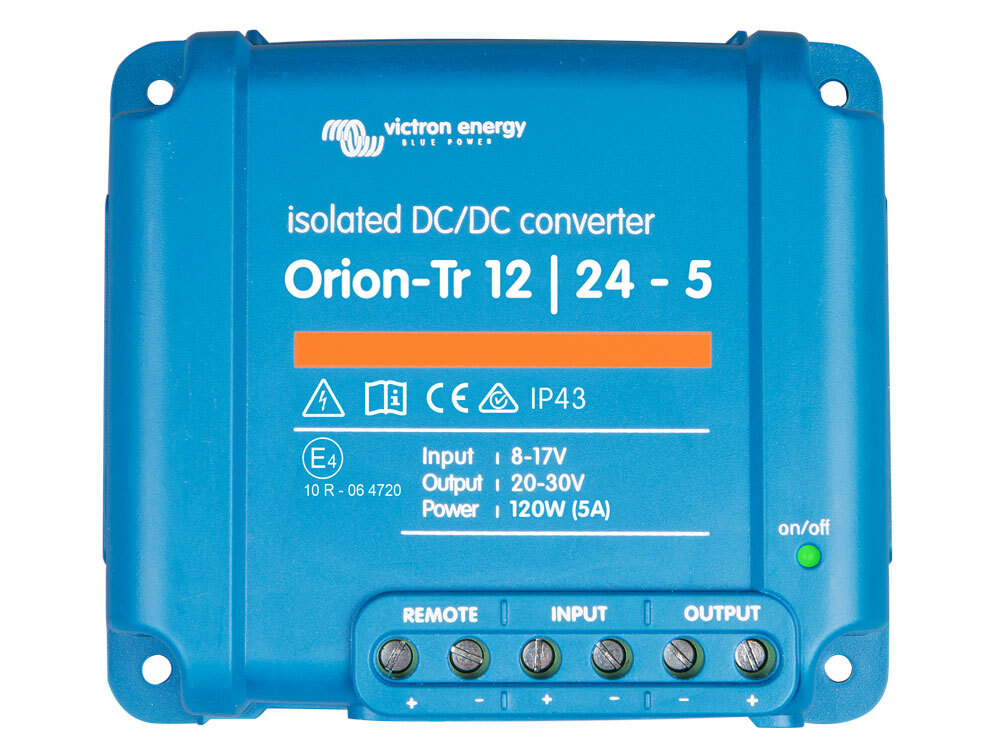

Model Orion-Tr 12/24-5 (120w)
Input voltage range (1) 8-17V
Under Voltage Shut Down 7V
Under Voltage Restart 7.5V
Nominal Output Voltage 24.2V
Output voltage adjust range 20-30V
Output voltage tolerance +/- 0.2 V
Output noise 2mV rms
Cont. output current at nominal output voltage and 25 °C 5A
Maximum output current (10 s) at nominal output voltage 6.3A
Short circuit output current 23A
Cont. output power at 25 °C 120W
Cont. output power at 40 °C 110W
Efficiency 88%
No load input current (2) < 80mA
Current consumption < 200uA when disabled via its remote port
Galvanic isolation 200V dc between input, output and case
Operating temperature range -20 to +55 °C (derate 3 % per °C above 40 °C)
Humidity Max. 95 % non-condensing
DC connection Screw terminals
Maximum cable cross-section 6 mm² (AWG10)
Weight kg 0.42 kg (1 lb)
Dimensions (HxWxD) 100 x 113 x 47 mm



SKU 8719076016724
Barcode # ORI122410110
Brand Victron
Shipping Weight 0.5800kg
Shipping Width 0.060m
Shipping Height 0.120m
Shipping Length 0.140m
Shipping Cubic 0.001008000m3
