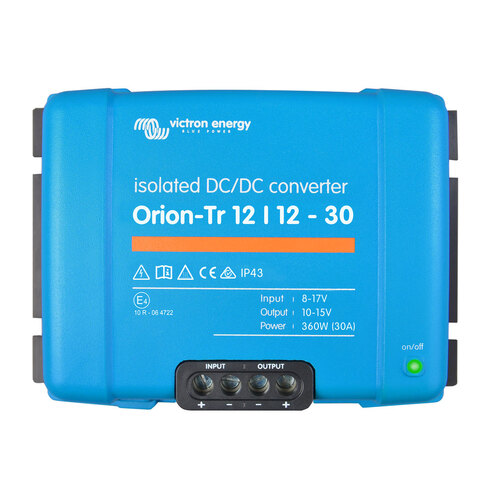

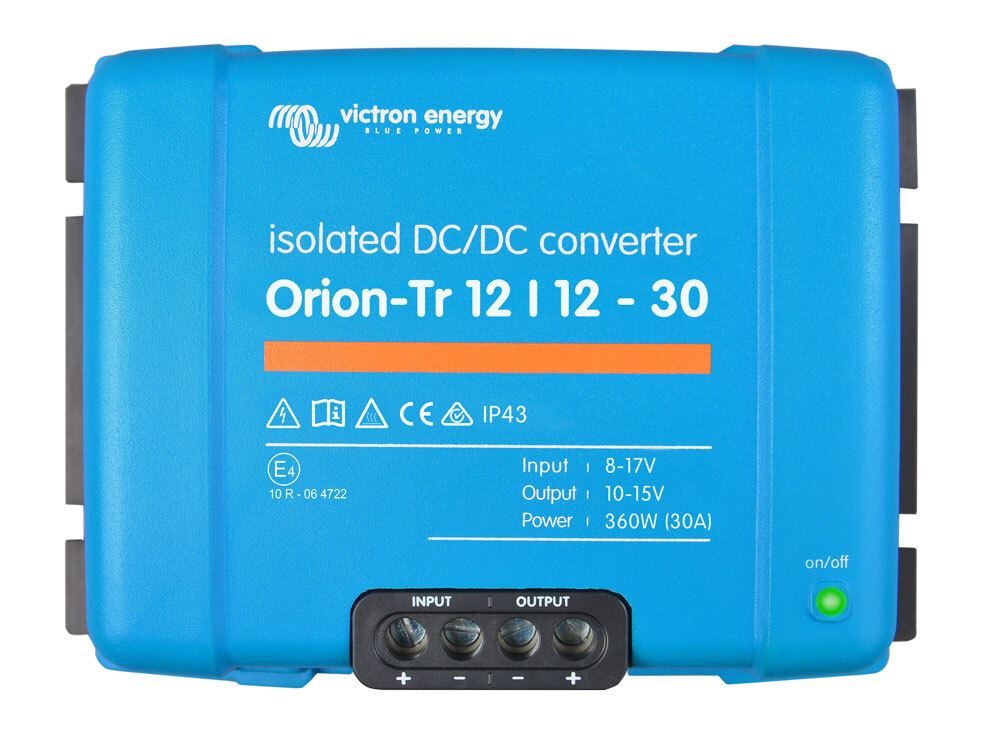

Victron Orion-Tr 12/12-30A (360W) DC-DC Converter Isolated
Orion-Tr 12/12-30A (360W) Isolated DC-DC Converter
Remote on/off terminal
The remote on/off terminal eliminates the need for a high current switch in the input wiring. The
remote on/off can be operated with a low power switch or by for example the engine run/stop switch
(see manual).
All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
On 12 V and 24 V input models only.
Adjustable output voltage
Not intended for battery charging.
Please consider using an Orion-Tr Smart for battery charging.
Model | Orion-Tr 12/12-30 (360w) |
---|---|
Input voltage range (1) | 8-17V |
Under Voltage Shut Down | 7V |
Under Voltage Restart | 7.5V |
Nominal Output Voltage | 12.2V |
Output voltage adjust range | 10-15V |
Output voltage tolerance | +/- 0.2 V |
Output noise | 2mV rms |
Cont. output current at nominal output voltage and 25 °C | 30A |
Maximum output current (10 s) at nominal output voltage | 40A |
Short circuit output current | 60A |
Cont. output power at 25 °C | 430W |
Cont. output power at 40 °C | 360W |
Efficiency | 87% |
No load input current (2) | < 80mA |
Current consumption | < 200uA when disabled via its remote port |
Galvanic isolation | 200V dc between input, output and case |
Operating temperature range | -20 to +55 °C (derate 3 % per °C above 40 °C) |
Humidity | Max. 95 % non-condensing |
DC connection | Screw terminals |
Maximum cable cross-section | 16 mm² (AWG10) |
Weight kg | 12V input and/or 12V output models: 1.8kg Other models: 1.6kg |
Dimensions (HxWxD) | 12V input and/or 12V output models: 130 x 186 x 80mm Other models: 130 x 186 x 70mm |
SKU | 8719076038825 |
Barcode # | ORI121240110 |
Brand | Victron |
Shipping Weight | 1.9200kg |
Shipping Width | 0.090m |
Shipping Height | 0.130m |
Shipping Length | 0.205m |
Shipping Cubic | 0.002398500m3 |
