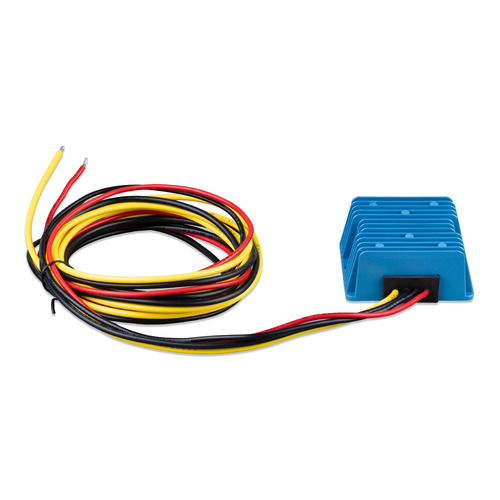

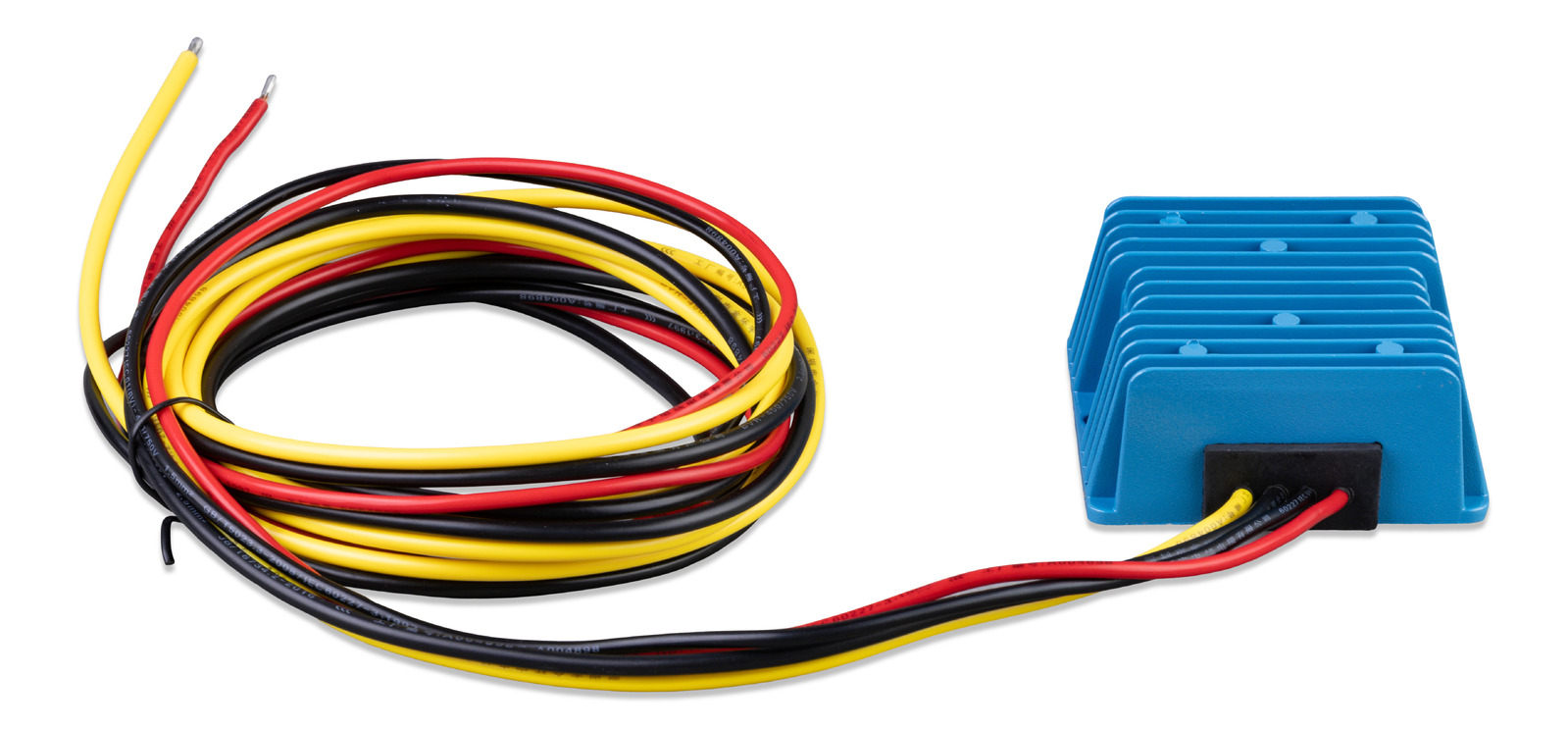

Orion IP67 24/12 DC-DC Converters

Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.

Extra-long input and output cables
Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.

Wide input voltage range
With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.

Protected against overheating
It can be used in a hot environment such as a machine room.

Model Orion IP67 24/12-20
Input voltage range 15-40V
Under voltage shutdown 13V
Under voltage restart 14V
No load current at 24V 50mA
Output voltage 12V +/- 3%
Max.Continuous output current 20A
Efficiency 95%
Ripple & Noise 75mVpp
Operating temperature range (derate 3% per °C above 40°C) -40 to +70°C (full rated output up to 40°C)
Overload protection Hiccup mode, recovers automatically after fault condition is removed
Short circuit proof Yes
Protection against reverse polarity connection With external fuse or circuit breaker (not included)
Material & Colour Aluminium (blue RAL 5012)
Protection category IP67
DC connection Two input and two output cables, length 1.8m
Cable cross section (Input) 2.6mm² (13 AWG)
Cable cross section (Output) 2.6mm² (13 AWG)
Weight kg 300g
Dimensions (h x w x d in mm) 74 x 74 x 32



SKU 8719076048442
Barcode # ORI241220260
Brand Victron
Shipping Weight 0.5600kg
Shipping Width 0.170m
Shipping Height 0.035m
Shipping Length 0.170m
Shipping Cubic 0.001011500m3
