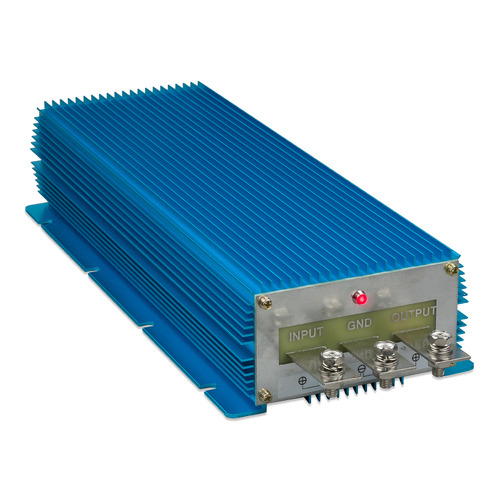

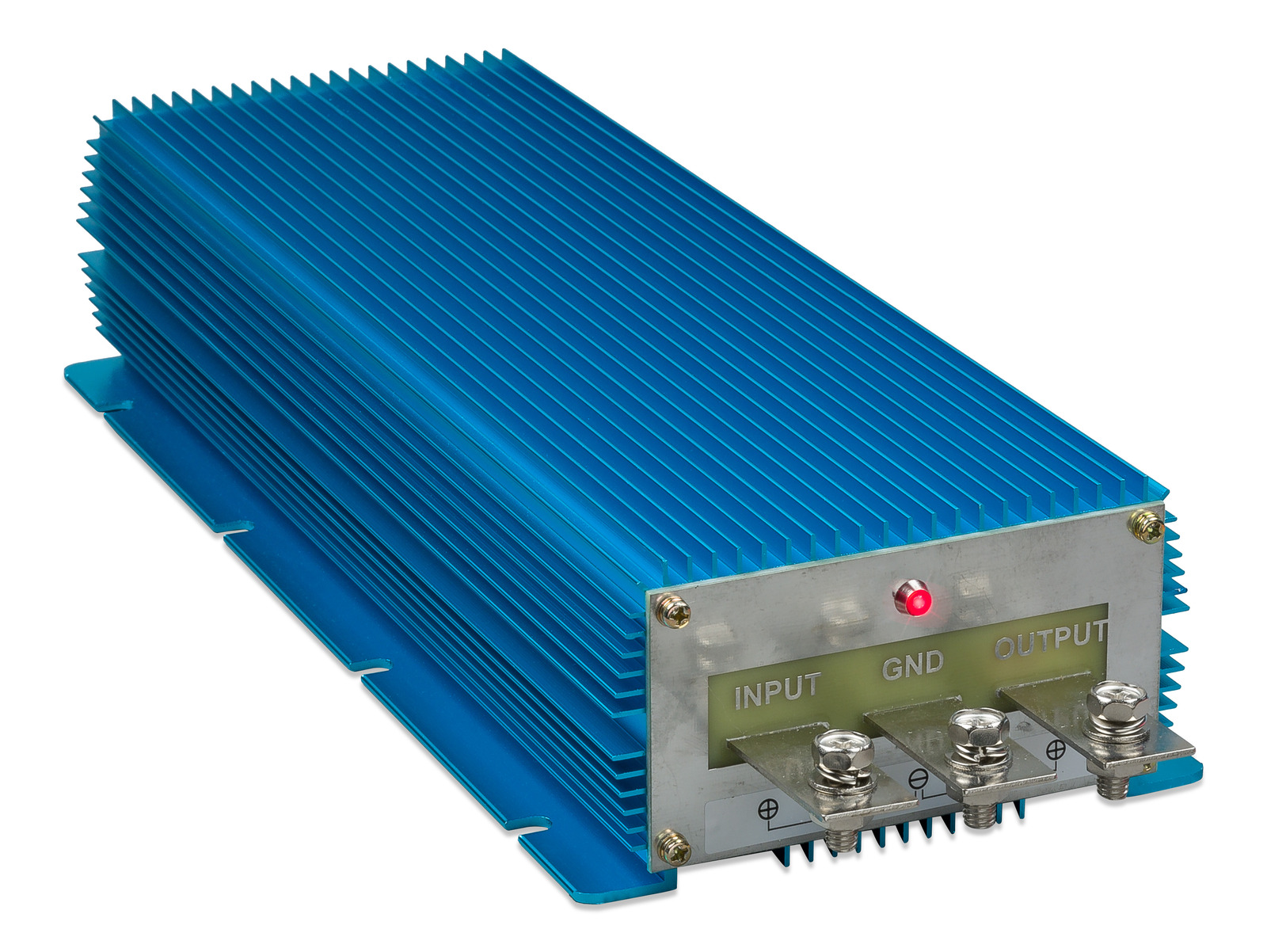

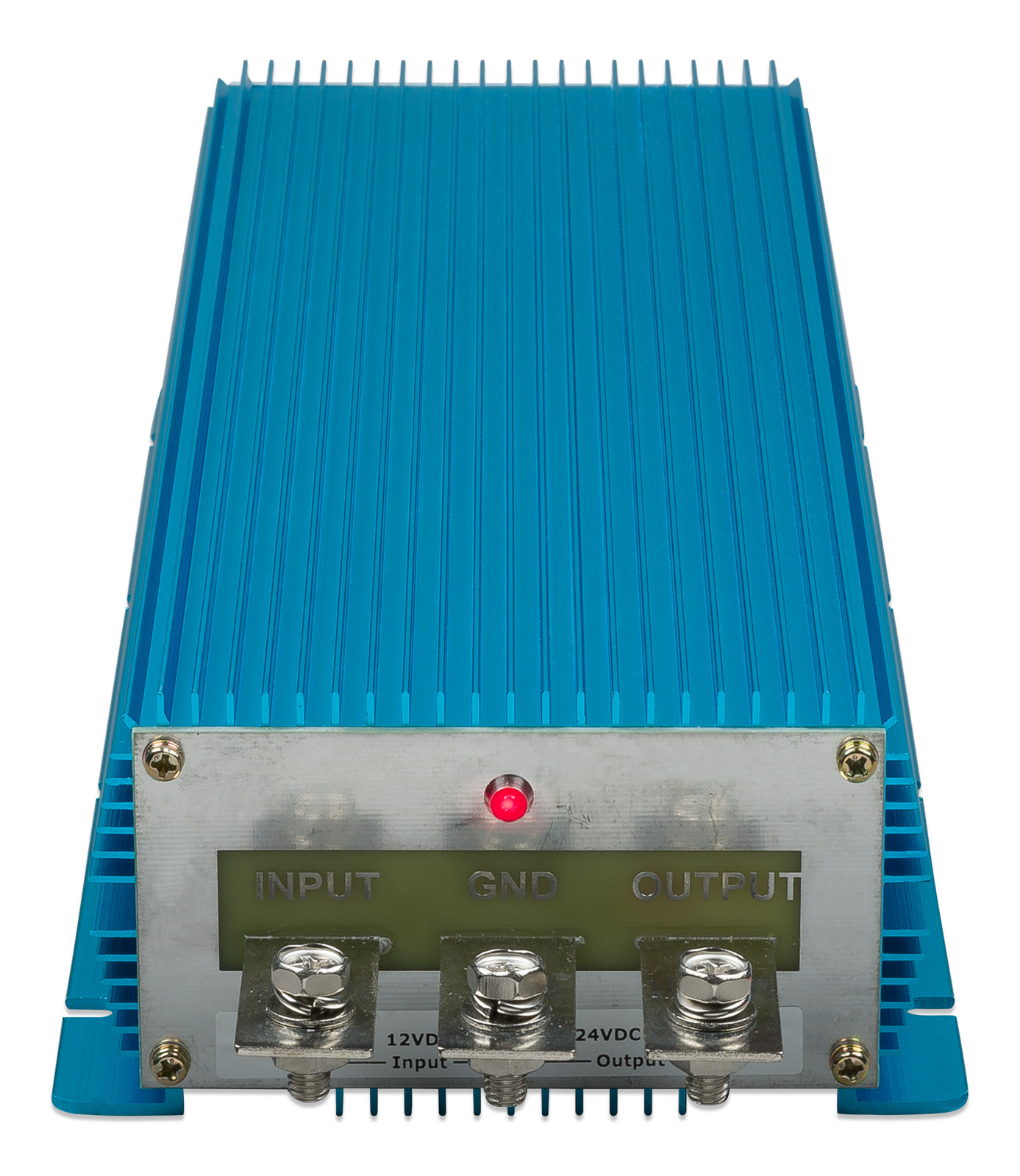

Orion IP67 24/12 DC-DC Converters

Completely encapsulated: waterproof, shockproof and ignition protected
Water, oil or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminium and the electronics are moulded in resin.

Extra-long input and output cables
Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability increasing feature in an area were IP67 protection grade is needed.

Wide input voltage range
With 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to same battery.

Protected against overheating
It can be used in a hot environment such as a machine room.

Model Orion IP67 12/24-50
Input voltage range 10-15V
Under voltage shutdown 8V
Under voltage restart 9V
No load current at 24V 45mA
Output voltage 12V +/- 3%
Max.Continuous output current 50A
Efficiency 96%
Ripple & Noise 150mVpp
Operating temperature range (derate 3% per °C above 40°C) -40 to +70°C (full rated output up to 40°C)
Overload protection Hiccup mode, recovers automatically after fault condition is removed
Short circuit proof Yes
Protection against reverse polarity connection With external fuse or circuit breaker (not included)
Material & Colour Aluminium (blue RAL 5012)
Protection category IP67

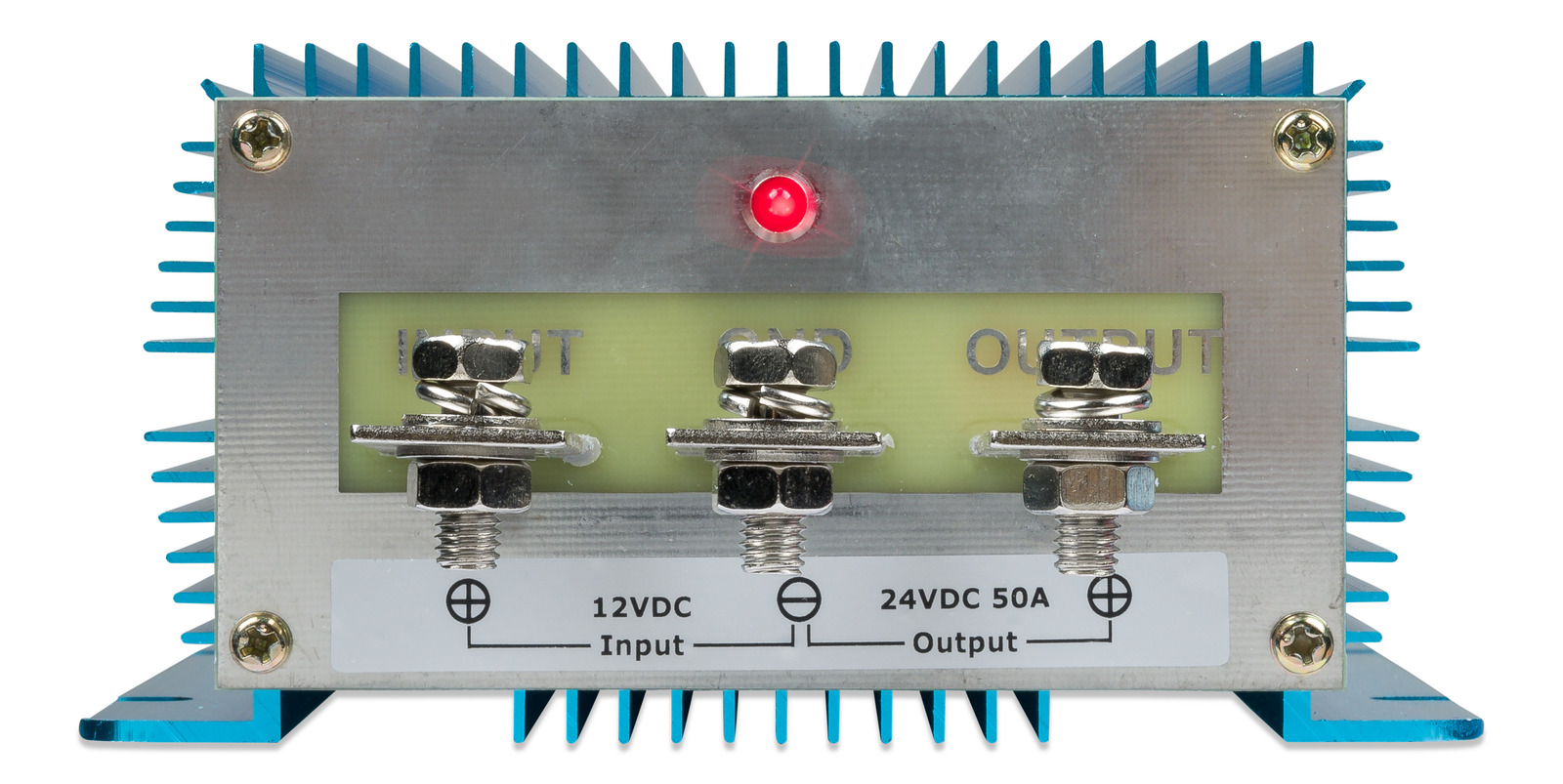

DC connection Bolts M6
Cable cross section (Input) N/A
Cable cross section (Output) N/A
Weight kg 3.00KG
Dimensions (h x w x d in mm) 340 x 127 x 63



SKU 8719076048534
Barcode # ORI122421226
Brand Victron
Shipping Weight 3.3000kg
Shipping Width 0.100m
Shipping Height 0.155m
Shipping Length 0.380m
Shipping Cubic 0.005890000m3
