Remote on/off connector
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.

Easy to install
Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40)

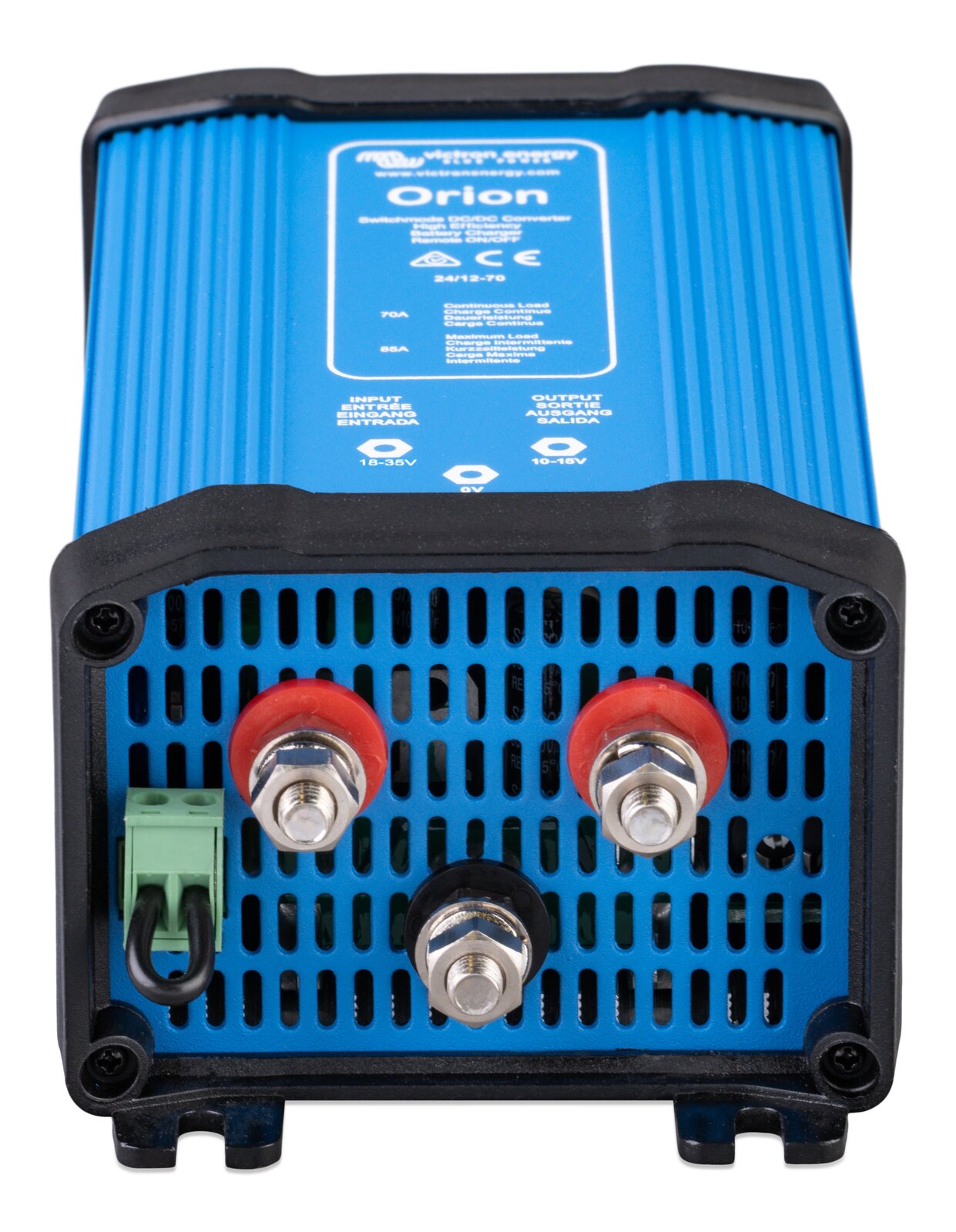

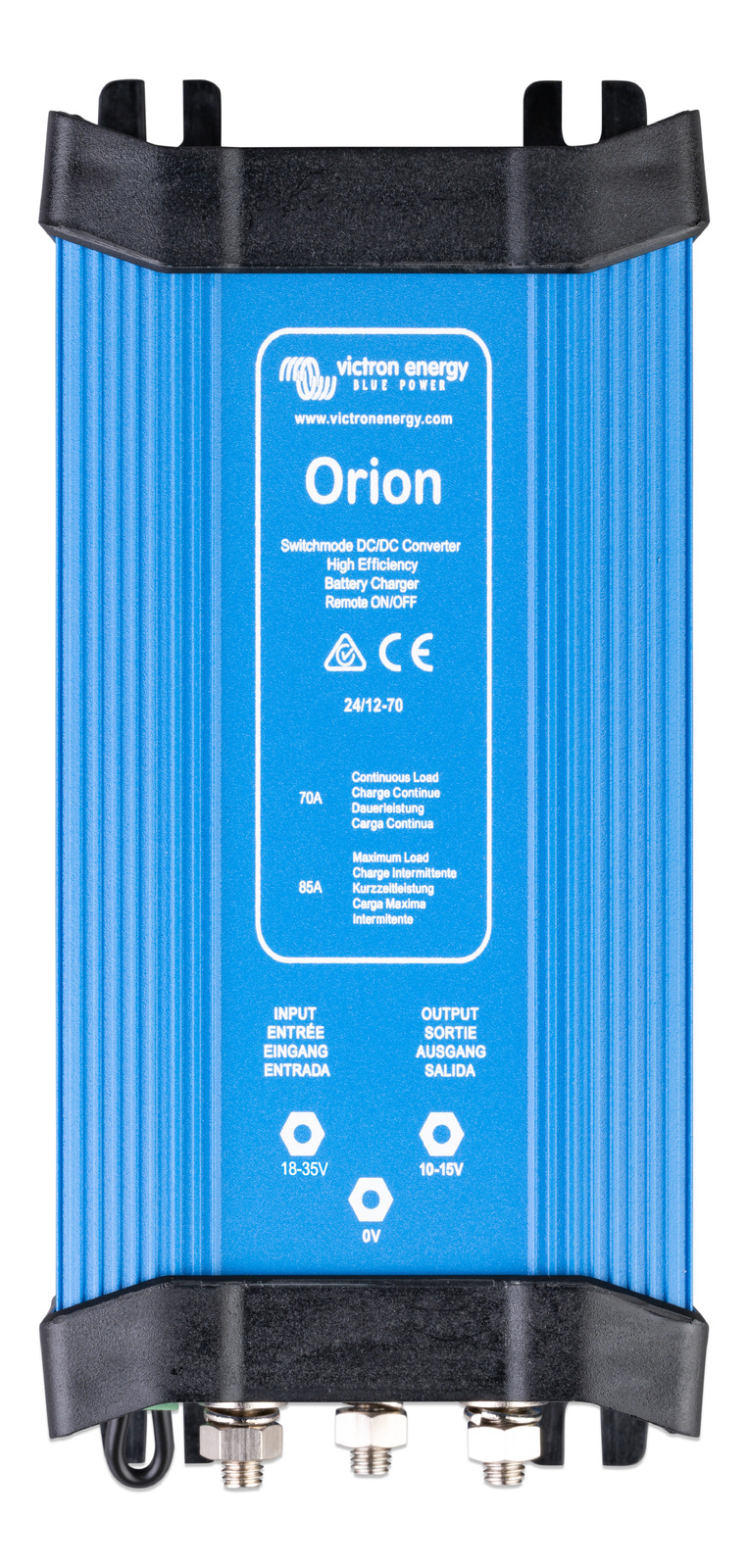

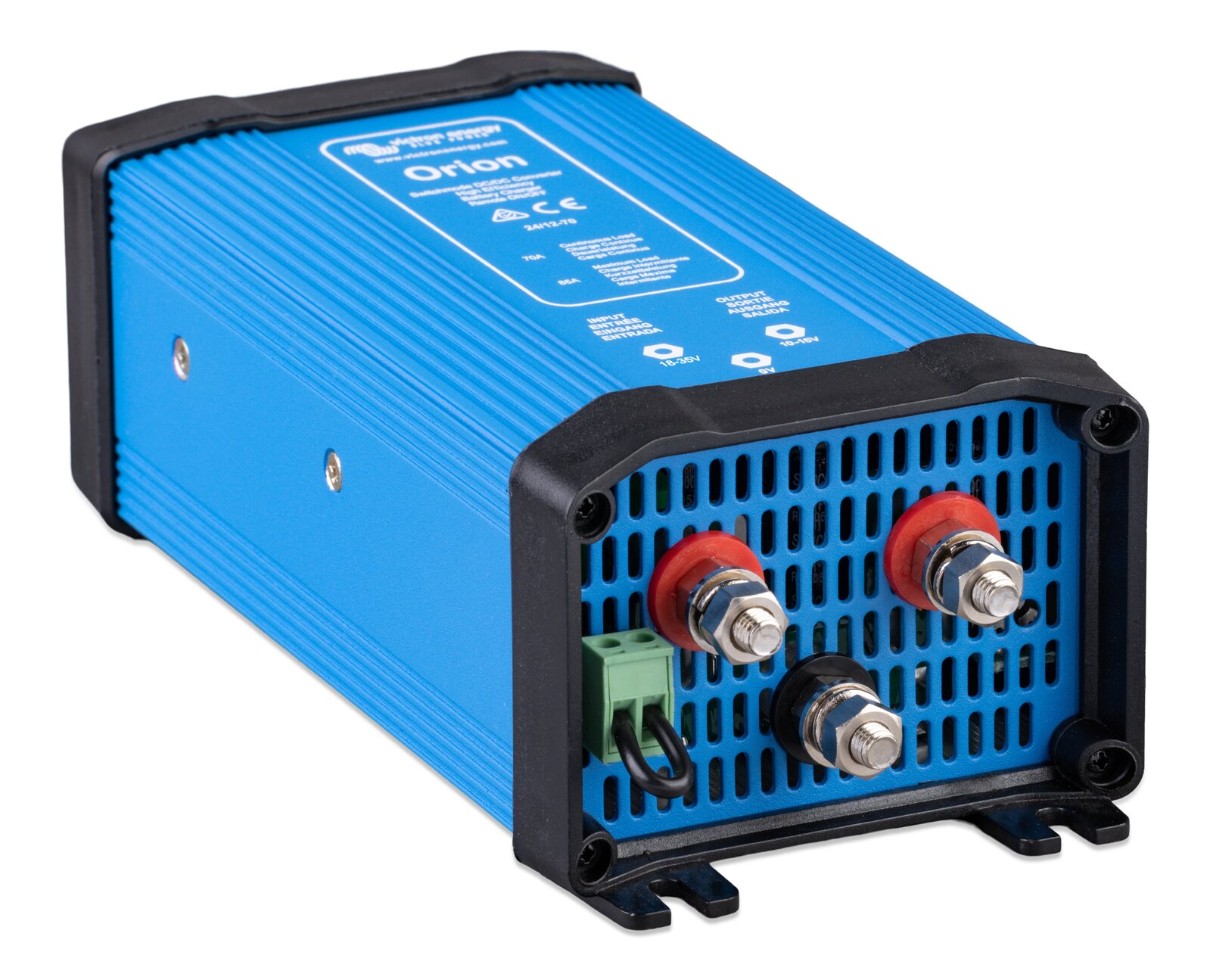

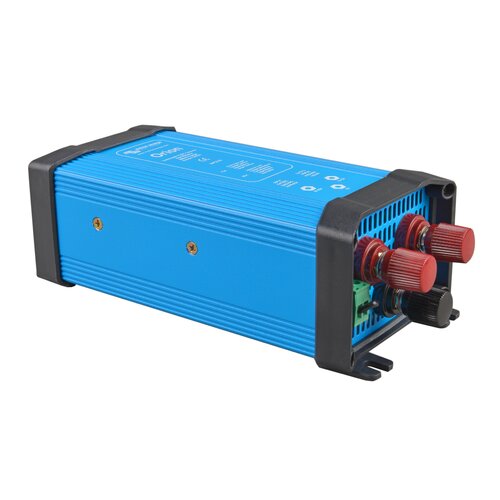

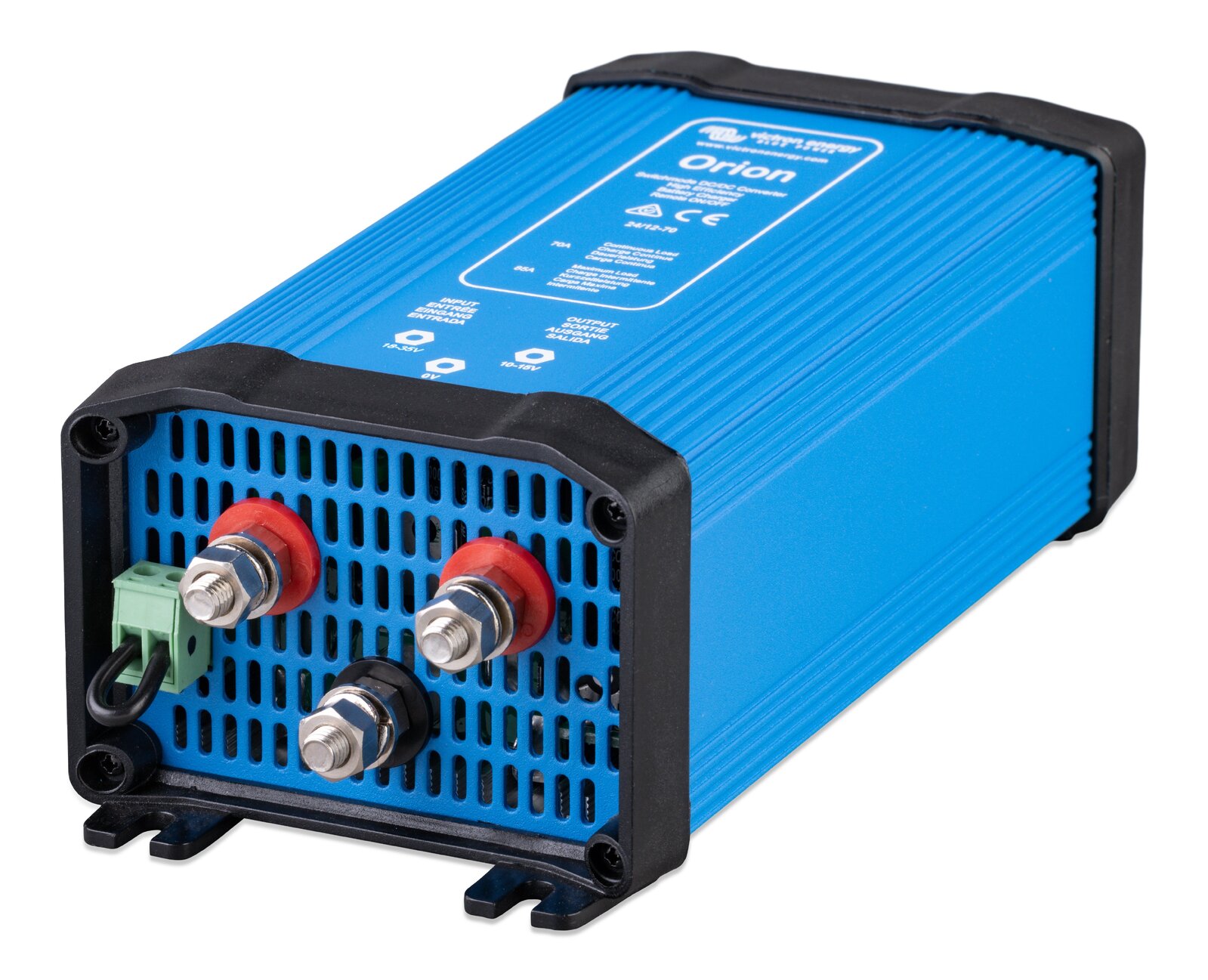

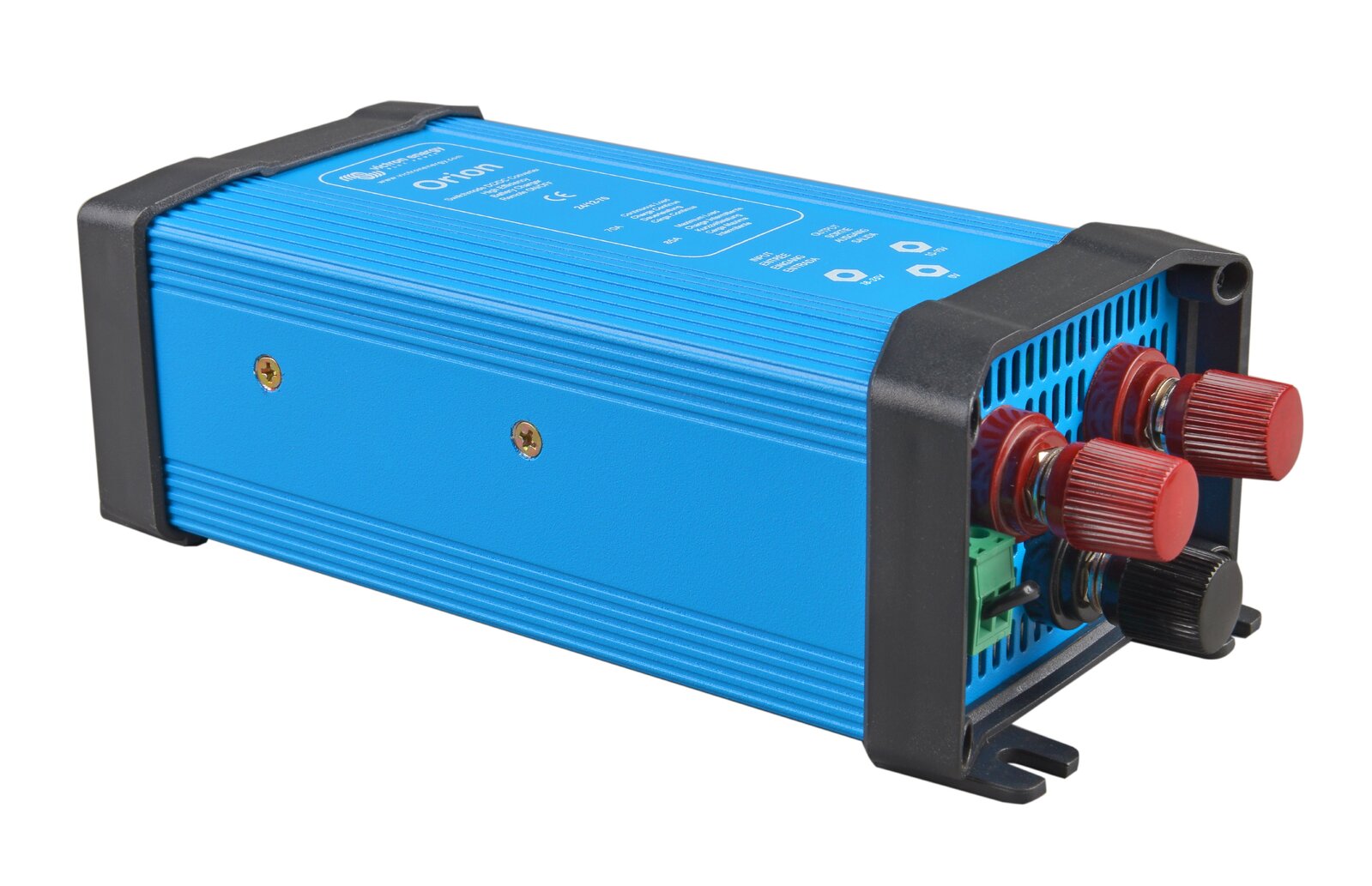

Model Orion-Tr 24/12-70A/Binding Posts
Input voltage range 18-35V
Under voltage shutdown 14v
Under voltage restart 18v
Output voltage adjustable with potentiometer No
Output voltage 13.2V
Efficiency 92%
Suitable to buffer-charge a battery Yes
Can be connected in parallel Yes
Continuous output current 70A
Max. Output current (10s) 85A
Fan assisted cooling (temp. controlled) Yes
Galvanic isolation No
Off load current < 20mA
Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C
DC connection M6 Bolts
Weight kg 0.9kg
Dimensions mm (HxWxD) 65x88x195



SKU 8719076023050
Barcode # ORI241270030
Brand Victron
Shipping Weight 1.0500kg
Shipping Width 0.080m
Shipping Height 0.120m
Shipping Length 0.240m
Shipping Cubic 0.002304000m3
