Remote on/off connector
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.

Easy to install
Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40)

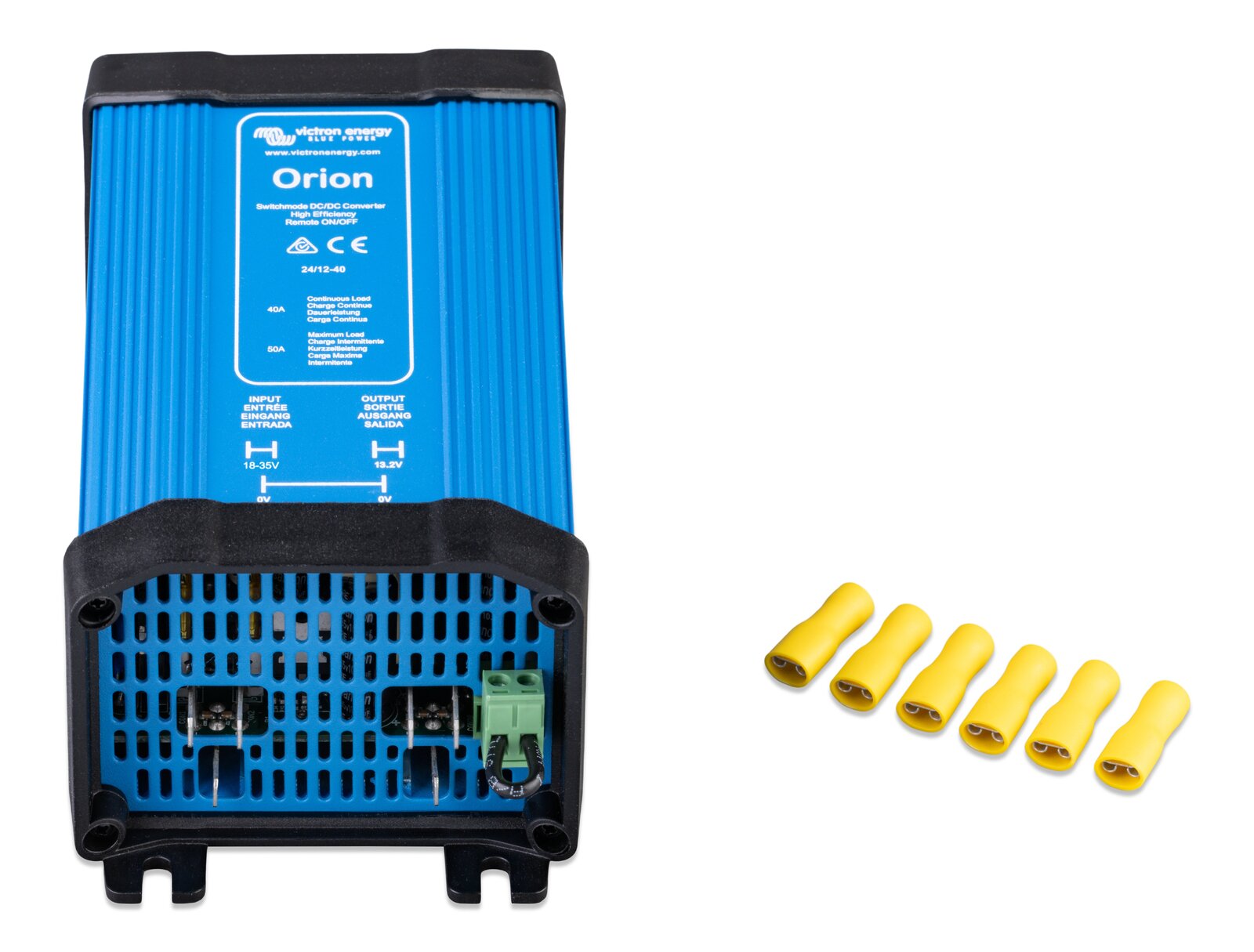

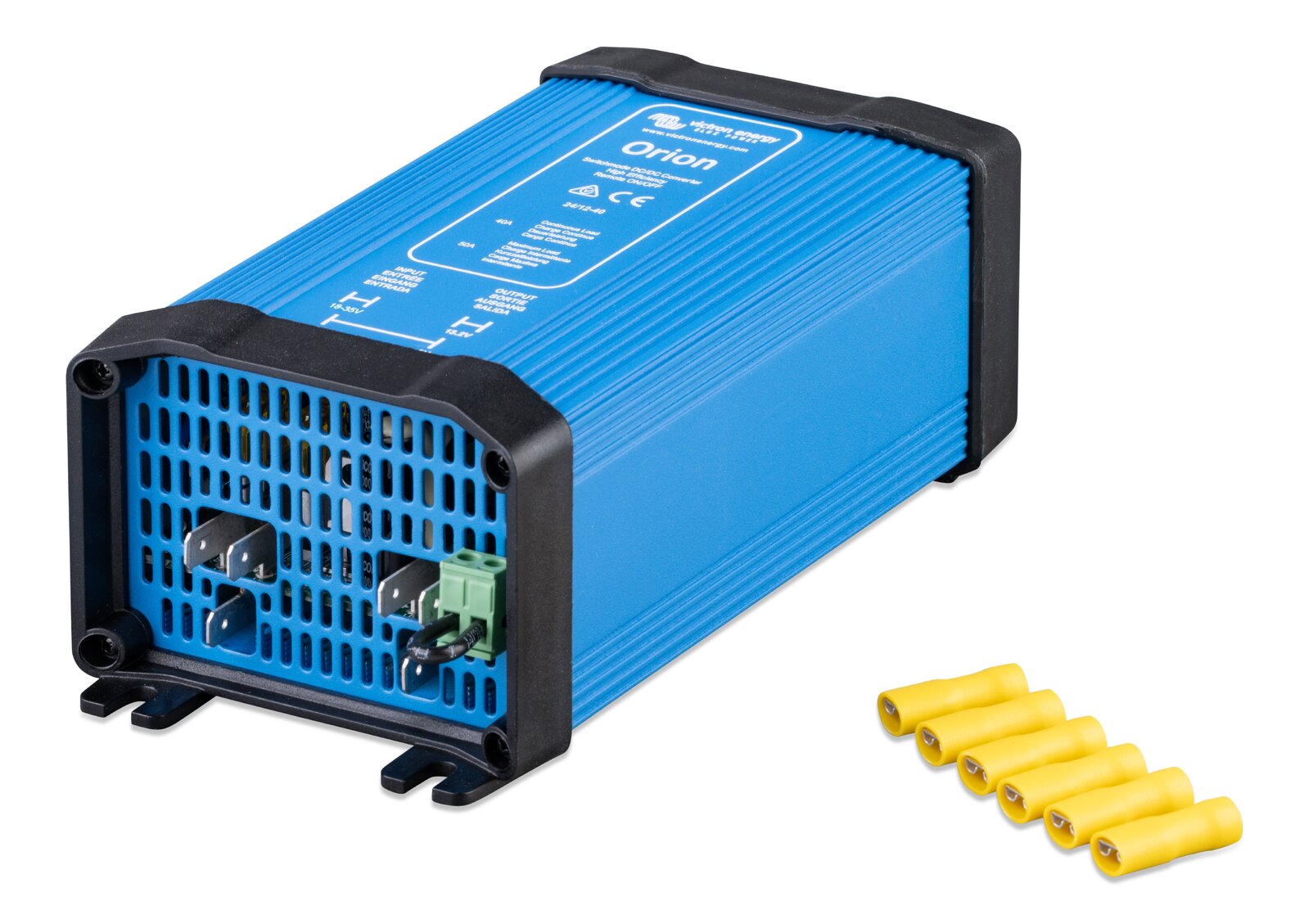

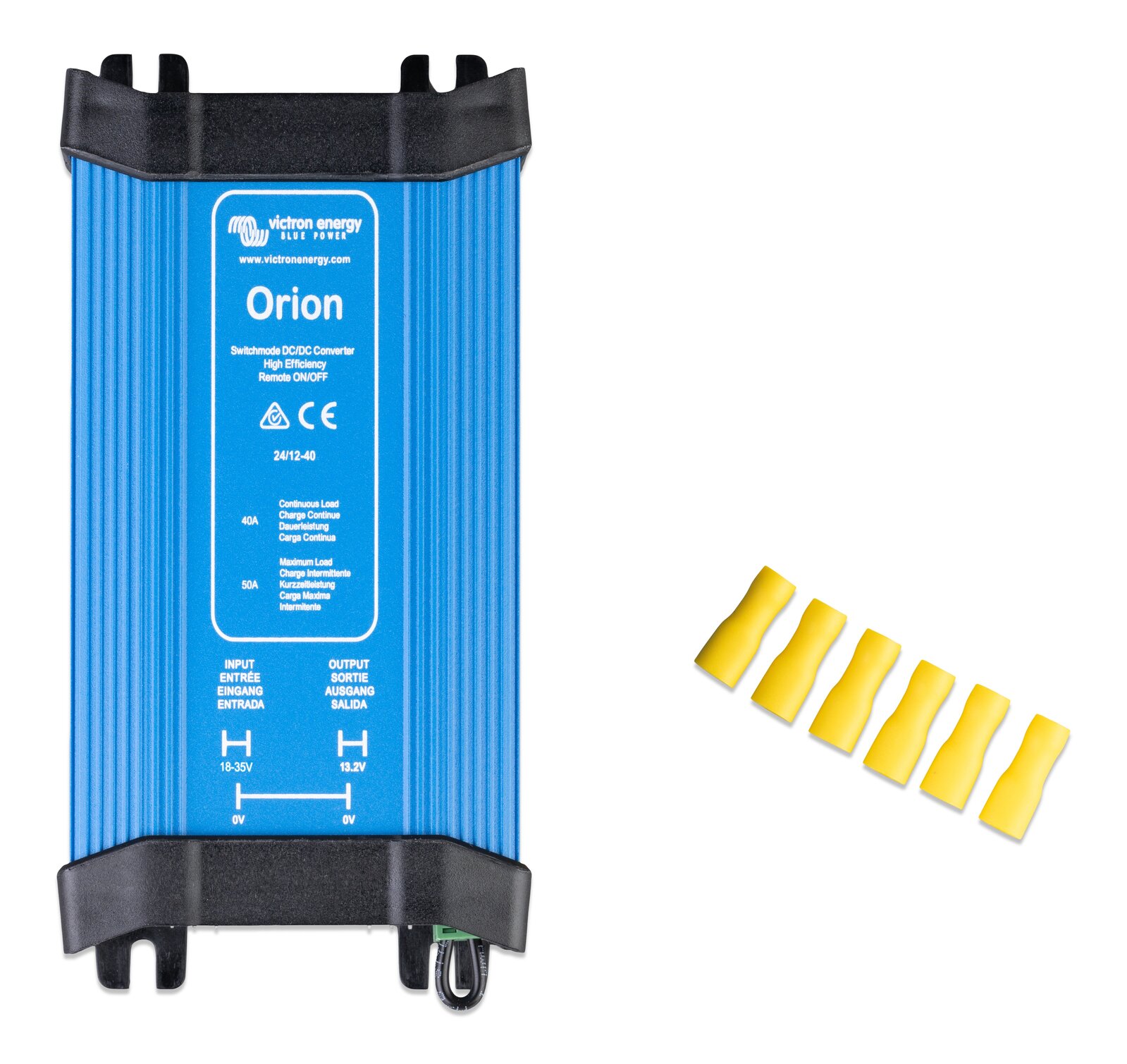

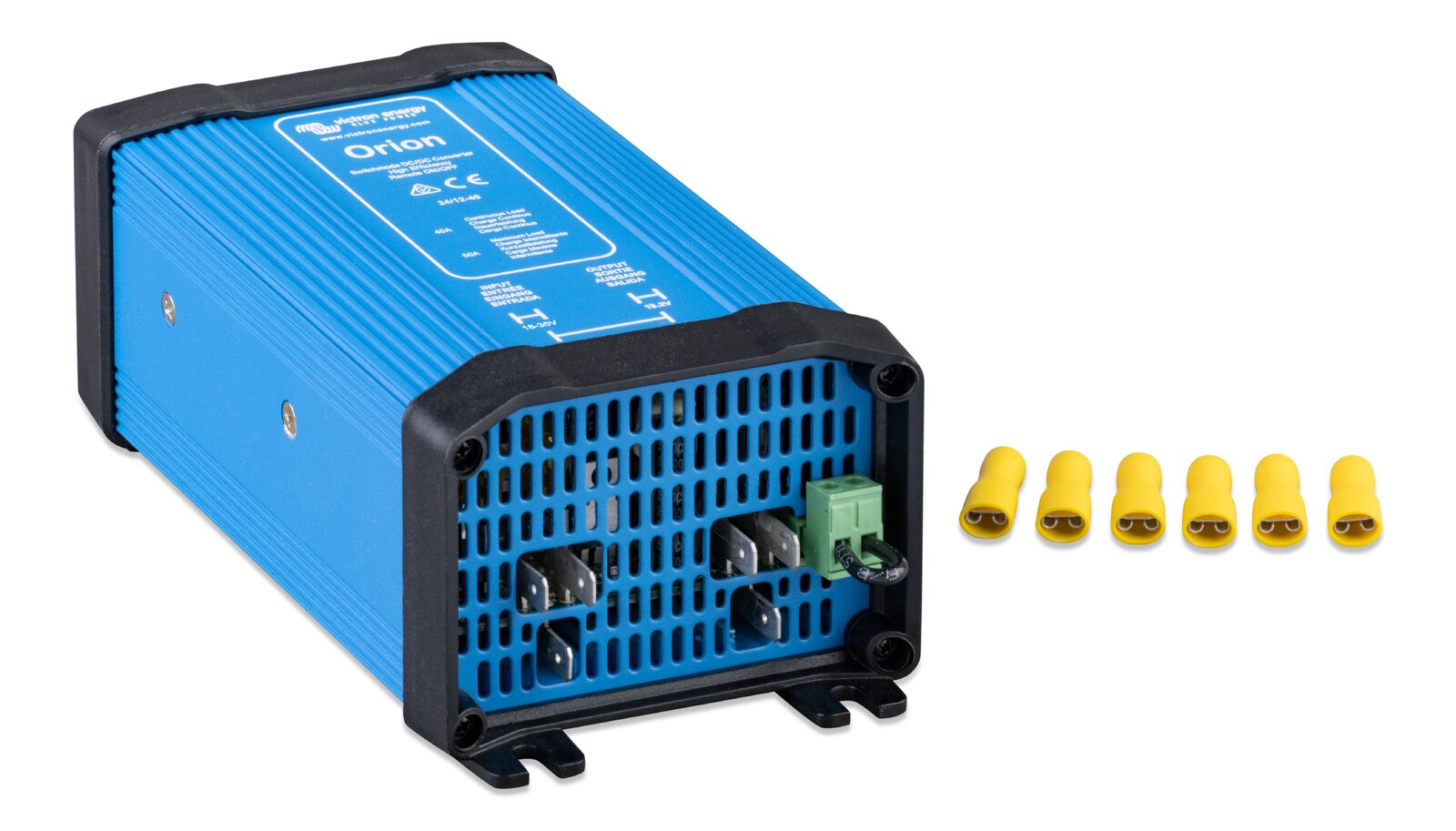

Model Orion-Tr 24/12-40A
Input voltage range 18-35V
Under voltage shutdown 14v
Under voltage restart 18v
Output voltage adjustable with potentiometer No
Output voltage 13.2V
Efficiency 95%
Suitable to buffer-charge a battery No
Can be connected in parallel No
Continuous output current 40A
Max. Output current (10s) 55A
Fan assisted cooling (temp. controlled) Yes
Galvanic isolation No
Off load current < 15mA
Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C
DC connection Double Faston Tabs 6.3mm
Weight kg 0.785kg
Dimensions mm (HxWxD) 65x88x185



SKU 8719076038726
Barcode # ORI241240021
Brand Victron
Shipping Weight 1.0500kg
Shipping Width 0.080m
Shipping Height 0.110m
Shipping Length 0.225m
Shipping Cubic 0.001980000m3
