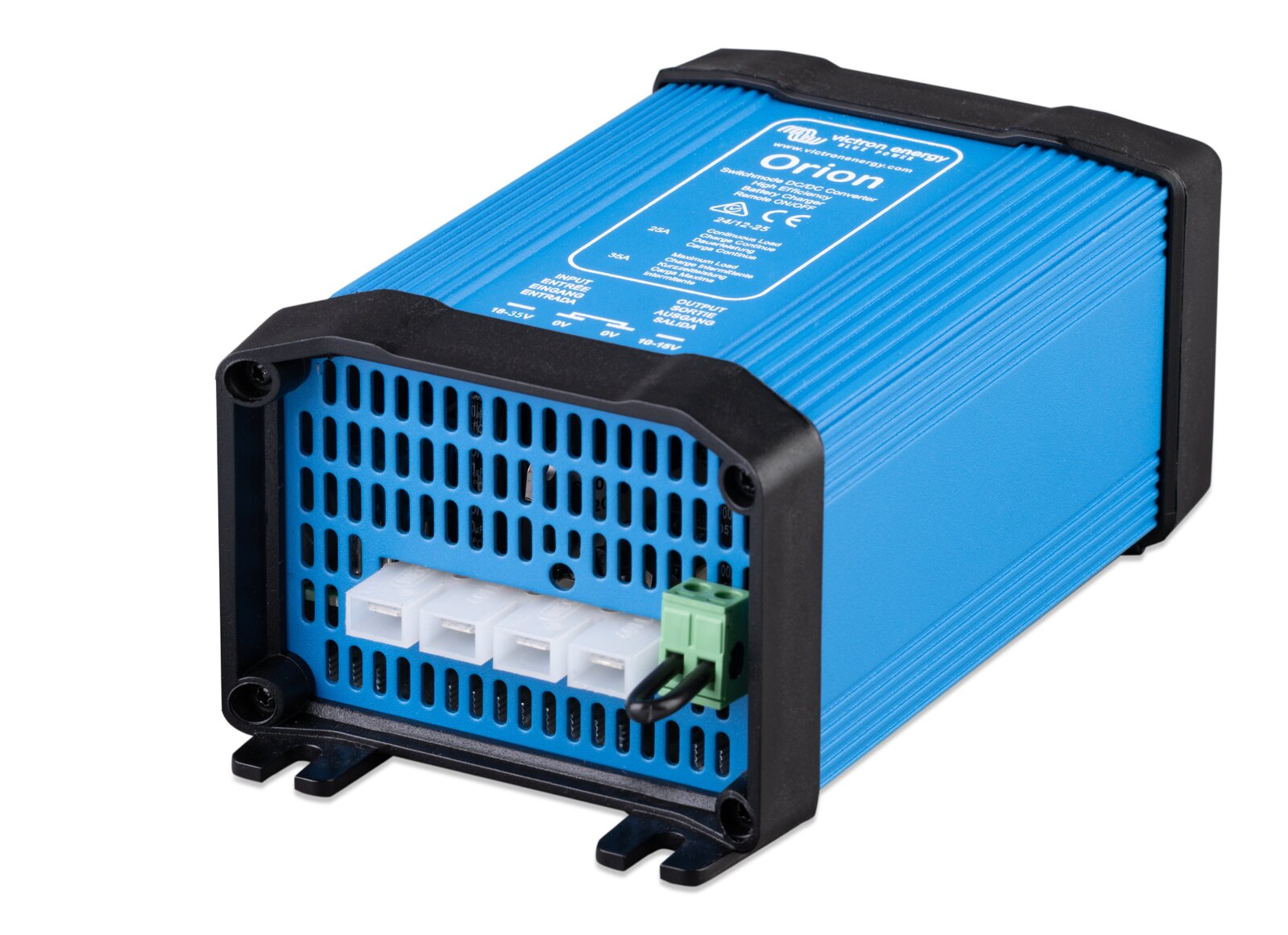

Remote on/off connector
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.

Easy to install

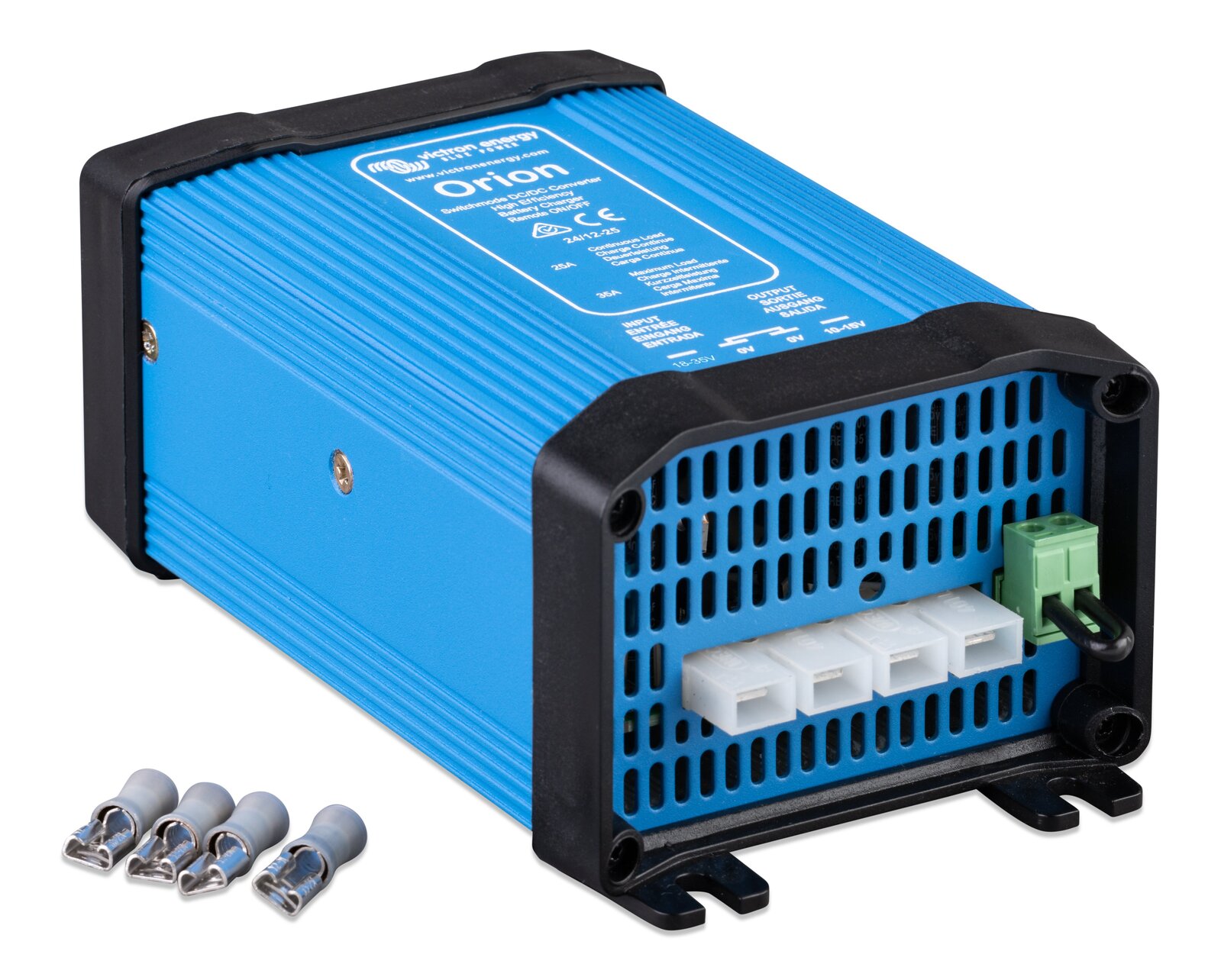

Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40)

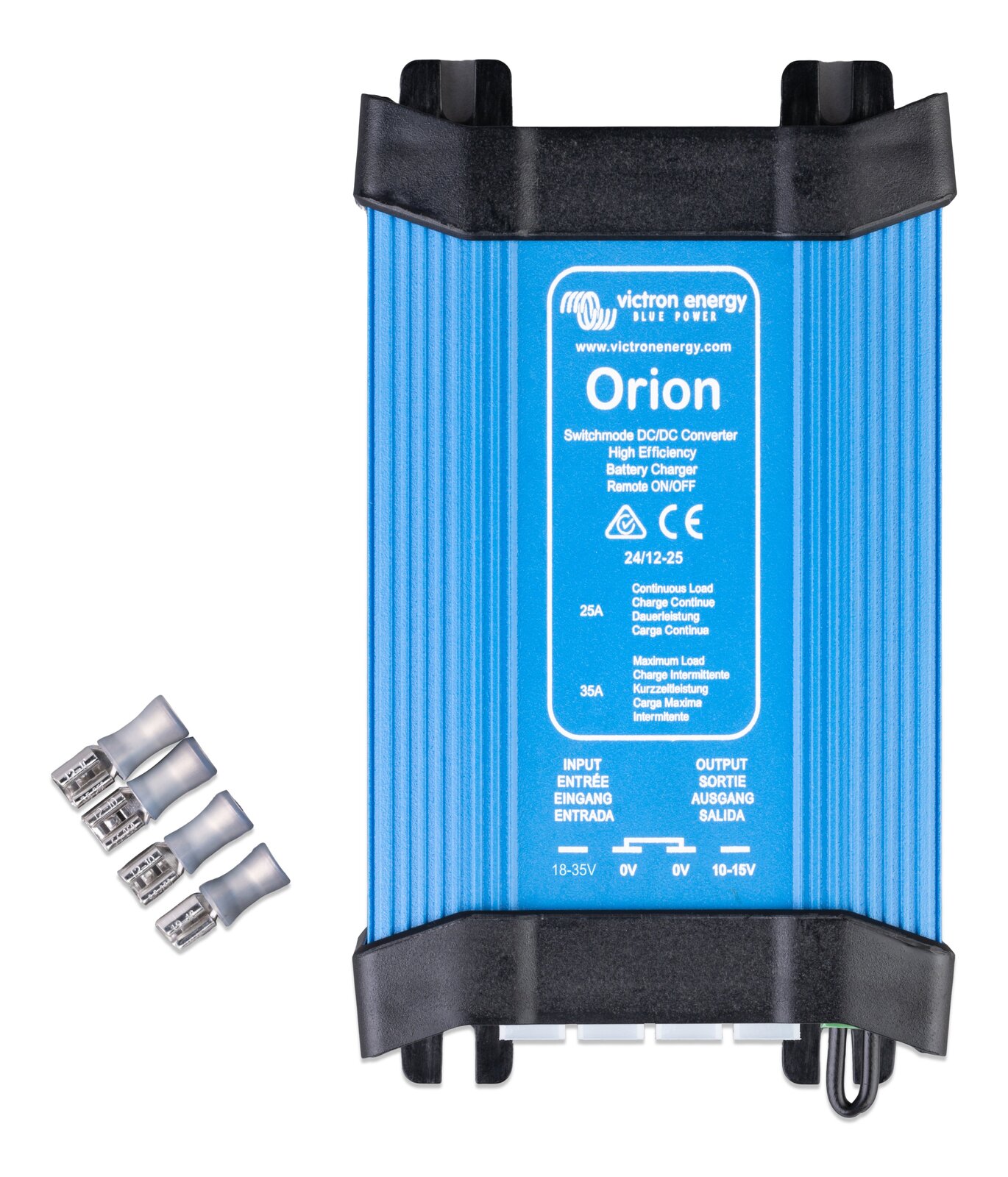

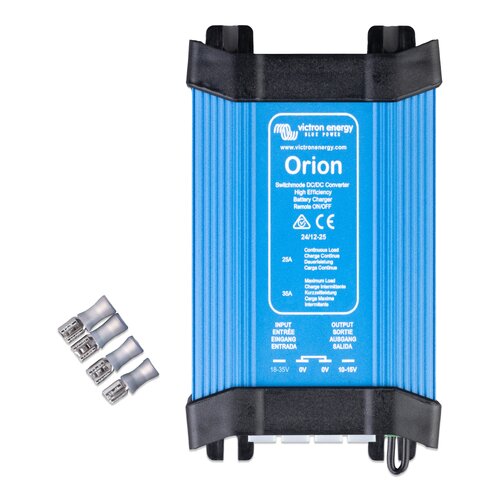

Model Orion-Tr 24/12-25A
Input voltage range 18-35V
Under voltage shutdown 14v
Under voltage restart 18v
Output voltage adjustable with potentiometer Yes
Output voltage Adjustable 10-15V F set 13,2V
Efficiency 96%
Suitable to buffer-charge a battery Yes
Can be connected in parallel Yes
Continuous output current 25A
Max. Output current (10s) 35A
Fan assisted cooling (temp. controlled) No
Galvanic isolation No
Off load current < 15mA
Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C

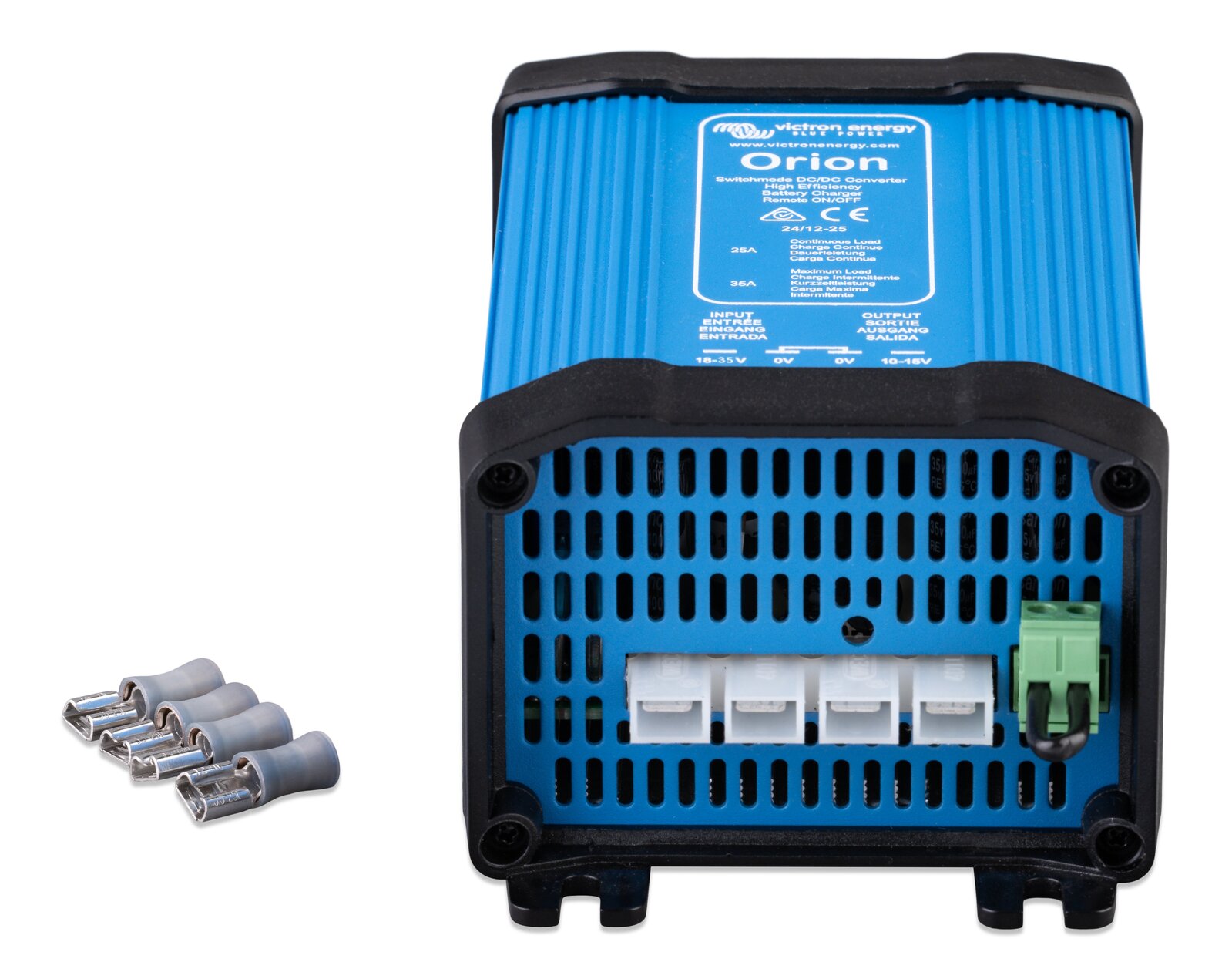

DC connection Faston Tabs 6.3mm
Weight kg 0.7kg
Dimensions mm (HxWxD) 65x88x160



SKU 8719076023012
Barcode # ORI241225020
Brand Victron
Shipping Weight 0.8000kg
Shipping Width 0.800m
Shipping Height 0.110m
Shipping Length 0.185m
Shipping Cubic 0.016280000m3
