Remote on/off connector
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual).

All models with adjustable output can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models with adjustable output can be paralleled to increase output current
Up to five units can be connected in parallel.

Easy to install
Delivery includes four Insulated Fastons Female Crimp 6.3mm (eight Fastons in case of the Orion 24/12-40)

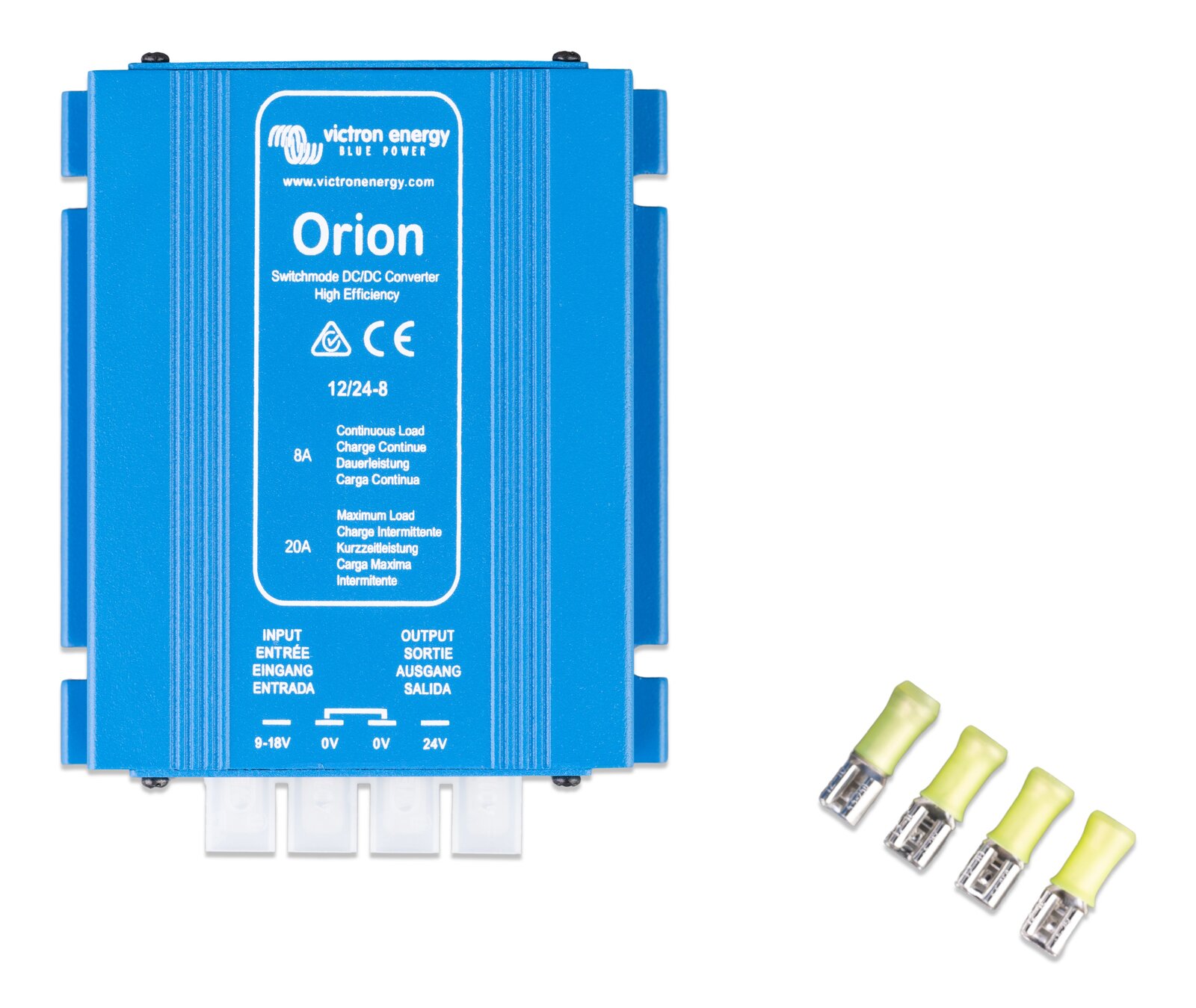

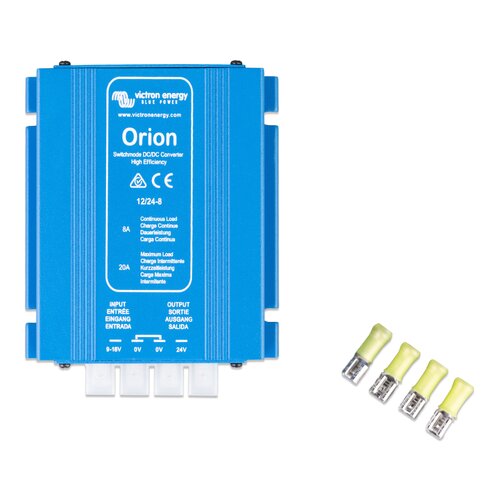

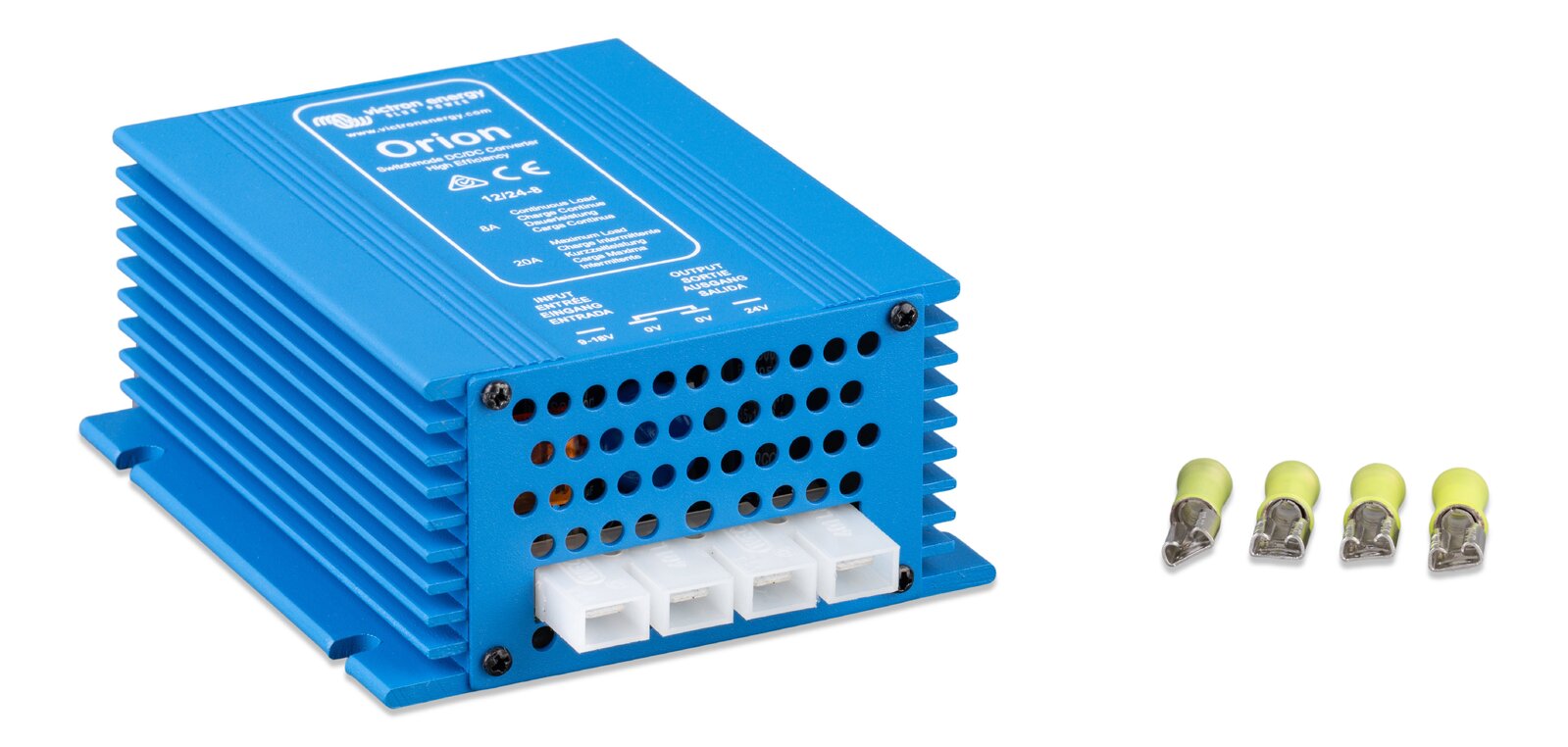

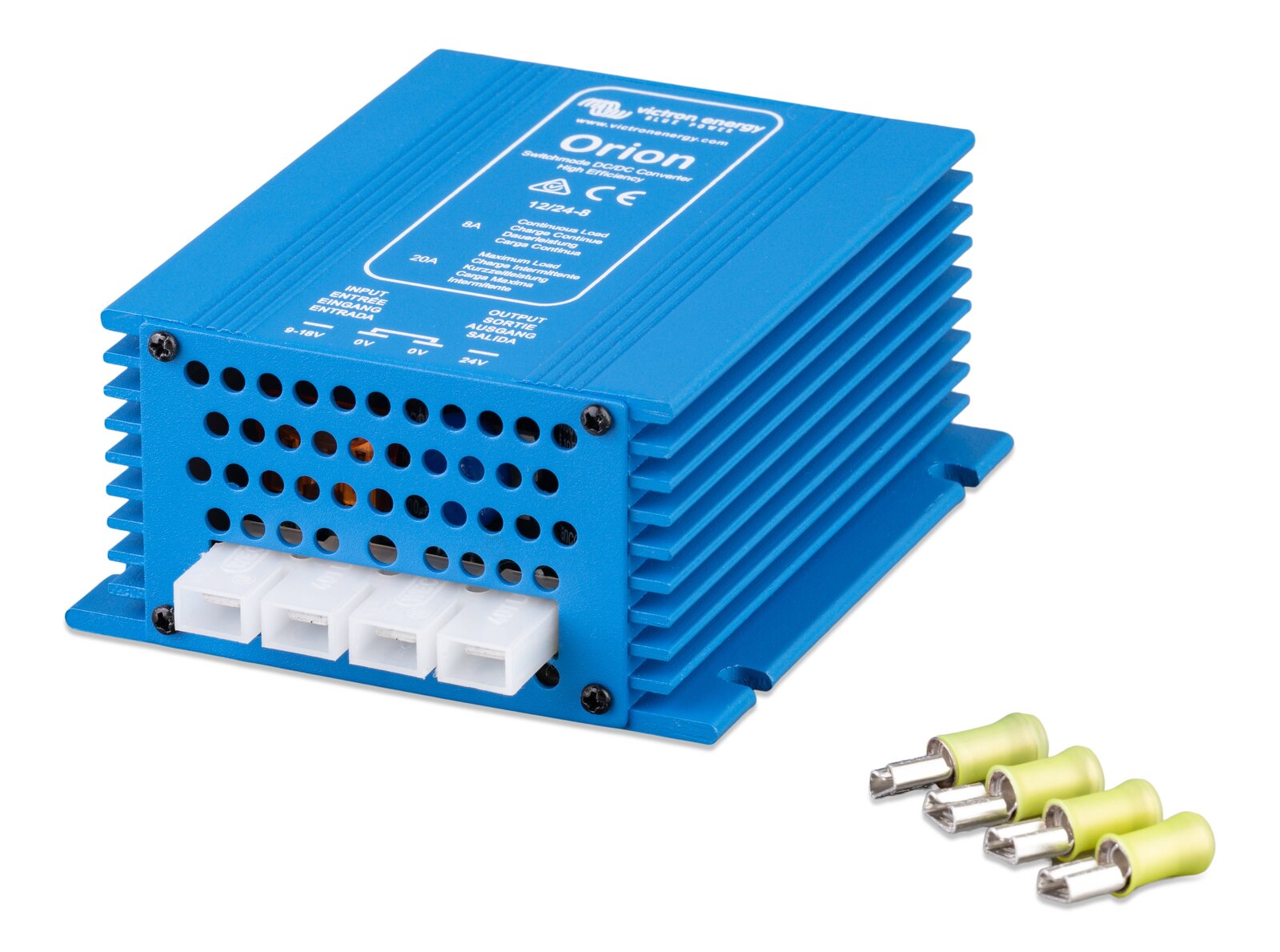

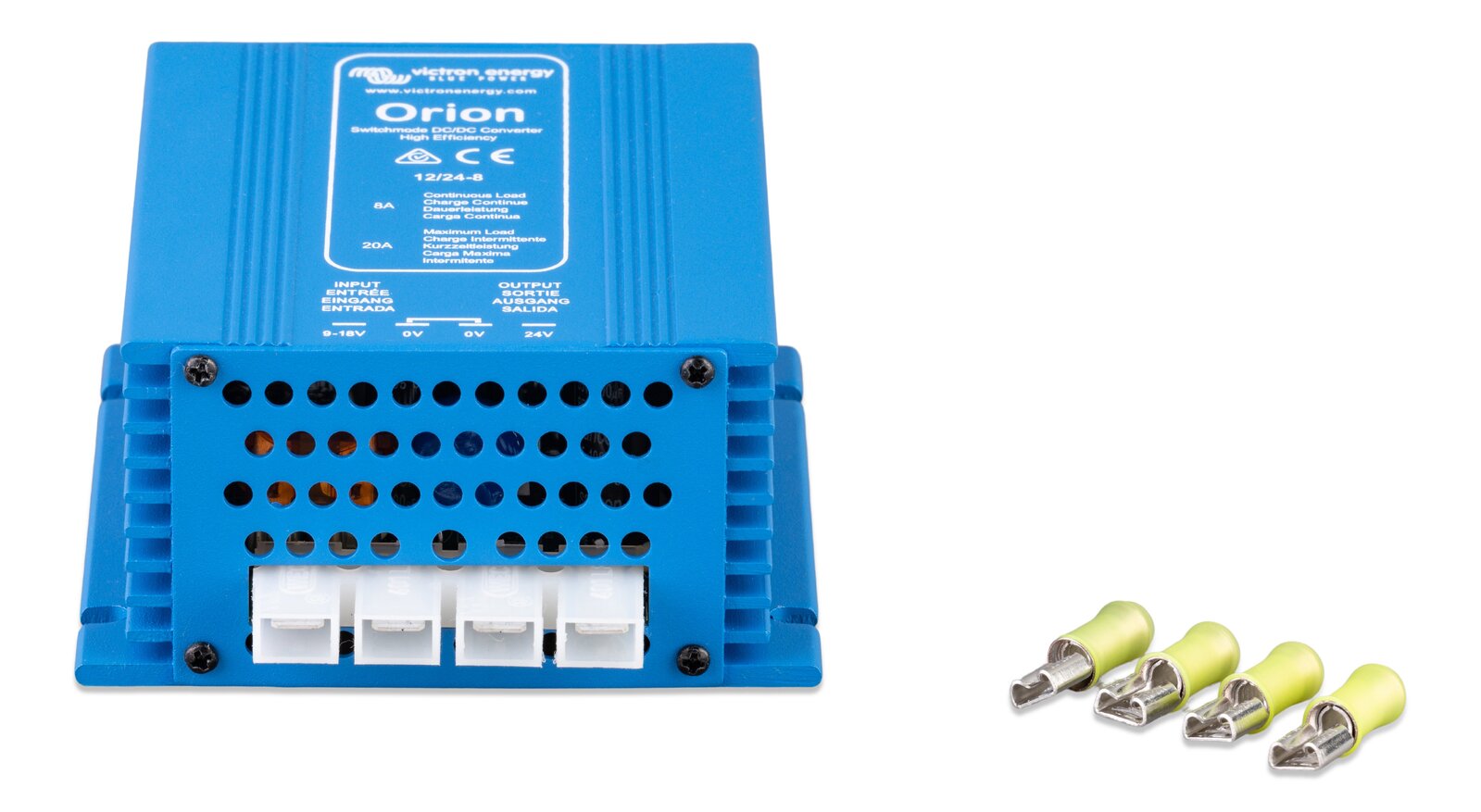

Model Orion-Tr 12/24-8
Input voltage range 9-18V
Under voltage shutdown 8v
Under voltage restart 10v
Output voltage adjustable with potentiometer No
Output voltage 24V
Efficiency 92%
Suitable to buffer-charge a battery No
Can be connected in parallel No
Continuous output current 8A
Max. Output current (10s) 20A
Fan assisted cooling (temp. controlled) No
Galvanic isolation No
Off load current < 10mA
Operating temperature range (derate 3% per °C above 40°C) -20 to +55°C
DC connection Faston tabs 6.3 mm
Weight kg 0.4kg
Dimensions mm (HxWxD) 45x90x115



SKU 8719076022732
Barcode # ORI122408020
Brand Victron
Shipping Weight 0.2440kg
Shipping Width 0.090m
Shipping Height 0.080m
Shipping Length 0.120m
Shipping Cubic 0.000864000m3
