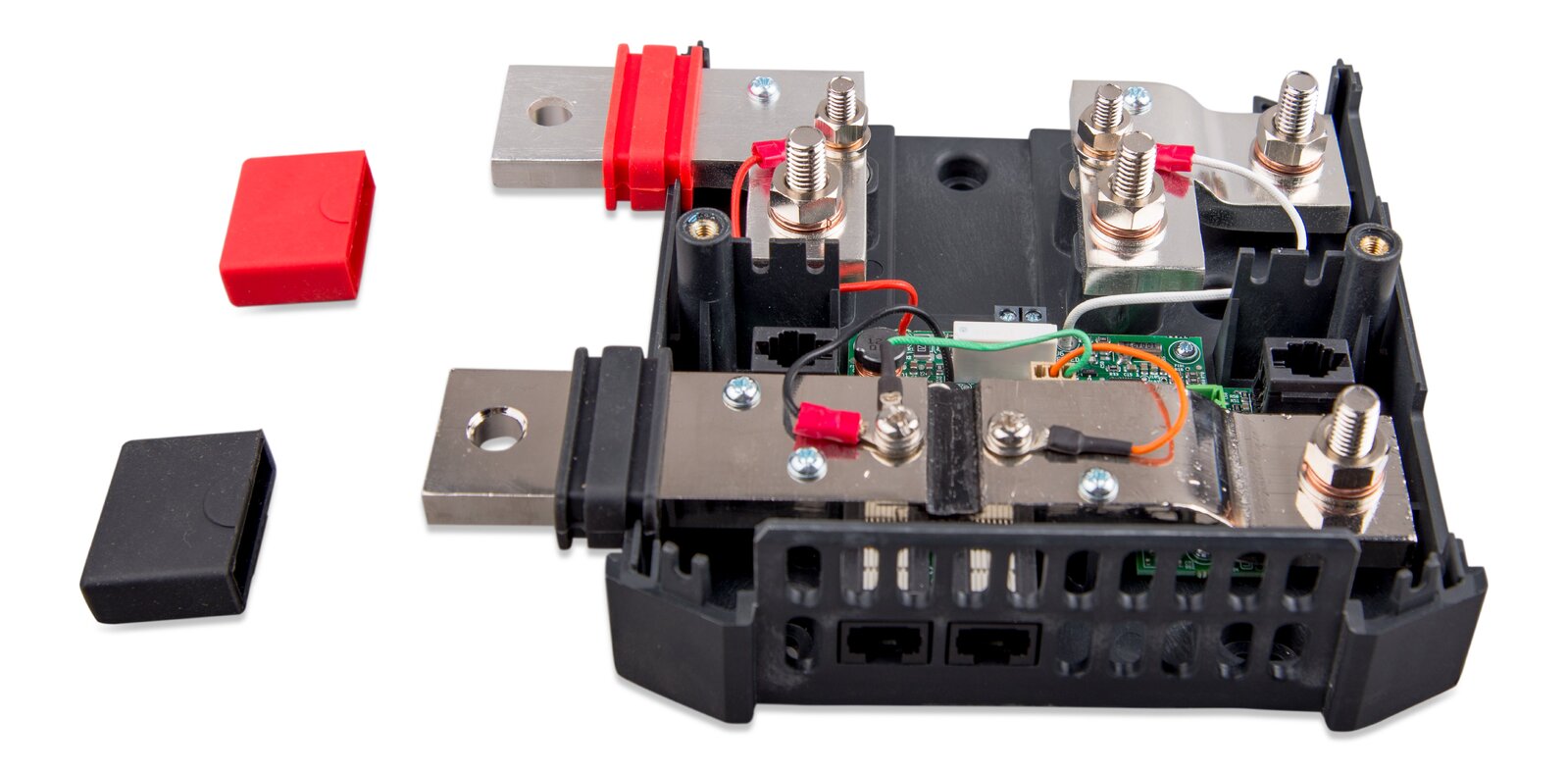

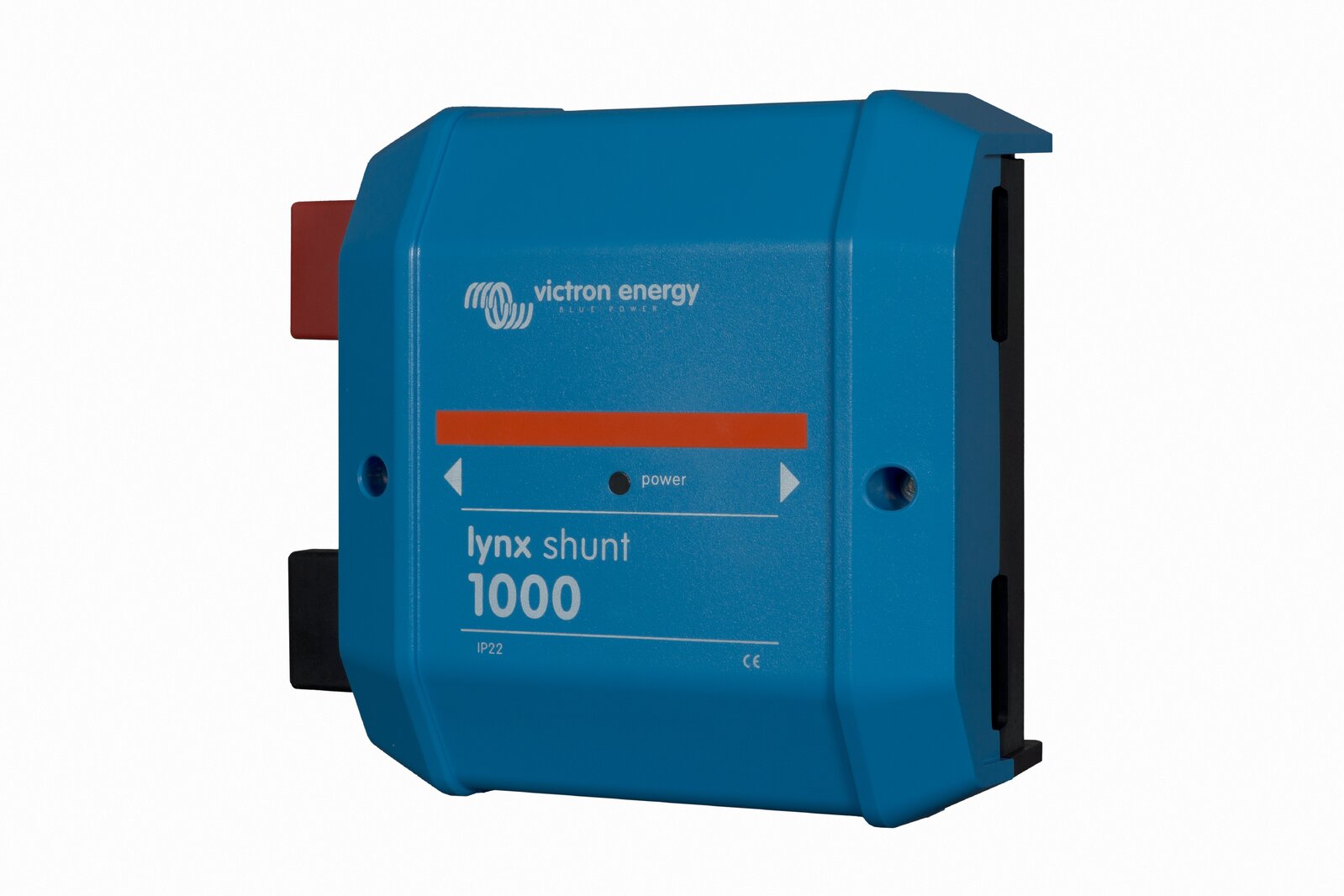

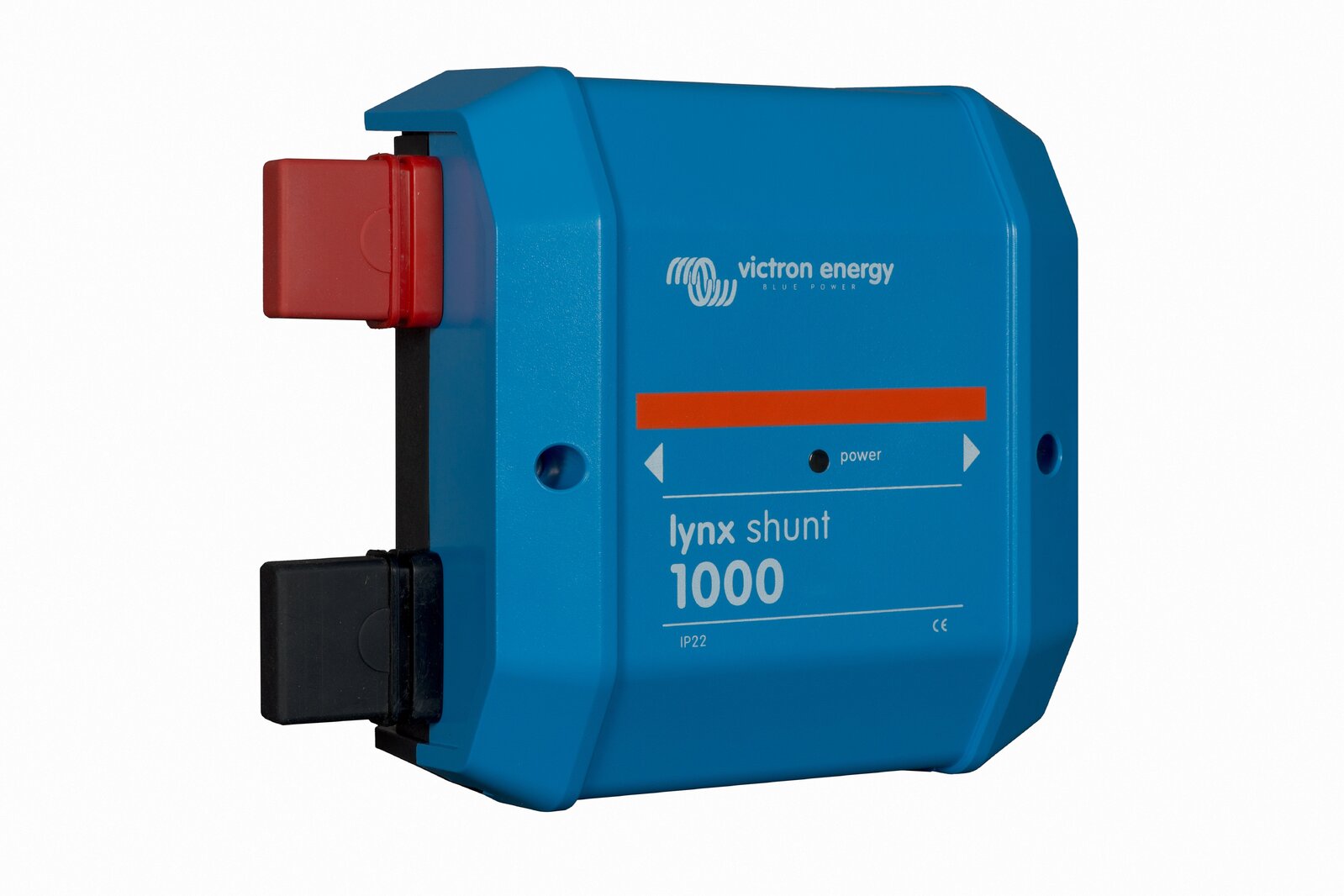

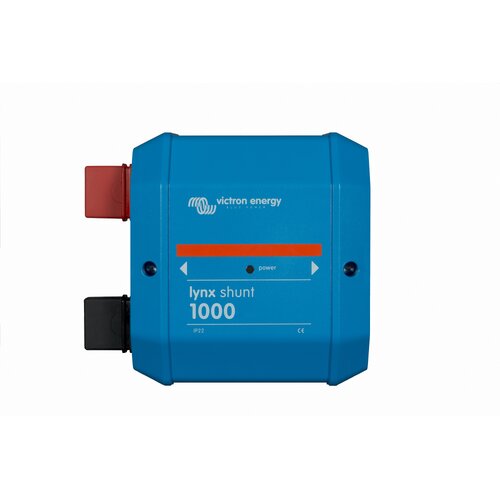

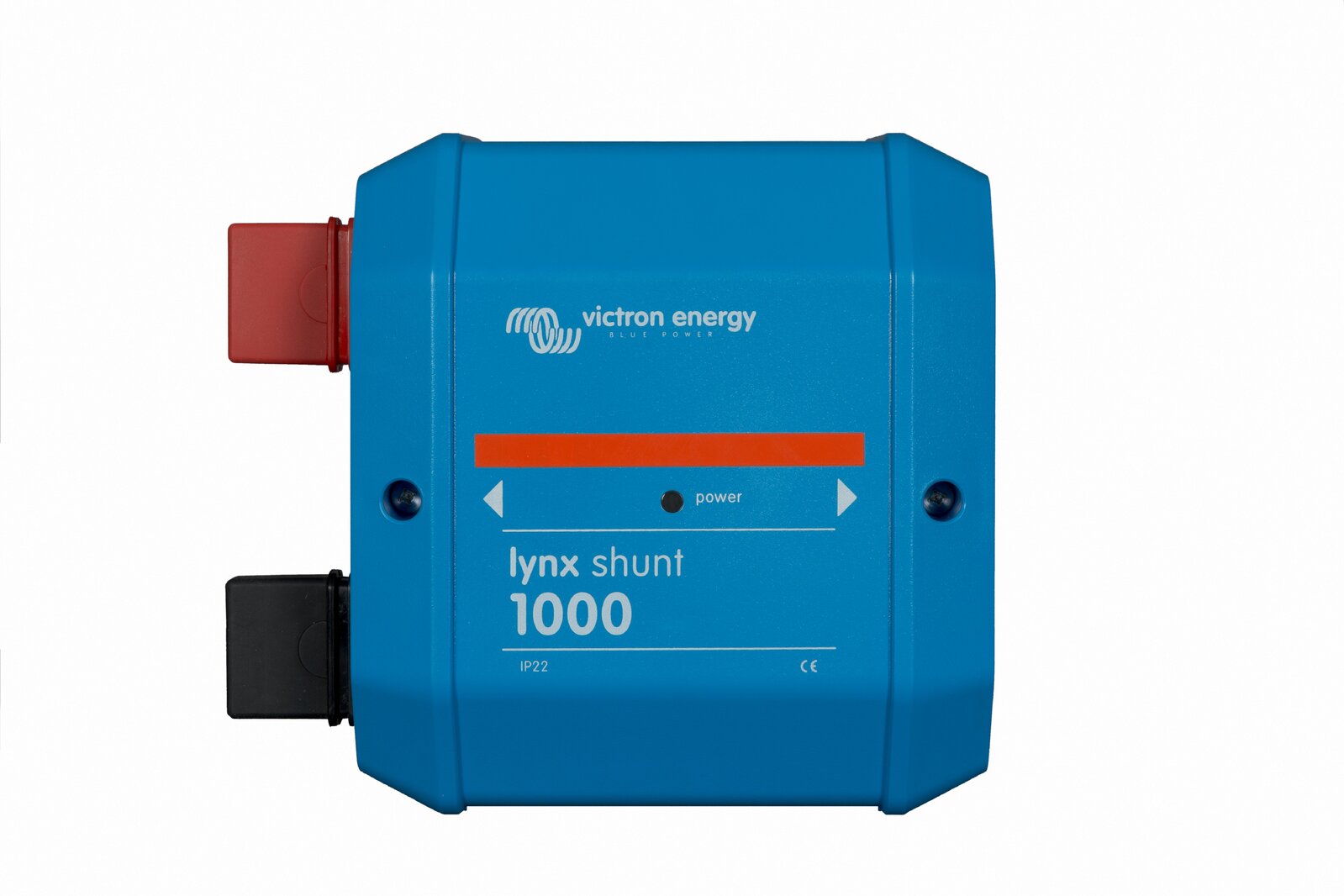

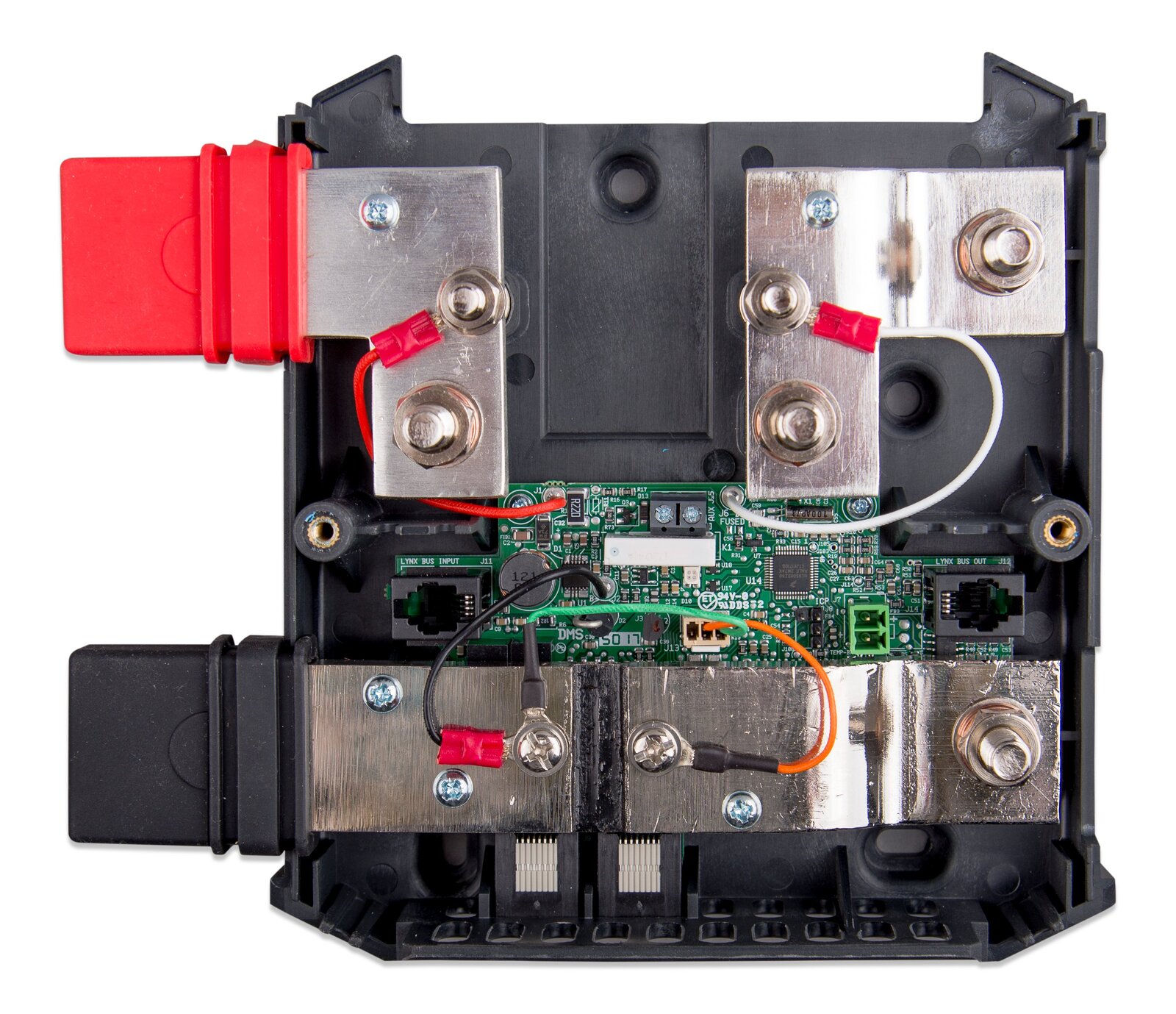

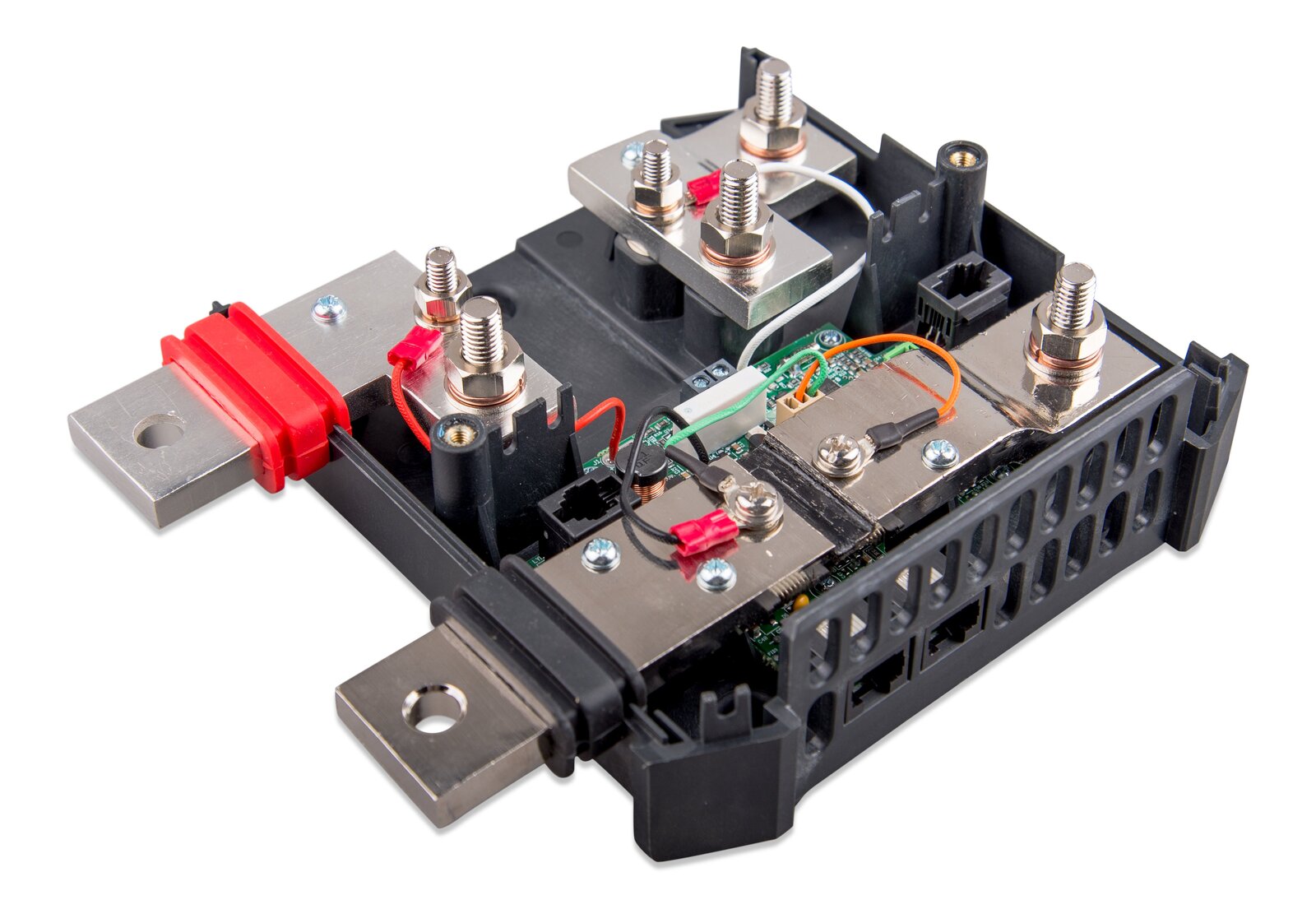

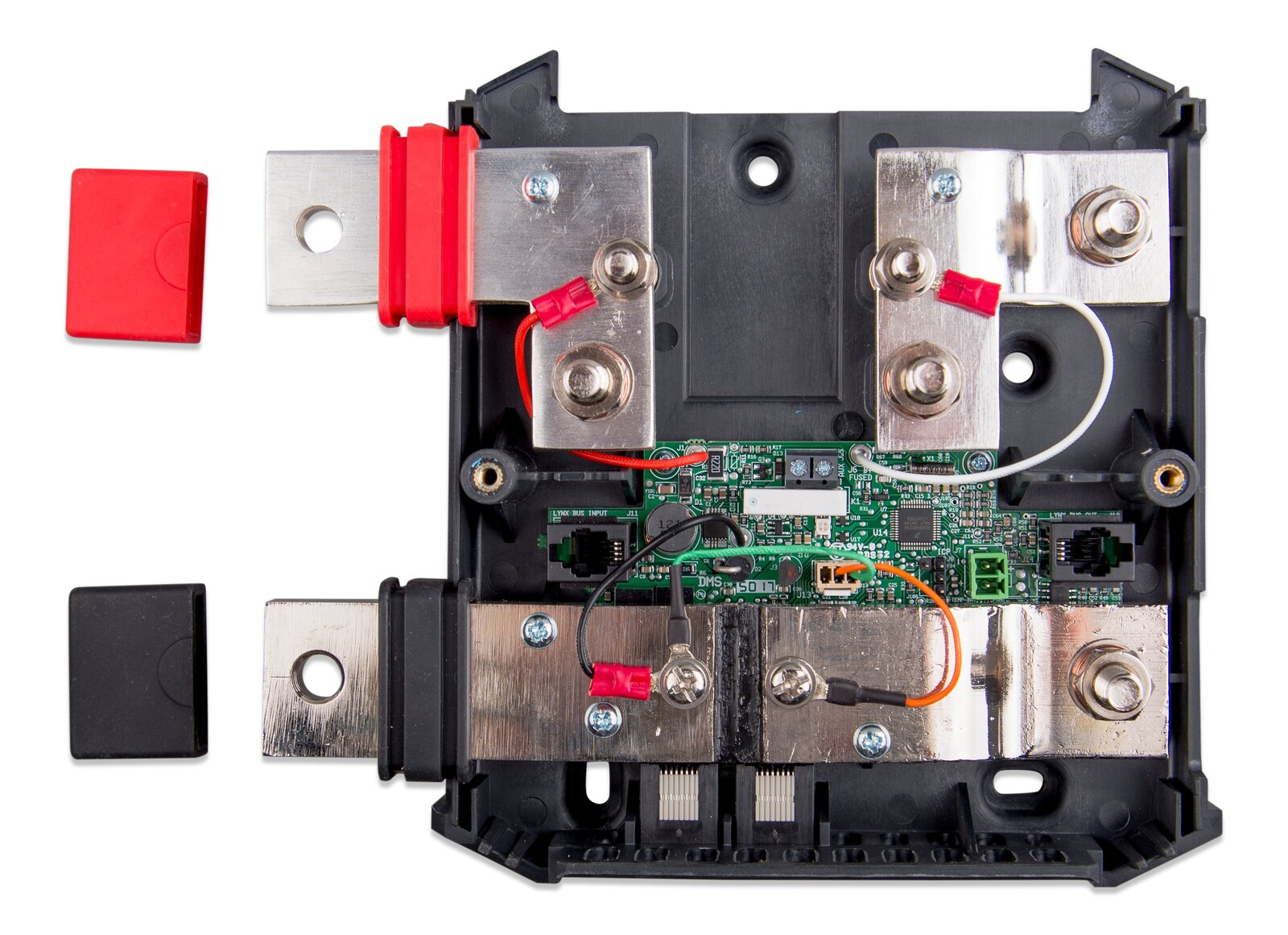

The Lynx Shunt VE.Can contains a positive and negative busbar, a battery monitor and a fuse holder for the main system fuse. It
is part of the Lynx Distribution system.

The Lynx Distributor has a power LED.

The Lynx Shunt VE.Can can communicate via VE.Can with an GX device.

The Lynx Shunt VE.Can ships with two RJ45 VE.Can terminators, these are used when connecting to a GX device

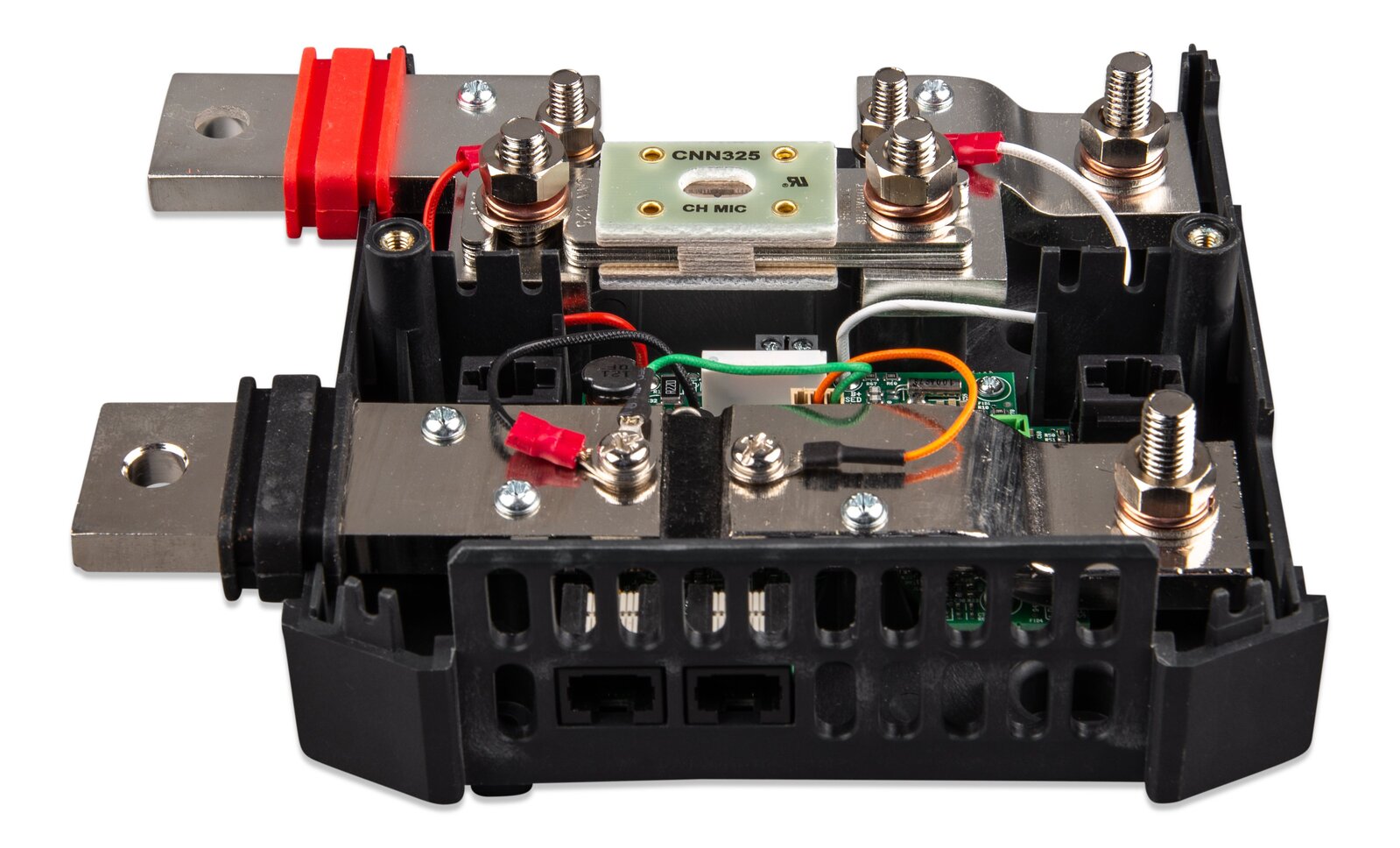

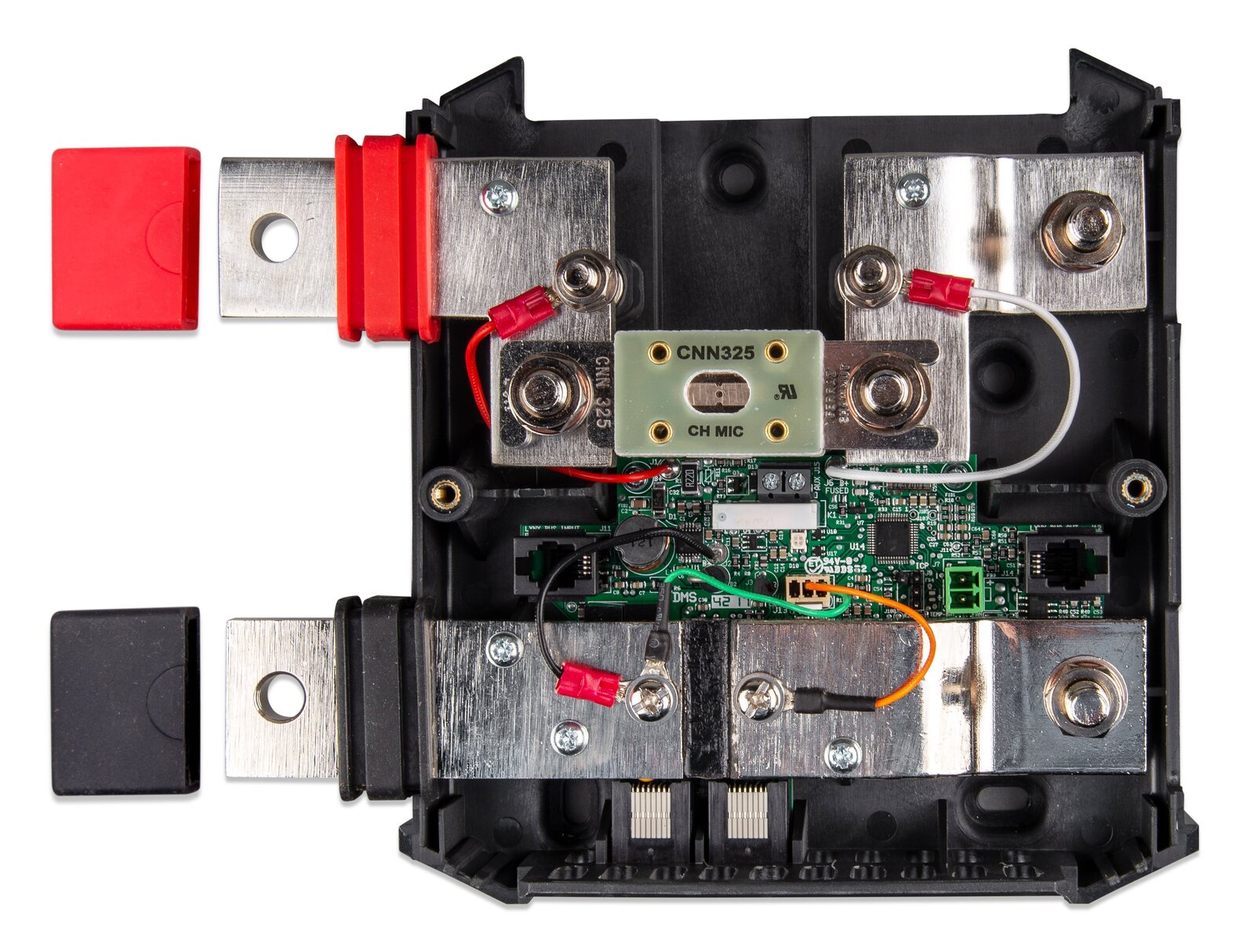

The Lynx Shunt VE.Can is designed to hold a ANL / CNN fuse. The fuse needs to be purchased separately

he Lynx Distributor, Lynx Shunt VE.Can and the Lynx Power In are rated for a nominal current of 1000A for 12, 24 or 48 System
voltages.

See the table below for an idea of how much power the Lynx modules are rated at different voltages. The power rating will
indicate how big the connected inverter/charger system can be. Remember that if inverters or inverter/chargers are used, the
batteries will power both the AC and DC systems. Also, be aware that a Lynx Smart BMS or a Lynx Ion (now discontinued) can
have a lower current rating

  12V 24V 48V
1000A 12kW 24kW 48kW
SKU 8719076022602
Barcode # LYN040102100
Brand Victron
Shipping Weight 1.5500kg
Shipping Width 0.300m
Shipping Height 0.090m
Shipping Length 0.185m
Shipping Cubic 0.004995000m3
