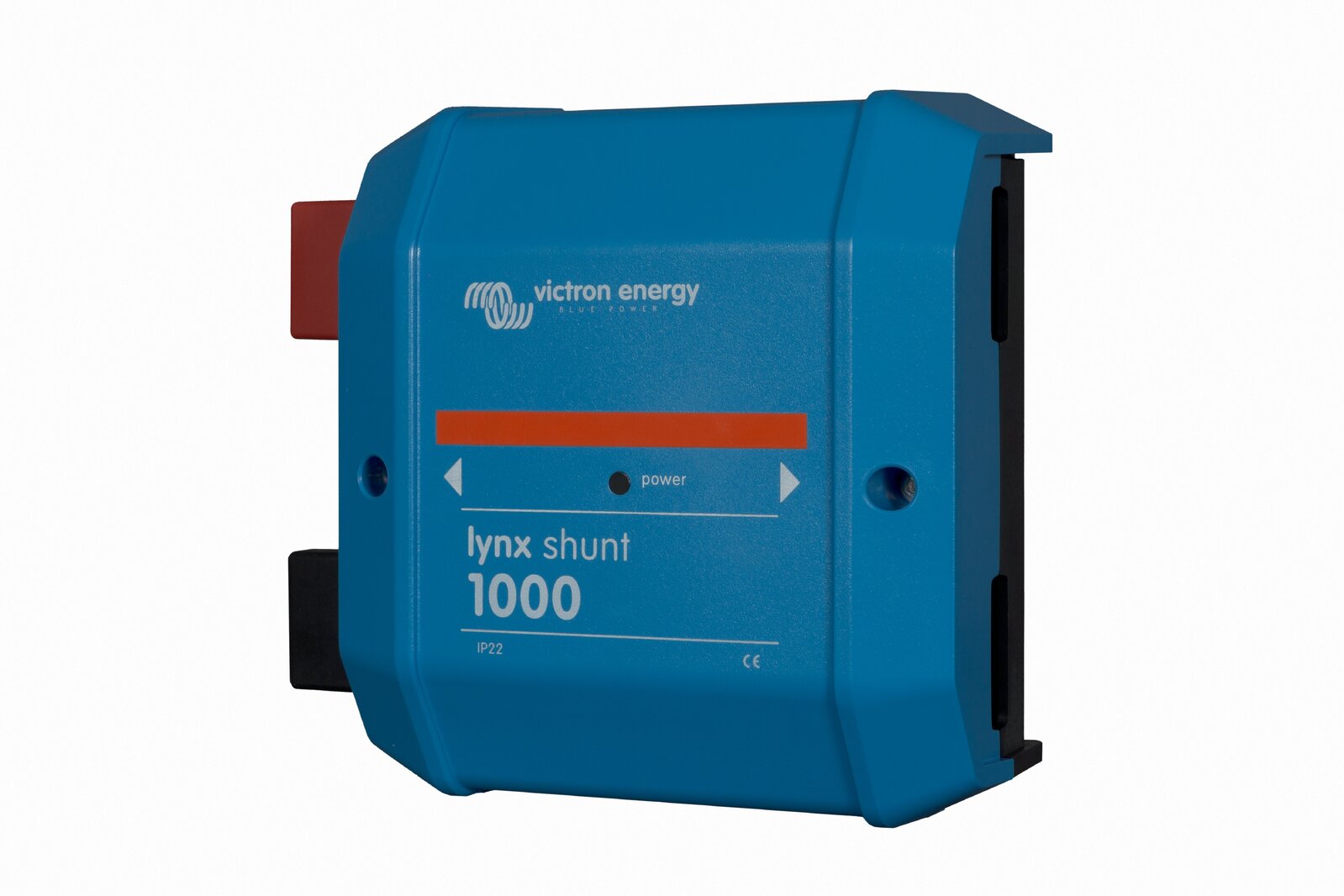

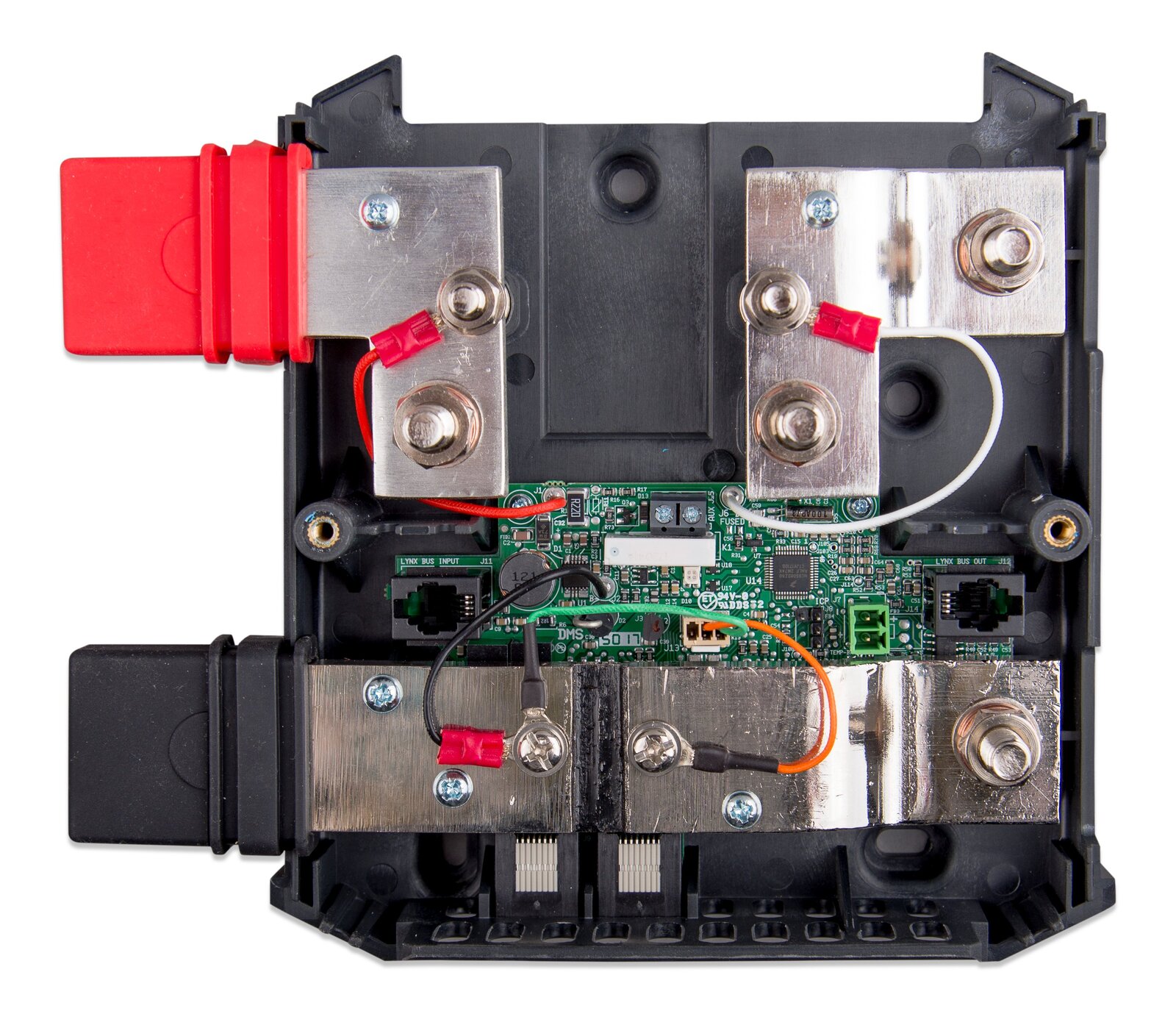

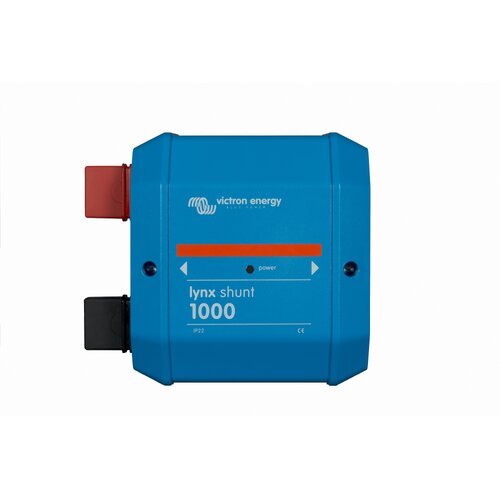

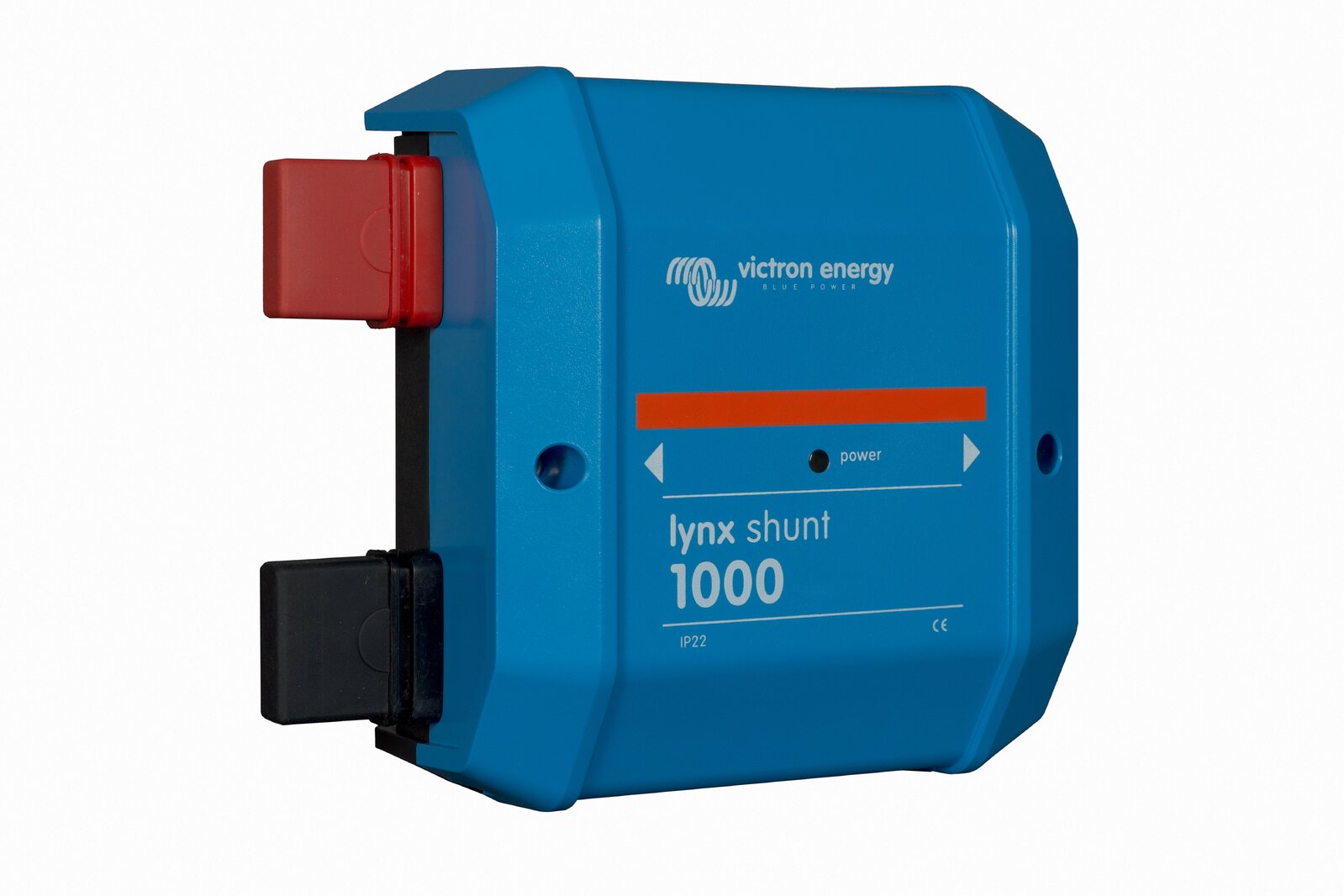

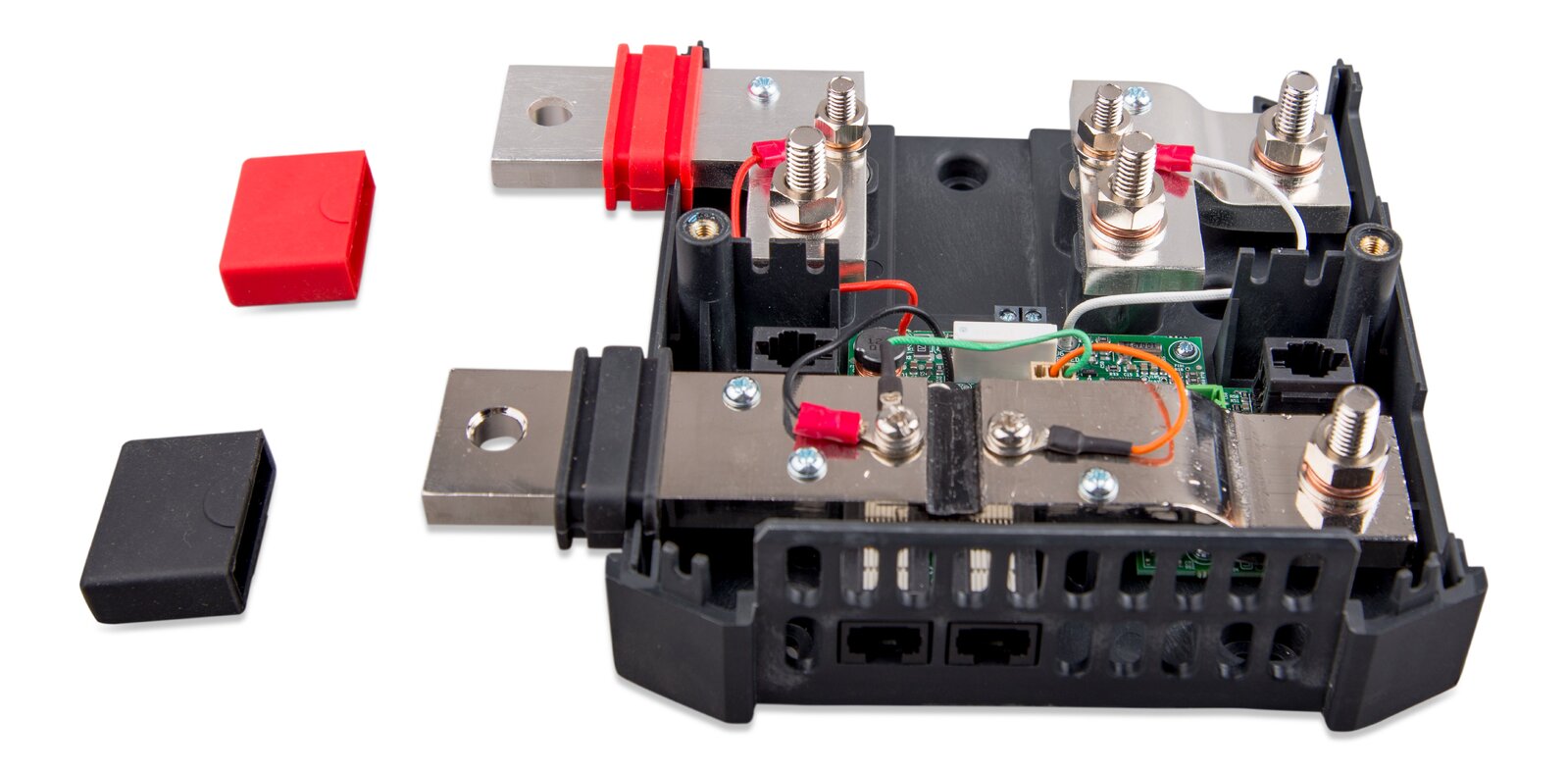

The Lynx Shunt VE.Can contains a positive and negative busbar, a battery monitor and a fuse holder for the main system fuse. It
is part of the Lynx Distribution system.

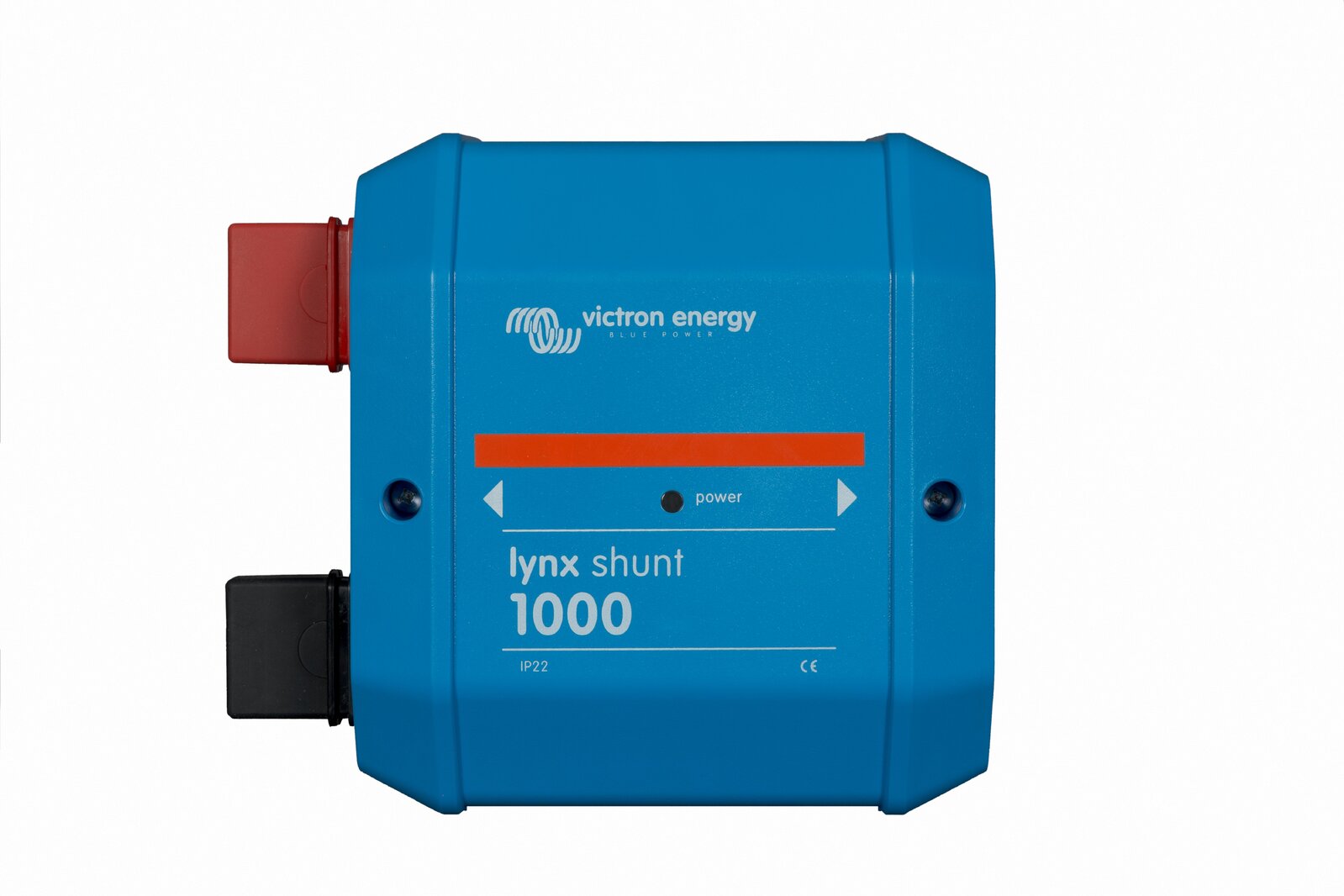

The Lynx Distributor has a power LED.

The Lynx Shunt VE.Can can communicate via VE.Can with an GX device.

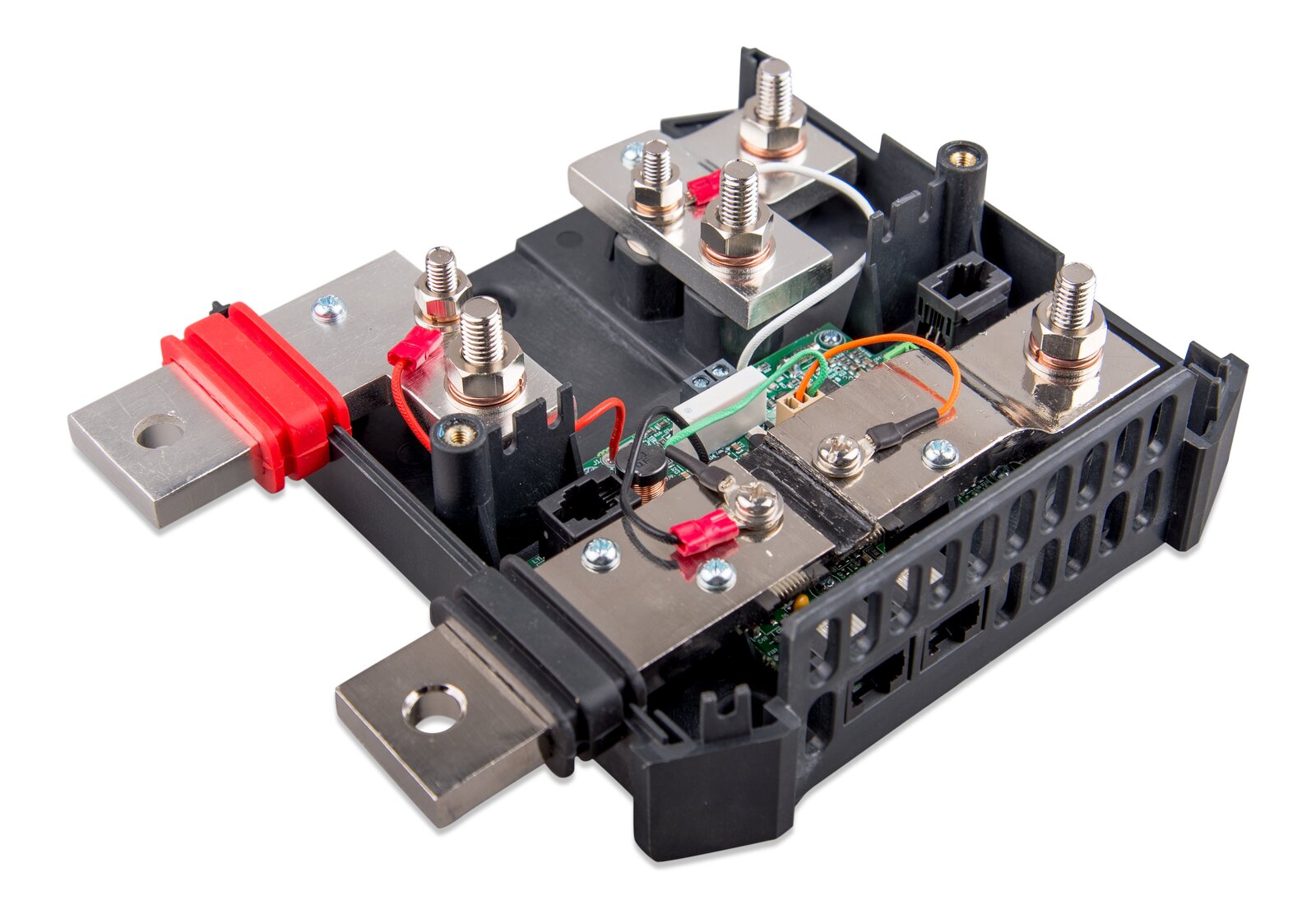

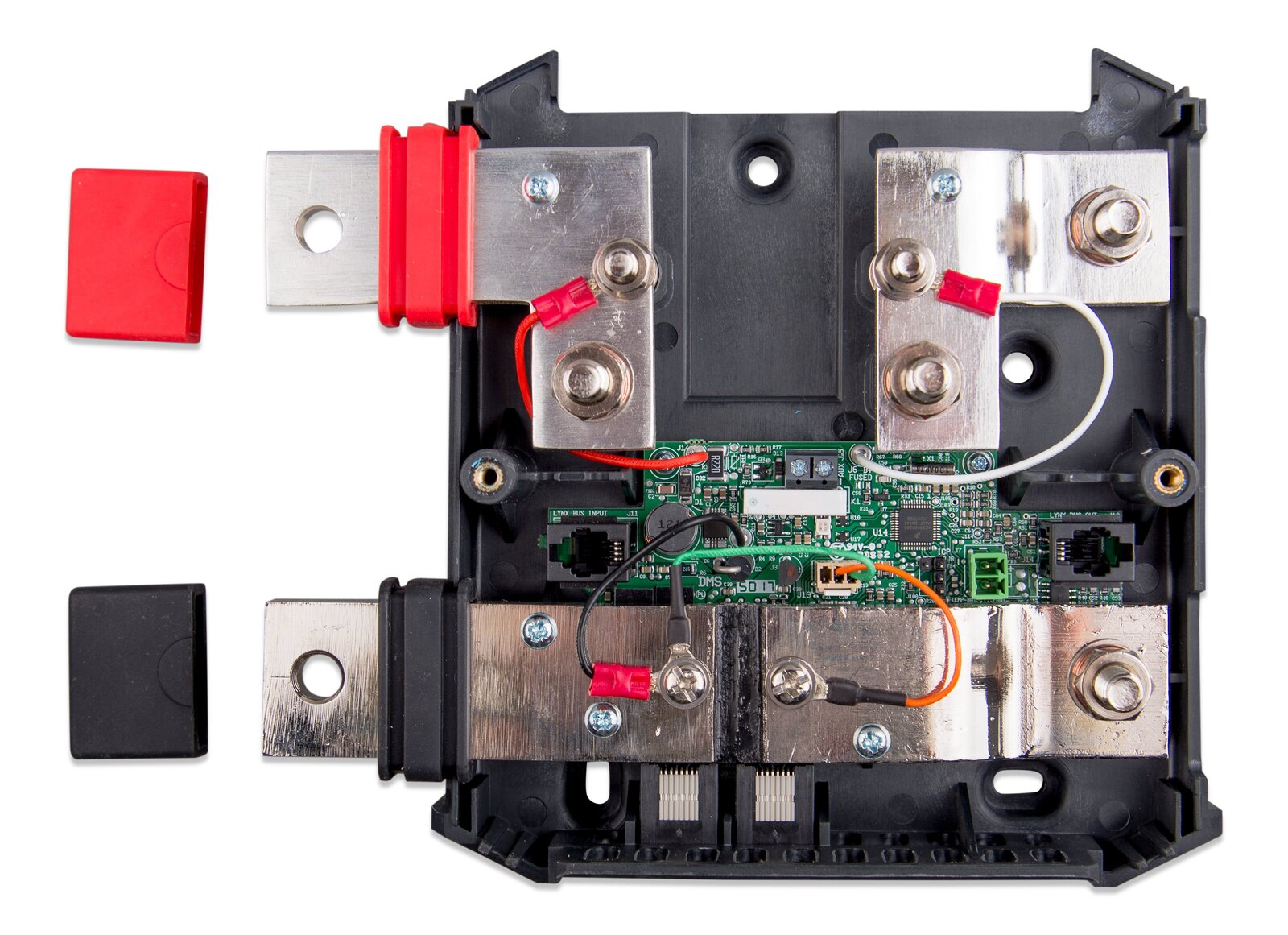

The Lynx Shunt VE.Can In is available in two versions, with M8 or M10 busbar.

Note that M10 refers to the busbar connection joints where the modules are connected to each other. The fuse and cable connections are always M8.

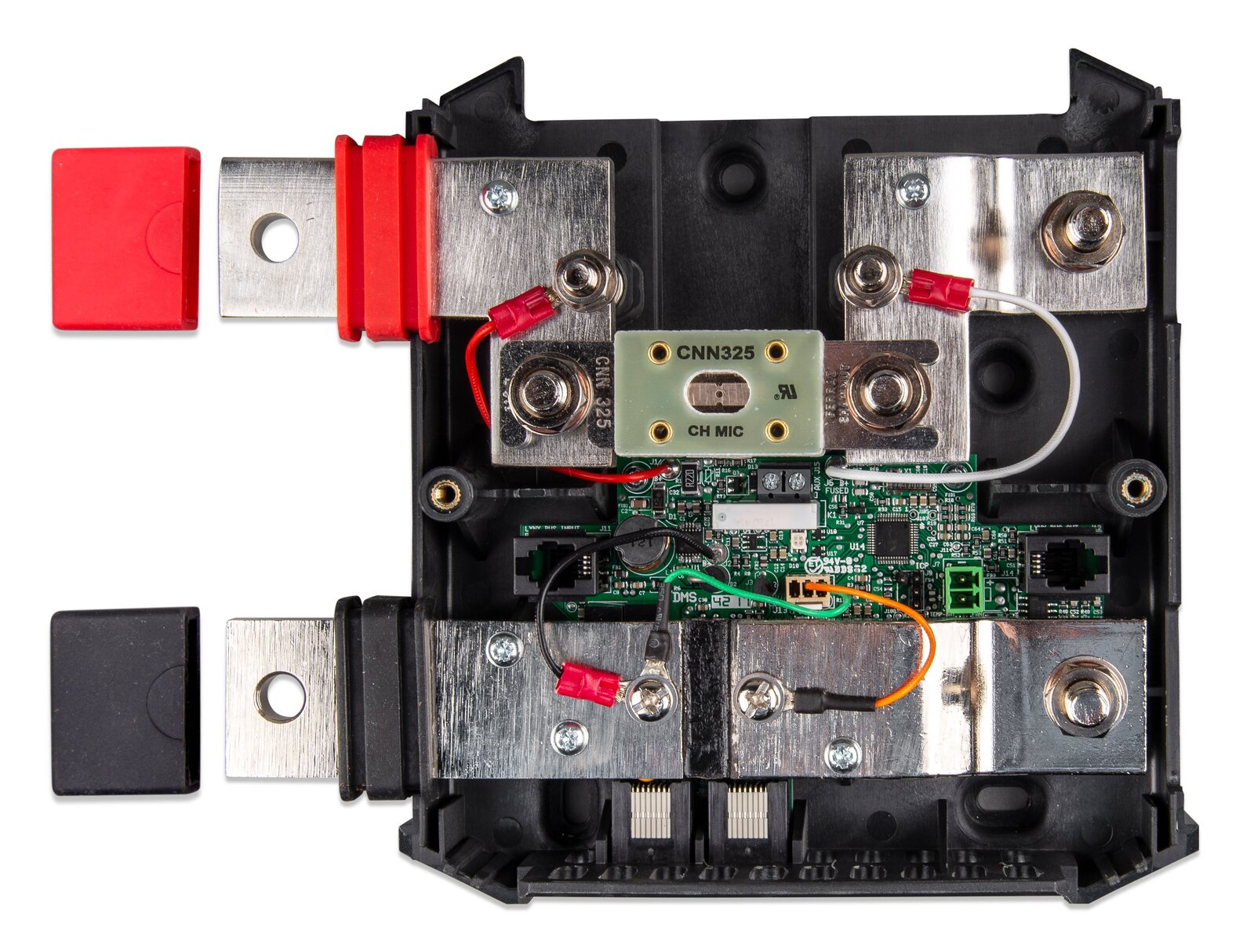

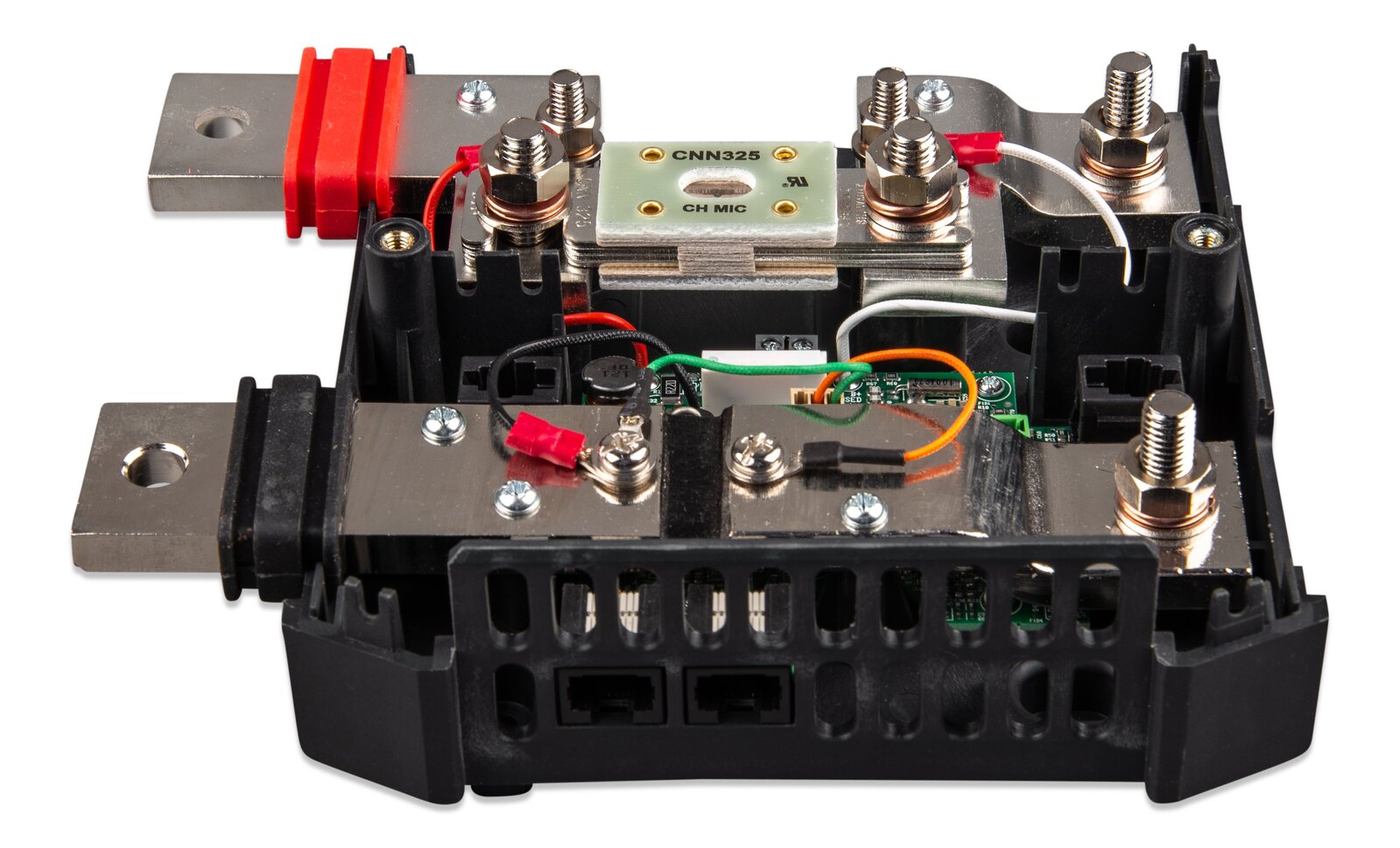

The Lynx Shunt VE.Can is designed to hold a ANL / CNN fuse. The fuse needs to be purchased separately

he Lynx Distributor, Lynx Shunt VE.Can and the Lynx Power In are rated for a nominal current of 1000A for 12, 24 or 48 System
voltages.

See the table below for an idea of how much power the Lynx modules are rated at different voltages. The power rating will
indicate how big the connected inverter/charger system can be. Remember that if inverters or inverter/chargers are used, the
batteries will power both the AC and DC systems. Also, be aware that a Lynx Smart BMS or a Lynx Ion (now discontinued) can
have a lower current rating
