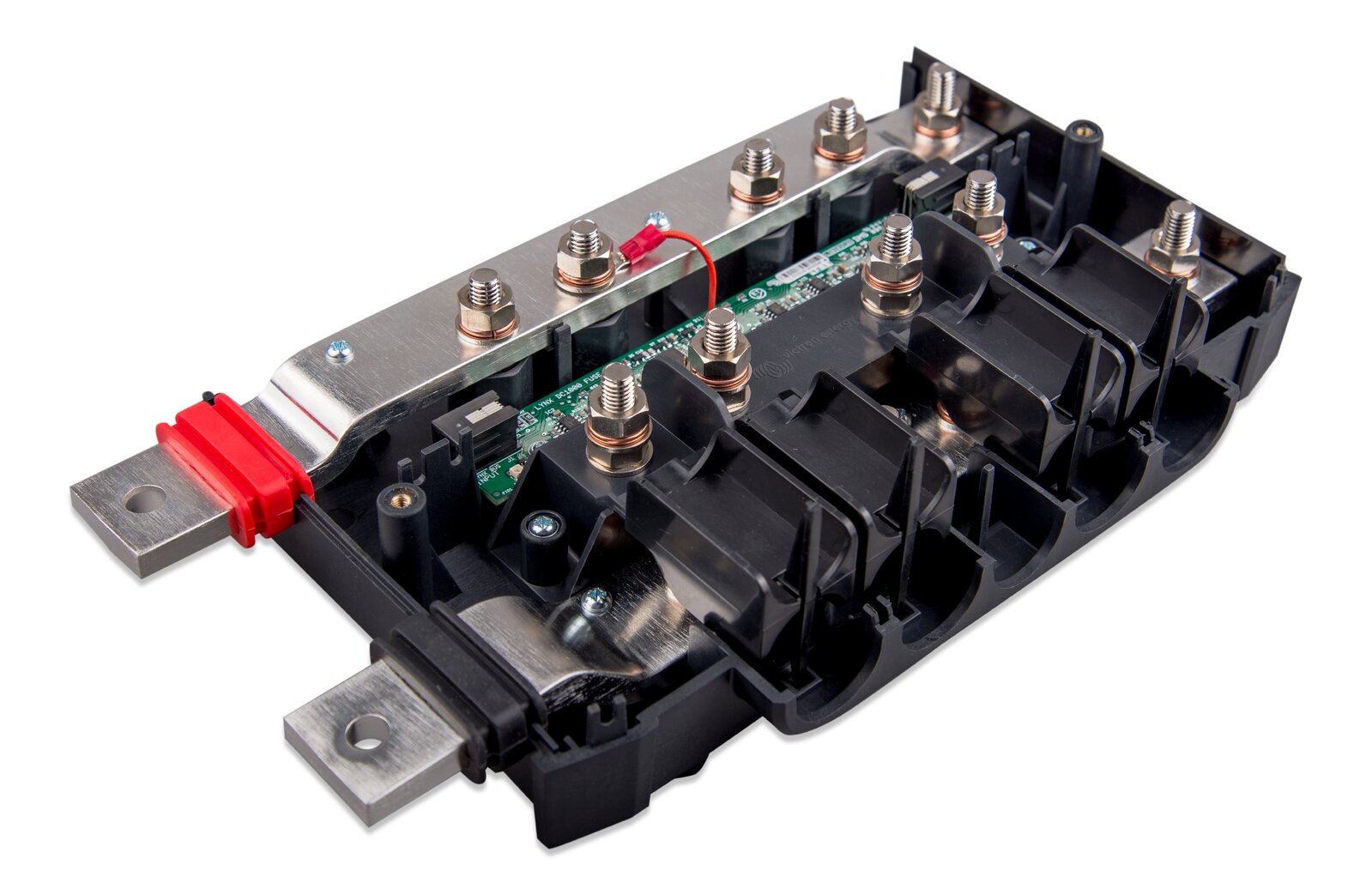

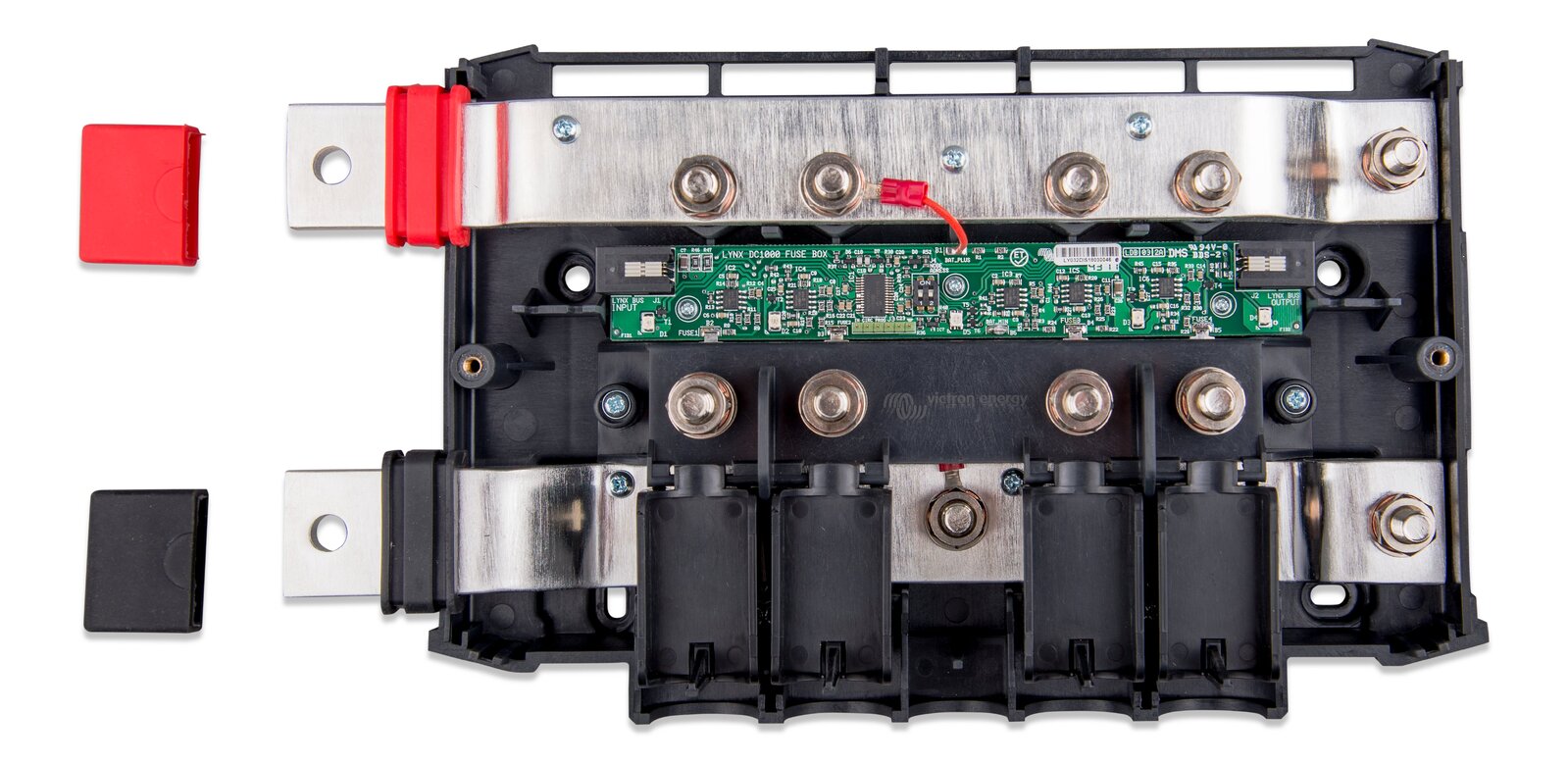

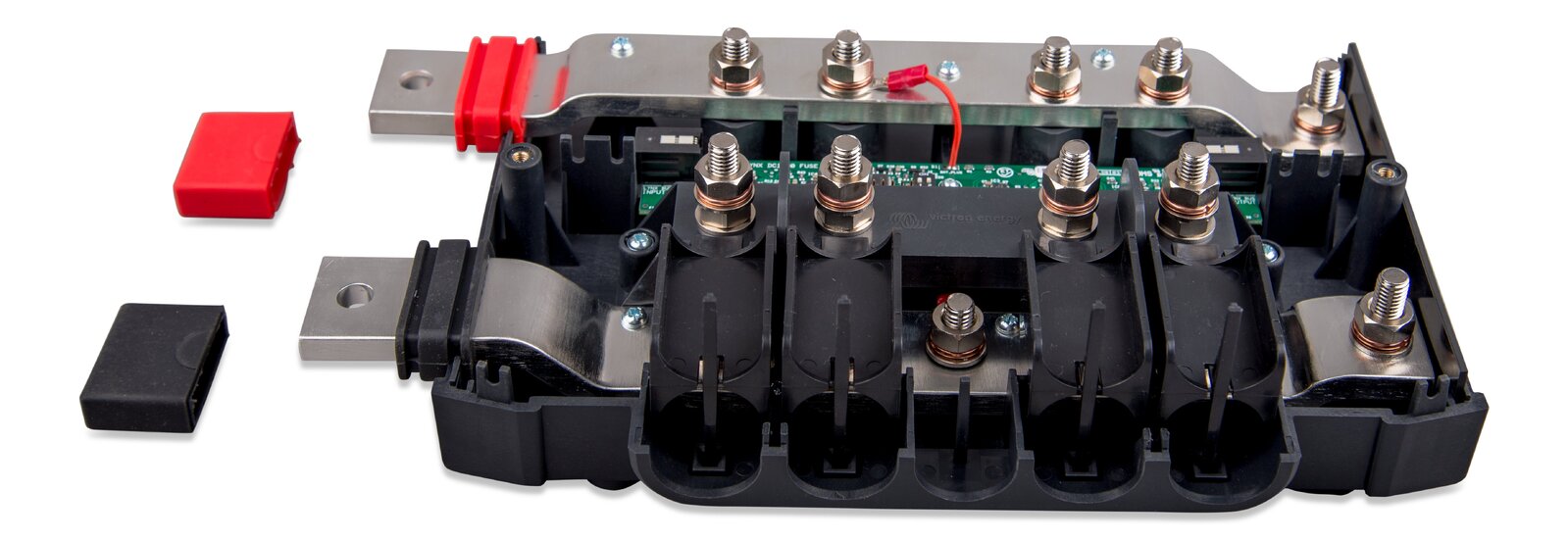

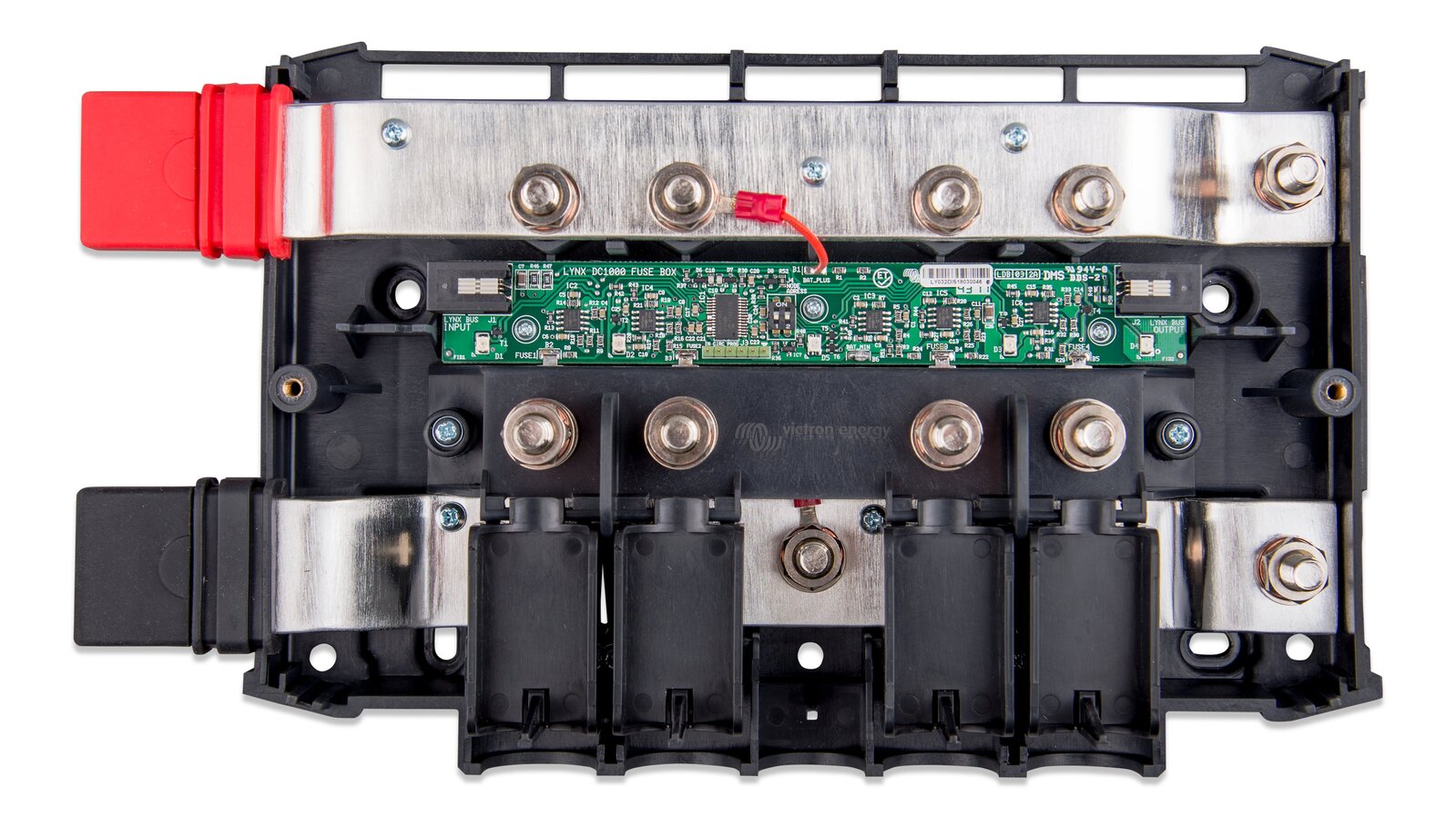

The Lynx Distributor In is part of the Lynx Distribution system, it contains a positive and negative busbar with 4 connections for batteries, loads or chargers and a ground connection.

The positive busbar has four fuse-protected connections with fuse monitoring. The negative busbar has four connections and a ground connection.

It is part of the Lynx Distributor is available in two versions, with M8 or M10 busbar.

Note that M10 refers to the busbar connection joints where the modules are connected to each other. The fuse and cable connections are always M8.

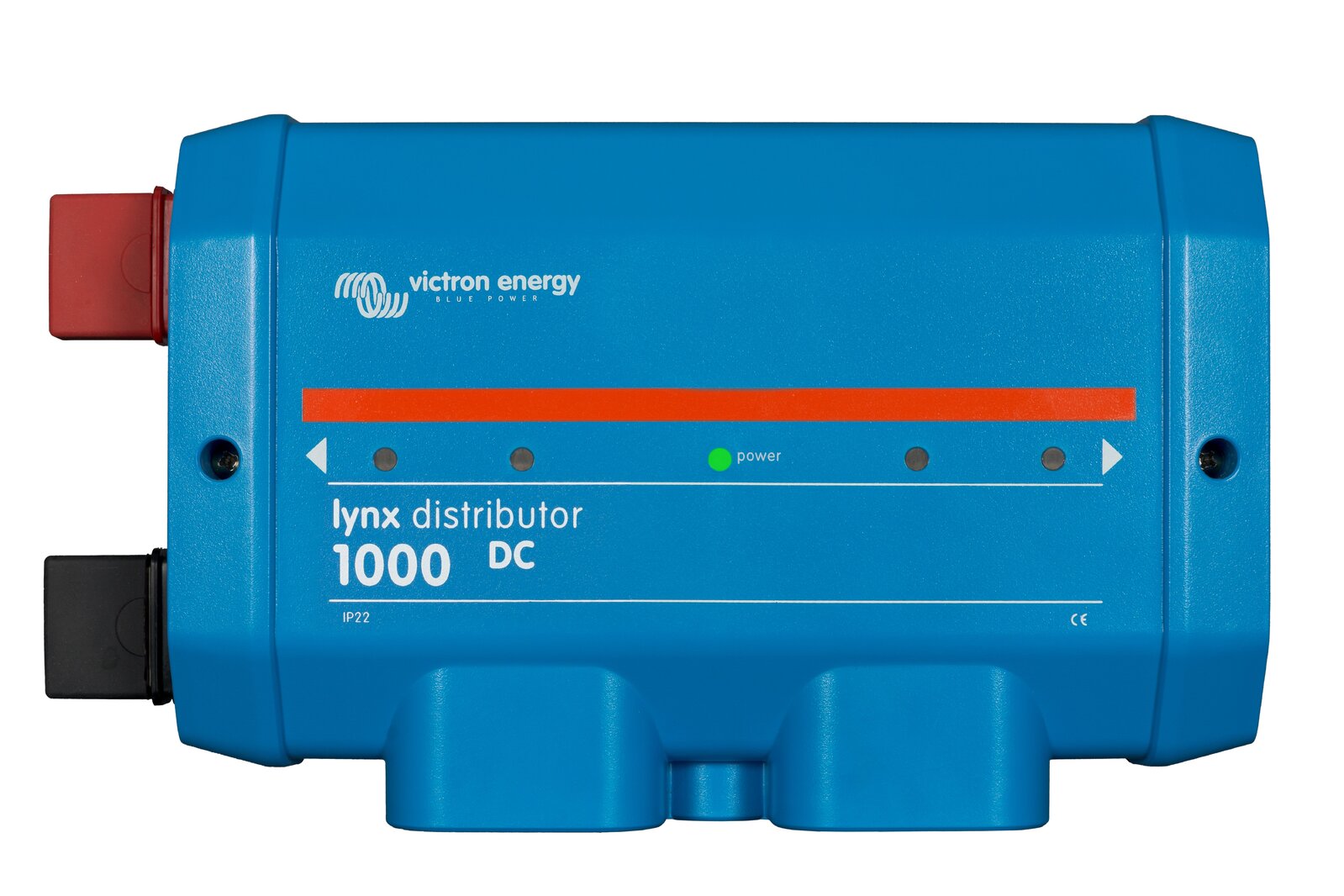

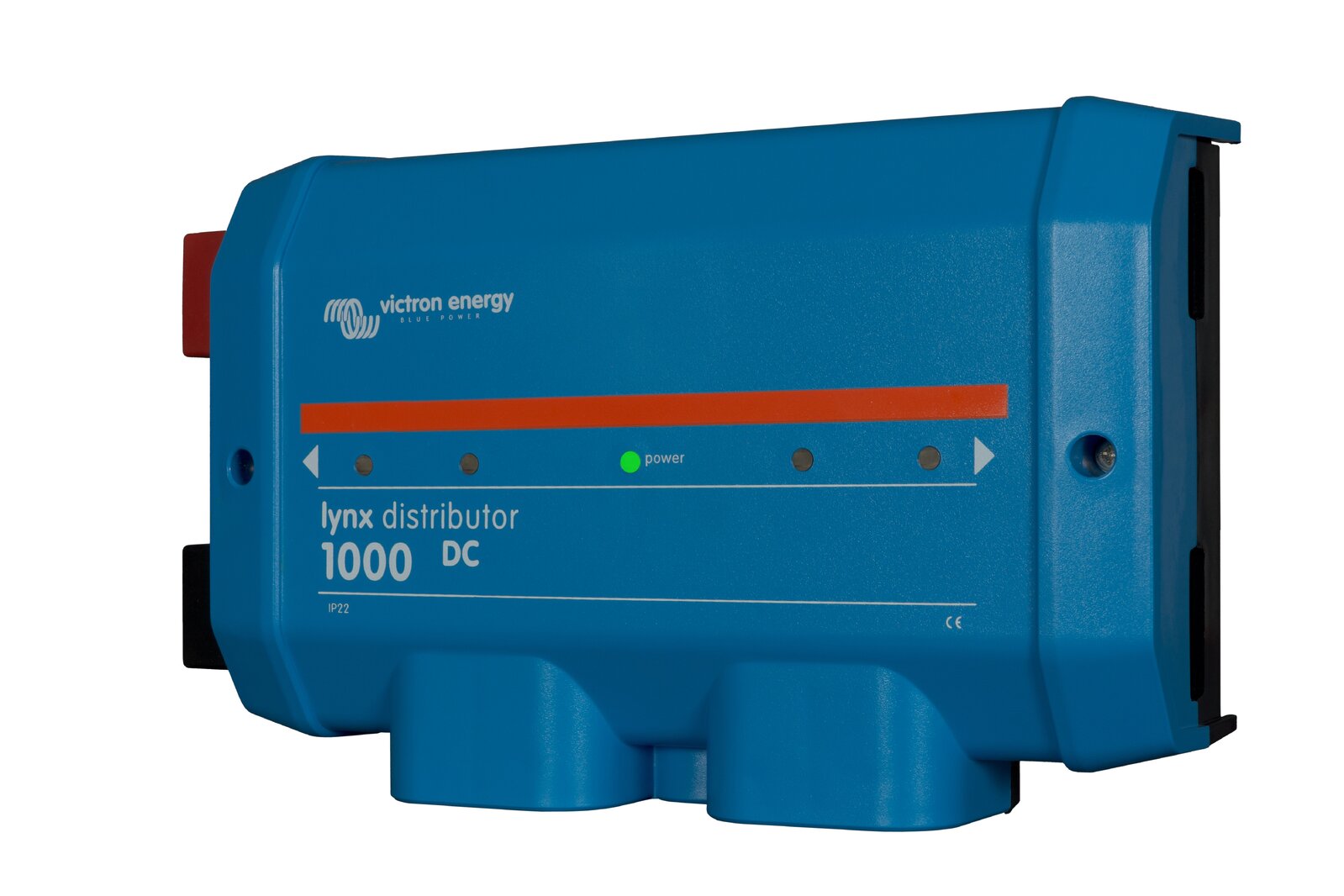

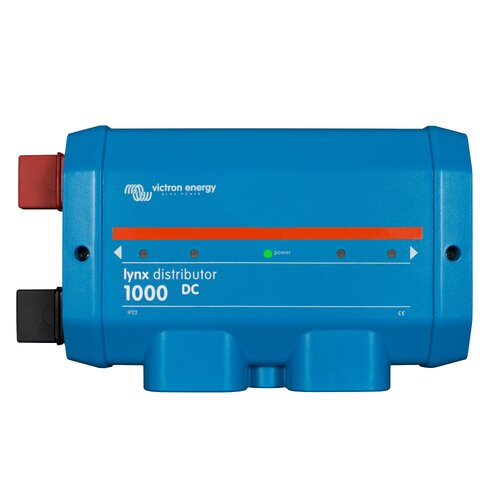

The Lynx Distributor has a power LED and four fuse status indication LEDs. If connected to a Lynx Smart BMS, up to 4 Lynx Distributors can send fuse status information to the Lynx Smart BMS. This feature is not available when connected to a Lynx Shunt VE.Can.

The Lynx Distributor, Lynx Shunt VE.Can and the Lynx Power In are rated for a nominal current of 1000A for 12, 24 or 48 System
voltages.

See the table below for an idea of how much power the Lynx modules are rated at different voltages. The power rating will
indicate how big the connected inverter/charger system can be. Remember that if inverters or inverter/chargers are used, the
batteries will power both the AC and DC systems. Also, be aware that a Lynx Smart BMS or a Lynx Ion (now discontinued) can
have a lower current rating
