Integrated BMS and safety switch
The SuperPack batteries are extremely easy to install, needing no additional components. The internal switch will disconnect the battery in case of over discharge, over charge, low or high temperature.

Abuse proof
A lead-acid battery will fail prematurely due to sulfation:

  • If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
  • If it is left partially charged or worse, fully discharged.

A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion compared to lead-acid.

The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are exceeded.

Efficient
In several applications (especially off-grid solar), energy efficiency can be of crucial importance. The round-trip energy efficiency (discharge from 100 % to 0 % and back to 100 % charged) of the average lead-acid battery is 80 % . The round-trip energy efficiency of a Li-ion battery is 92 % . The charge process of lead-acid batteries becomes particularly inefficient when the 80 % state of charge has been reached, resulting in efficiencies of 50 % or even less in solar systems where several days of reserve energy are required (battery operating in 70 % to 100 % charged state). In contrast, a Li-ion battery will still achieve 90 % efficiency even under shallow discharge conditions.

Can be connected in parallel
The batteries can be connected in parallel. Series connection is not allowed. Use in upright position only

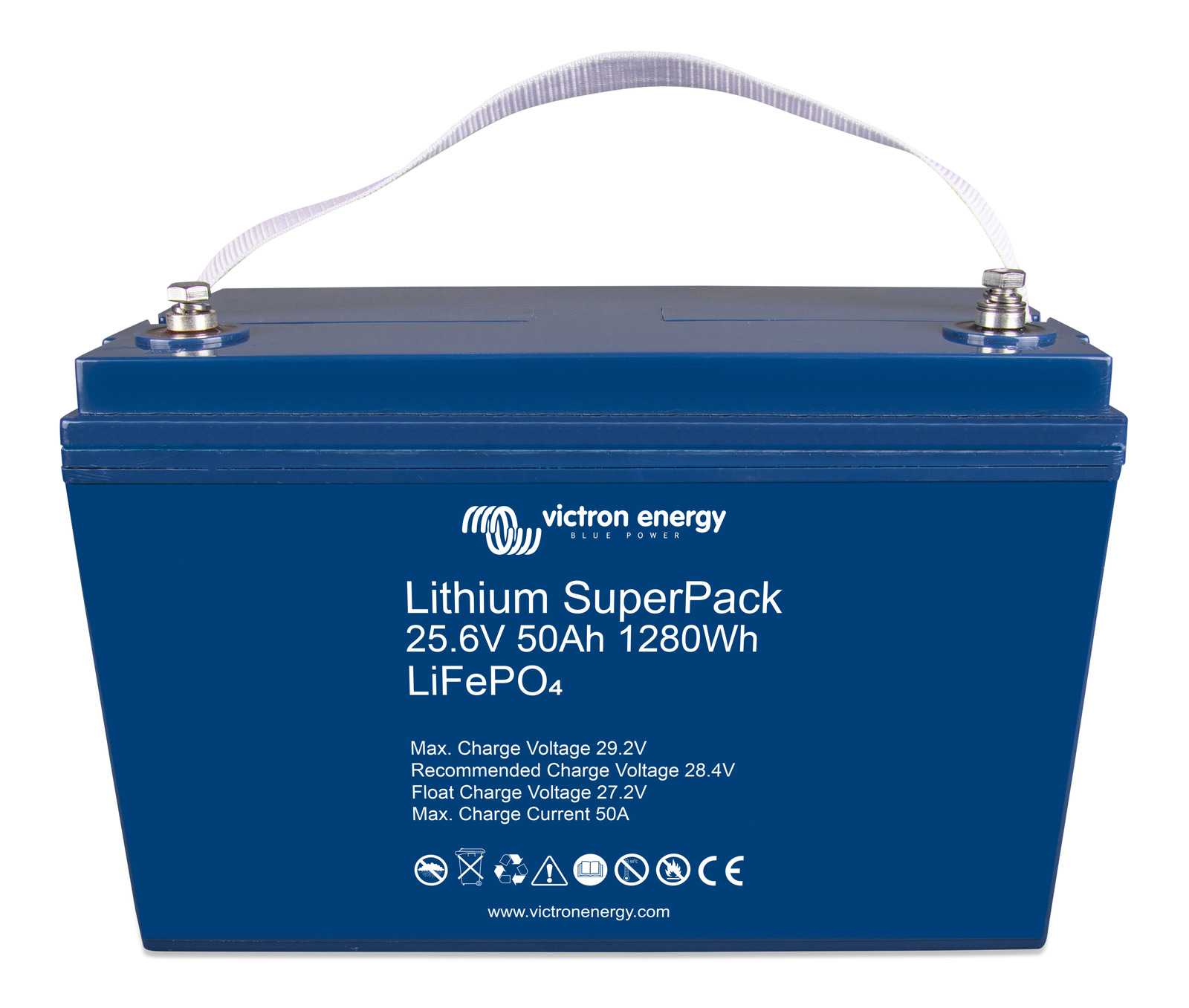

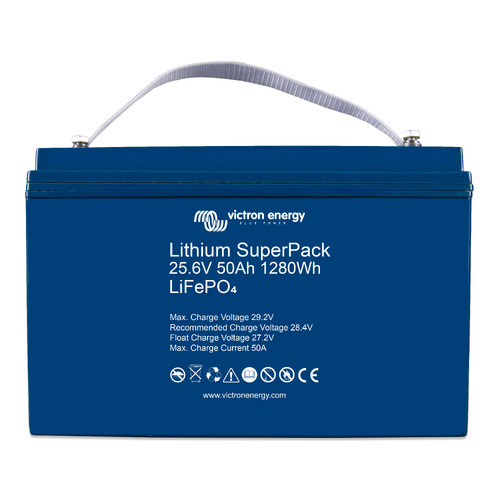

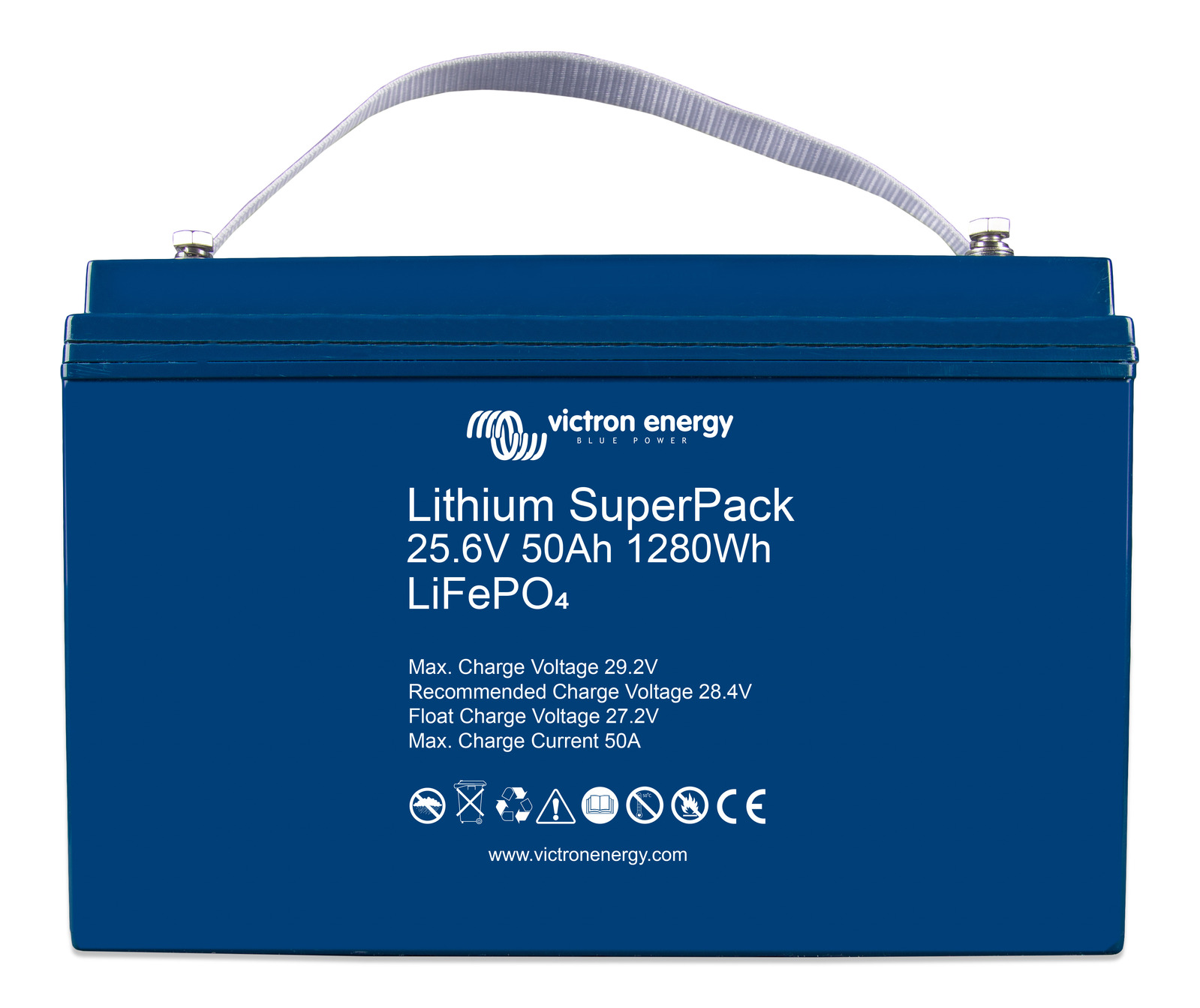

Lithium SuperPack 12.8/20 12.8/60 12.8/100
High current
12.8/200 25.6/50
Chemistry LiFePO4
Nominal voltage 12.8 V 25.6 V
Nominal capacity @ 25 °C 20 Ah 60 Ah 100 Ah 200 Ah 50 Ah
Nominal capacity @ 0 °C 16 Ah 48 Ah 80 Ah 160 Ah 40 Ah
Nominal energy @ 25 °C 256 Wh 768 Wh 1280 Wh 2560 Wh 1280 Wh
Cycle life @ 80 % DoD and 25 °C 2500 cycles
Capacity loss (per 100 cycles, @ 25 °C, 100 % DoD): <1 %
Energy loss (per 100 cycles, @ 25 °C, 100 % DoD): <1 %
Round trip efficiency 92 %
CHARGE and DISCHARGE
Max. cont. discharge current 30 A 30 A 100 A 70 A 50 A
Peak discharge current (10 sec) 80 A 80 A 150 A 100 A 100 A
End of discharge voltage 10 V 20 V
Charge voltage, float 13.5 V 27.0 V
Charge voltage, absorption 14.2 V - 14.4 V 28.4 V - 28.8 V
Max. cont. charge current 15 A 30 A 100 A 70 A 50 A
OPERATING CONDITIONS
Parallel configuration Yes, unlimited
Series configuration No
Operating temperature Discharge: -20 °C to +50 °C Charge: +0 °C to +45 °C
Storage temperature -40 °C to +65 °C
Max. storage time when fully charged 1 year ≤ 25 °C 3 months ≤ 40 °C
Humidity (non-condensing) Max. 95 %
Protection class IP 43
Power connection (threaded inserts) M5 M6 M8 M8 M8
Dimensions (h x w x d) mm 167 x 181 x 77 213 x 229 x 138 220 x 330 x 172 208 x 520 x 269 220 x 330 x 172
Weight 3.5 kg 9,5 kg 14 kg 21 kg 14 kg



SKU BAT524050705
Barcode # BAT524050705
Brand Victron
Shipping Weight 14.0000kg
Shipping Width 0.270m
Shipping Height 0.220m
Shipping Length 0.370m
Shipping Cubic 0.021978000m3
