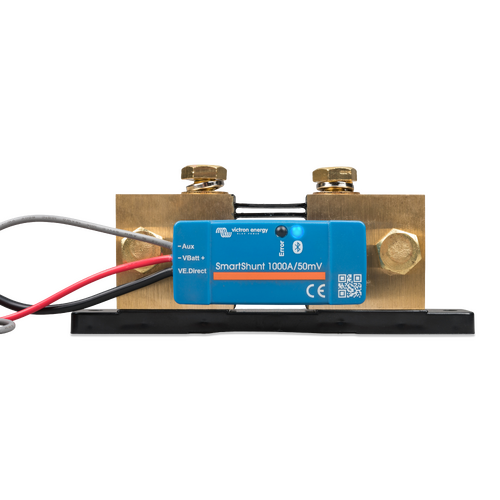

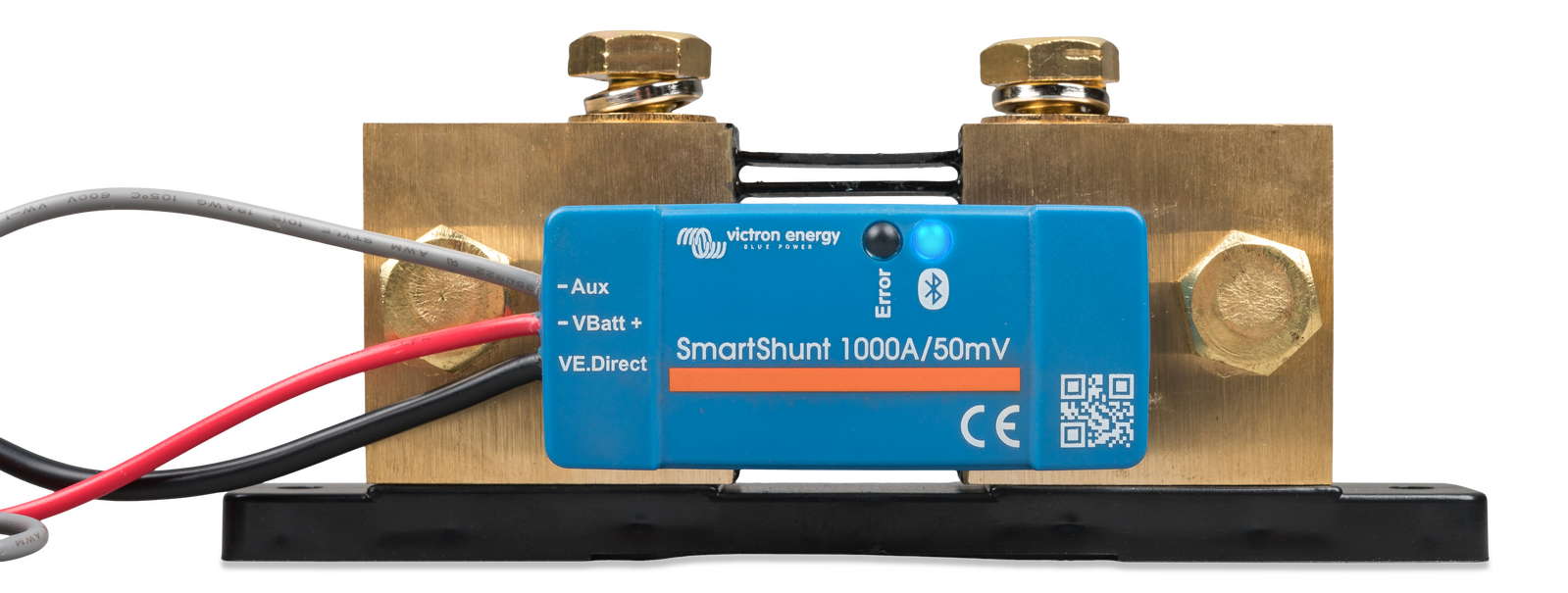

Victron IP65 SmartShunt 1000A/50mV Bluetooth Battery Monitor
Victron IP65 SmartShunt 1000A/50mV Bluetooth Monitor
The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display.
The SmartShunt IP65 is water resistant and is available in a 300 A, 500 A, 1000 A or 2000 A version.
The SmartShunt IP65 connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more..
Alternatively, the SmartShunt IP65 can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, has a VE.Direct port and an auxiliary connection that can be used to monitor a second battery, for midpoint monitoring, or to connect a temperature sensor.
Differences compared to BMV712 Battery Monitor
- No visual and audible alarm (alarms are only visible via the VictronConnect app or GX device).
- No programmable relay.
- Waterproof.

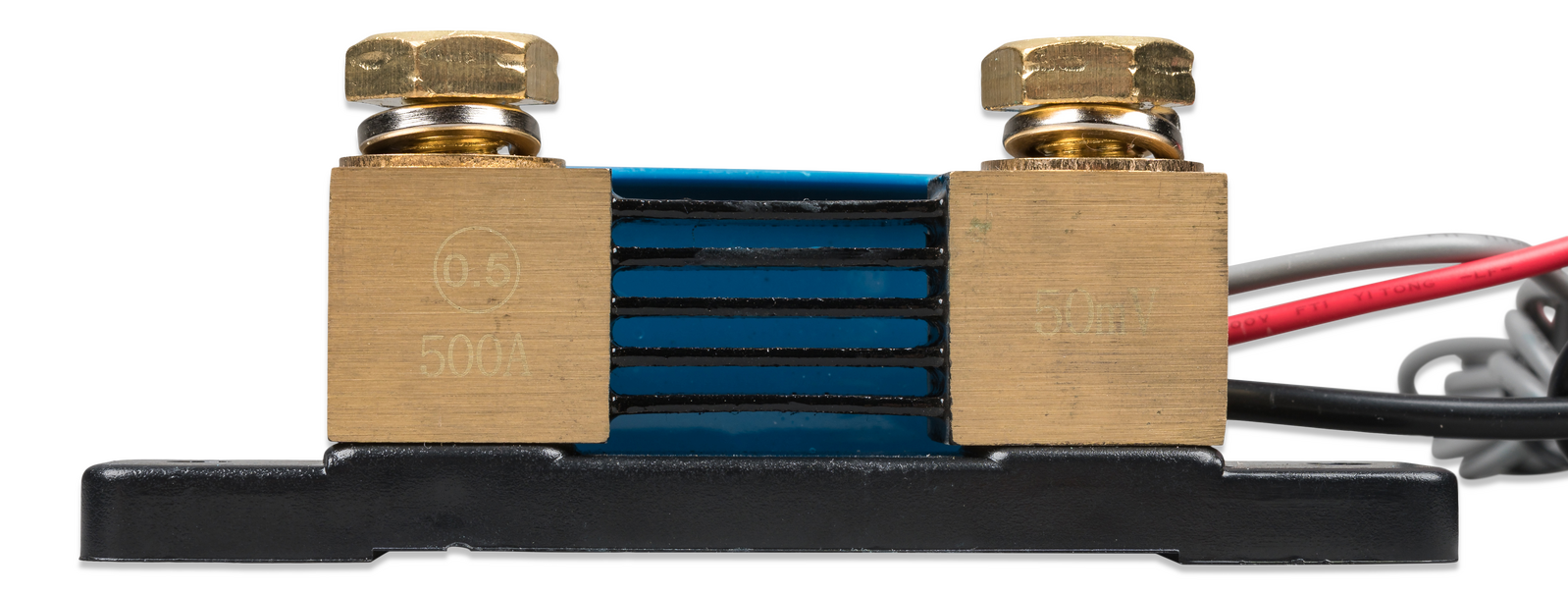

- The shunt is attached to the battery monitor unit.
|
Supply Voltage Range
|
6.5V ~ 70V DC
|
|---|---|
|
Current Draw
|
< 1mA
|
|
Input Voltage Range, Auxiliary Battery
|
6.5 ~ 95VDC |
| Battery Capacity (Ah) | 1 ~ 9999Ah |
|
Operating Temperature Range
|
-40°C to +50°C (-40°F to 120°F)
|
|
Measures Voltage of Second Battery, or Temperature, or Midpoint
|
Yes |
|
Temperature Measurement Range
|
-20°C to +50°C
|
|
VE.Direct Communication Port
|
Yes |
|
RESOLUTION & ACCURACY
|
|
| Current |
± 0.01A
|
| Voltage |
±0.01V
|
|
Amp hours
|
± 0.1Ah
|
|
State of Charge (0 - 100%)
|
± 0.1%
|
|
Time to Go
|
± 1 min
|
|
Temperature (0 - 50°C or 30 - 120°F) (if optional temperature Sensor connected)
|
± 1°C / °F
|
|
Accuracy of Current Measurement
|
± 0.4%
|
|
Accuracy of Voltage Measurement
|
± 0.3%
|
|
Protection Category
|
IP65 (not intended for outdoor use)
|
|

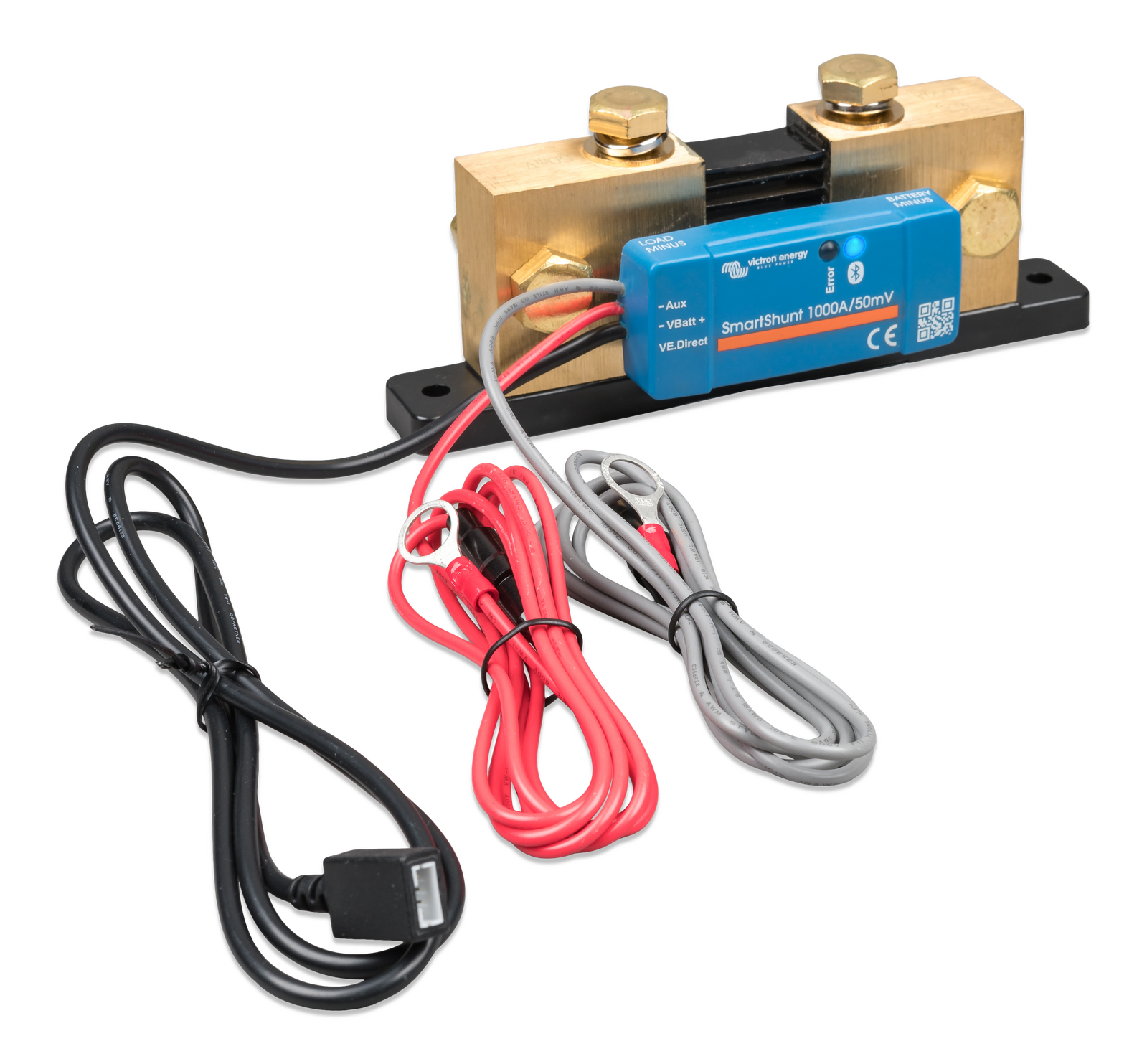

Cables (included)
|
Two 1.5 m cables with 1 A fuse, for ‘+’ connection and starter battery or midpoint connection |
| VE.Direct cable | 1.5 m cable with a VE.Direct socket. Note that a (not included) VE.Direct cable is needed to connect a GX device. |
| SKU | 8719076057901 |
| Barcode # | SHU065210050 |
| Brand | Victron |
| Shipping Weight | 1.3400kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.100m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.002000000m3 |
