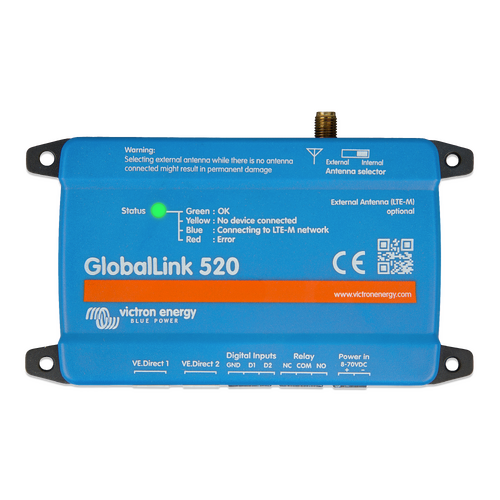

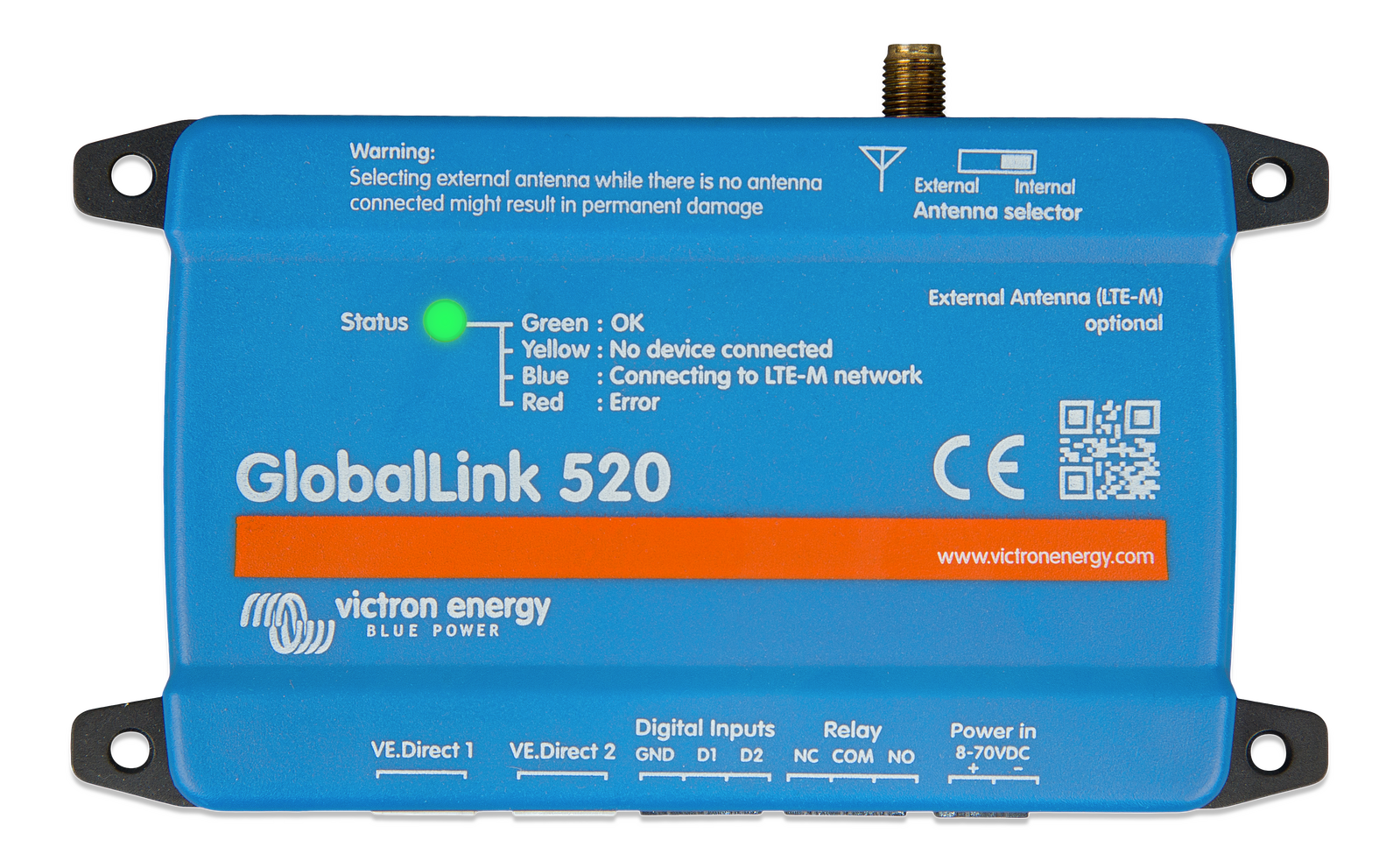

The GlobalLink 520 connects your remote Victron system or individual products to VRM, our online Victron Remote Management portal. Through that portal, you can monitor current and historical system operation - such as battery voltage and state of charge - from anywhere in the world. VRM is free to use.

Unique is the pre-installed and pre-paid SIM card: the GlobalLink comes with 5 years of 4G LTE-M connectivity. No need to purchase and maintain SIM-cards.

Features

  • Smart device and VE.Direct support: Connect up to 10 Victron smart products using BLE and two hard wired VE.Direct devices.
  • VRM-monitoring: Monitor battery state of charge, power consumption, power harvest from PV, generator and grid or check temperature measurements. Follow up on alerts and perform diagnostics checks.
  • RuuviTag support: These sensors connect via BLE and are easy to setup via VictronConnect. All the data, like temperature, humidity and atmospheric pressure will be directly available in VRM.
  • Support for custom SIM cards.
  • Simple mounting and configuration: The GlobalLink 520 is wall mountable. The Bluetooth feature enables a quick connection and easy configuration via our VictronConnect app.
Supply voltage 8 – 70V DC
Power draw (12v / 24v / 48v) Average with relay Open: 20mA / 10mA / 5mA Average with relay Closed: 40mA / 20mA / 10mA
Mounting Wall
VE.Direct ports (always isolated) 2
RuuviTag support Yes
Instant readout via Bluetooth Yes (connect up to 10 additional Smart devices via BLE)
Digital Inputs 2
Relay 1 x NO/NC DC up to 30VDC: 2A AC: 0.5A, 125VAC
Bluetooth Yes
WiFi No
Cellular CAT M1 (LTE-M)
17 bands supported from 699Mhz to 2690Mhz (Total world-
wide support)
Bands supported are currently: 1, 2, 3, 4, 5, 8, 12, 13, 14, 17, 18,
19, 20, 25, 26, 28, 66
Outer dimensions (h x w x d) 123 x 67 x 23 mm
Operating temperature range -20 to +50°C
Antenna Internal and SMA connector for optional external antenna
Factory included SIM Prepaid 1nce data SIM with 5 years of connectivity
Support for custom SIM Yes
Optional external LTE-M SMA-M antenna Outdoor Wall Mount Antenna / Outdoor Puck Antenna



SKU 8719076053644
Barcode # ASS030543020
Brand Victron
Shipping Weight 0.2250kg
Shipping Width 0.110m
Shipping Height 0.055m
Shipping Length 0.160m
Shipping Cubic 0.000968000m3
