Diode Battery Combiners are used to guarantee continuous DC power to mission critical equipment, such as an electronic engine control system.

With a Diode Battery Combiner two or more DC power sources can be used in parallel to supply the mission critical load.

Failure of one source will not interrupt power to the critical load.

The Argo Battery Combiners feature a low voltage drop thanks to the use of Schottky diodes: at low
current the voltage drop is approximately 0,3 V and at the rated output approximately 0,45 V.

Warning: hot surface, mount the Argo Diode Battery Combiner on non-flammable surface only!

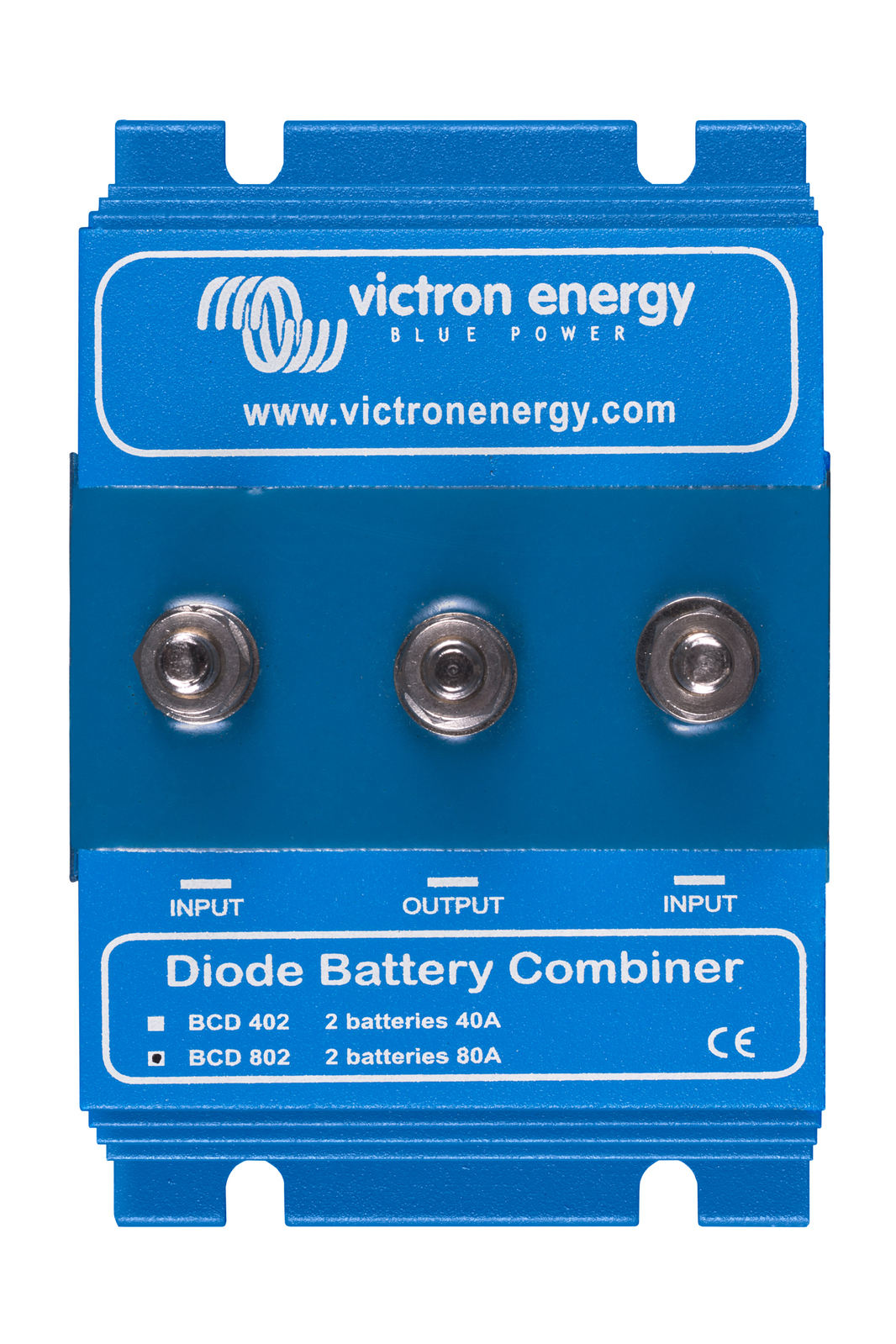

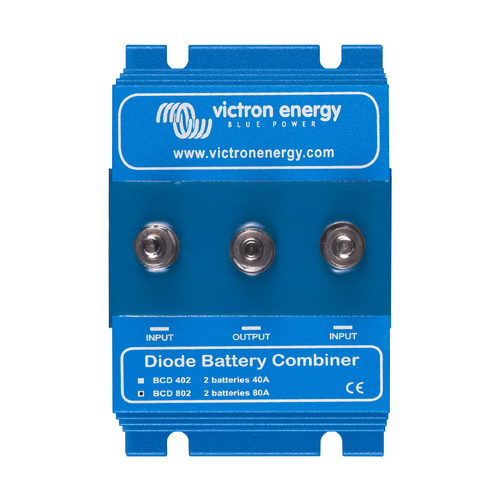

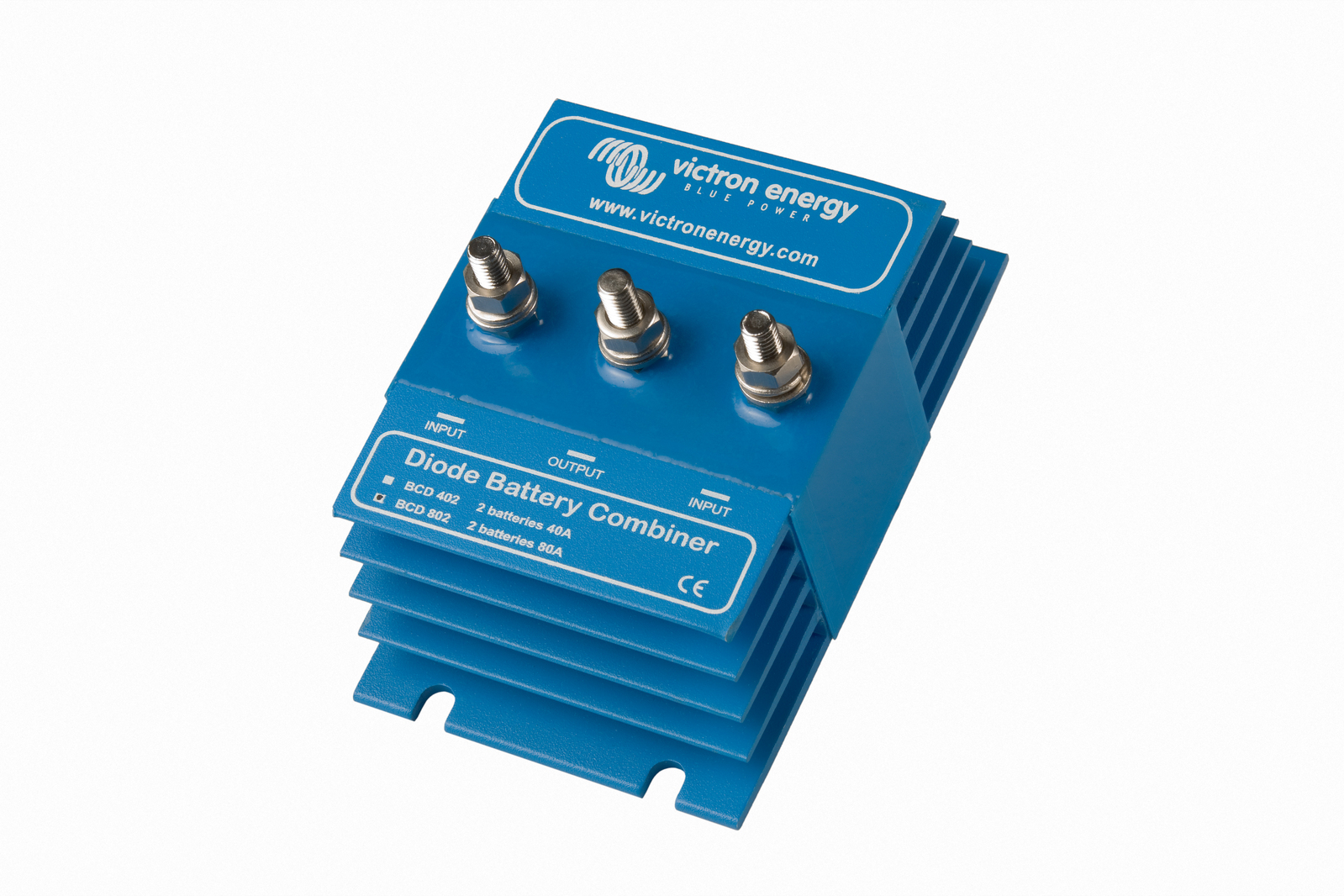

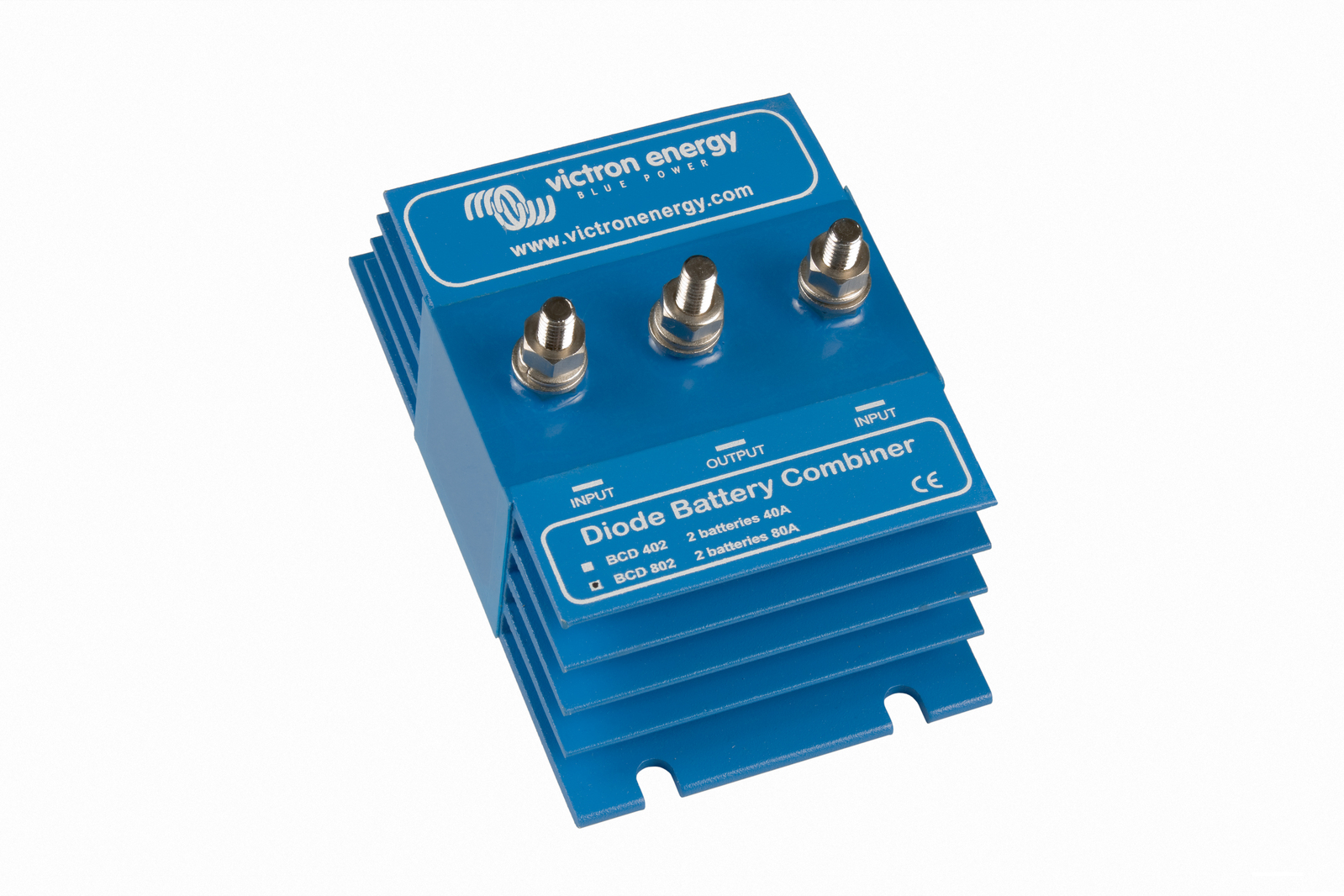

Argo Diode Battery Combiner BCD 402
Maximum continuous current (A) 40A
Number of batteries 2
Nominal battery voltage 12V and 24V
Connection M6 bolts
Weight 0.8kg
Dimensions (h x w x d) in mm 60 x 120 x 75



SKU 8719076020967
Barcode # BCD000402000
Brand Victron
Shipping Weight 0.5200kg
Shipping Width 0.110m
Shipping Height 0.080m
Shipping Length 0.145m
Shipping Cubic 0.001276000m3
