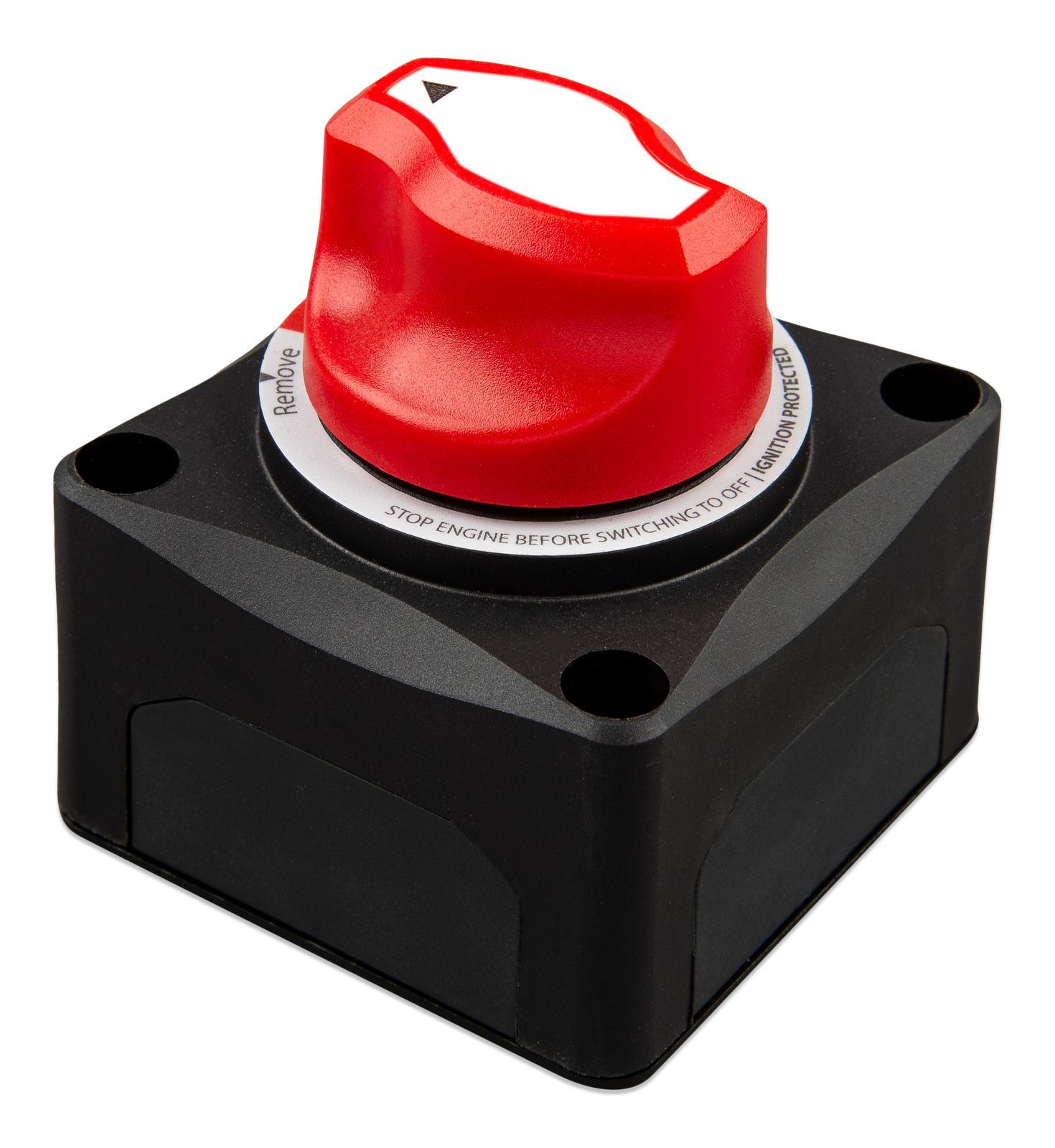

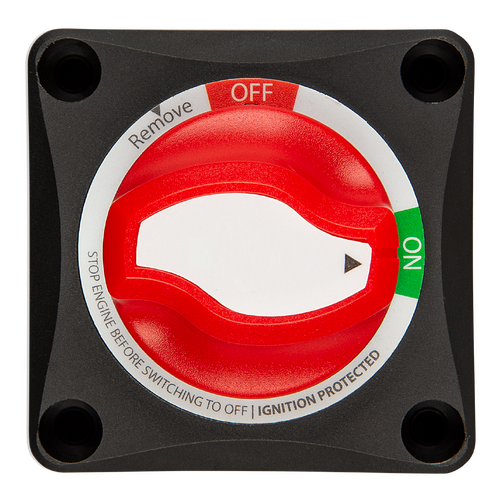

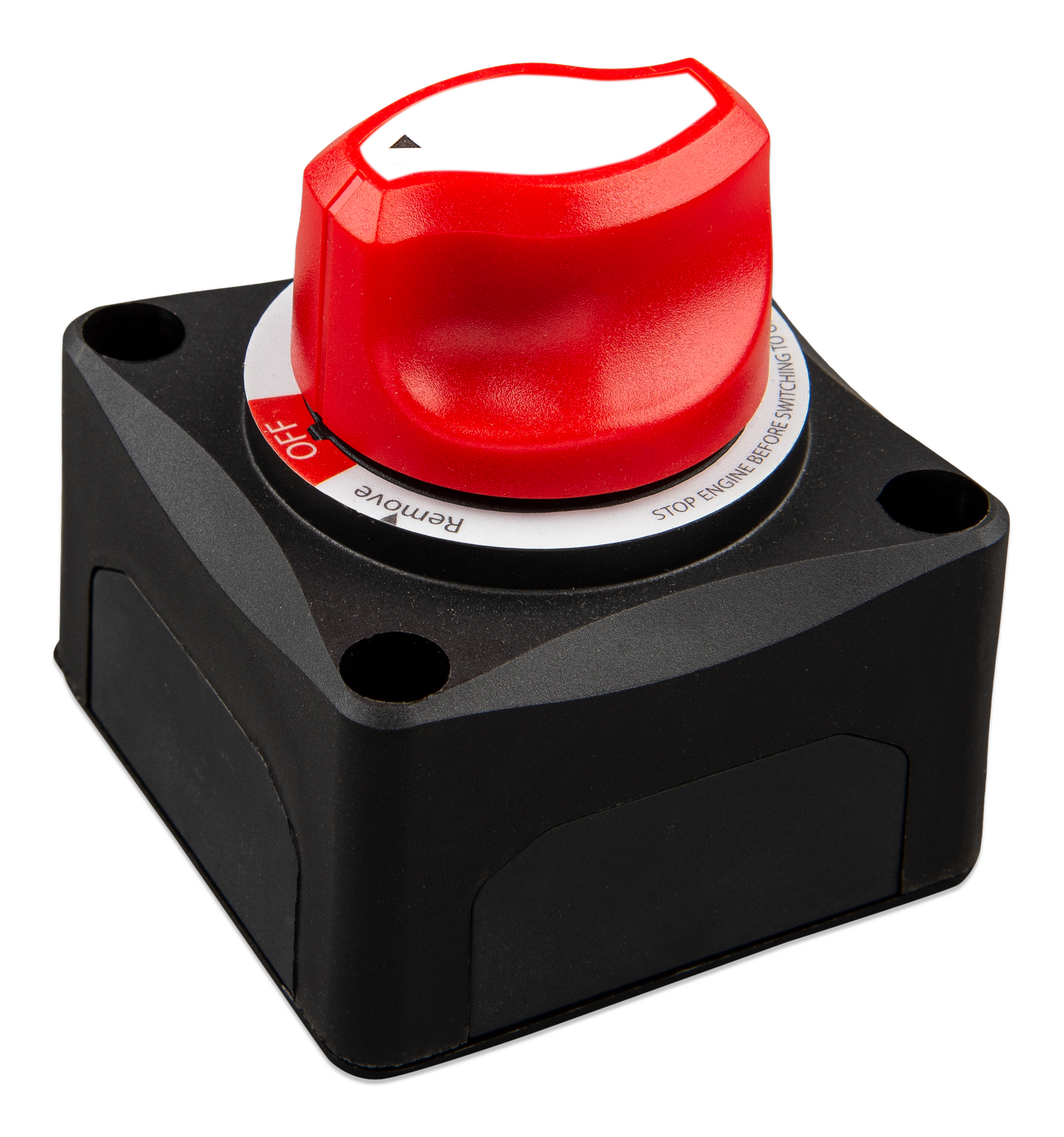

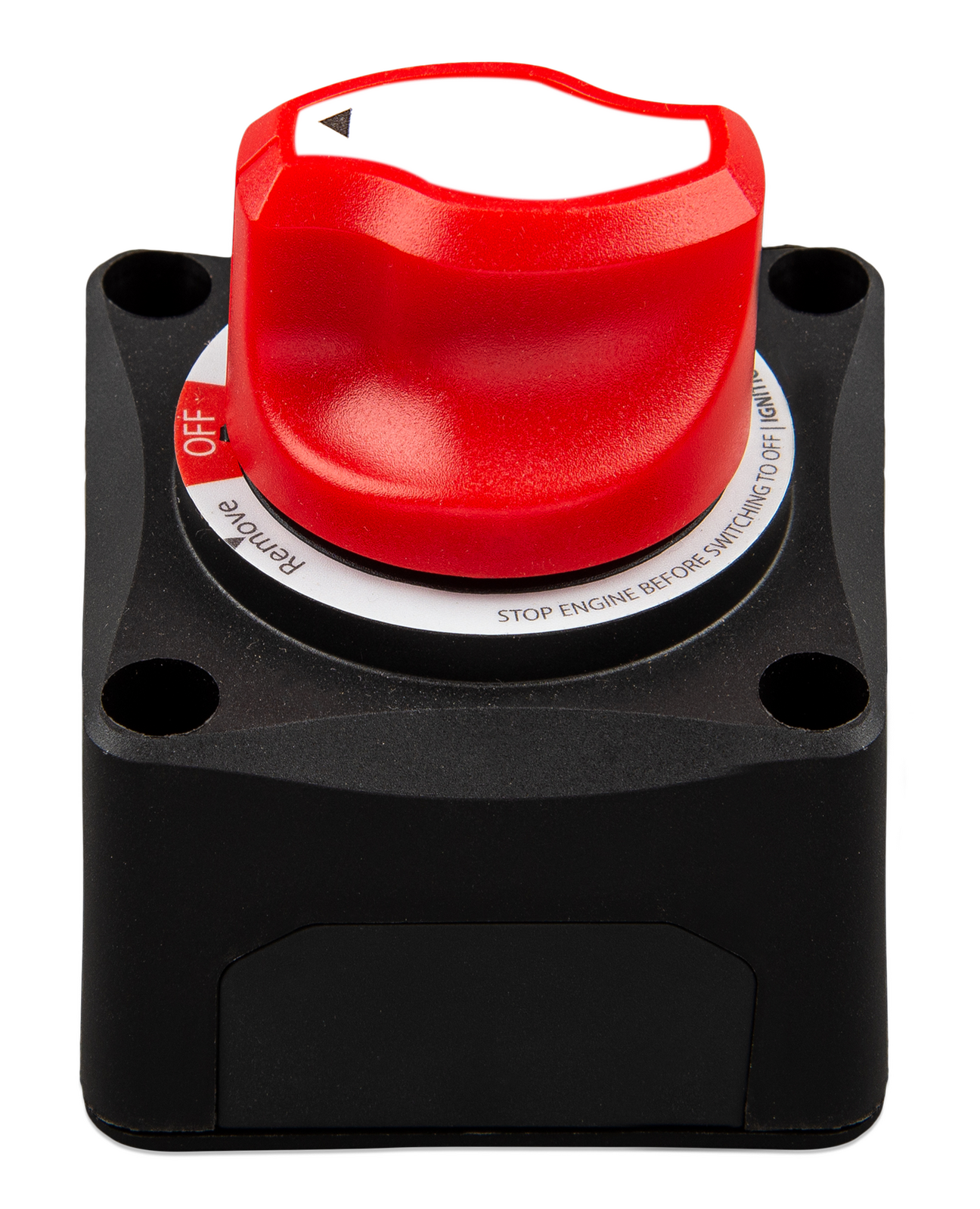

The Battery Switch has a continuous current rating and is suitable for battery systems up to 48V.

It has a unique ergonomic and aesthetic knob design for easy operation.

The Battery Switch can be used to isolate a battery from DC loads and/or DC charge sources. It is used to preserve battery charge in case a system is unattended, for system maintenance or in an emergency. It can also be used to parallel connect the house battery to the starter battery to supplement a flat starter battery or a flat house battery in case of an emergency.

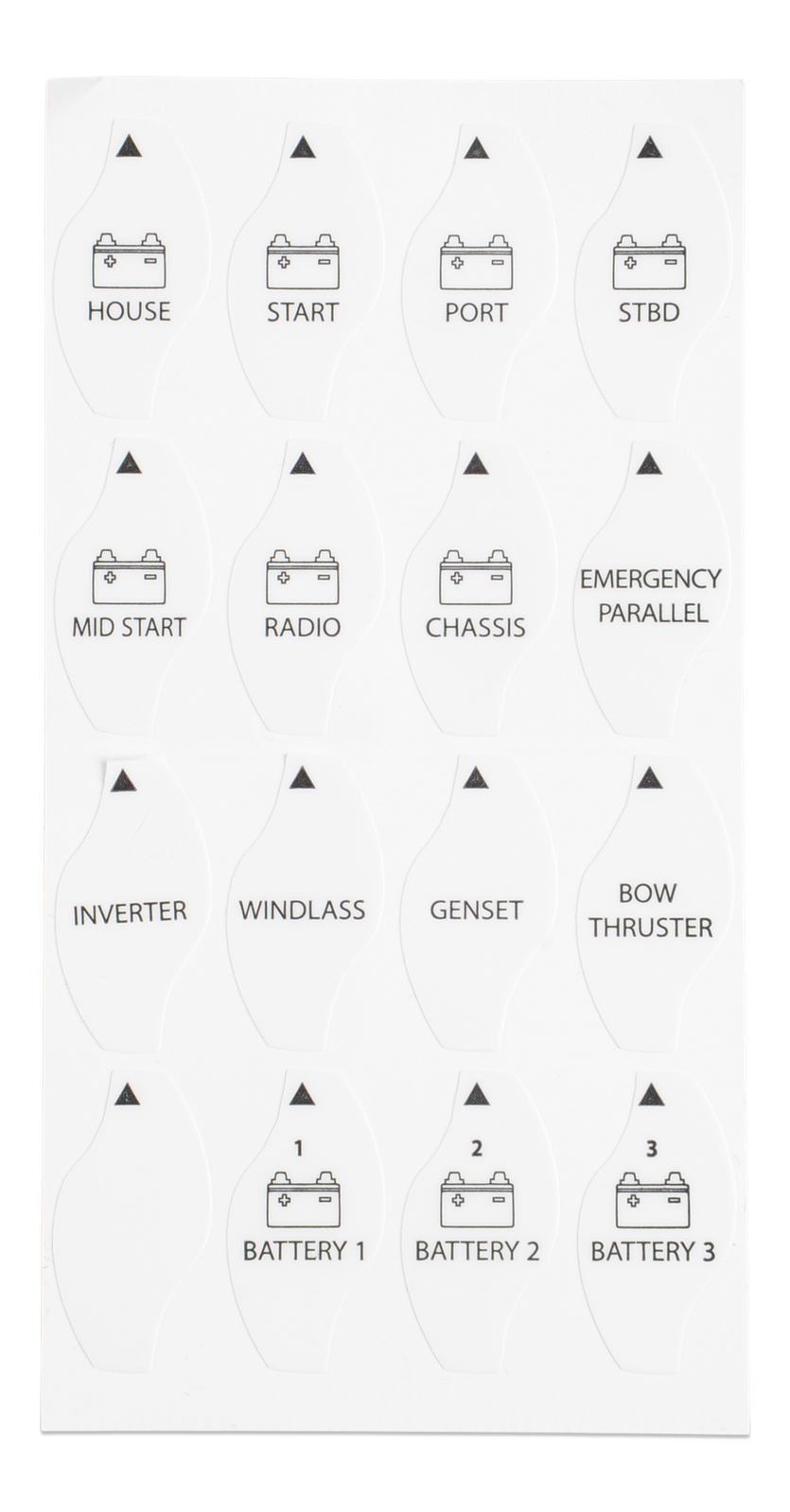

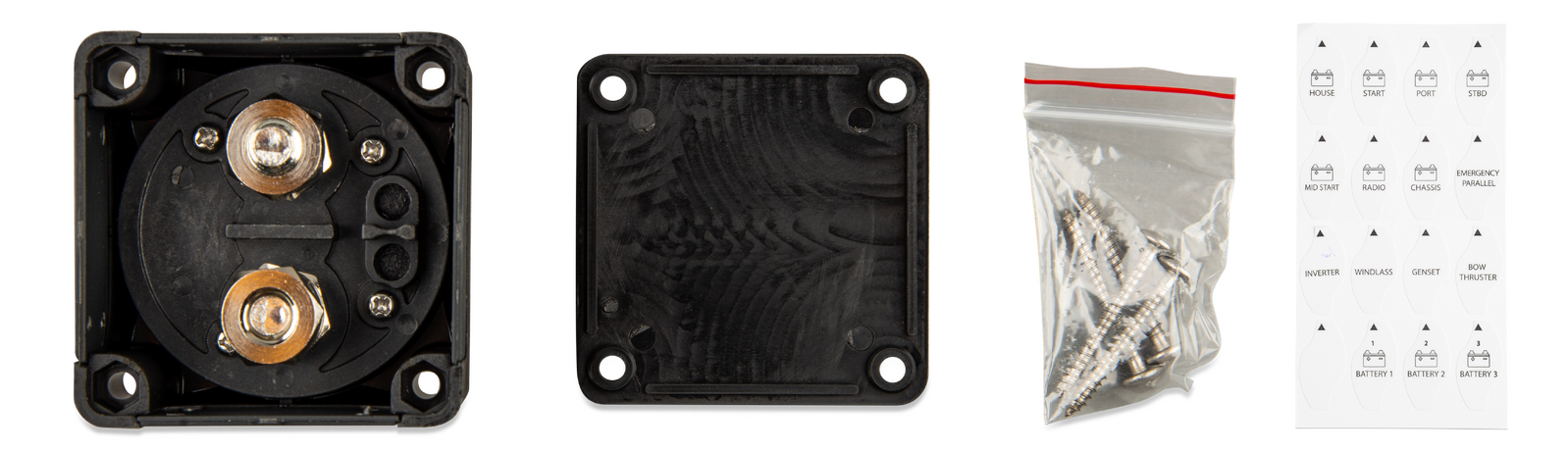

The Battery Switch can be either surface or panel mounted, providing flexibility during install. It features 4 easily removable side panels for cable access. It ships with 16 different label stickers, for customization of the Battery Switch.

The knob is removable for isolation or safety purposes. The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.

Max. Continuous Currant 275A
1 Min Rating 455A
Cranking Rating 1250A
Voltage Rating 48V
Terminal Material Tin-Plated Copper
Hex Nut Material Tin-Plated Copper
Terminal Diameter 3/8" (M10)
Recommended Torque 70lb-in (8Nm)
Base Material Glass Fibre Reinforced Nylon
Mounting Surface or Rear Panel Mount
Ignition Protected ISO8846 / SAE J1171
Dimensions (L x W x H) 2.7' x 3.0 x 2.7in (69.5 x 76.3 x 69.5mm)
Weight 0.4lb / 0.2kg



SKU 8719076052258
Barcode # VBS127010010
Brand Victron
Shipping Weight 0.2700kg
Shipping Width 0.170m
Shipping Height 0.080m
Shipping Length 0.110m
Shipping Cubic 0.001496000m3
