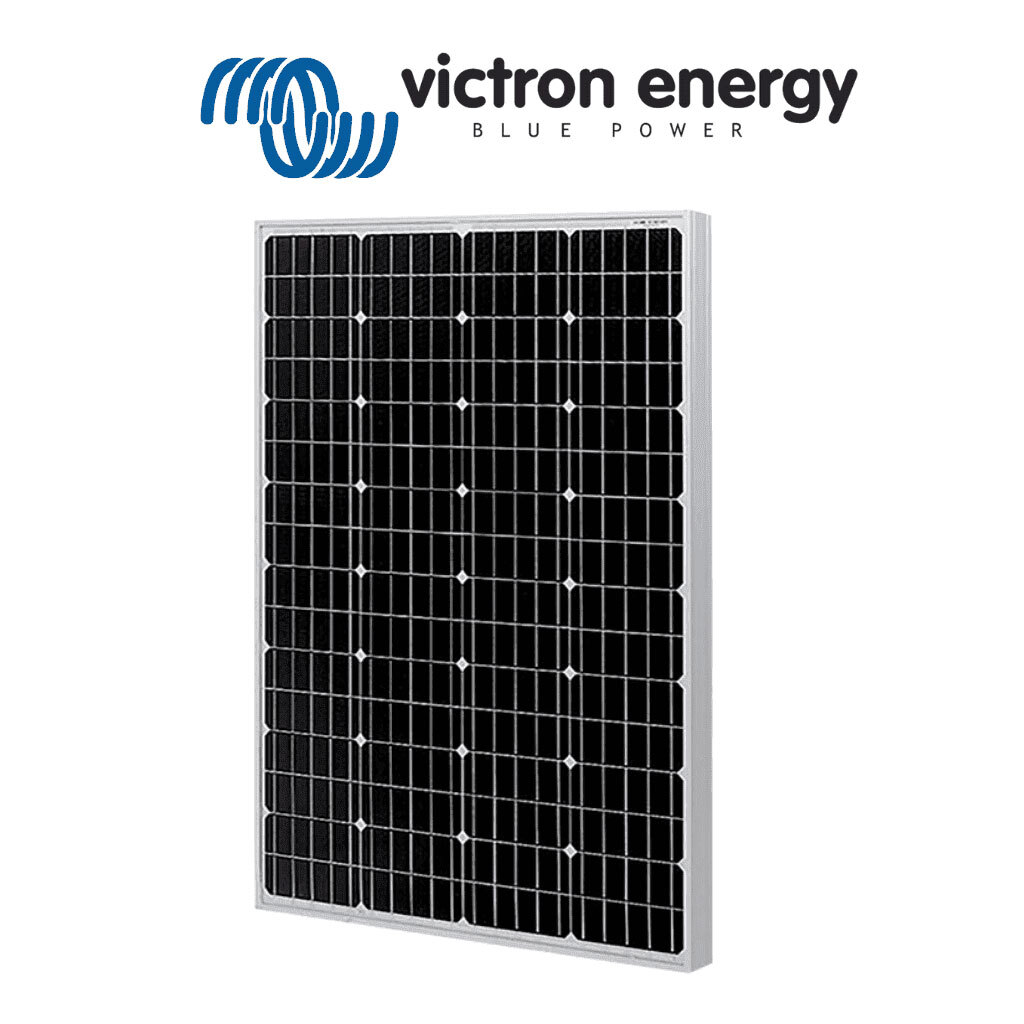

Solar Panel Victron - 140 Watt - 1250 x 668 x 30mm - 9KG

BlueSolar Monocrystalline Panels

  • Low voltage-temperature coefficient enhances high-temperature operation.
  • Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
  • 25-Year limited warranty on power output and performance.
  • 5-Year limited warranty on materials and workmanship.
  • Sealed, waterproof, multi-functional junction box gives high level of safety.
  • High performance bypass diodes minimize the power drop caused by shade.
  • Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
  • A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
  • Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
  • High power models with pre wired quick-connect system with MC4 (PV-ST01) connectors.
RATED VOLTAGE: 12V
CELL TYPE: Monocrystalline
RATED POWER: 140W
OPEN CIRCUIT (VOC): 23.6V
SHORT CIRCUIT CURRENT (ISC): 8.05A
PEAK POWER VOLTAGE (VMP): 19.4V
PEAK POWER CURRENT (IMP): 7.22A
PANEL DIMENSIONS (MM): 1250 x 668 x 30mm
GROSS WEIGHT (KG): 9KG
SKU SPBS140
Barcode # SPM041401200
Brand Victron
Shipping Weight 9.0000kg
Shipping Width 0.690m
Shipping Height 0.040m
Shipping Length 1.270m
Shipping Cubic 0.035052000m3
