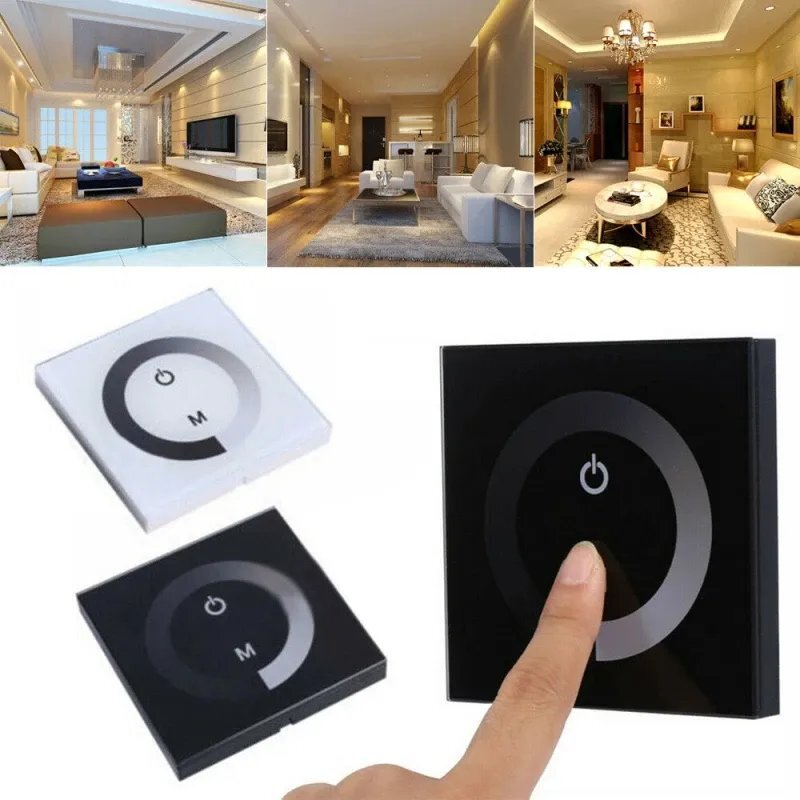

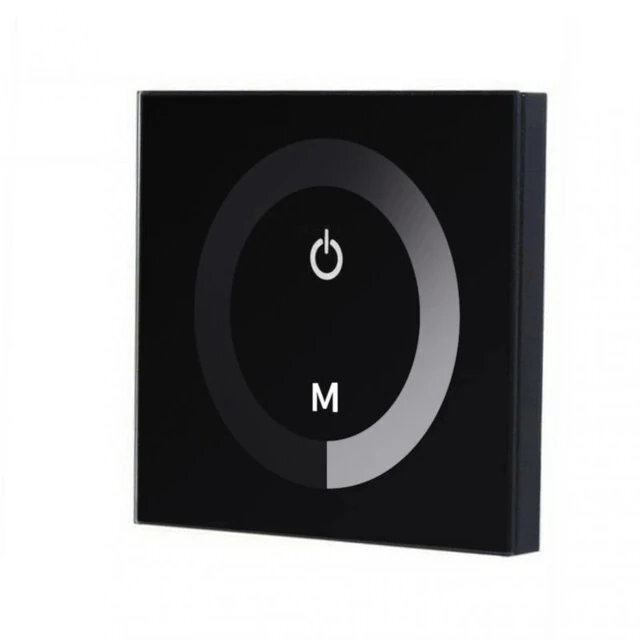

This is a brand new single-color LED controller with glass panel design, beautiful and fashionable.

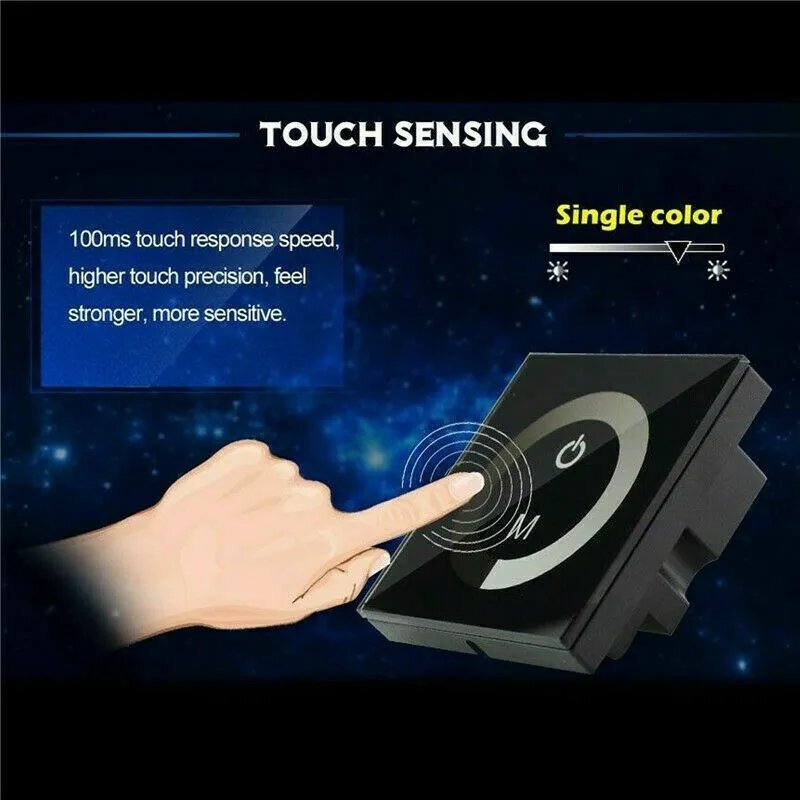

The use of a high-precision capacitive touch control chip improves the sensitivity of touch and reduces false triggers.

It is used to control all kinds of lamps with LED as the light source, such as: point light source, soft light strip, wall washer light, glass curtain wall light, etc.; it is simple to use and other advantages; it can realize the lighting effect of cold light, warm light, white light and so on.

Color Black
Input voltage 12-24V DC
Output channel
Signal Output (4A/1channel) = total 96W (12V DC) or 192W (24V DC).
Max remote distance 20m without barrier
Radio Frequency 433MHz
Maximum current 4A per channel
Output Single Channel

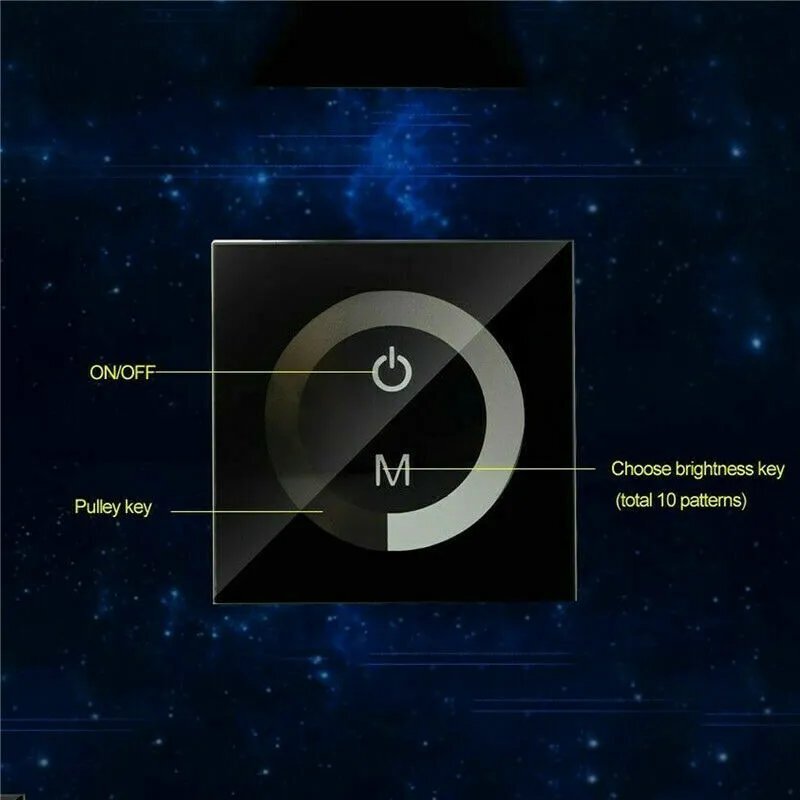

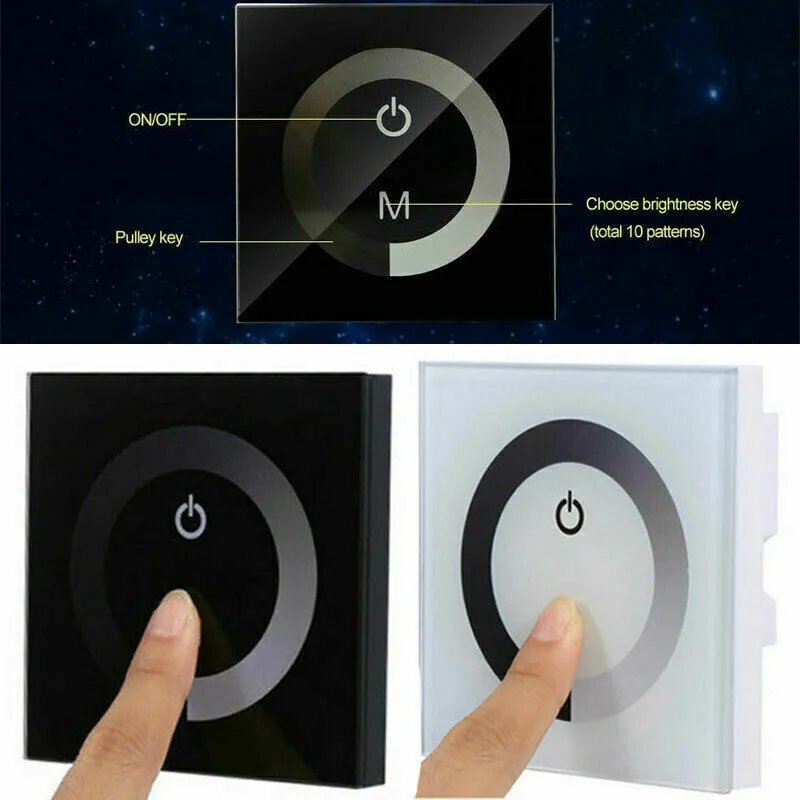

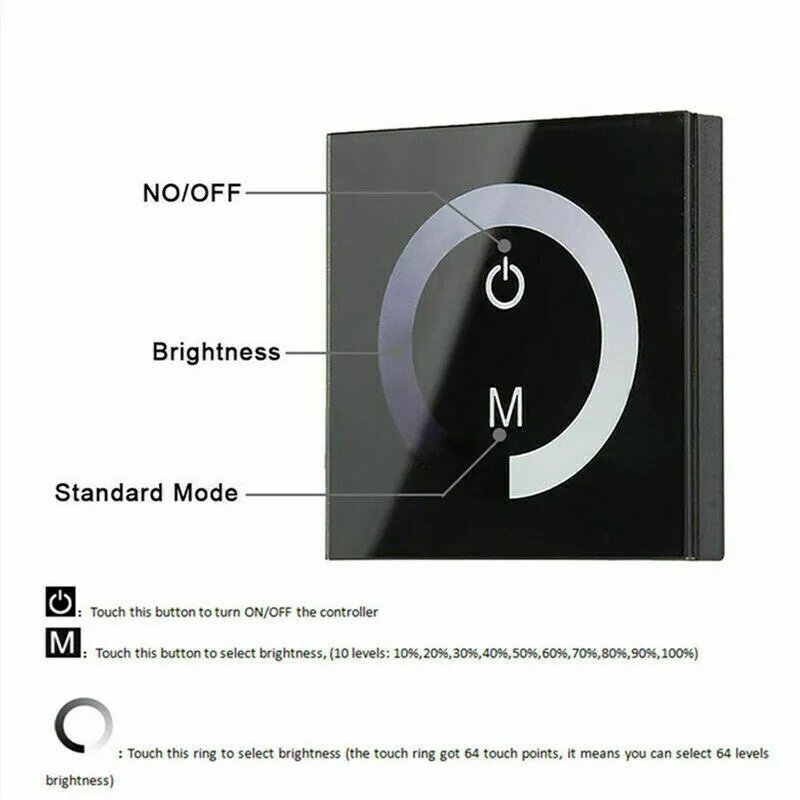

Adjustment method: Touch screen
Power 96W/12V, 192W/24V
Static power consumption ≤1W

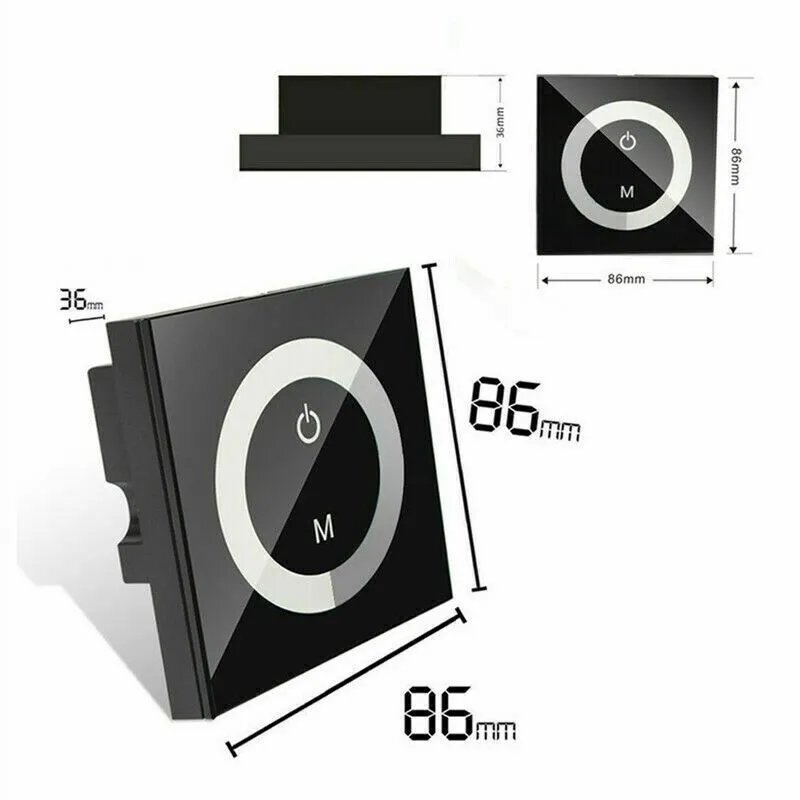

Dimensions MM (L x W x D) 86 x 86 x 36 mm



SKU SWDIMLEDB
Shipping Weight 0.1600kg
Shipping Width 0.115m
Shipping Height 0.055m
Shipping Length 0.115m
Shipping Cubic 0.000727375m3
