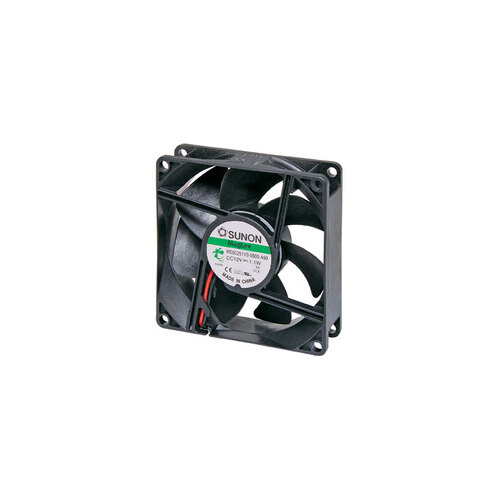

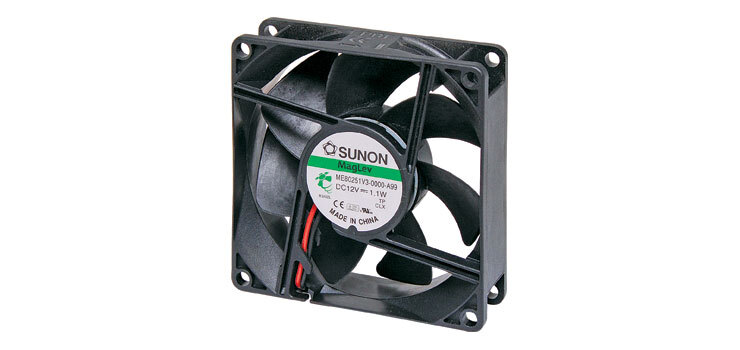

Sunon DR (Dust-Resistant) MagLev Motor Fans are based on magnetic principles/forces that propel the fan and ensure stable rotation over its entire 360° of movement.

The design utilizes the attraction of magnetic levitation force and eliminates the wobbling/shaking problems of traditional motor fans.

The blades are suspended in the air during rotation so that the shaft and bearing do not come into direct contact with each other, causing friction.

These features result in a fan with a low acoustic noise level, high-temperature endurance, and a longer lifespan.

Features

  • Blanked and Seamless (B&S) technology
  • Seal and Clip (S&C) design
  • Low noise
  • High efficiency
  • High reliability
  • Dust-resistant
  • Strong locked position
  • Long life up to 70,000 hours
  • RoHS compliant
Rated Voltage 12V DC
Rated Current 65mA (75mA max)
Rated Power Consumption 0.78W (0.90W max)
Operating Voltage Range 4.5~13.8V DC
Starting Voltage 4.5V DC (25°C Power On/Off)
Operating Temperature -10°C ~ +70°C
Storage Temperature -40°C ~ +70°C
Rated Speed 2600 RPM ±10% at rated voltage
Air Flow 33.0 CFM



SKU FN8012
Barcode # MF80251V3-10000-A99
Brand Sunon
Shipping Weight 0.0800kg
Shipping Width 0.080m
Shipping Height 0.025m
Shipping Length 0.080m
Shipping Cubic 0.000160000m3
