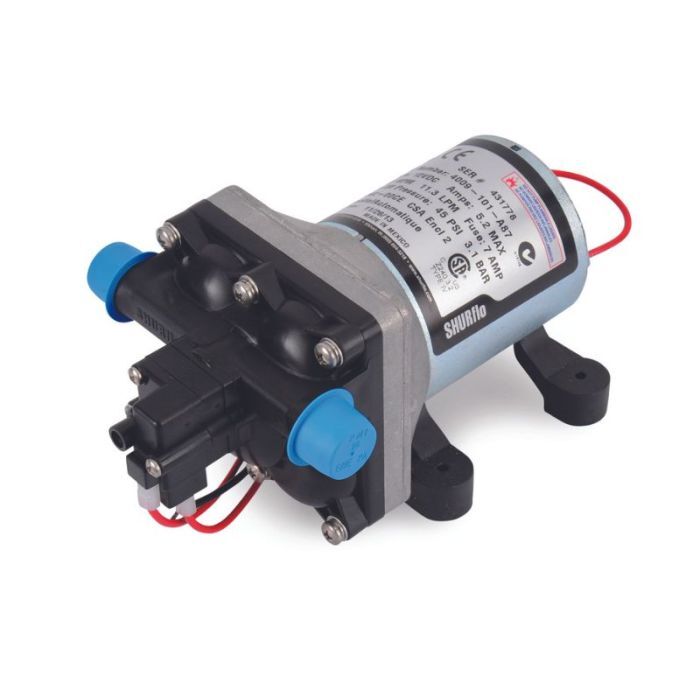

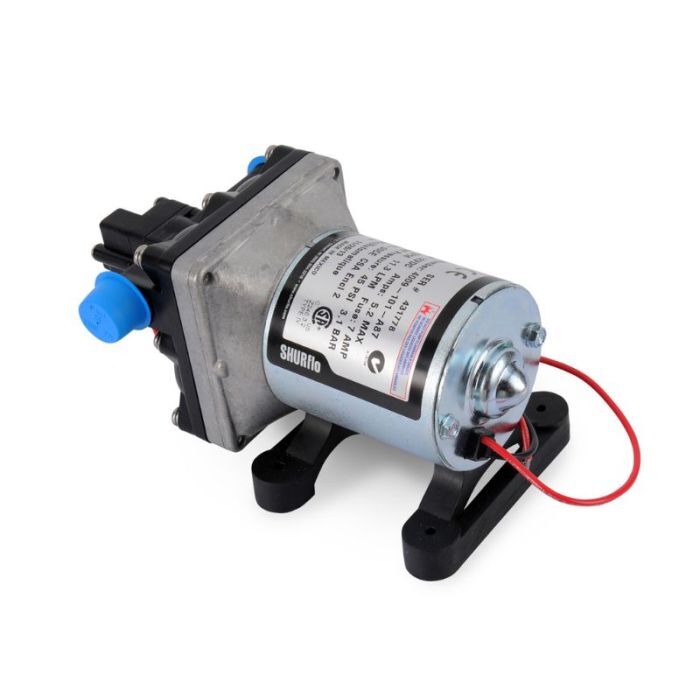

SHURflo's New 4009 Series fresh water pump design was created with a unique one piece diaphragm and internal by pass, assuring long life and top performance in all plumbing systems.

Designed as the next legendary pump to exceed the expectations of customers, the 4009 series pump is constructed for high flow demand, low noise and no rapid cycling.

SHURflo's quality reputation has been built on the reliability and dependability of every pump they build. The 4009 series fresh water pump automatic demand pump is super quite, thermally protected and can run dry without damage.

PUMP MUST BE INSTALLED WITH FILTER FOR WARRANTY

Features:

  • Replaces 2088 Series Pump
  • Internal By-Pass will prevent rapid cycling
  • C-Tick approved
  • 4 chamber diaphragm pump
  • Made in the U.S.A.
Pump Design 4 Chamber Diaphragm Pump
Voltage 12V DC
Current Draw 5.2 Amp nominal @ 45PSI (1.7 Bar)
Flow Rate 3.0GPM (11.3L/min) Nominal @ Open Flow
Duty Cycle Intermittent
Operating Pressure 30PSI (2.06 Bar) Maximum
Pressure Switch Setting 45PSI (3.1 Bar) Off / 30PSI (2.06 Bar) On
Self Priming Up to 6ft (1.82m) vertically
Liquid Temperature 130°F (54°C) Maximum
Motor Type Permanent Magnet Motor
Port Type 1/2"-14 (9.5mm) Hose Barb



SKU PUS124009
Barcode # 4009-101-A87
Brand Shurflo
Shipping Weight 1.7800kg
Shipping Width 0.210m
Shipping Height 0.110m
Shipping Length 0.130m
Shipping Cubic 0.003003000m3
