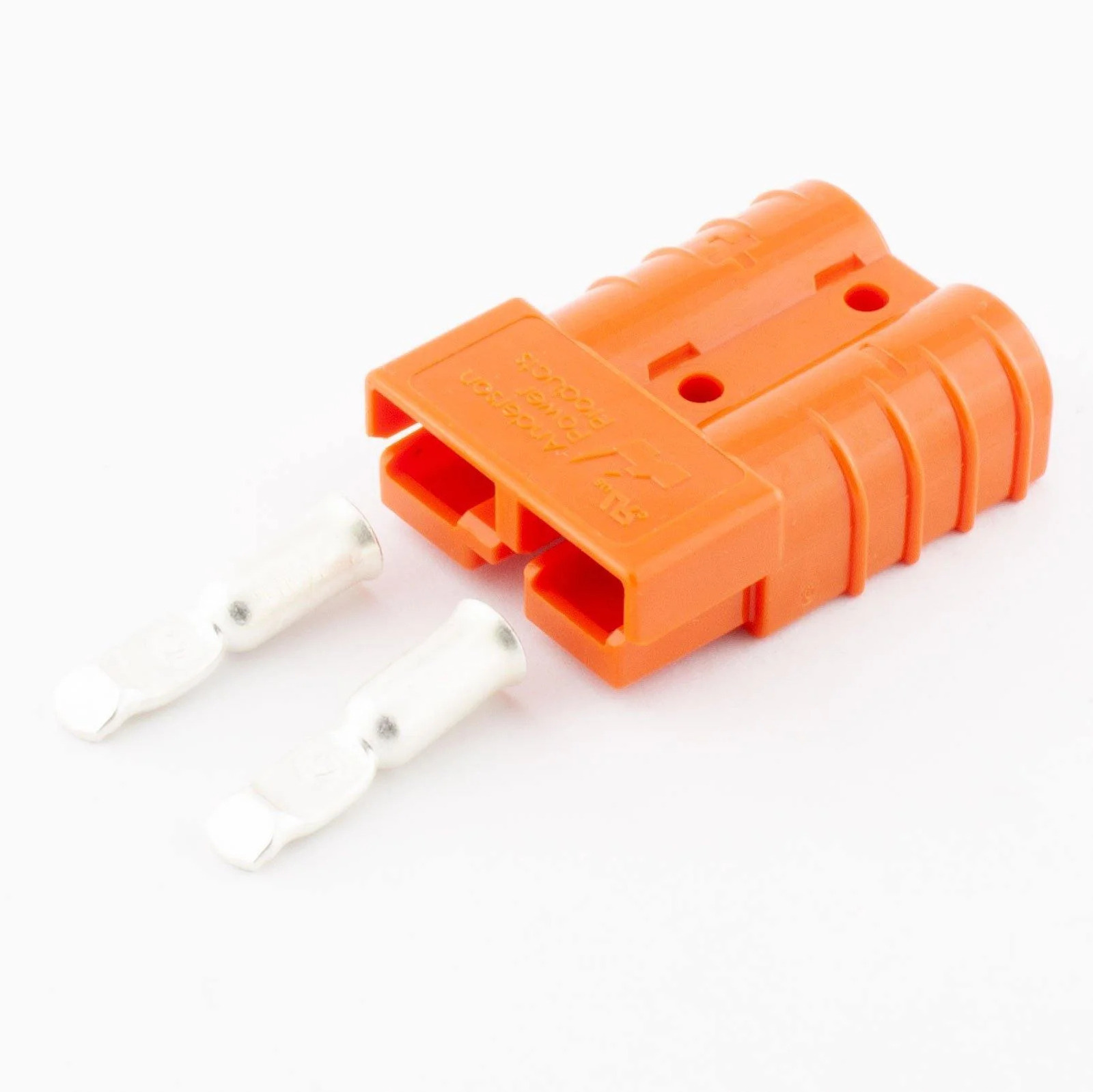

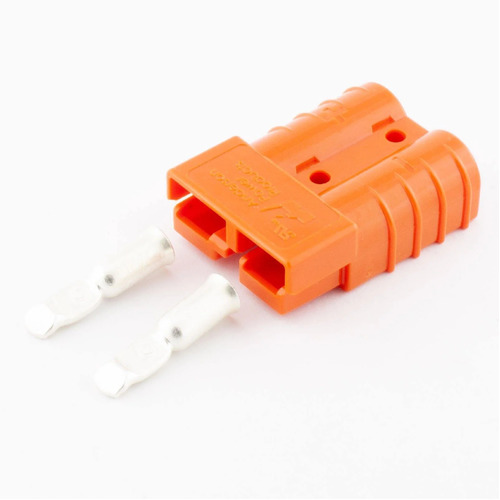

The Anderson Power Products SB®50 plug is perfect for camping, caravan, 4X4 and other applications where a reliable, rugged, affordable power connection.

This kit features a 50 Amp orange housing and a pair of contacts designed for the following size wire:

  • 6AWG (6B&S)
  • 13.3mm2 cable
  • 7.2mm diameter cable (O.D)

Genderless design mates with itself.

These are Colour Matching but Grey and Black can plug together, no other colour can connect to each other so Yellow will not connect to Grey, Red, Black, Blue, Green or Orange and vice versa.

Specifications:

  • Contact Rating: Allows UL rated currents up to 120 amps
  • Disconnect Rating: UL Rated for Hot Plugging up to 50 Amps
  • Contact Wire Size: 6331G12 #12-10 AWG / 63319G21 #8 AWG / 6331G11 #6 AWG
  • Voltage Rating: 600V (AC or DC)
  • Max Wire Insulation Diameter: 11mm
  • Contact Retention Force: 50lbs
  • Operating Temperature: -20 to +120 degrees C
SKU CONH50O6
Barcode # 6331G11
Brand Anderson Power Products
Shipping Weight 0.0100kg
Shipping Width 0.050m
Shipping Height 0.025m
Shipping Length 0.035m
Shipping Cubic 0.000044000m3
