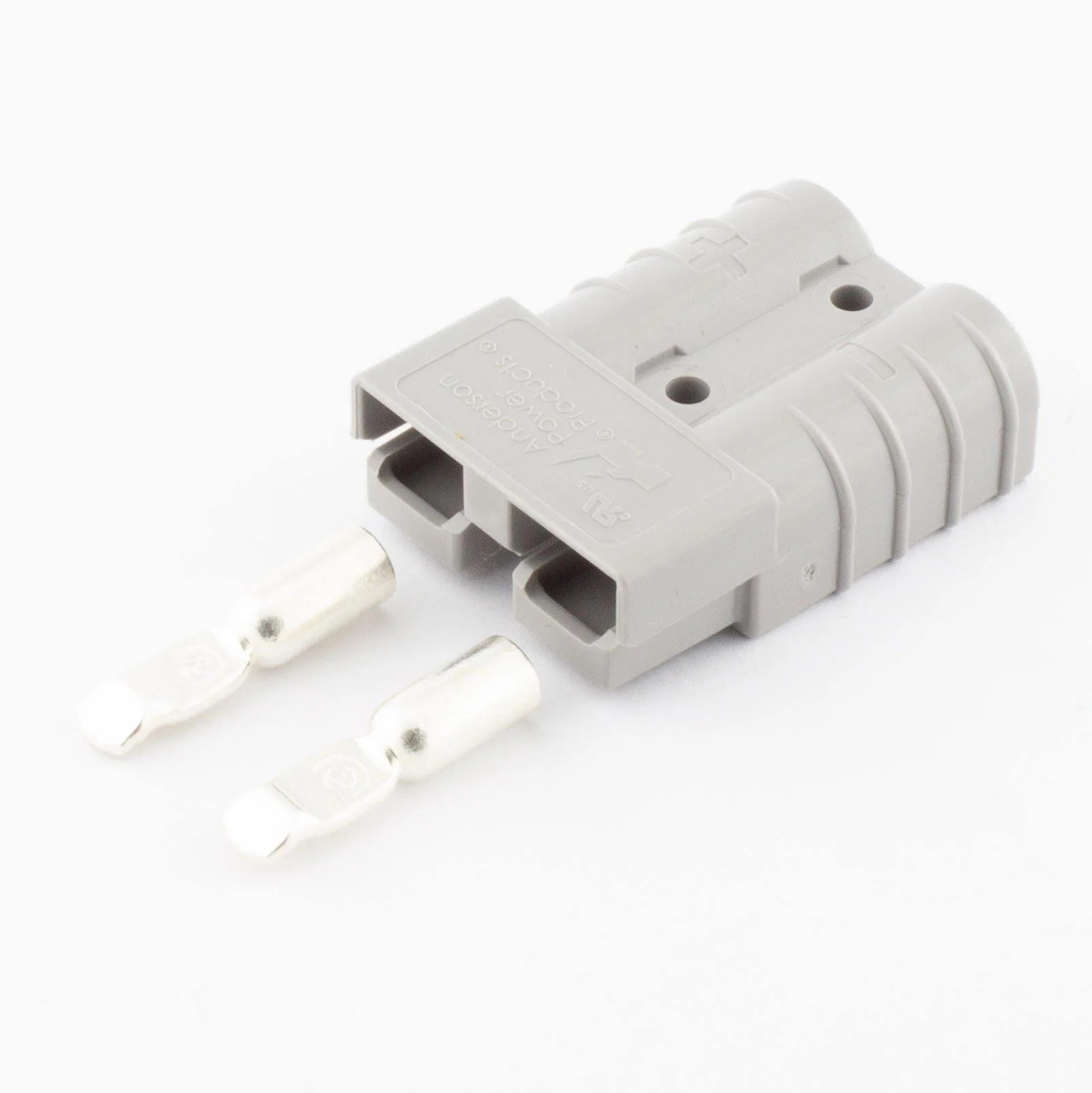

The Anderson Power Products SB®50 plug is perfect for camping, caravan, 4X4 and other applications where a reliable, rugged, affordable power connection.

This kit uses the smallest contact available for the popular Anderson SB®50 series 50 Amp plug housing making it ideal for automotive use with 6mm twin core cable. Twin core 6mm auto cable is typically 4.59mm2 in core size and is what we use with this Anderson kit in all of our ready-made Anderson Leads. The contact set is best suited to:

  • 10/12AWG (10/12B&S) cable
  • 5.3mm2 cable
  • 4mm diameter cable (O.D)

Genderless design mates with itself.

These are Colour Matching but Grey and Black can plug together, no other colour can connect to each other so Grey will not connect to Red, Blue, Yellow, Green or Orange and vice versa.

Specifications:

  • Contact Rating: Allows UL rated currents up to 120 amps
  • Disconnect Rating: UL Rated for Hot Plugging up to 50 Amps
  • Contact Wire Size: 6319G1 #12-10 AWG / 6319G2 #8 AWG / 6319 #6 AWG
  • Voltage Rating: 600V (AC or DC)
  • Max Wire Insulation Diameter: 11mm
  • Contact Retention Force: 50lbs
  • Operating Temperature: -20 to +120 degrees C
SKU CONH5010-12
Barcode # 6319G1
Brand Anderson Power Products
Shipping Weight 0.0100kg
Shipping Width 0.050m
Shipping Height 0.025m
Shipping Length 0.035m
Shipping Cubic 0.000044000m3
