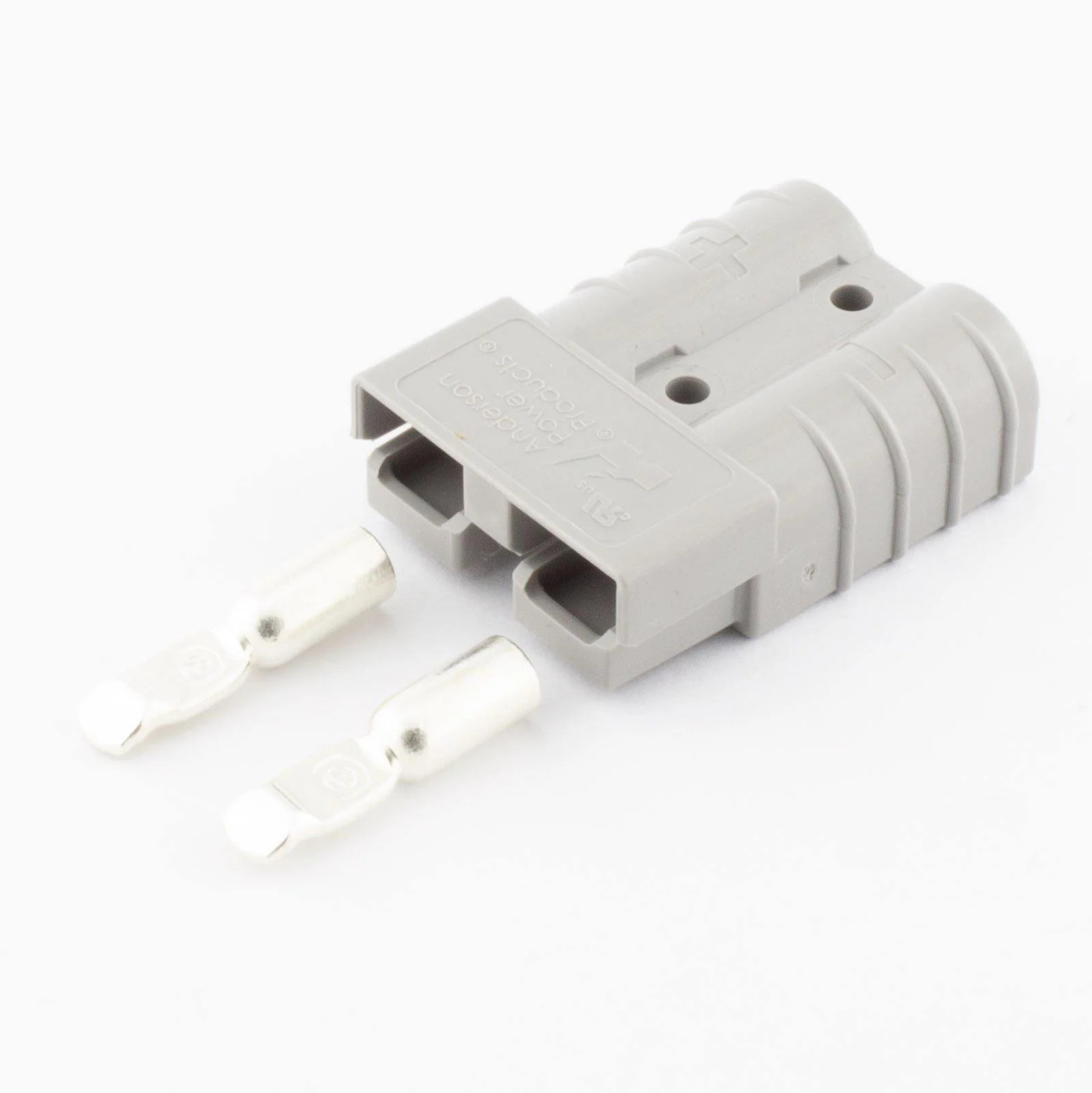

The Anderson Power Products SB®350 plug is perfect for camping, caravan, 4X4 and other applications where a reliable, rugged, affordable power connection.

This kit features a 350 Amp grey housing and a pair of contacts designed for the following size wire:

  • 00AWG (0B&S) cable
  • 67.4mm2 cable
  • 14.5mm diameter cable (O.D)

Genderless design mates with itself.

Common uses for the SB350 series include high-current charging and vehicle starting applications

These are Colour Matching but Grey and Black can plug together, no other colour can connect to each other so Grey will not connect to Red, Blue, Yellow, Green or Orange and vice versa.

Specifications:

  • Contact Rating: Allows UL rated currents up to 500 amps
  • Disconnect Rating: UL Rated for Hot Plugging up to 100 Amps
  • Contact Wire Size: 6320G3 #1/0 AWG / 6320G1 #2/0 AWG / 6320G5 #3/0 AWG / 6320G2 #4/0 AWG
  • Voltage Rating: 600V (AC or DC)
  • Max Wire Insulation Diameter: 11mm
  • Contact Retention Force: 50lbs
  • Operating Temperature: -20 to +120 degrees C
SKU CONH350
Barcode # 6320G1
Brand Anderson Power Products
Shipping Weight 0.1200kg
Shipping Width 0.110m
Shipping Height 0.035m
Shipping Length 0.070m
Shipping Cubic 0.000269500m3
