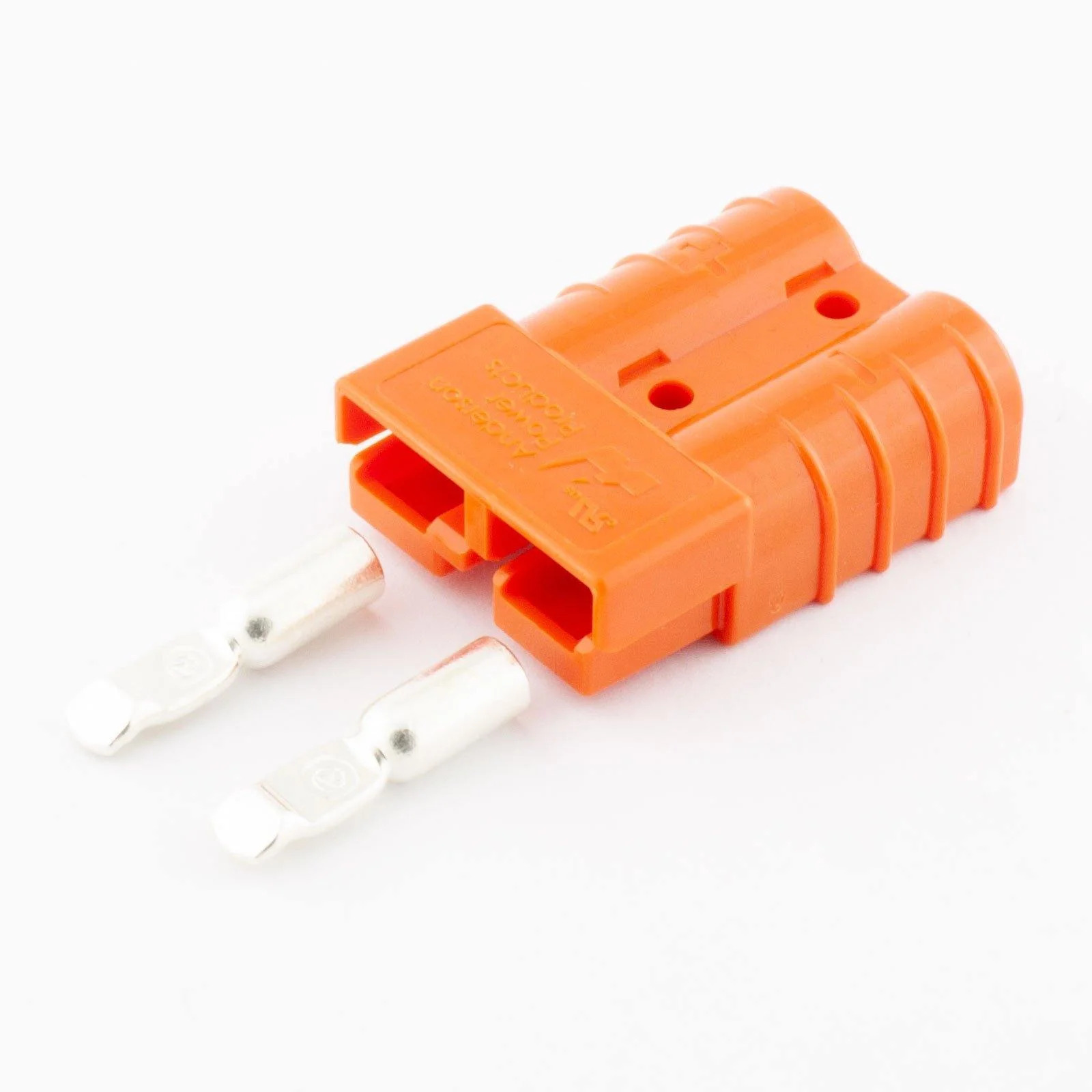

The Anderson Power Products SB®175 plug is perfect for camping, caravan, 4X4 and other applications where a reliable, rugged, affordable power connection.

This kit features a 175 Amp orange housing and a pair of contacts designed for the following size wire:

  • 2AWG (4B&S) cable
  • 33.6mm2 cable
  • 11.3mm diameter cable (O.D)

Genderless design mates with itself.

Common uses for the SB175 series include forklift, materials handling and vehicle charging applications.

These are Colour Matching but Grey and Black can plug together, no other colour can connect to each other so Grey will not connect to Red, Blue, Yellow, Green or Orange and vice versa.

Specifications:

  • Contact Rating: Allows UL rated currents up to 280 amps
  • Disconnect Rating: UL Rated for Hot Plugging up to 100 Amps
  • Contact Wire Size: 6325G1 #1/0 AWG / 6325G5 #2 AWG / 6325G6 #4 AWG / 6325G7 #6 AWG
  • Voltage Rating: 600V (AC or DC)
  • Max Wire Insulation Diameter: 11mm
  • Contact Retention Force: 50lbs
  • Operating Temperature: -20 to +120 degrees C
SKU CONH175O2
Barcode # CONH175O2
Brand Anderson Power Products
Shipping Weight 0.0500kg
Shipping Width 0.055m
Shipping Height 0.025m
Shipping Length 0.080m
Shipping Cubic 0.000110000m3
