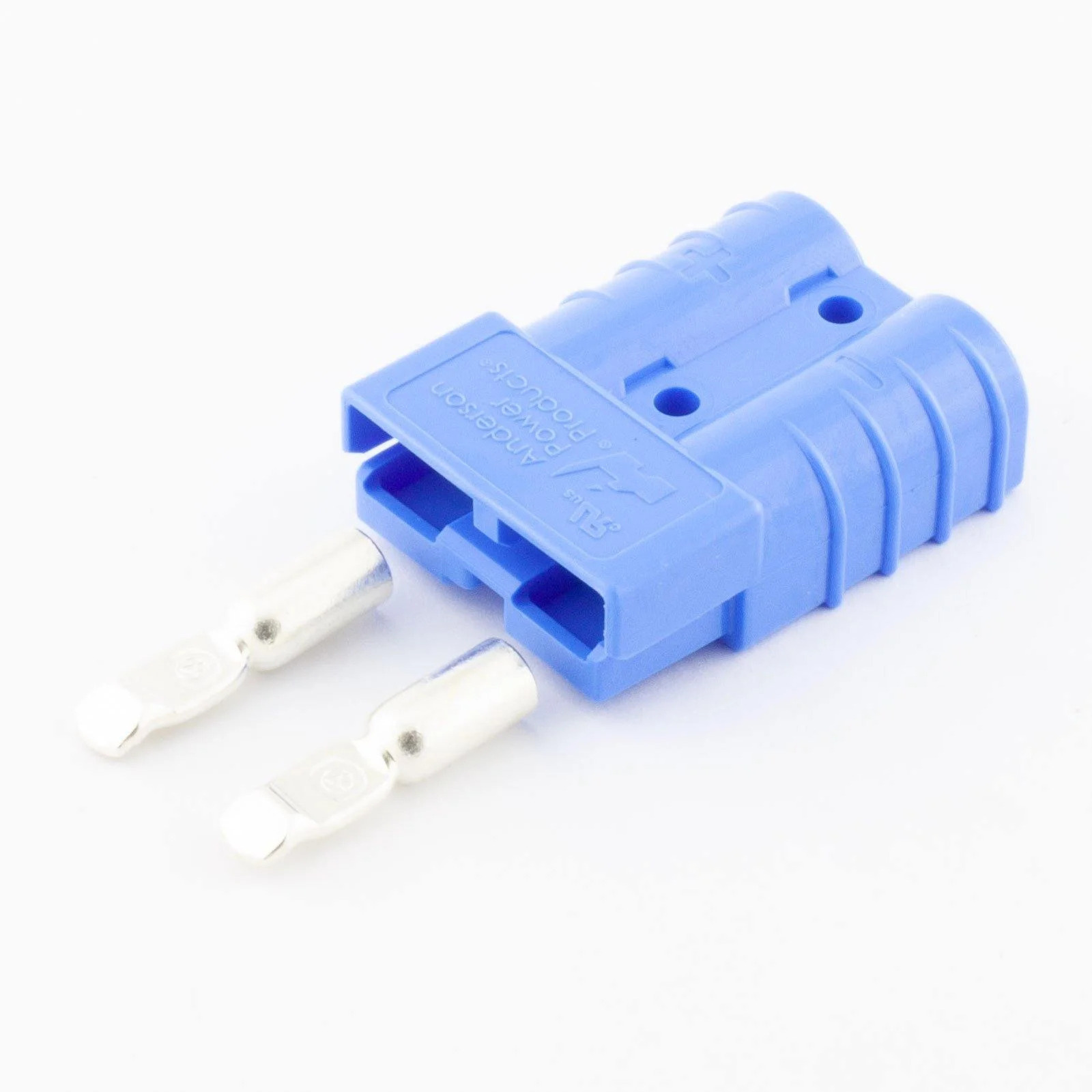

The Anderson Power Products SB®120 plug is perfect for camping, caravan, 4X4 and other applications where a reliable, rugged, affordable power connection.

This kit features a 120 Amp blue housing and a pair of contacts designed for the following size wire:

  • 2AWG (4B&S) cable
  • 33.6mm2 cable
  • 11.3mm diameter cable (O.D)

Genderless design mates with itself.

These are Colour Matching but Grey and Black can plug together, no other colour can connect to each other so Grey will not connect to Red, Blue, Yellow, Green or Orange and vice versa.

Specifications:

  • Contact Rating: Allows UL rated currents up to 240 amps
  • Disconnect Rating: UL Rated for Hot Plugging up to 120 Amps
  • Contact Wire Size: 68001G1 #2 AWG / 6800G2 #4 AWG / 6800G3 #6 AWG
  • Voltage Rating: 600V (AC or DC)
  • Max Wire Insulation Diameter: 11mm
  • Contact Retention Force: 50lbs
  • Operating Temperature: -20 to +120 degrees C
SKU CONH120BL
Barcode # CONH120BL
Brand Anderson Power Products
Shipping Weight 0.0300kg
Shipping Width 0.045m
Shipping Height 0.020m
Shipping Length 0.065m
Shipping Cubic 0.000058000m3
