These RULE (formerly LVM) pumps are not self priming and must be gravity fed or a one way valve used in line (if used as in-line hose to hose) or fully submersed (if used with the strainer).

They all have a clip-on, clip-off strainer that can be removed to reveal a hose connection end for in-line pumping applications. Their super slim size allows them to fit into very small spaces including the filling hole of a 20 litre drum.

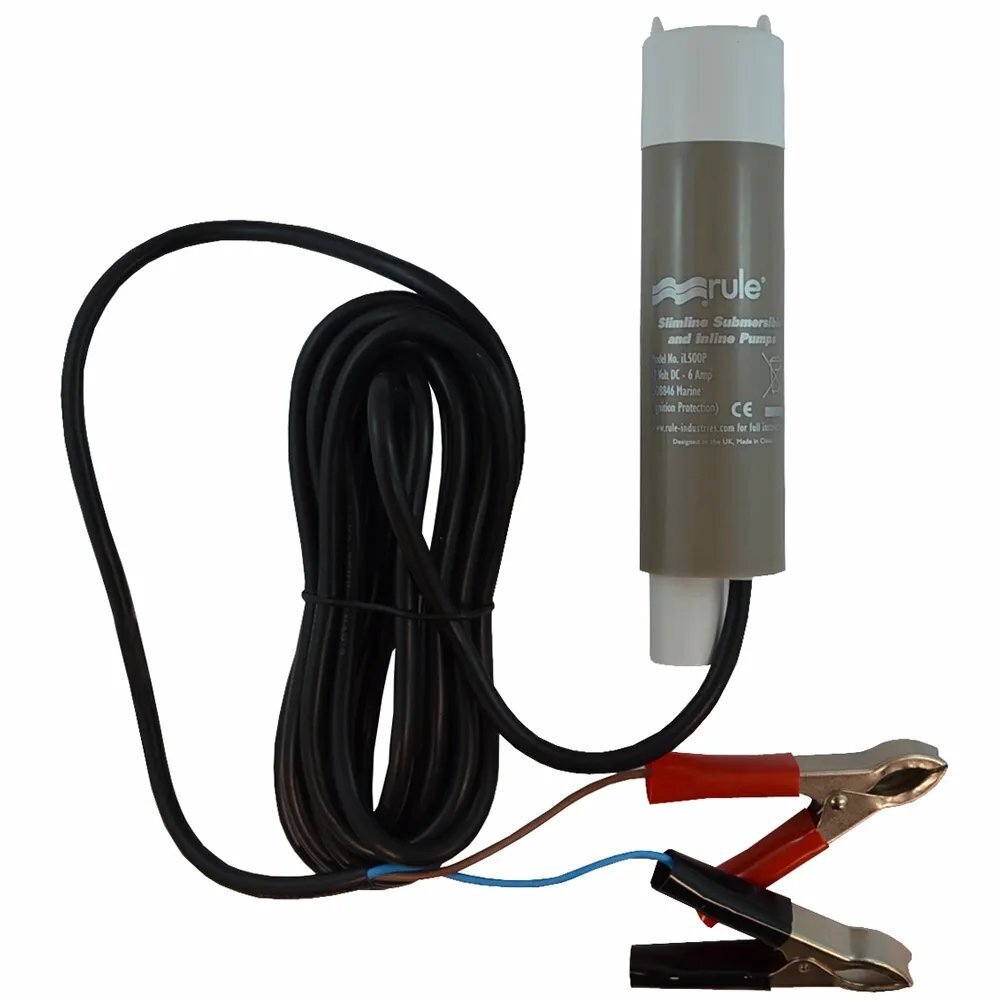

IL280P "Amazon" Deluxe Pump

  • Heavy duty continuously rated motor. Water or Diesel transfer.
  • Powerful 32 litres per minute capacity - 14 PSI - 9.7 metre head
  • Dual use - submersible or 20mm (3/4") hose inline pump
  • Includes 4 metres of wiring cable with alligator battery clips
  • Slimline body size : 166 x 41 mm
Pump Design Centrifugal submersible and inline
Liquids Suitable for Diesel, Fresh or Salt Water
Voltage 12V DC
Current Draw 6.0 Amp nominal @ 12v
Flow Rate 7.0GPM (31.L/min) Nominal
Duty Cycle Intermittent rating of 20 minutes.Should not be run dry for long periods
Motor Life Approx. 100 hours
Self Priming NO
Liquid Temperature Water Systems to 80 ºC
Port Type 3/4" (19mm) Hose



SKU PUCO12
Barcode # IL500P
Brand Rule
Shipping Weight 0.6500kg
Shipping Width 0.335m
Shipping Height 0.080m
Shipping Length 0.230m
Shipping Cubic 0.006164000m3
