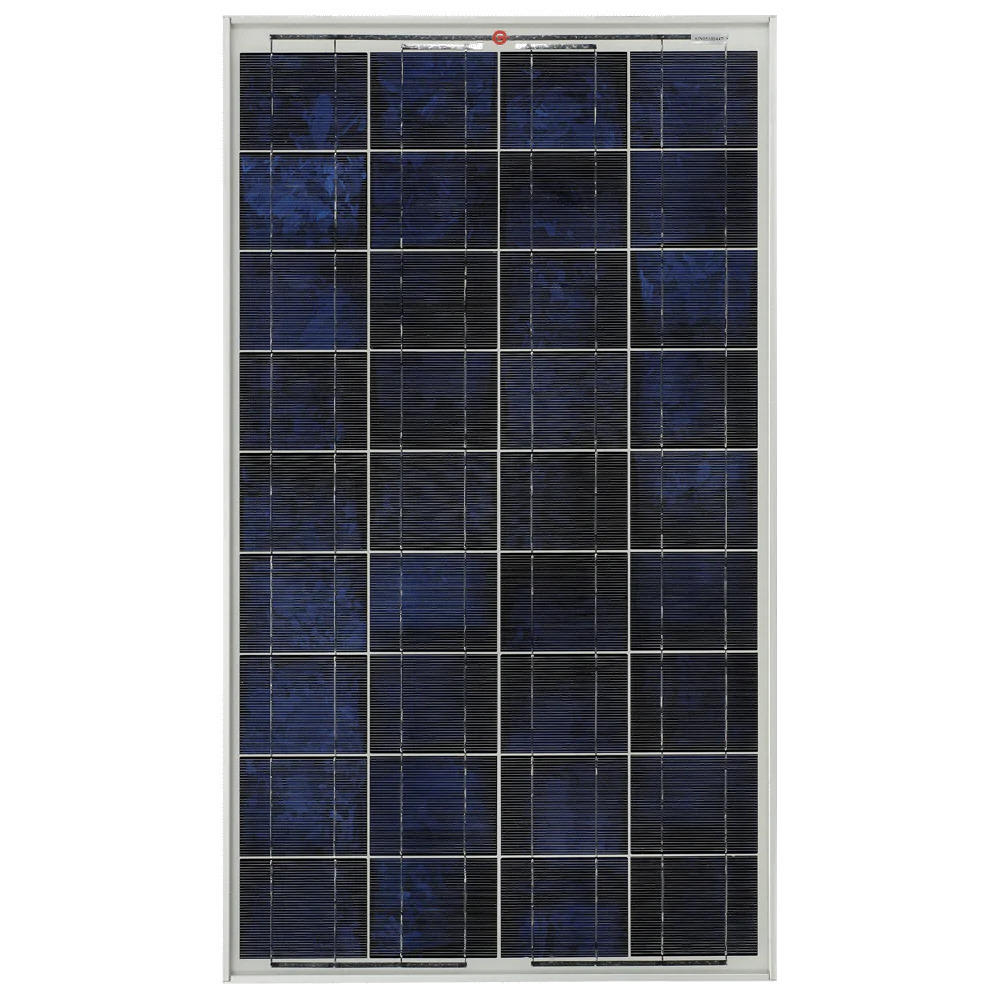

Solar Panel Projecta SPP80 - 80 Watt - 830 x 670 x 30mm - 7.5KG

Projecta Polycrystalline solar panels are designed to charge DC batteries. Made for permanent mounting these panels are ideal for caravans, motor homes, house boats, remote holiday shacks and farming applications where power is required to charge battery banks servicing multiple or larger appliances

Features:

  • MC4 Connector- Standardized MC4 connector fitted for ease of installation where MC4 connectors are used.
  • Tempered low iron glass- Clear encapsulated insulation enhances solar cell performance and provides proven weather protection, Tempered low iron glass provides both better impact resistance and better light transmission, allowing the generation of more electricity by reducing the quantity of light that is reflected away from the module.
  • Heavy duty frame- Corrosion resistant frames are constructed to withstand wind speeds in excess of 130 km/h in typical ground mounted applications. The frames are clear anodized and the inner corner connection has a strong mechanical resistance to weather.
RATED VOLTAGE: 12V
CELL TYPE: Polycrystalline
RATED POWER: 80W
OPEN CIRCUIT (VOC): 21.0V
SHORT CIRCUIT CURRENT (ISC): 5.04A
PEAK POWER VOLTAGE (VMP): 17.5V
PEAK POWER CURRENT (IMP): 4.58A

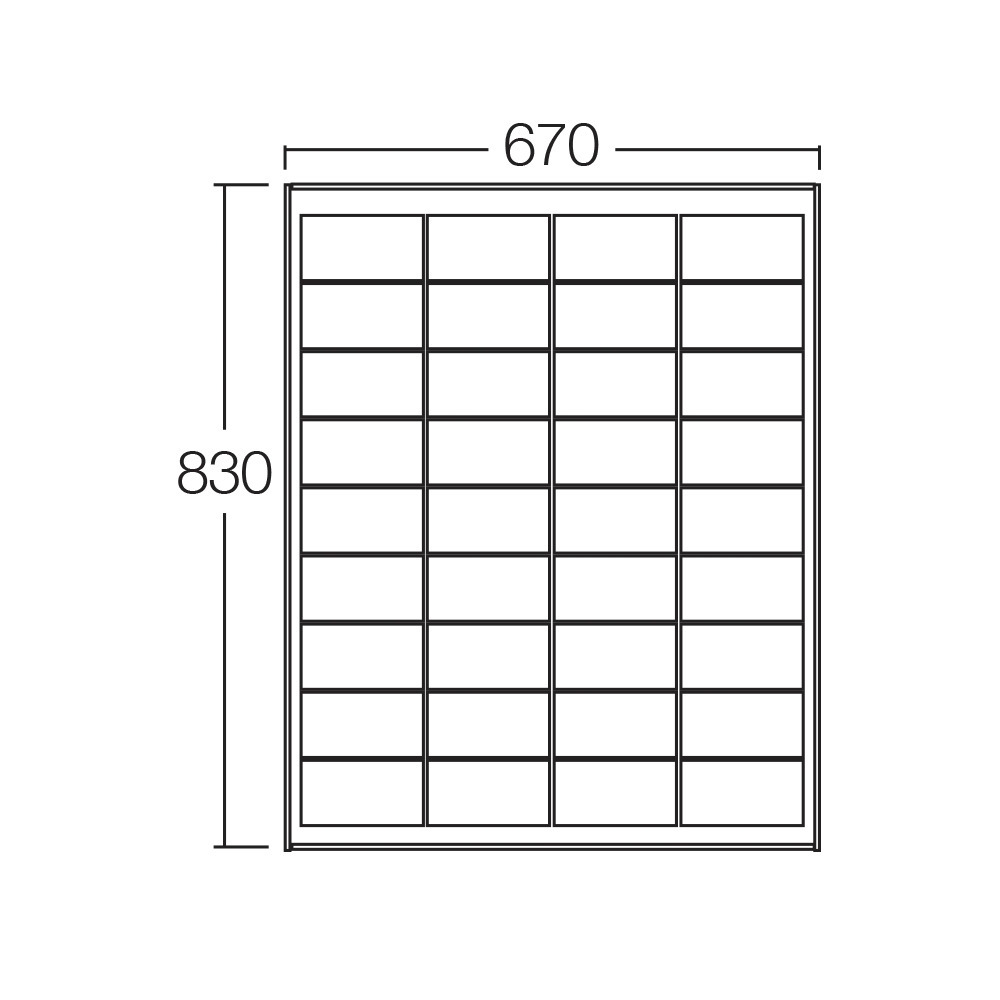

PANEL DIMENSIONS (MM): 830 x 670 x 30mm
GROSS WEIGHT (KG): 7.5KG
SKU SPP80
Brand Projecta
Shipping Weight 8.0000kg
Shipping Width 0.850m
Shipping Height 0.040m
Shipping Length 0.690m
Shipping Cubic 0.023460000m3
