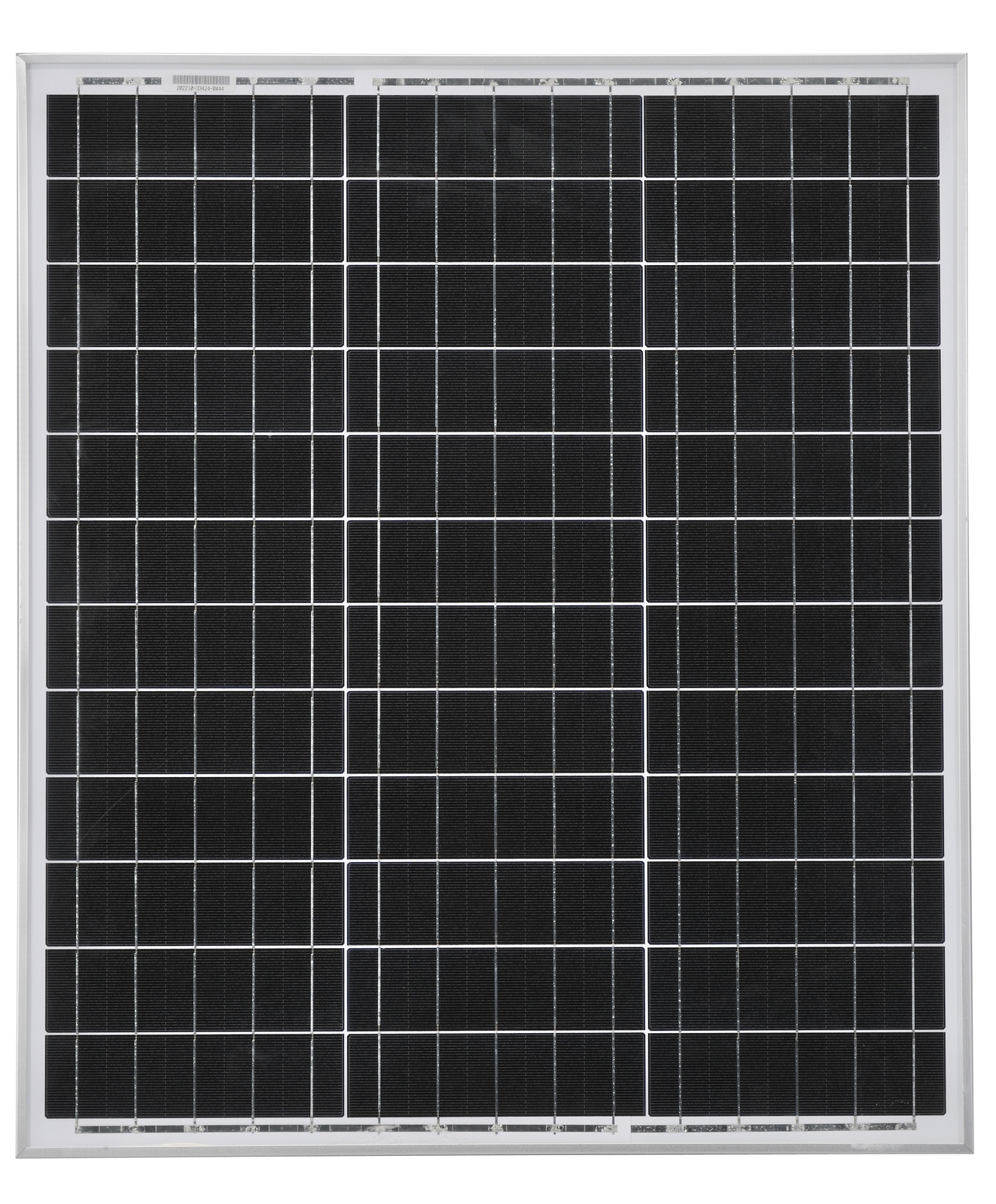

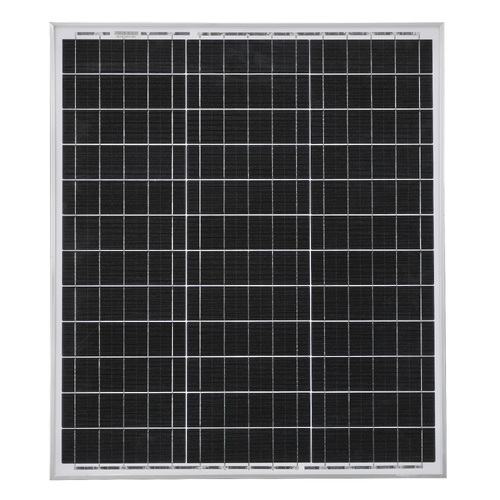

Solar Panel Projecta SPM50 - 50 Watt - 590 x 511 x 25cm - 3.8KG

Projecta Monocrystalline solar panels are designed to charge DC batteries. Made for permanent mounting these panels are ideal for caravans, motor homes, house boats, remote holiday shacks and farming applications where power is required to charge battery banks servicing multiple or larger appliances

Features:

  • Compact & Powerful - Monocrystalline solar panels are manufactured from a solar cell that is cast from silicon. These cells are more efficient at producing power than polycrystalline and amorphous panels, so the size of the panel is smaller yet produces greater output power.
  • MC4 Connector- Standardized MC4 connector fitted for ease of installation where MC4 connectors are used.
  • Tempered low iron glass- Clear encapsulated insulation enhances solar cell performance and provides proven weather protection, Tempered low iron glass provides both better impact resistance and better light transmission, allowing the generation of more electricity by reducing the quantity of light that is reflected away from the module.
  • Heavy duty frame- Corrosion resistant frames are constructed to withstand wind speeds in excess of 130 km/h in typical ground mounted applications. The frames are clear anodized and the inner corner connection has a strong mechanical resistance to weather.
RATED VOLTAGE: 12V
CELL TYPE: Monocrystalline
RATED POWER: 50W
OPEN CIRCUIT (VOC): 21.0V
SHORT CIRCUIT CURRENT (ISC): 3.13A
PEAK POWER VOLTAGE (VMP): 17.5V
PEAK POWER CURRENT (IMP): 2.86A
PANEL DIMENSIONS (MM): 590 x 511 x 35mm
GROSS WEIGHT (KG): 3.8KG
SKU SPP50M
Barcode # SPM50
Brand Projecta
Shipping Weight 4.0000kg
Shipping Width 0.610m
Shipping Height 0.040m
Shipping Length 0.520m
Shipping Cubic 0.012688000m3
