Anderson Power Products Powerpole® PP15-45 series are the smallest Powerpole ® housings.

They can be used for wire-to-wire or wire-to-board applications. Wire sizes from #20 AWG (0.75 mm²) to #10 (6 mm²) offer power capabilities up to 55 amps per pole. Finger proof housings and the ability to incorporate first-mate last-break ground connectors enhance the capabilities of this Powerpole ® series

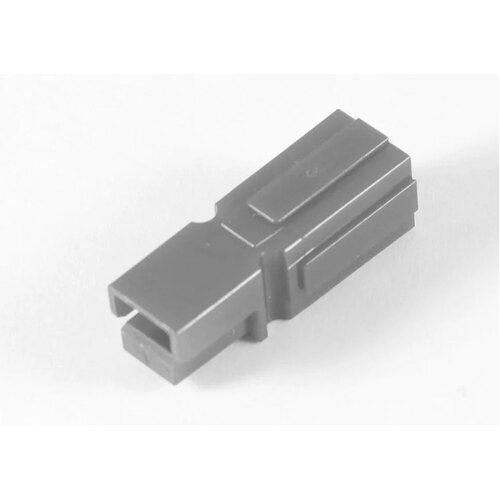

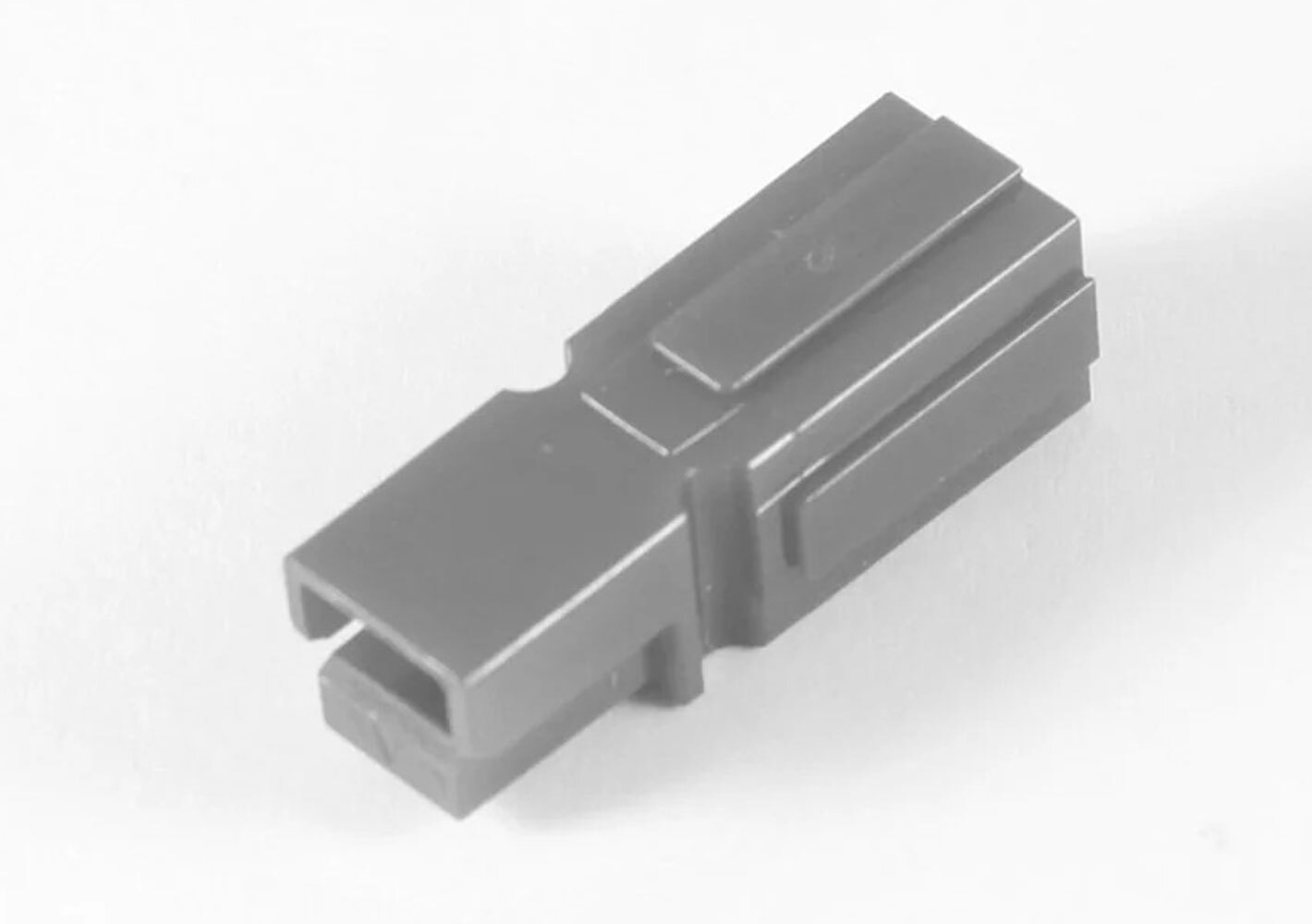

This kit is a 30 Amp plug kit featuring a grey housing and 3.3mm2 (12AWG) contact(s).

The PP30 series is rated to 600 Volts and will accept from 1.3mm2 to 3.3mm2 wire.

Common uses for the PP30 series include drone, solar, rc and amateur radio applications.

30 Amp Anderson plug kits are available in red, blue, black and more.

They are genderless which means that there is no separate plug and socket and can be easily stacked to make custom configurations

The dovetail feature allows you to interlock multiple housings into vertical and horizontal configurations, providing you with unique variations that are specific to each individual project requirement.

Specifications:

  • Contact Rating: Allows UL rated currents up to 45 amps
  • Disconnect Rating: UL Rated for Hot Plugging up to 30 Amps
  • Voltage: 600V (AC or DC)

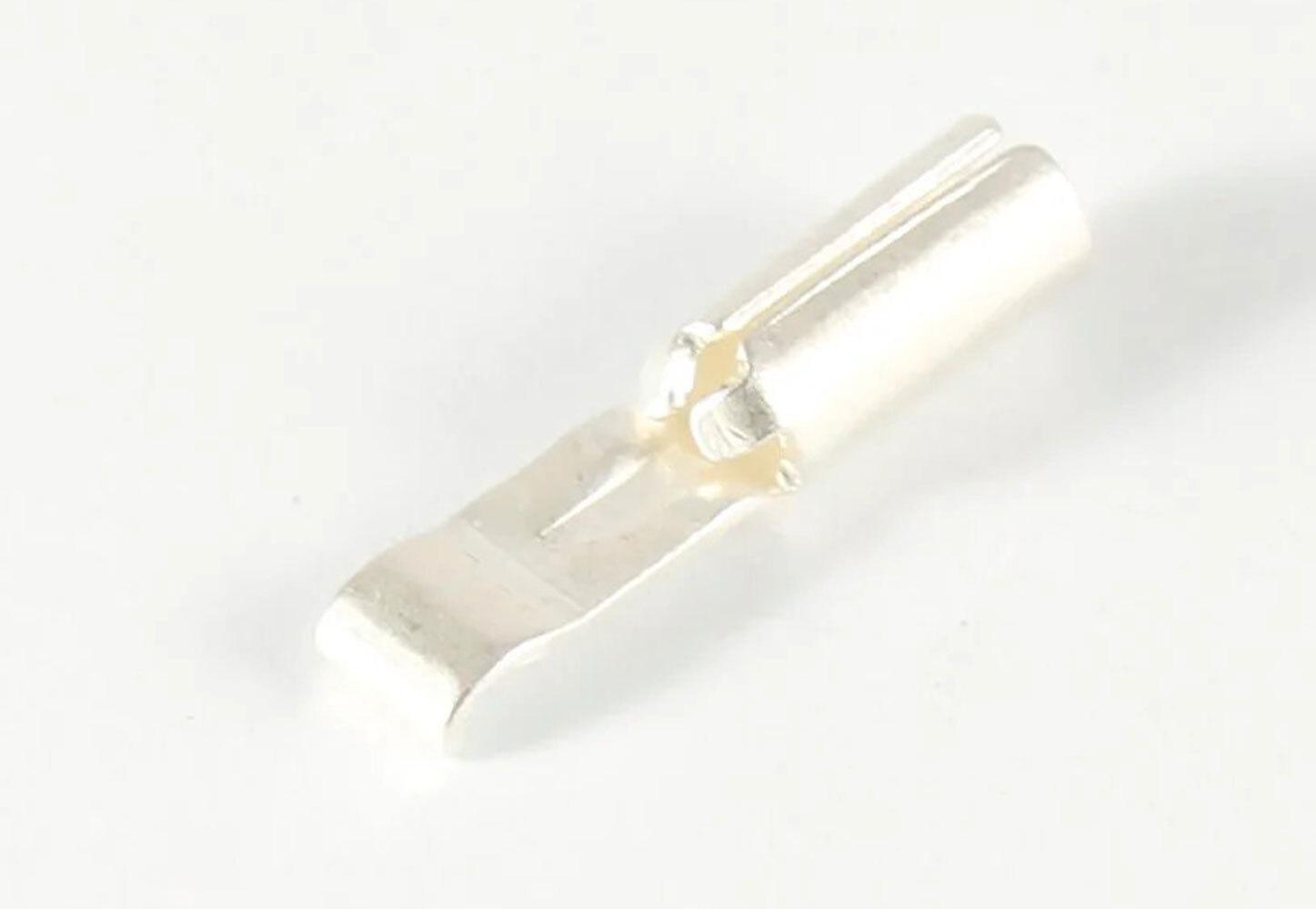

  • Contact Wire Size: 2.01mm2- 5.00mm2 (#12-#16 AWG)
  • Contact Gender: Genderless
  • Housing Material: Polycarbonate
  • Contact Plating: Silver
  • Contact Retention Force: 9kgs (20lbs)
  • Operating Temperature: -20 to +105ºC
SKU CONH50GRY
Brand Anderson Power Products
Shipping Weight 0.0100kg
Shipping Width 0.009m
Shipping Height 0.009m
Shipping Length 0.025m
Shipping Cubic 0.000002000m3
