Power-Sonic deep cycle PDC range is purpose built for those applications which require regular and consistent cycling (charge and dis-charge). Commonly called deep cycling the oversized negative plates and a specialised paste formulation of the PDC can provide constant power for longer periods of time without shortening the life of the battery.

Typical applications include: weekend or holiday homes with large electrical loads, medium solar systems for industrial applications, small solar and wind-driven power plants, offshore buoys, yachts, measurement stations.

They feature:

  • Absorbent Glass Mat (AGM) technology for superior performance
  • Valve regulated, spill proof construction for safe operation in any position
  • Oversize negative plates and a specialized paste formulation for true deep cycle performance.
  • Special additives in the paste ensure superior performance in deep discharge situations.
  • Power/volume ratio yielding unrivalled energy density
  • Rugged impact resistant ABS case and cover (UL94-HB)
  • Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified
  • L. certified

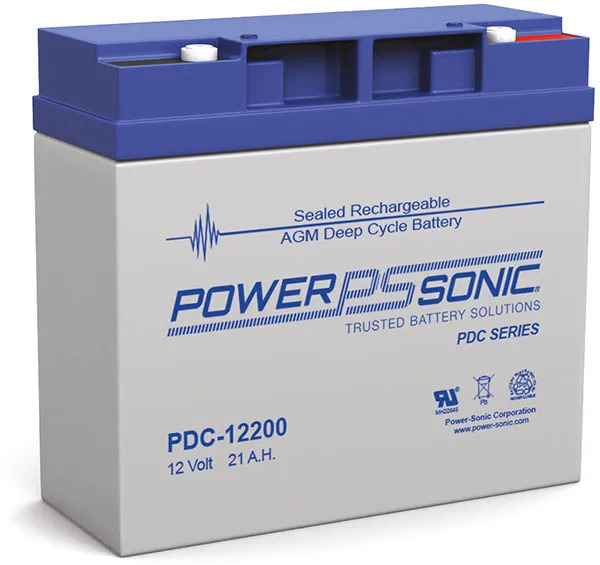

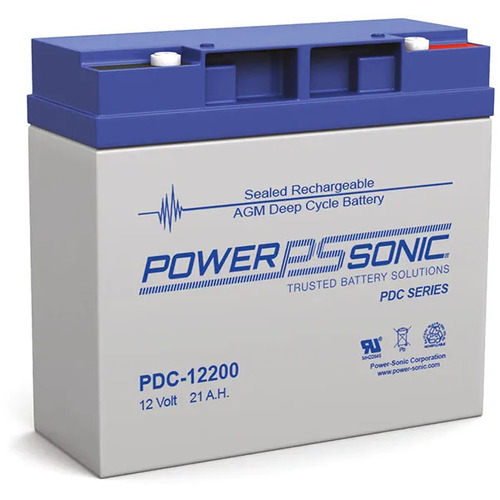

Model PDC12200
Description 12v 21.0 ah C20 Cyclic AGM
Nominal Voltage (V) 12v
Rated Capacity (AH) 20-hr 21.00Ah
Rated Capacity (AH) 10-hr 20.00Ah
Max Discharge Current (7 Min.) 60.00Ah
Max Short-Duration Discharge Current (10 Sec.) 200.00Ah
Length (mm) 182mm
Width (mm) 77mm
Height (mm) 164mm
Ht. Over Terminal (mm) 167mm
Terminal Type Standard T12
Weight (kg) 6.6kg

*Due to the self-discharge characteristics of this type of battery, it is imperative that they be charged within 6 months of storage, otherwise permanent loss of capacity might occur as a result of sulfation.

Shelf Life (% of nominal capacity at 68°F (20°C))

1 Month 97%

3 Months 91%

6 Months 83%

SKU BATPDC1220
Barcode # PDC12200
Brand Power-Sonic
Shipping Weight 7.0000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.110m
Shipping Cubic 0.004400000m3
