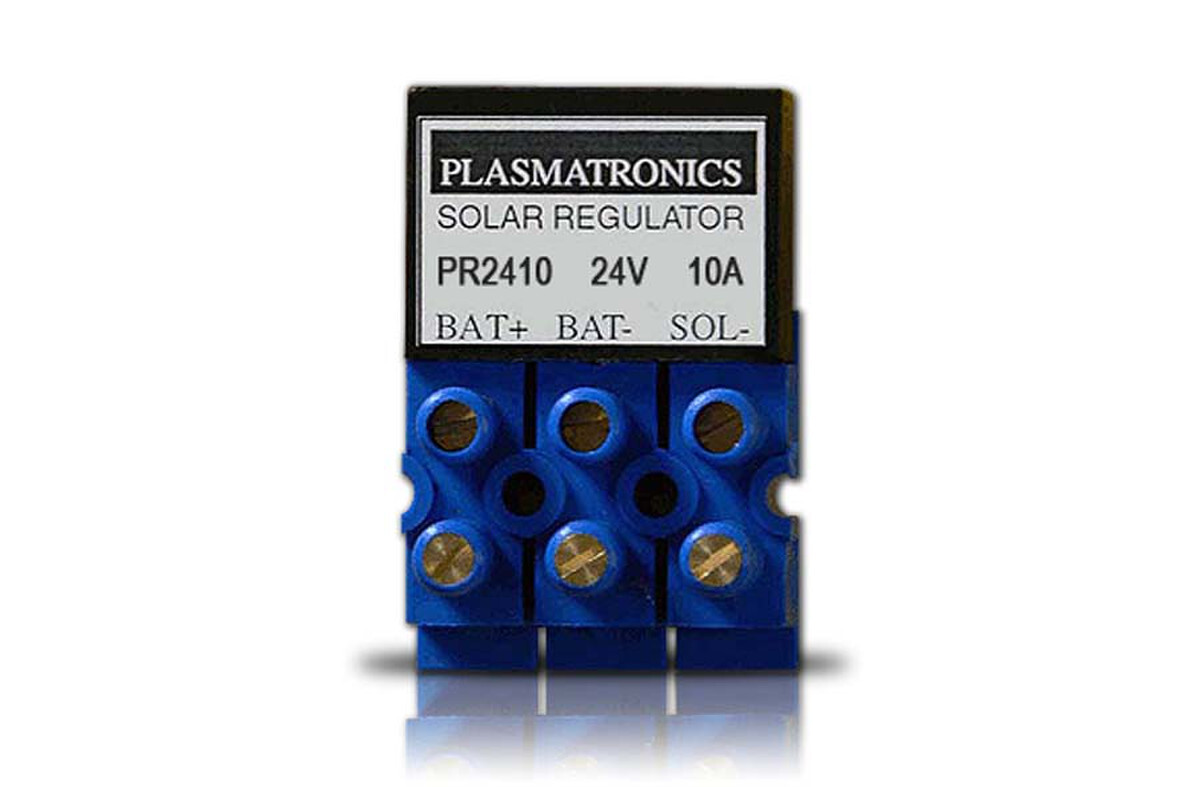

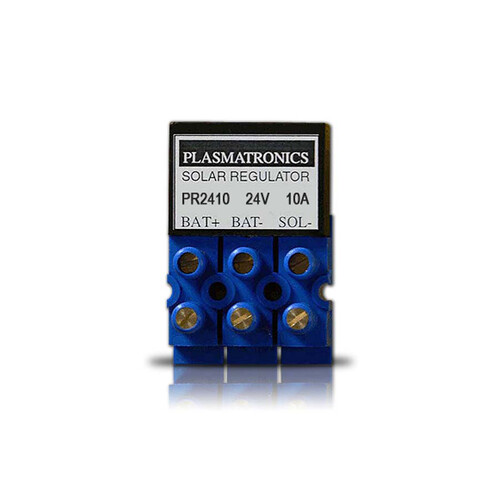

Plasmatronics PR2410 PWM Solar Controller for 12v Systems

Max. Solar Currant: 10A

The PR2410 is ideal for camping, boating, and other one or two panel solar applications.

It features brass inserts and screws in the terminal block and is fully enclosed in resin.

The PR2410 is a simple two stage regulator for charging liquid electrolyte lead acid batteries from photovoltaic panels. (Flooded / Wet Cell Batteries)

It uses a rugged power mosfet and switches on the negative side.

The PR2410 is not adjustable

MODEL PR2410
Nominal DC Voltage
24v
Maximum Charge Current (Amps)
10A
Supply Current (Amps)
6mA
Float Cut in 26.4V
Float Maximum 27.5V
Boost Cut in
25.0V
Boost Maximum
29.4V
Battery Type
Flooded / Wet Cell
Dimensions H x W x D (mm)
56 x 37 x 21 mm
Weight (in box)
0.05kg

*All voltages +/- 0.1 volt



SKU RPR2410
Barcode # PR2410
Brand Plasmatronics
Shipping Weight 0.0500kg
Shipping Width 0.090m
Shipping Height 0.030m
Shipping Length 0.060m
Shipping Cubic 0.000162000m3
