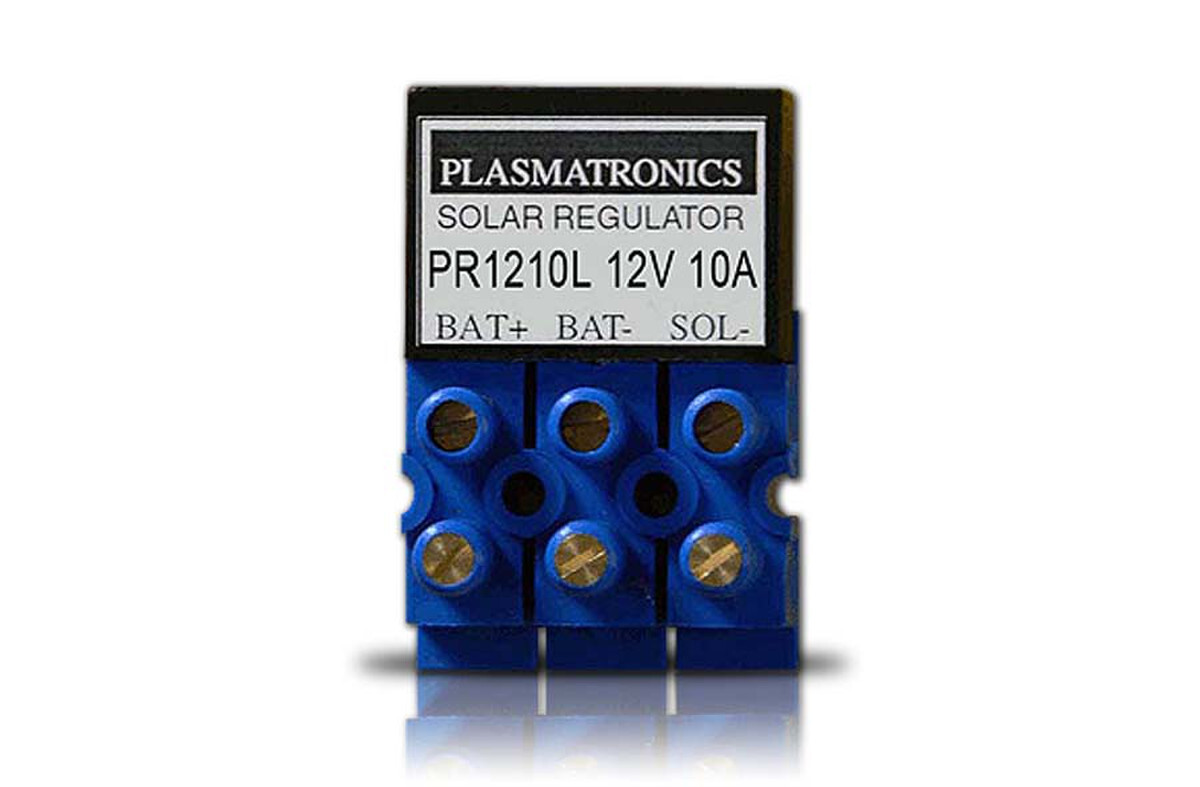

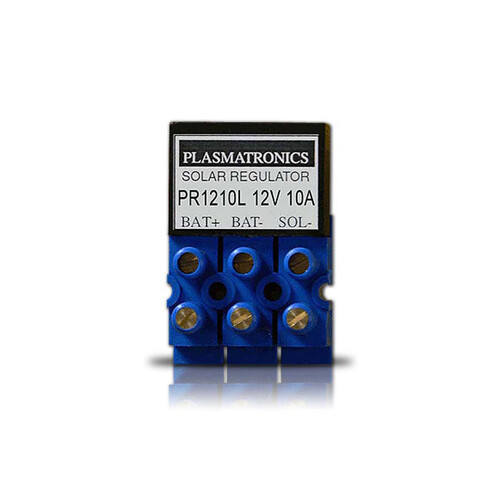

Plasmatronics PR1210L PWM Solar Controller for 12v Systems

Max. Solar Currant: 10A

The PR1210L is ideal for camping, boating, and other one or two panel solar applications.

It features brass inserts and screws in the terminal block and is fully enclosed in resin.

The PR1210L is a simple two stage regulator for charging sealed or gel lead acid batteries from photovoltaic panels. (GEL / AGM Batteries)

It uses a rugged power mosfet and switches on the negative side.

The PR1210L is not adjustable

MODEL PR1210L
Nominal DC Voltage
12v
Maximum Charge Current (Amps)
10A
Supply Current (Amps)
4mA
Float Cut in 13.4V
Float Maximum 14.0V
Boost Cut in
12.5V
Boost Maximum
14.2V
Battery Type
Gel / AGM
Dimensions H x W x D (mm)
56 x 37 x 21 mm
Weight (in box)
0.05kg

*All voltages +/- 0.1 volt
