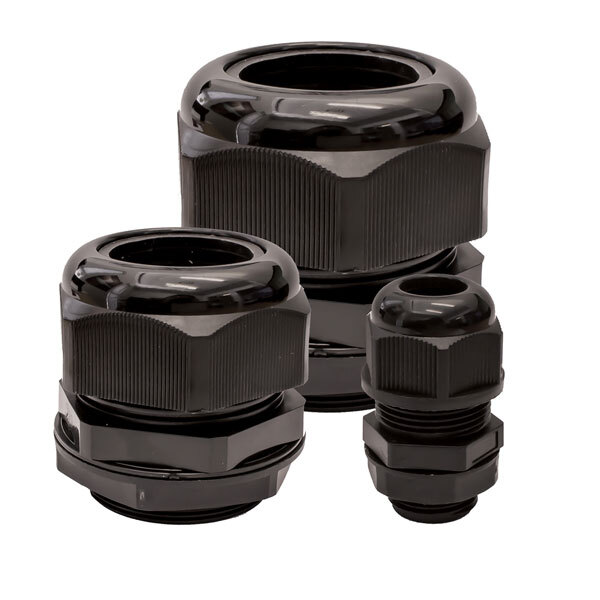

Cable Glands are used to firmly secure electrical cable entering a piece of equipment and to provide a seal between the external and internal surfaces of the equipment.

Cable Glands are designed to protect cable as it passes through walls, cabinets, or switchboards.

Unlike grommets, Cable Glands tighten around the wire to act as a seal.

Easy to install, Mount gland to pre-drilled panel hole, use locknut to fix gland on panel, insert the cables through the seal, and then tighten up the nut to hold cables in position.

Features

  • Nylon Cable Glands are manufactured using UL approved Nylon PA66 (Flammability UL 94V-2).
  • Thread: Metric, PG, G(PF), and NPT thread
  • The claws and seals of excellent design can hold cable firmly and have a wider cable range.
  • Resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
Part No. Cable OD Range (mm) Thread (mm)
CG05
3mm² to 6mm²
M12
CG10
5mm² to 10mm²
M16
CG15
10mm² to 14mm²
M20
CG20
13mm² to 18mm²
M25
CG25
18mm² to 25mm²
M32





SKU CG
Brand KSS
