Noark DC miniature circuit breakers are non-polarised and suitable for short-circuit and overload protection of general direct current applications up to 16 A, in solar, automation, control, telecommunications, and many other DC circuit applications.

DC switching voltage
180V DC per pole
e.g. 2 pole = 360V DC

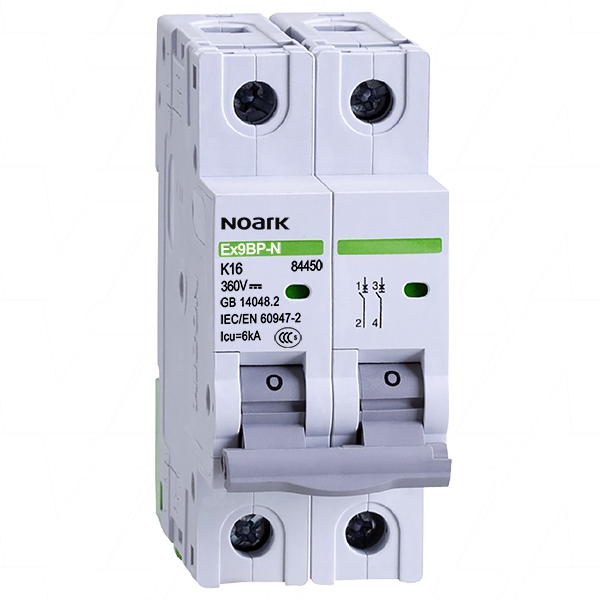

Noark Series Ex9BP-N2P K 16A 360VDC
Poles 2 (180VDC per pole)
Current Rating (A) 16A
Voltage (Max.) 360VDC
Voltage (Min.) 12VDC
Rated Breaking Capacity 6kA

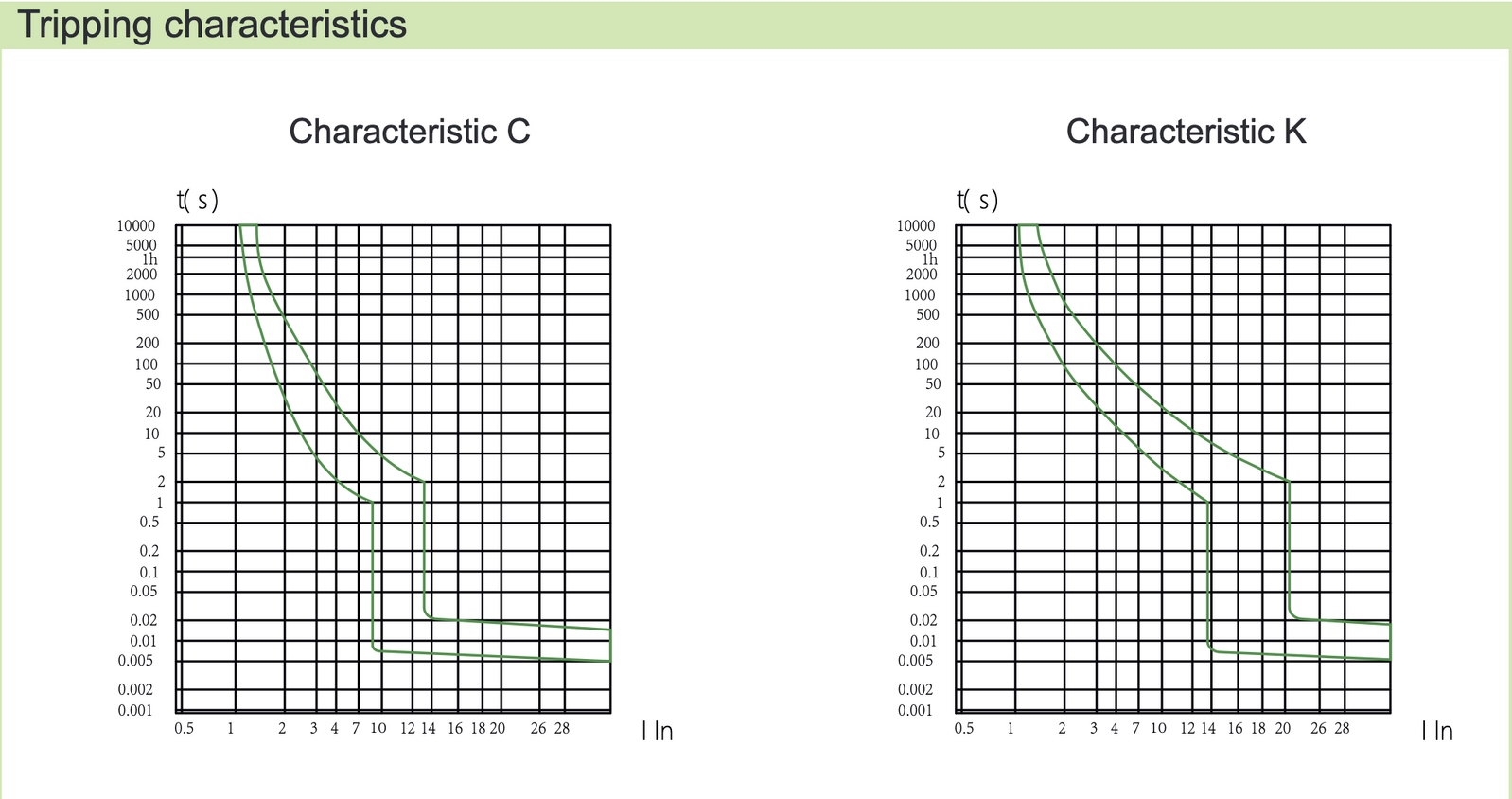

Curve Type K
Rated Insulation Voltage (VDC) Ui 1000VDC
Terminal Capacity 35mm²
Terminal Torque (Nm) 2-3.5Nm
Mounting 35mm Din Rail
IP Rating (All sides/terminals) IP40 / 20
Standards IEC/EN/AS60947-2, SAA101238EA



SKU CBN16A
Brand Noark
Shipping Weight 0.2600kg
Shipping Width 0.085m
Shipping Height 0.070m
Shipping Length 0.040m
Shipping Cubic 0.000238000m3
