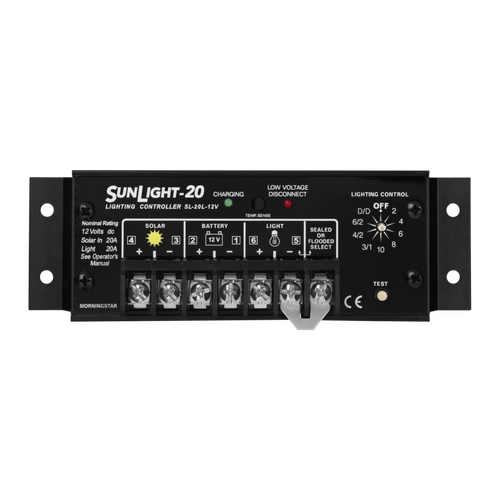

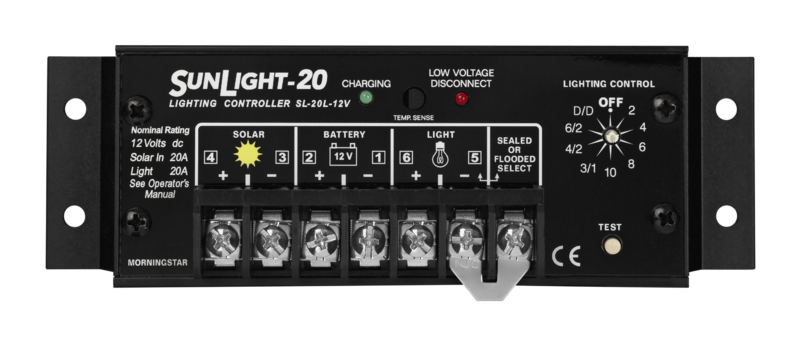

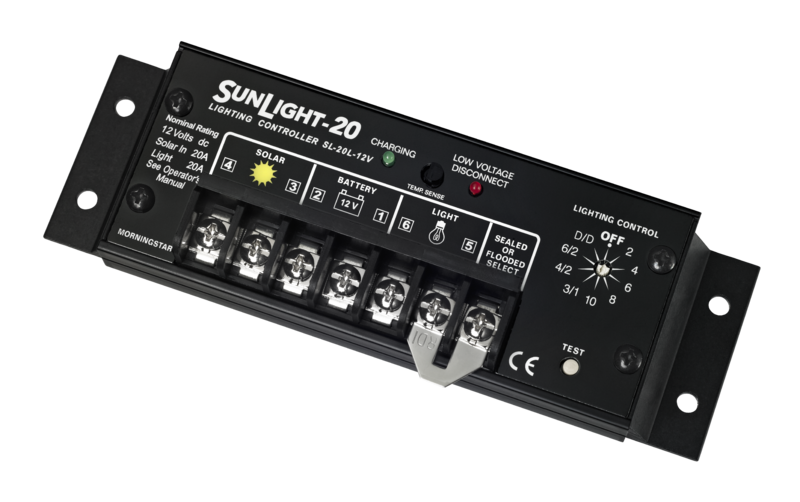

Morningstar SunLight SL-20L-12V PWM Solar Controller 12v 20A with Low Volt Disconnect and Lighting Control - Not compatible with Lithium

Max. Solar Currant: 20A

The SunLight™ solar charge controller is World’s leading solar lighting controller for street and pathway lighting, parking areas, bus stations, signage, and much more. This unit is based off of our reliable epoxy coated SunSaver design and the addition of a microcontroller for automatic lighting control functions.

Morningstar’s SunLight™ solar controller builds on the industry-proven SunSaver platform and adds microcontroller-managed
automatic lighting control functions—a “best-in-class” controller that’s built on the best. As a result, it’s now the world’s leading
solar lighting controller for street and pathway lighting, parking areas, signage as well as essential facilities including bus stations
and airfields. SunLight’s tough, resistant design is ideal for places exposed to harsh conditions, including seaside locations.

• Test button flashes red LED to confirm correct rotary switch selection
• Test button turns lights on for 5 minutes (in LVD limited to 3 times)
• LVD overrides lighting timer
• Sunrise overrides lighting timer
• Timer accuracy is within 2 seconds
• Microcontroller digital accuracy
• Fully automatic operation

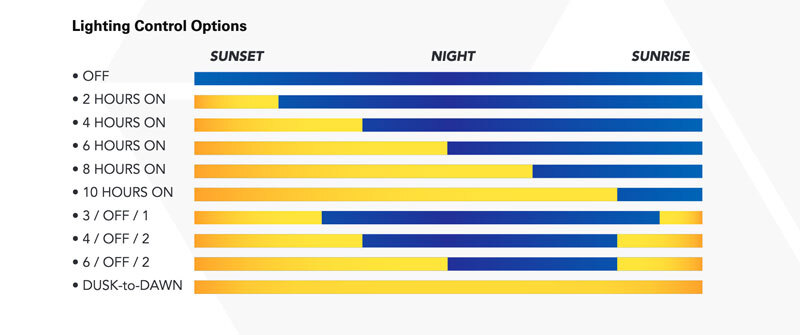

• Ten field adjustable lighting control options
• Special on/off/on functions
• Manual test capability
• LVD override protection
• Detects day and night using the PV array
• Suitable for all 12/24 Vdc lamps
• Sealed/Flooded battery select
• Temperature compensation
• Parallel with a SunSaver for 40 Amps solar
• Includes SunSaver battery charging circuit

*Low Voltage Disconnect is included in all SunLight controllers.
