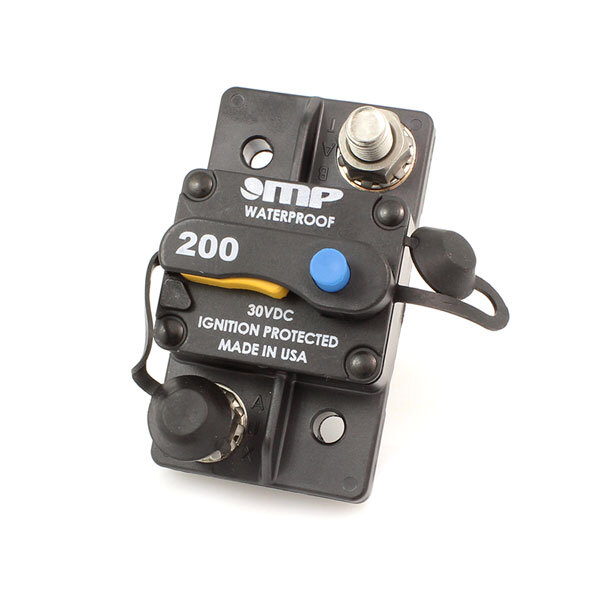

Available in ratings from 25 to 300 Amps, the 17 Series offers a robust thermoplastic material case enclosure, designed with superior moisture sealing, in standard surface and panel mount configurations.

The MP 17 Series is designed as a drop-in replacement for existing surface and panel mountable configurations in the market today such as Blue Sea and Bussmann.

New configurations available in Side by Side, Surface, and Easy Access 90° Panel Mount designs.

The Easy Access 90° Panel Mount configurations accommodate multiple breaker bus bar installations.

For applications such as Truck, Bus, Marine, RV, Ag Equip, and Liftgates

Cross reference for industry standards such as Bussmann 285, 184, 185 Blue Sea and Sensata Klixon FDLA, FDLT, FDLS and more.

  • Made in the USA
  • Type I & III Vehicle Protection
  • 1/4" and New 3/8" stainless steel terminal studs and sems nuts
  • Dustproof and waterproof
  • Ignition Protected
  • SAE & ABYC Compliant
  • Visible trip indication
Maximum Voltage 30V DC

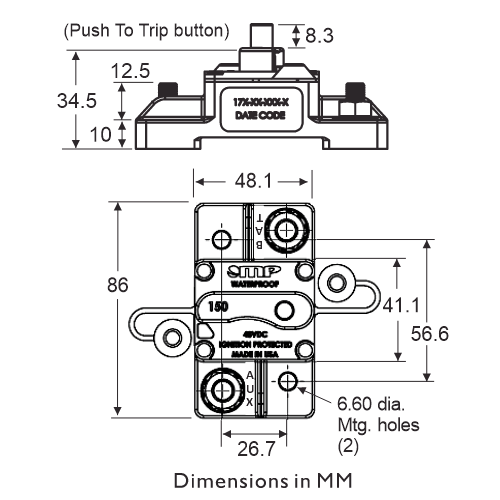

Mounting Surface Mount

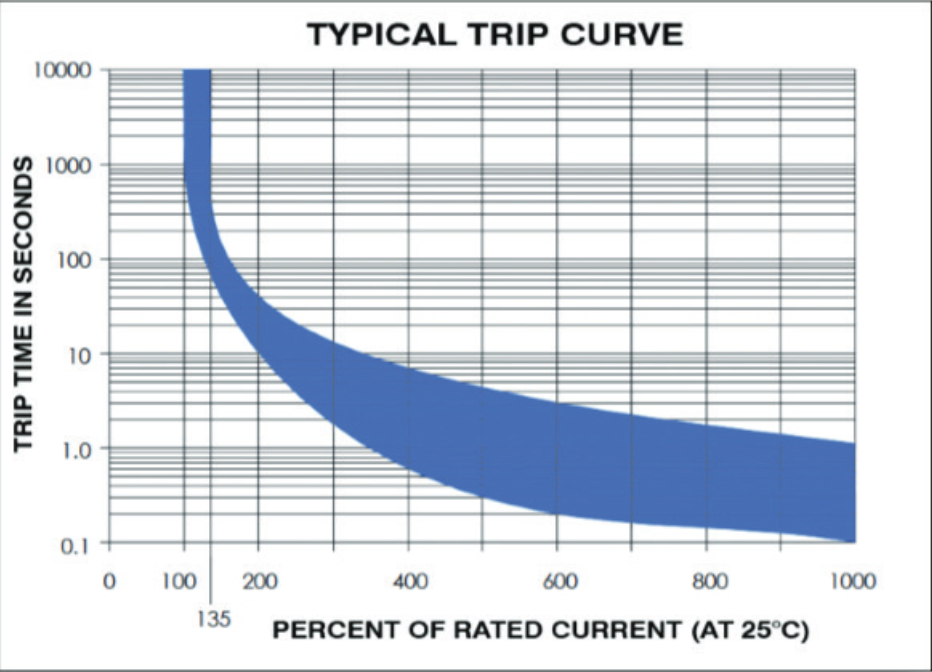

Circuit Breaker Type Thermally responsive Bi-metal blade
Terminal Stud M6 (accepts 1/4" Ring Terminal)
Terminal Stud Torque 50 in-lb (5.65 Nm)
Interrupt Capacity 1,500A @ 30VDC
Operating Temperature -40° C to 85° C
Circuit Breaker Class
Type III - switchable/manual reset - Push to Trip
Weight 0.50lb (0.23 kg)



SKU CBMB200
Brand Mechanical Products
Shipping Weight 0.1500kg
Shipping Width 0.085m
Shipping Height 0.035m
Shipping Length 0.050m
Shipping Cubic 0.000148750m3
