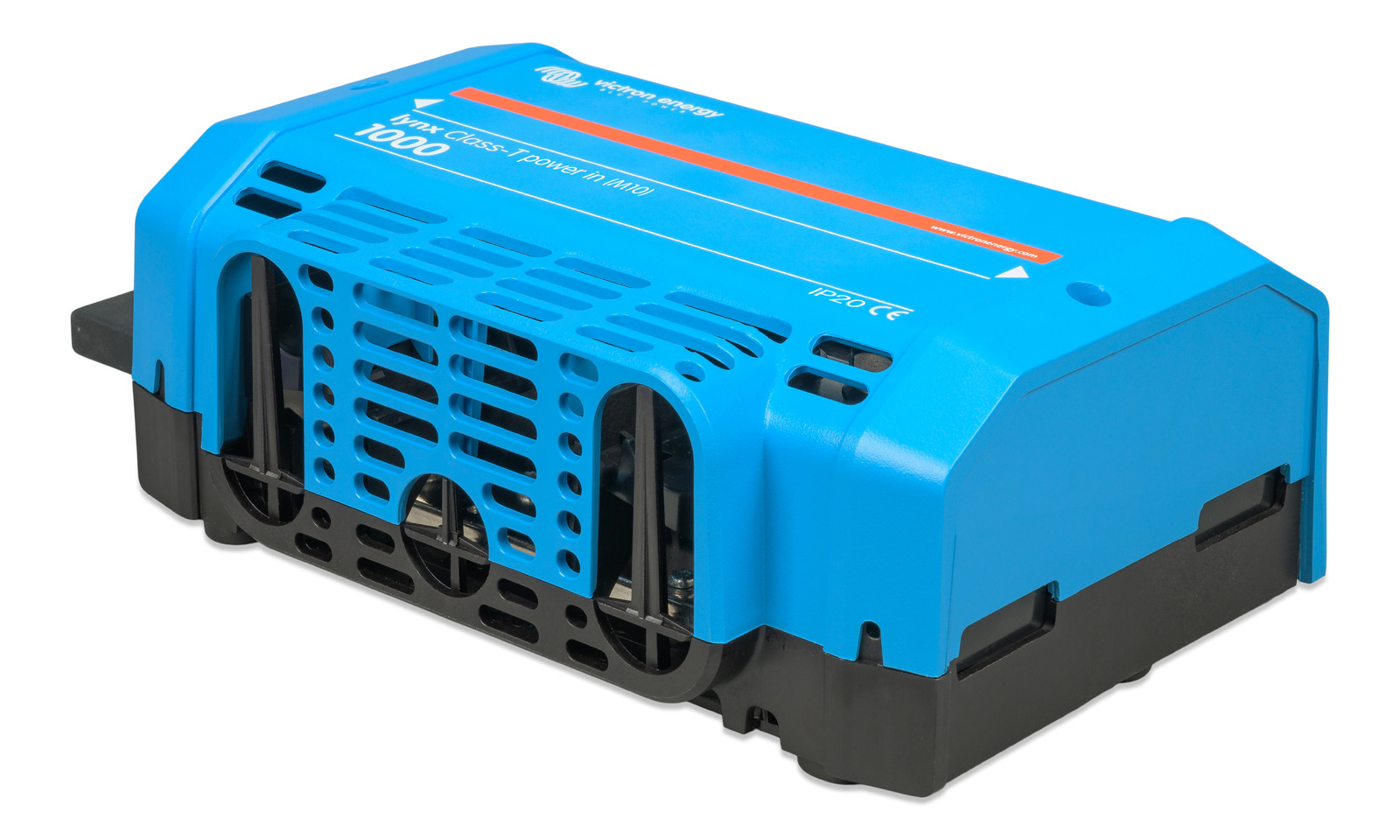

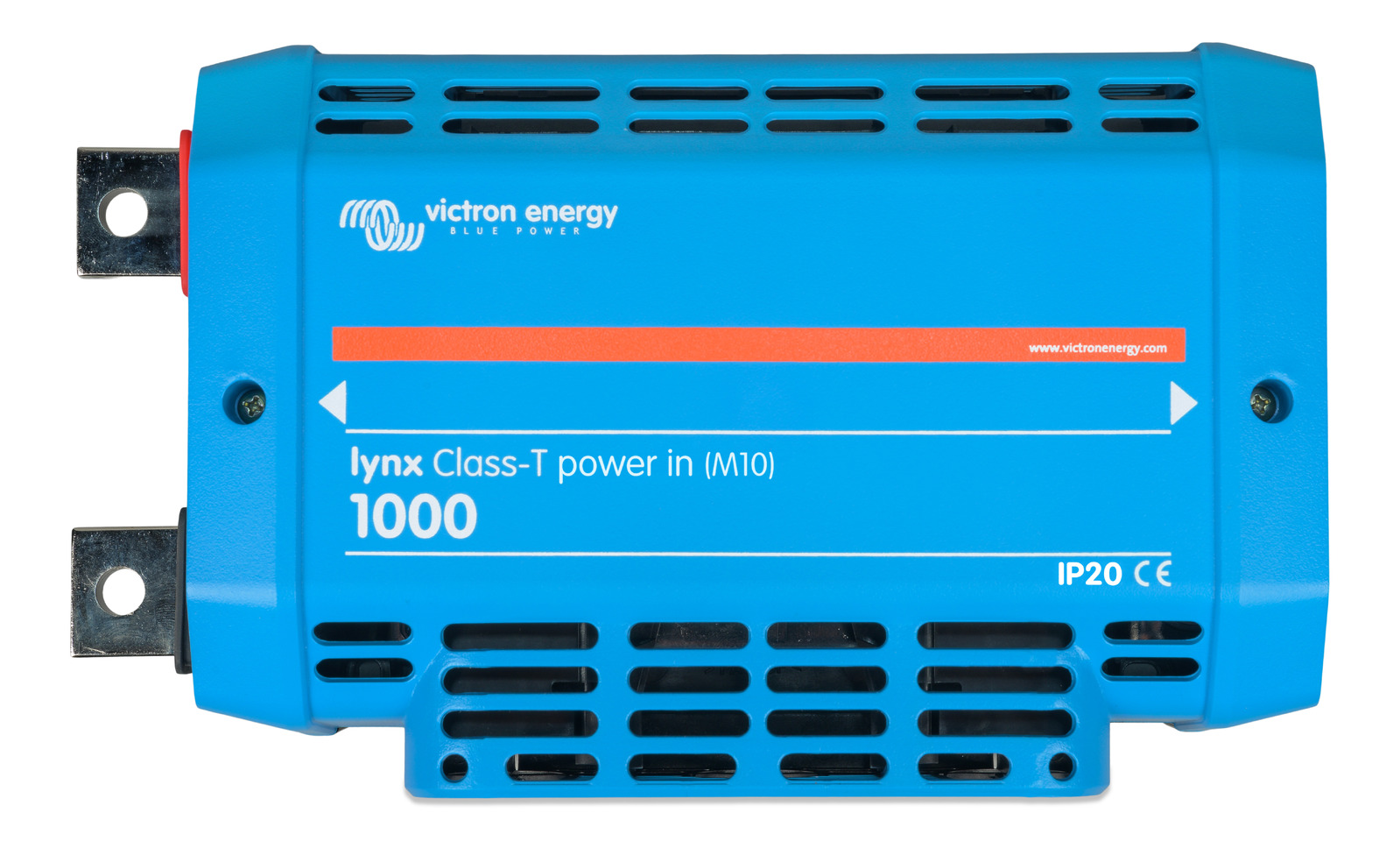

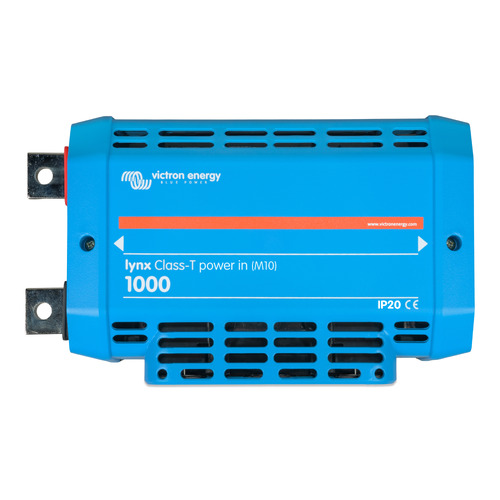

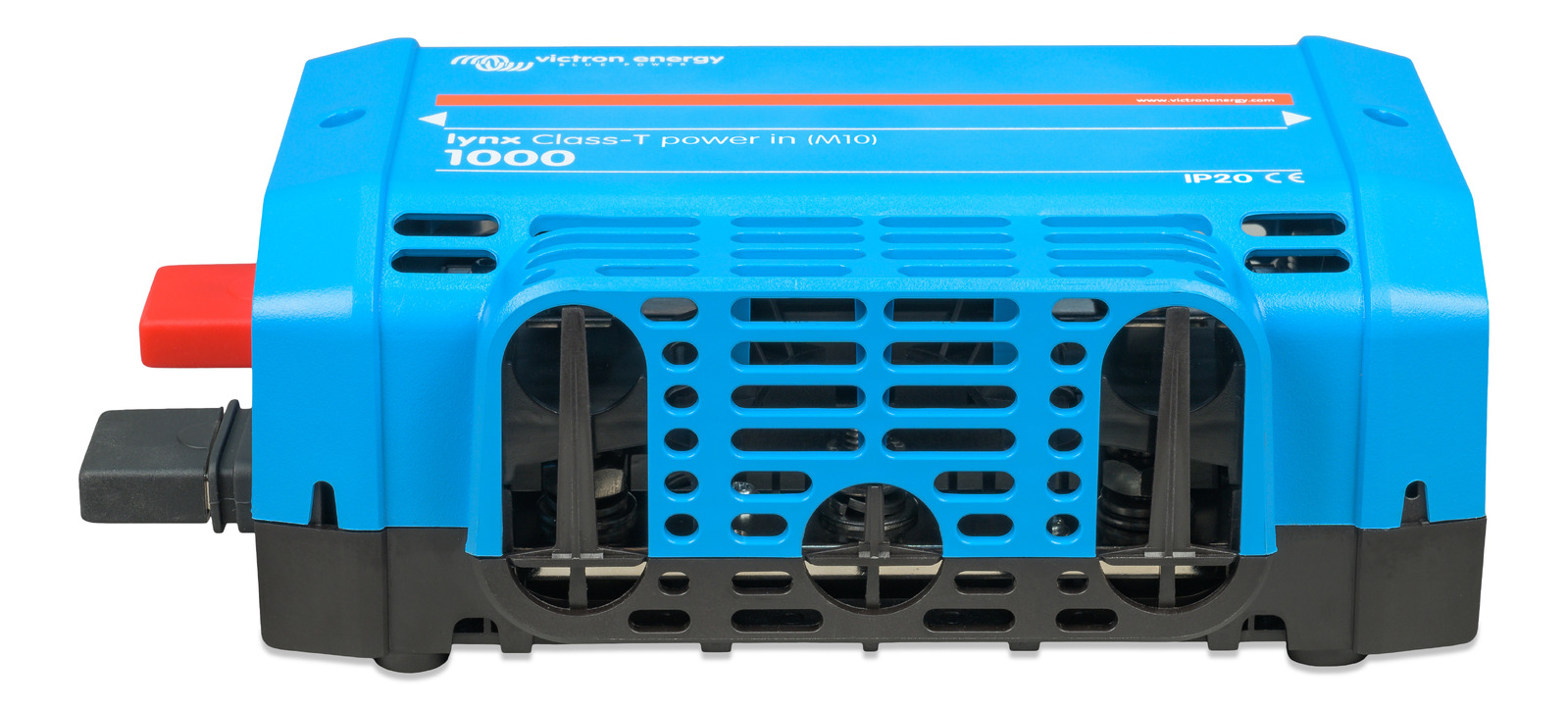

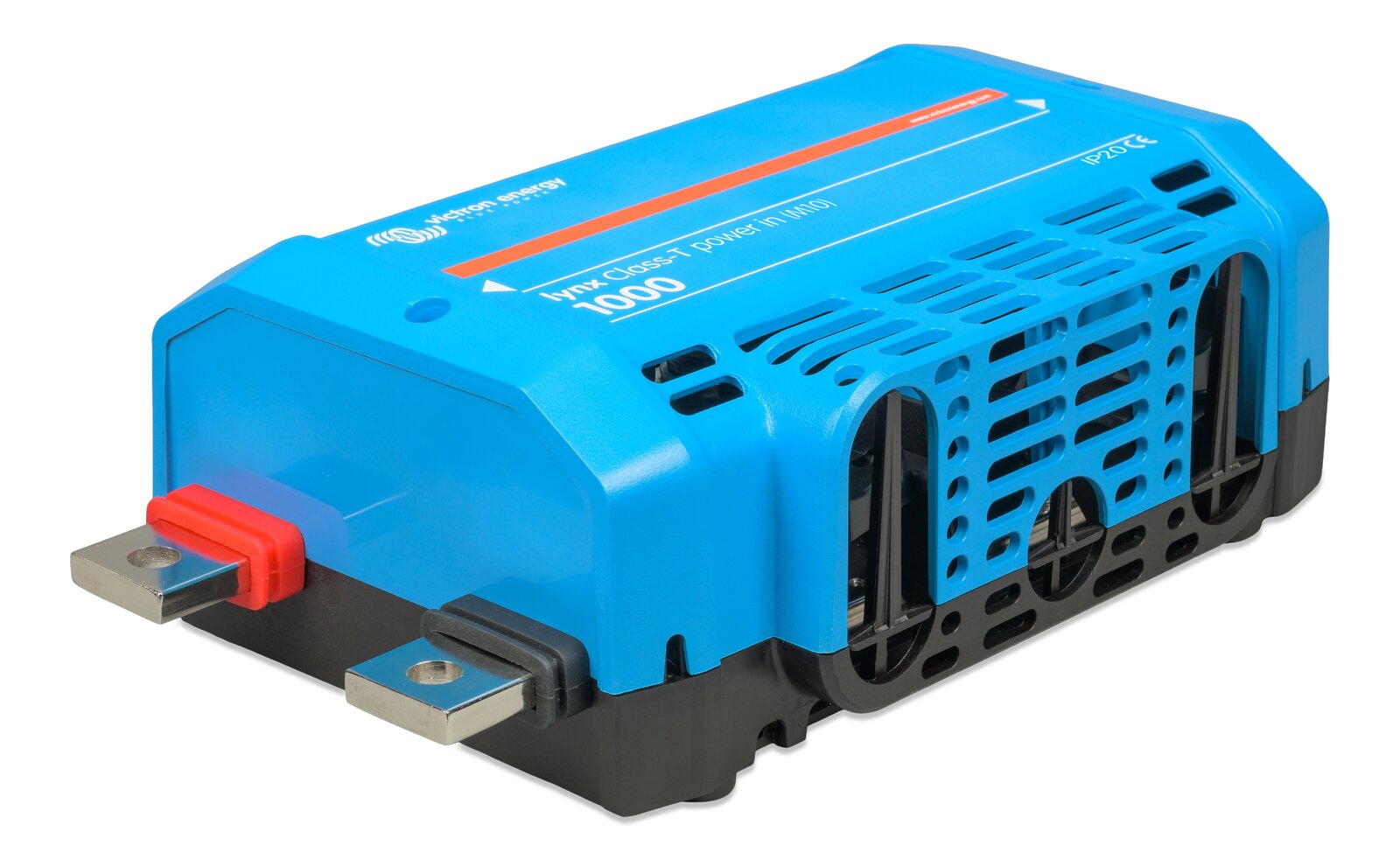

The Lynx Class-T Power In connects and fuses up to two strings of Lithium batteries.

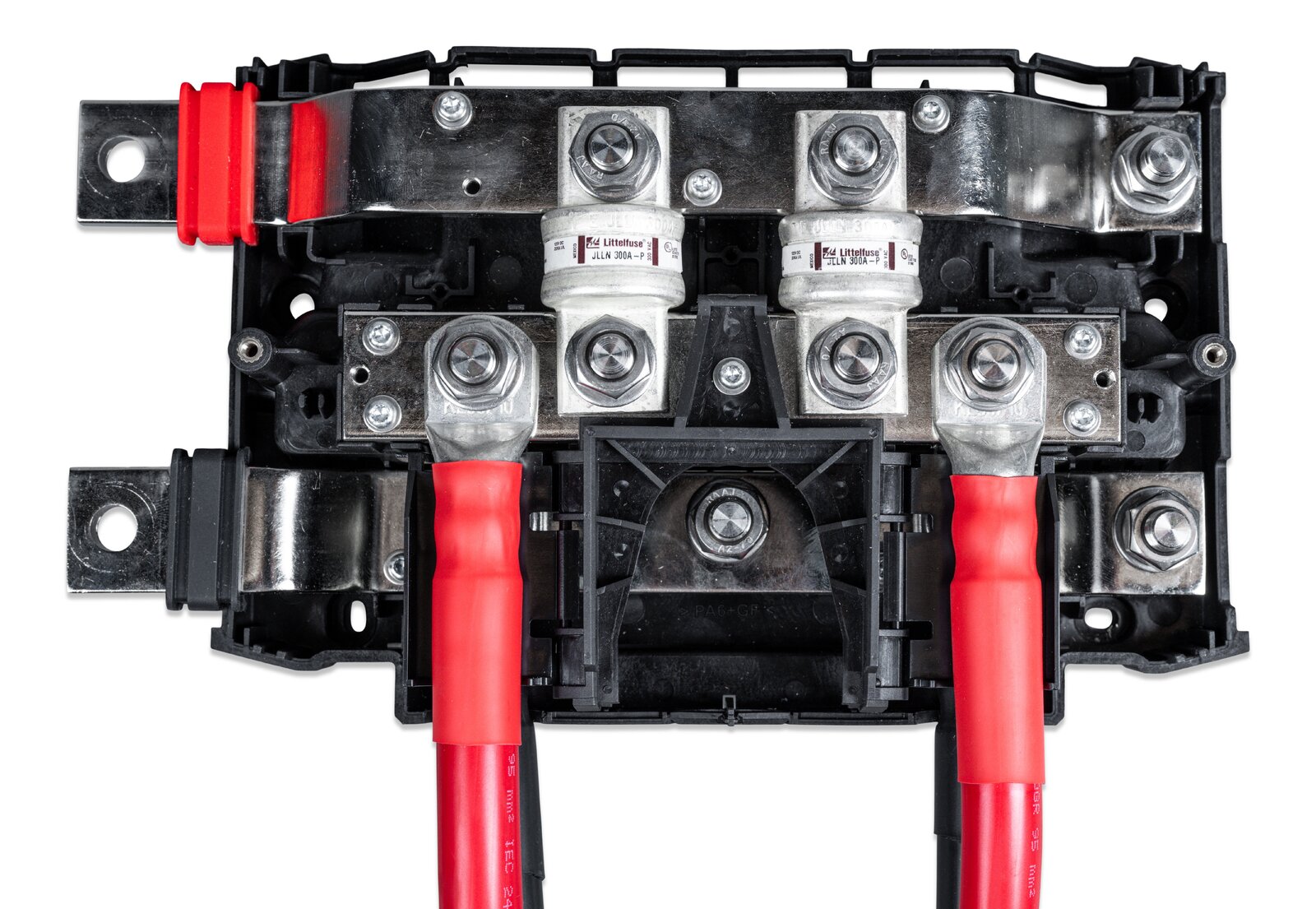

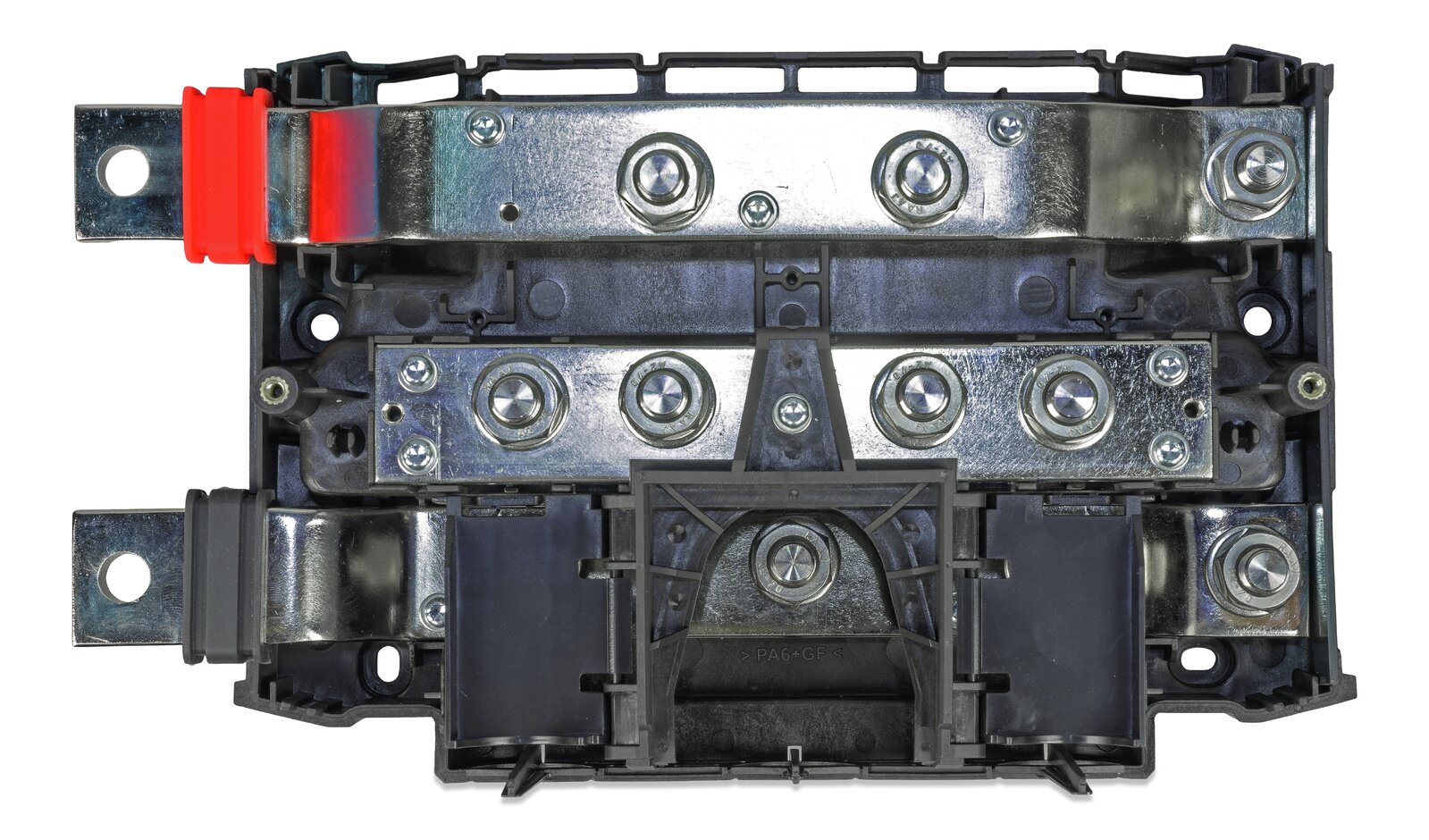

It features a positive and negative busbar, and connections for two Class-T fuses as well as a connection to ground the DC system.

The Class T-fuses, available up to 400A, must be purchased separately.

For installations using three or more strings of Lithium batteries, use multiple Lynx Class-T modules.

As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.

The Lynx Distributor, Lynx Shunt VE.Can and the Lynx Power In are rated for a nominal current of 1000A for 12, 24 or 48 System
voltages.

See the table below for an idea of how much power the Lynx modules are rated at different voltages. The power rating will
indicate how big the connected inverter/charger system can be. Remember that if inverters or inverter/chargers are used, the
batteries will power both the AC and DC systems. Also, be aware that a Lynx Smart BMS or a Lynx Ion (now discontinued) can
have a lower current rating
