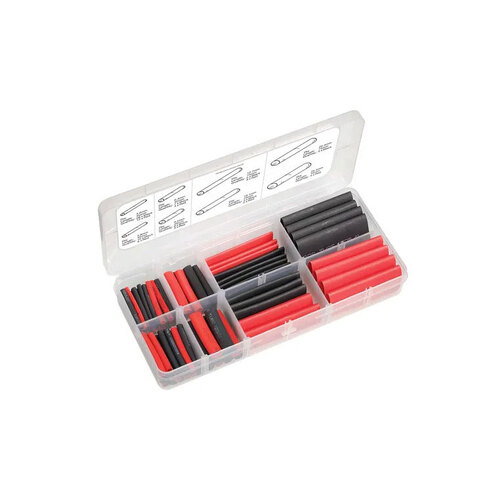

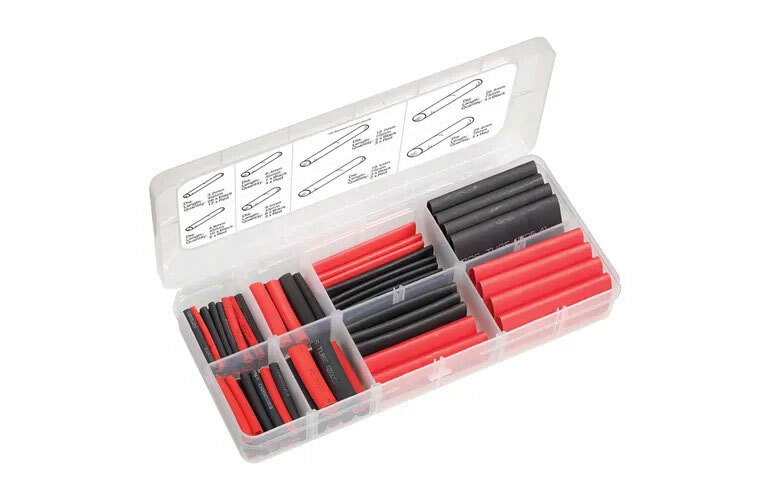

88 Piece Dual Wall Heat shrink Tubing Assortment Comprising of:

  • 70mm Lengths
    • 16 x 3mm Black
    • 16 x 3mm Red
    • 12 x 6mm Black
    • 12 x 6mm Red
    • 7 x 9mm Black
    • 7 x 9mm Red
    • 5 x 12mm Black
    • 5 x 12mm Red
    • 4 x 18mm Black
    • 4 x 18mm Red

Heat shrink is a shrinkable plastic tube used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wire conductors, connections, joints and terminals in electrical engineering. It can also be used to repair the insulation on wires or to bundle them together, to protect wires or small parts from minor abrasion, and to create cable entry seals, offering environmental sealing protection.

Provides a Permanent Waterproof Barrier & Environmental Seal for Electrical Connections.

Used as an Alternative to Molded Parts and Cable breakouts

High Shrink Ration enables insulation of cables with connectors of various sizes-Suitable for use in Telecommunication, Industrial Equipment, Automotive Marine and Avionics Industries.

Product:
Heat Shrink - RDW Dual Wall Kit

Applications:

  • Provides permanent waterproof barrier & environmental seal for electrical connections
  • Used as an alternative to moulded parts and cable breakouts.
  • High shrink ratio enables insulation of cables with connectors of various sizes.
  • Suitable for use in telecommunication, industrial equipment, automotive and avionics applications.

General:

  • Shrink ratio 3:1
  • UL Listed File E523862
  • Flame retarded and self extinguishing
  • Dielectric strength 15kV/mm
  • Resistance to chemical, copper corrosion and fungus
  • UV stabilised
  • Operating temperature range -55°C to +85°C
  • RoHS compliance
SKU HSDWKIT
Barcode # HSDWKIT
Brand Radiform
Shipping Weight 0.2500kg
Shipping Width 0.130m
Shipping Height 0.035m
Shipping Length 0.230m
Shipping Cubic 0.001046500m3
