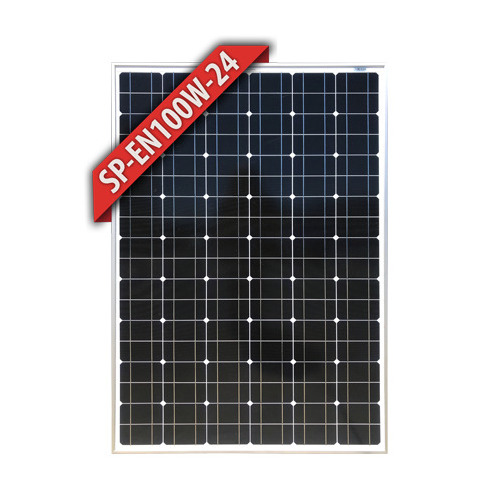

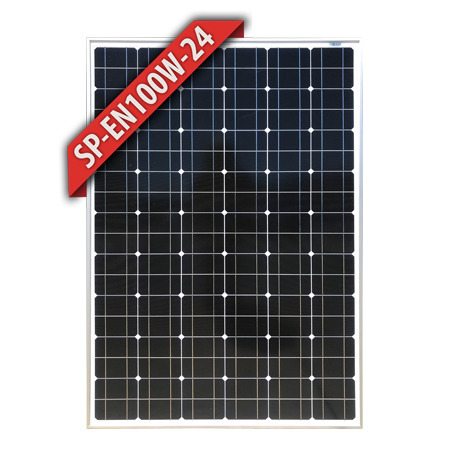

Solar Panel Enerdrive SP-EN100W-24 - 100 Watt - 1010 x 670 x 30mm - 8.1KG

Enerdrives 100W Fixed Solar Panels are 43+VDC open circuit and are well suited to 12/24v installations (or 48v by series connections of panels).

PLEASE NOTE: SP-EN100W-24V are suitable for Charging 24V Battery System when using a PWM Solar Controller. For Charging a 12V Battery System a MPPT Solar Controller MUST be used.

A fly lead cable is provided for easy connection of the 10 & 20w panels while the larger panels have MC4 compatible solar cable connectors included.

Enerdrive stocks a full range of spare cables. With a mass of factories developing solar panels around the world, the biggest choice is ‘Where to buy” & even more importantly “What quality and support am I getting”. Enerdrive can become your single point contact for all things relating to solar products, warranty and importantly that same level of support that we have provided
for many years with all Enerdrive products.

If you buy from Enerdrive you will ALWAYS be dealing with Enerdrive for warranty, and they won’t hide behind supplier warranty statements or clauses. Enerdrive’s volume will allow them to ensure that any quality or warranty issue can be dealt with LOCALLY.

RATED VOLTAGE: 24V
CELL TYPE: Monocrystalline
RATED POWER: 100W
OPEN CIRCUIT (VOC): 43.4V
SHORT CIRCUIT CURRENT (ISC): 3.09A
PEAK POWER VOLTAGE (VMP): 36.0V
PEAK POWER CURRENT (IMP): 2.78A
PANEL DIMENSIONS (MM): 1010 x 676 x 35mm
GROSS WEIGHT (KG): 8.1KG
SKU SPEN100W24V

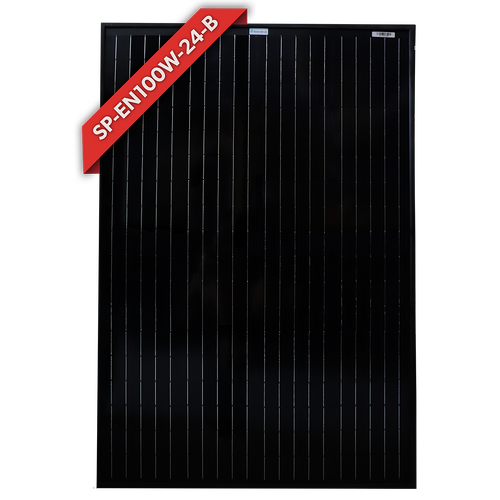

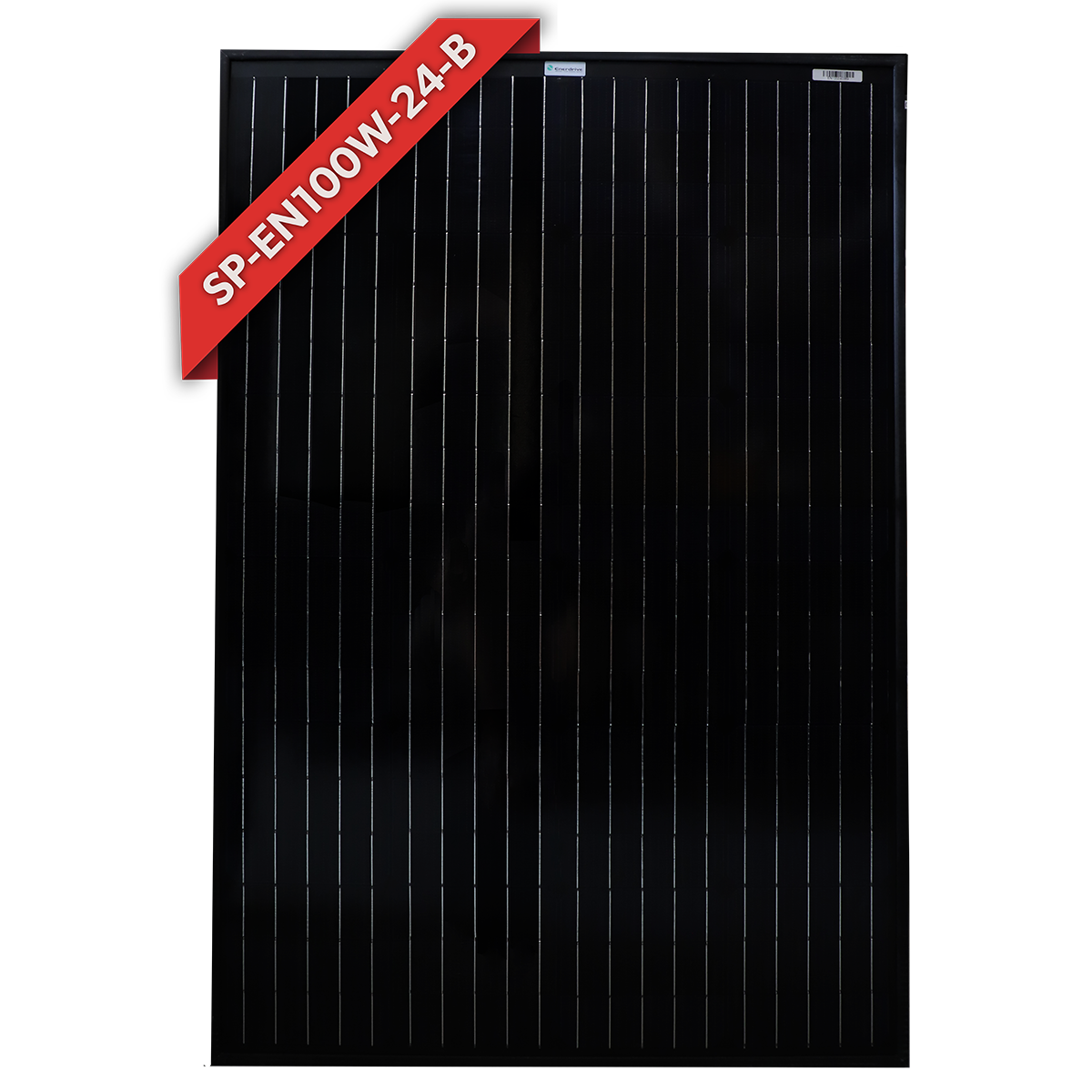

Barcode # SP-EN100W-B-24V
Brand Enerdrive
Shipping Weight 8.5000kg
Shipping Width 1.100m
Shipping Height 0.040m
Shipping Length 0.700m
Shipping Cubic 0.030800000m3
