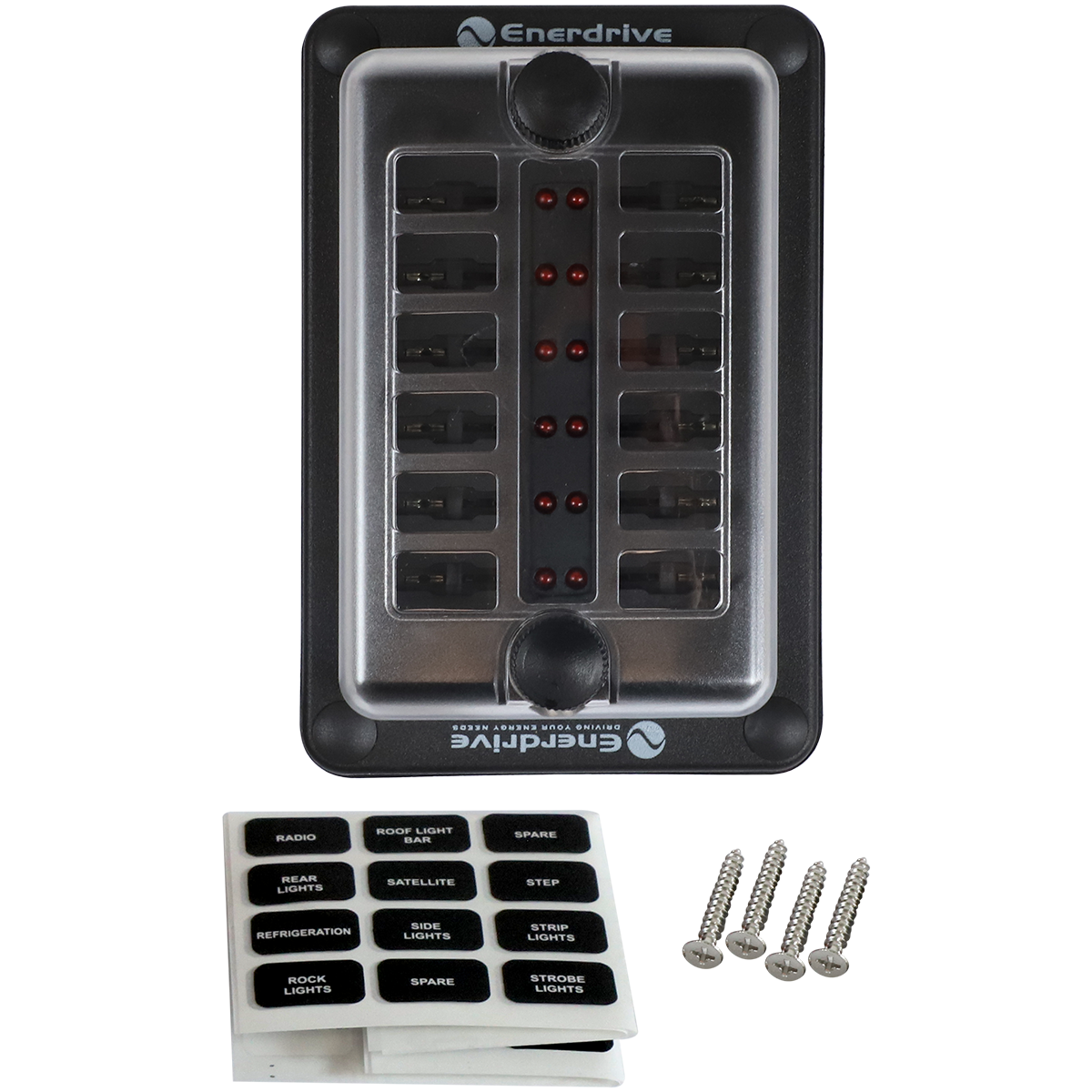

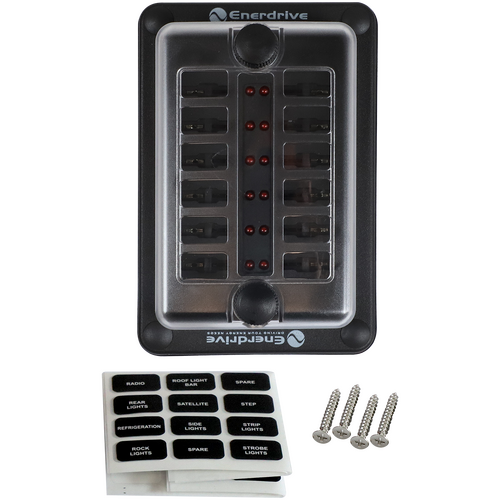

The Single Input 12 Output Rear Entry Panel Mount Fuse Block from Enerdrive is ideal for canopy installs to protect the wire in the electrical circuit.

Fuse Block Panel Mount 1 In 12 Out with LEDs

  • Panel Mount 1 in – 12 out fuse block with rear connections.
  • Suits ATO/ATC Blade Fuses
  • 32V 50Amp Max – 20Amp Max per circuit
  • Fuse blown LED’s for easy fault finding.
  • Panel mount with rear connections and cover make this fuse block ideal for canopy installs.
  • Includes two label sets.
  • Retail Packaging
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately
Circuits 12
Maximum Amperage 100A per block / 20A per circuit
Maximum Voltage 32V DC
Mounting #8 Screw (M4)
Positive Bus Input #8-32 with Flat/Spring Washers

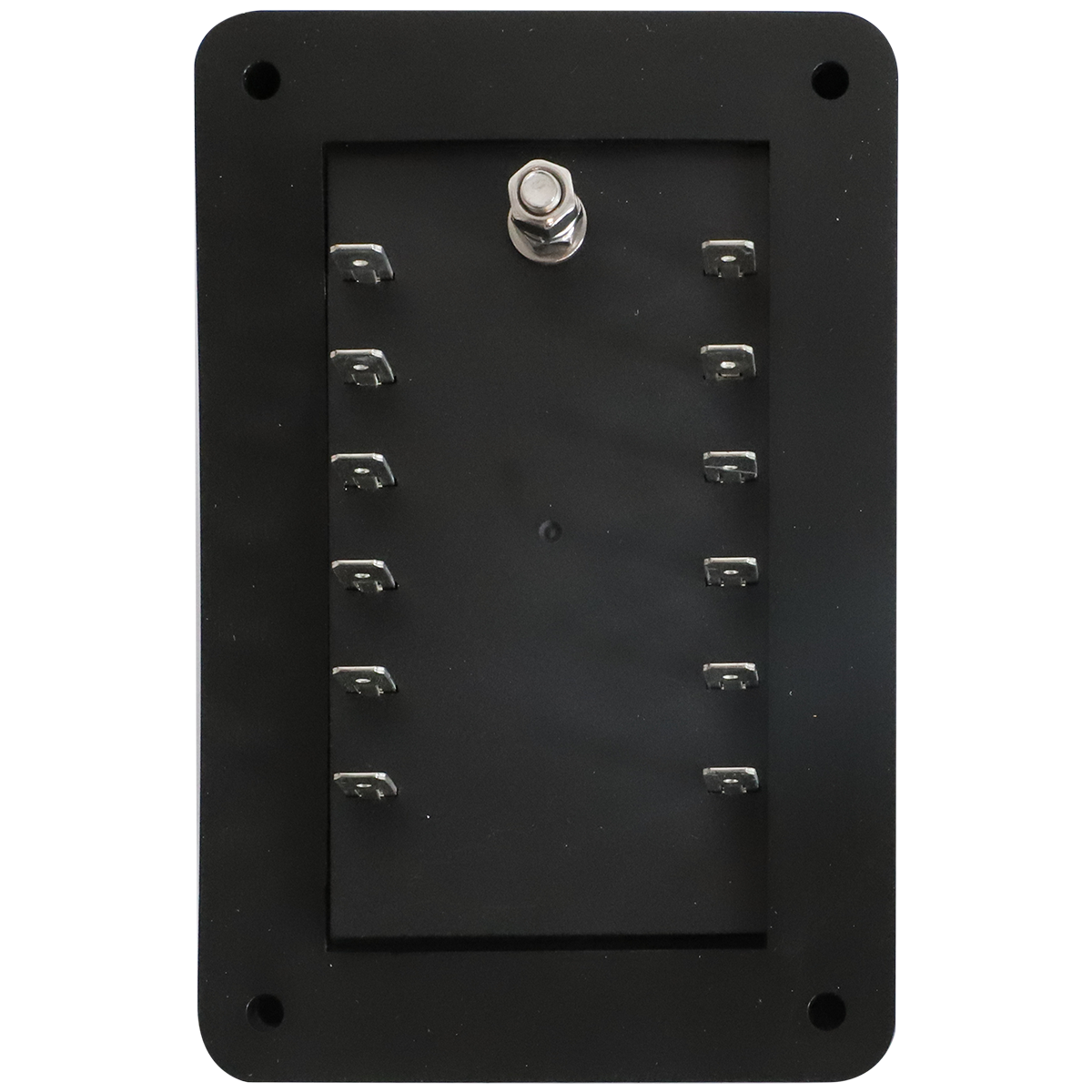

Positive Bus Output Spade Terminals, Rear
Recommended Torque 24 in-lb (2.71 N.m)
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32 Screws with captive star lock washer
Weight 0.23 kg



SKU 9342616027936
Barcode # EA-FB-03
Brand Enerdrive
Shipping Weight 0.3000kg
Shipping Width 0.210m
Shipping Height 0.065m
Shipping Length 0.120m
Shipping Cubic 0.001638000m3
